Preliminary Inspection
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 GMC Savana, 2002 Chevrolet Chevy Express, 2001 GMC Savana Special, 2001 GMC Savana Camper Special, and 2001 GMC Savana. However, it is still accessible from the selected car via links, so may be relevant.

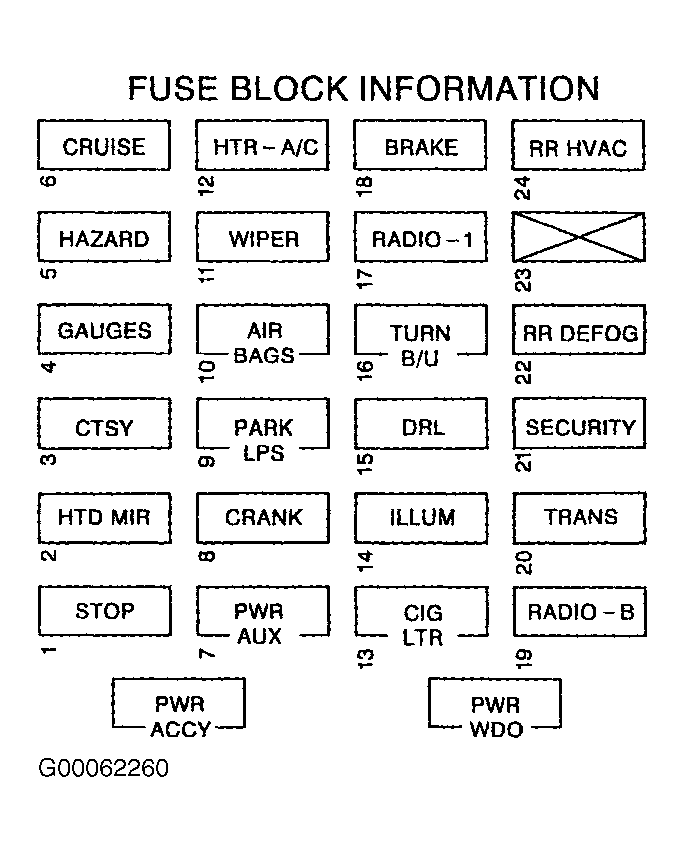

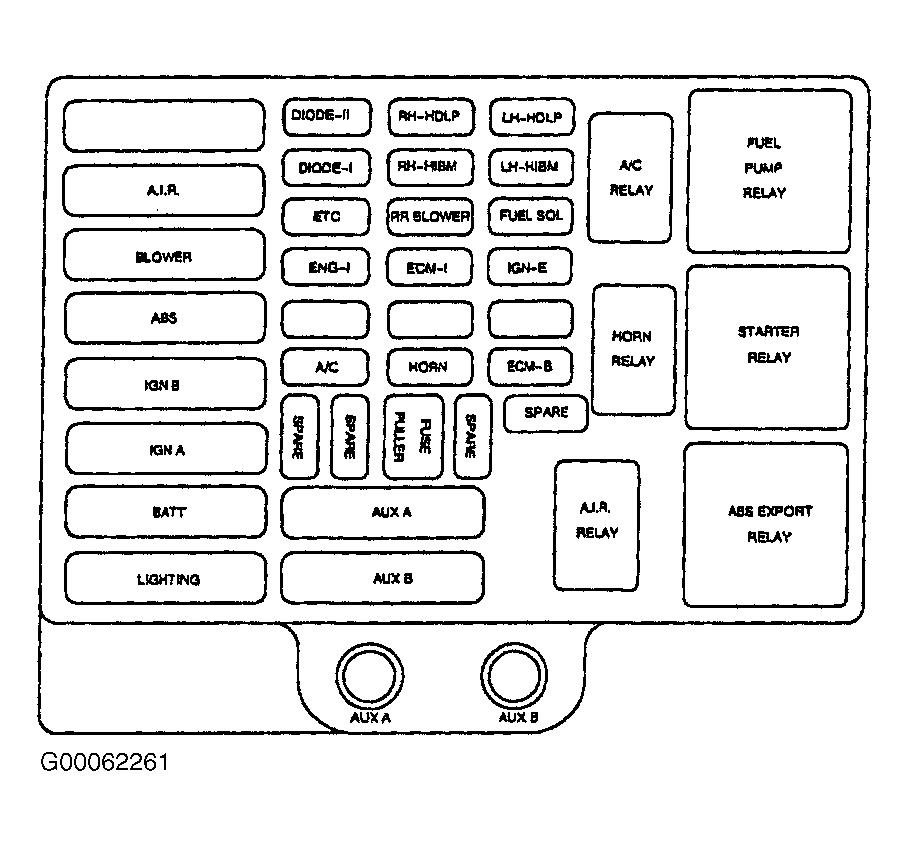

Verify customer complaint by operating suspected system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses. For fuse and/or relay identification, refer to illustrations. See Fig 1 and Fig 2 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for missing or damaged connector seals. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is found, perform self-diagnostics. See SELF-DIAGNOSTIC SYSTEM .
