Cellular Communication Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

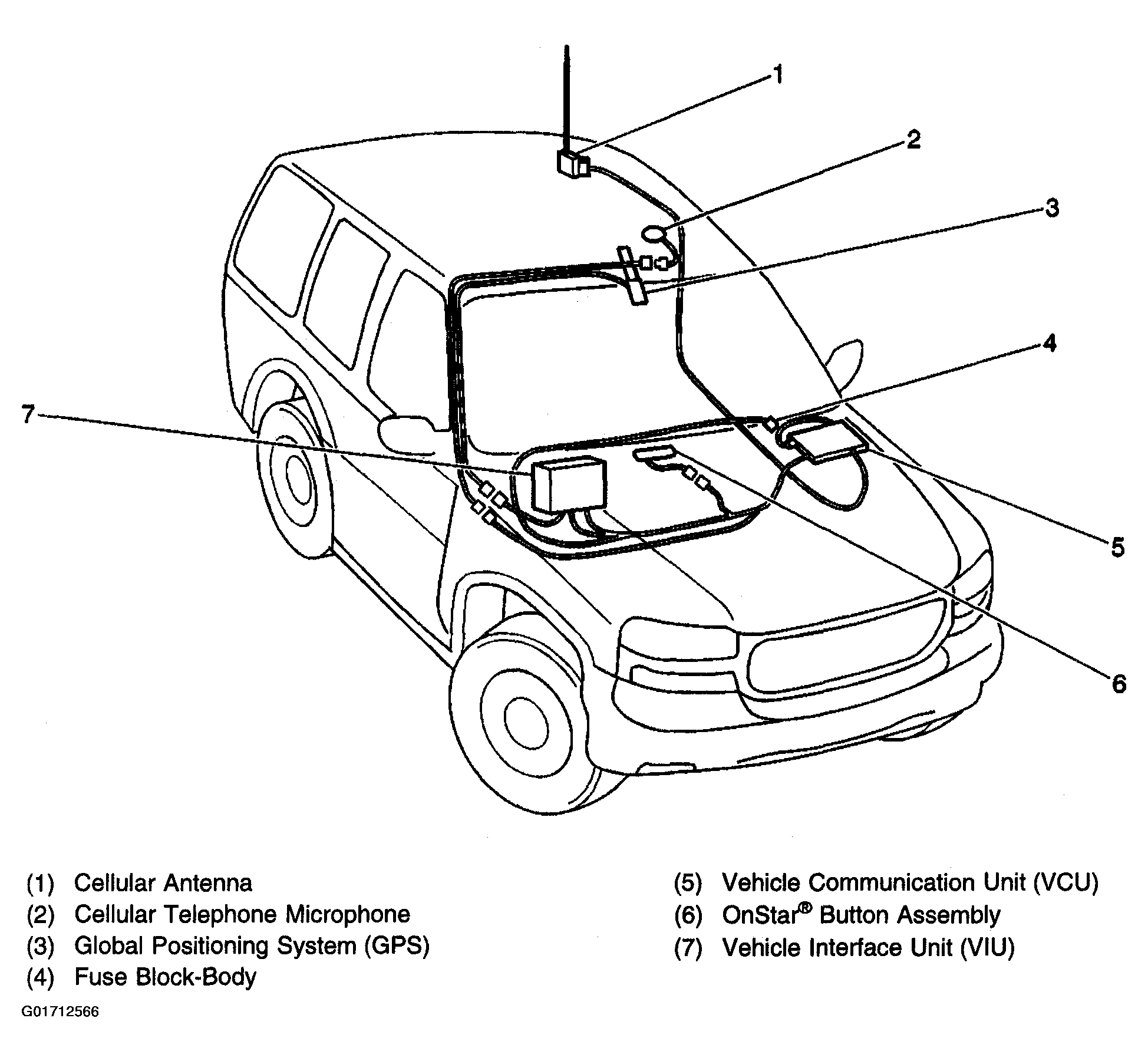

Fig 1: Locating Cellular Communication Components

Courtesy of GENERAL MOTORS CORP.

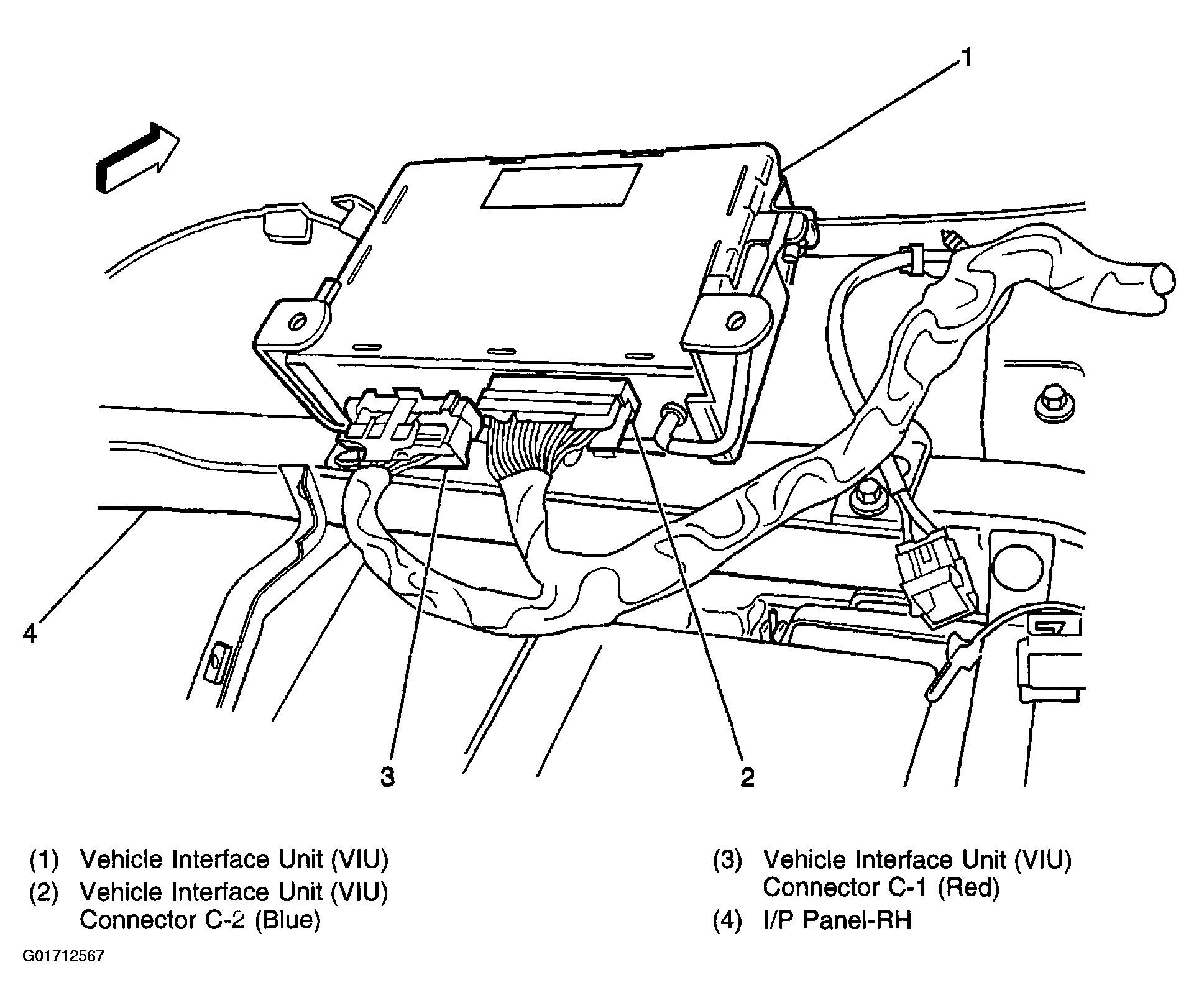

Fig 2: Locating Vehicle Interface Unit (VIU)

Courtesy of GENERAL MOTORS CORP.

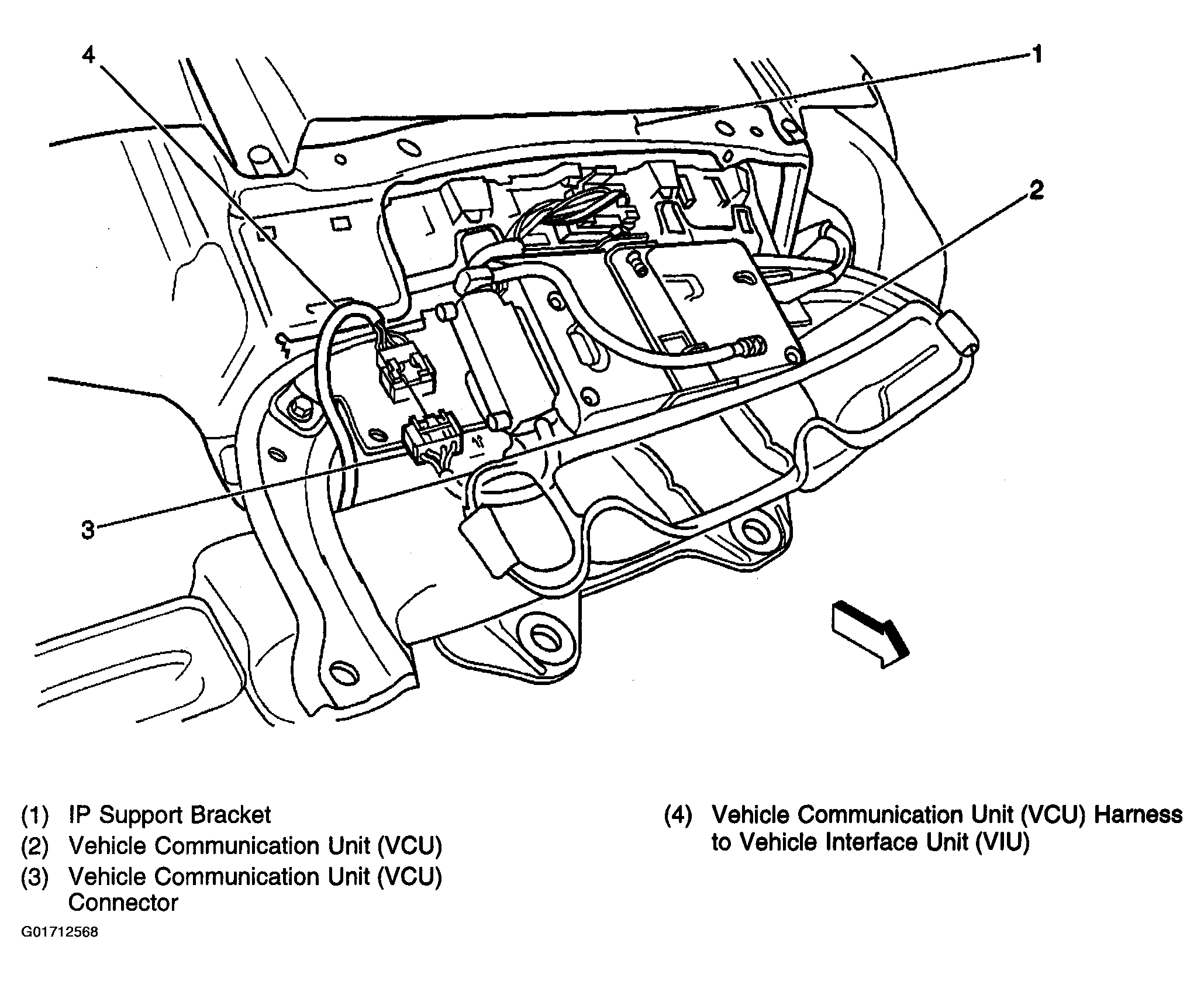

Fig 3: Locating Vehicle Communication Unit (VCU)

Courtesy of GENERAL MOTORS CORP.

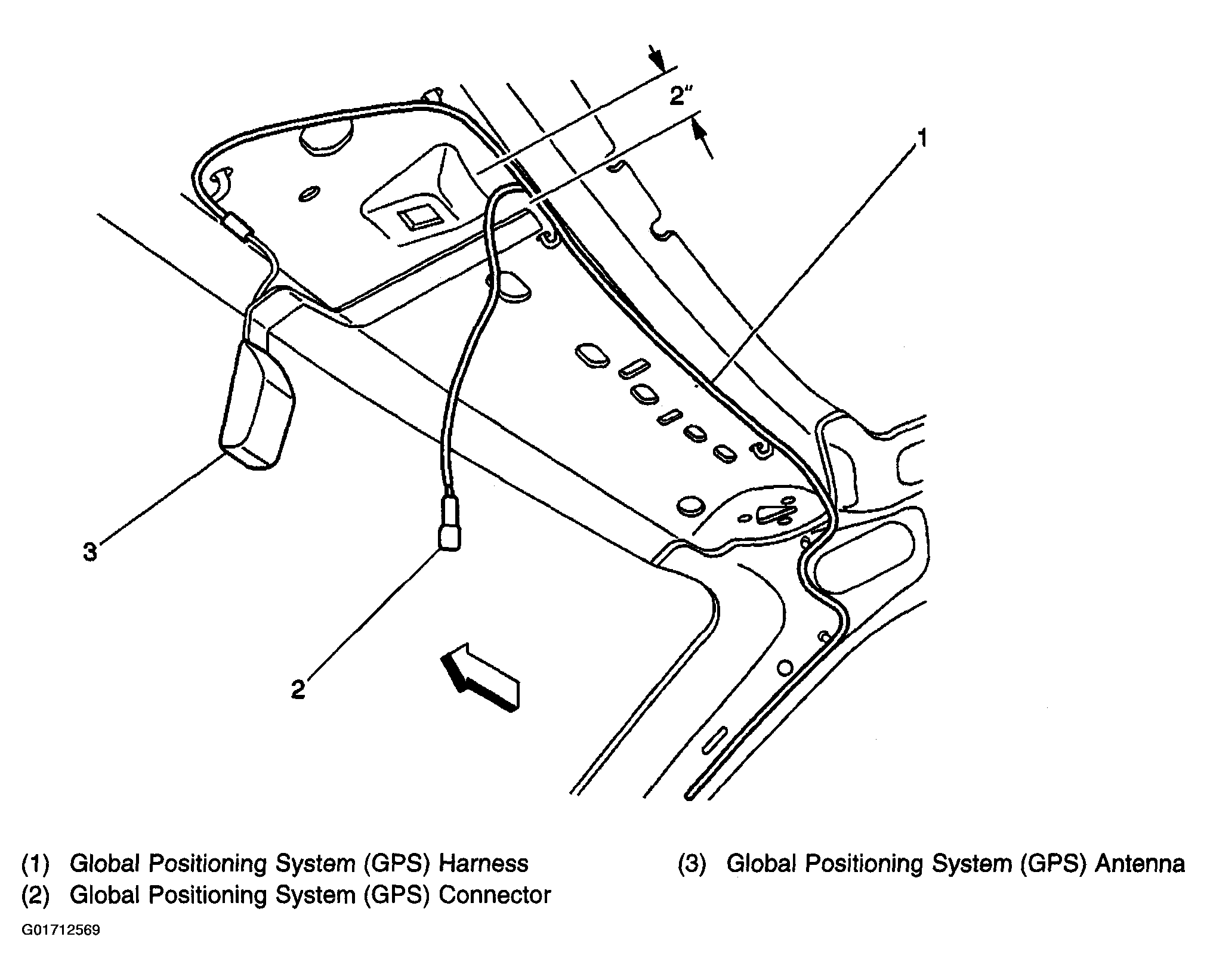

Fig 4: Locating Global Positioning Antenna (GPS)

Courtesy of GENERAL MOTORS CORP.

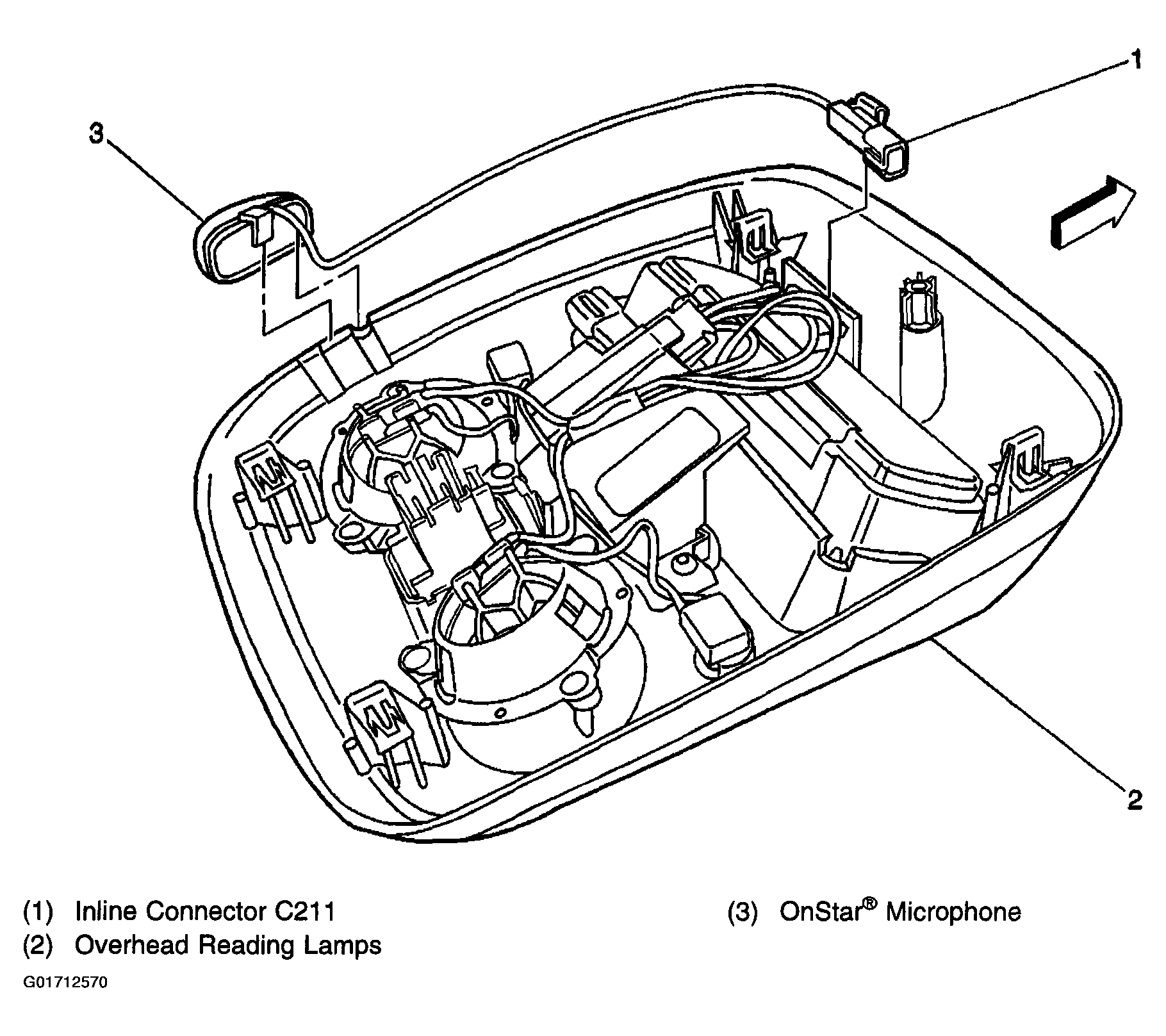

Fig 5: Locating OnStar® Microphone

Courtesy of GENERAL MOTORS CORP.

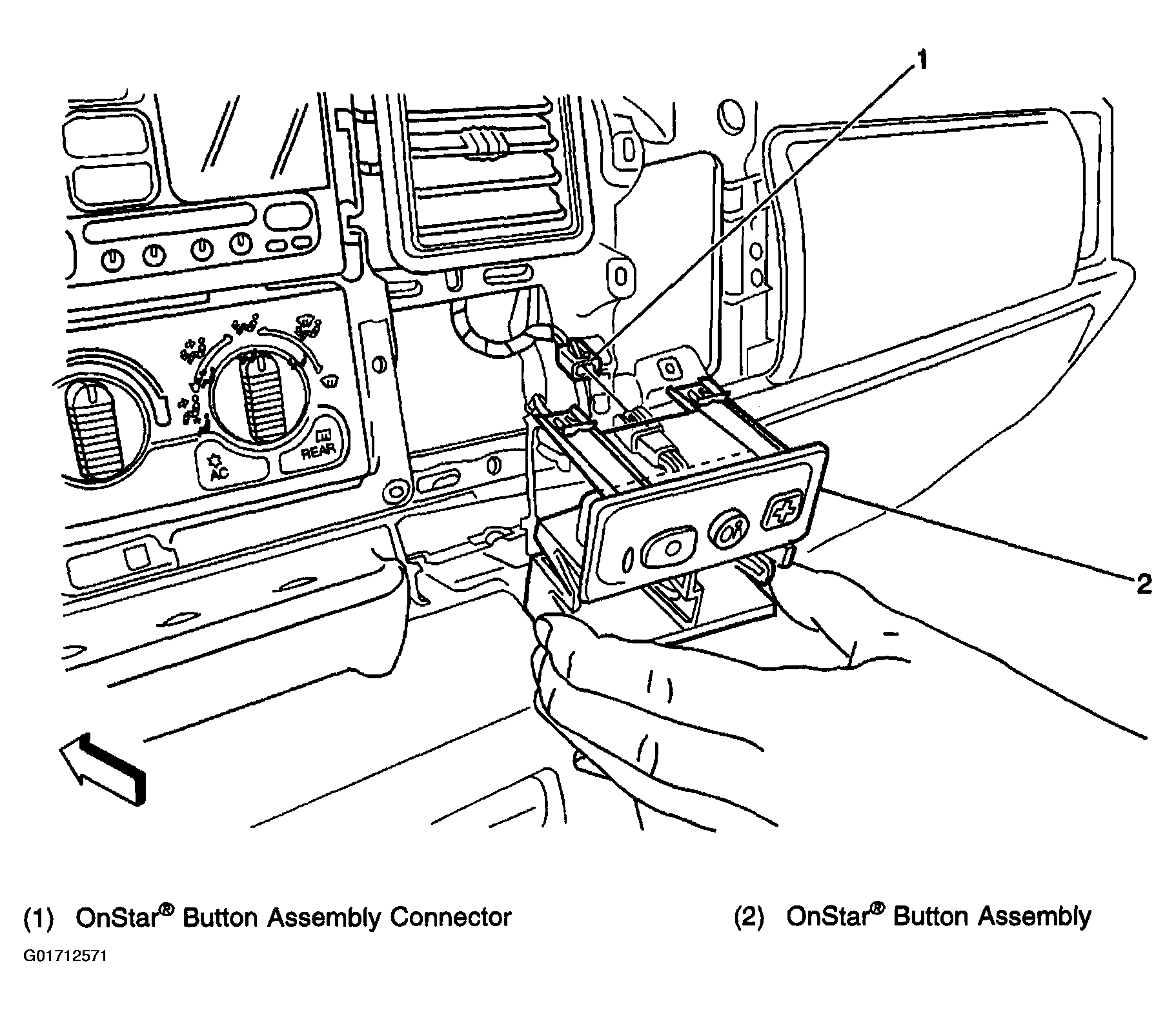

Fig 6: Locating OnStar® Button Assembly

Courtesy of GENERAL MOTORS CORP.
