Cellular Communication Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

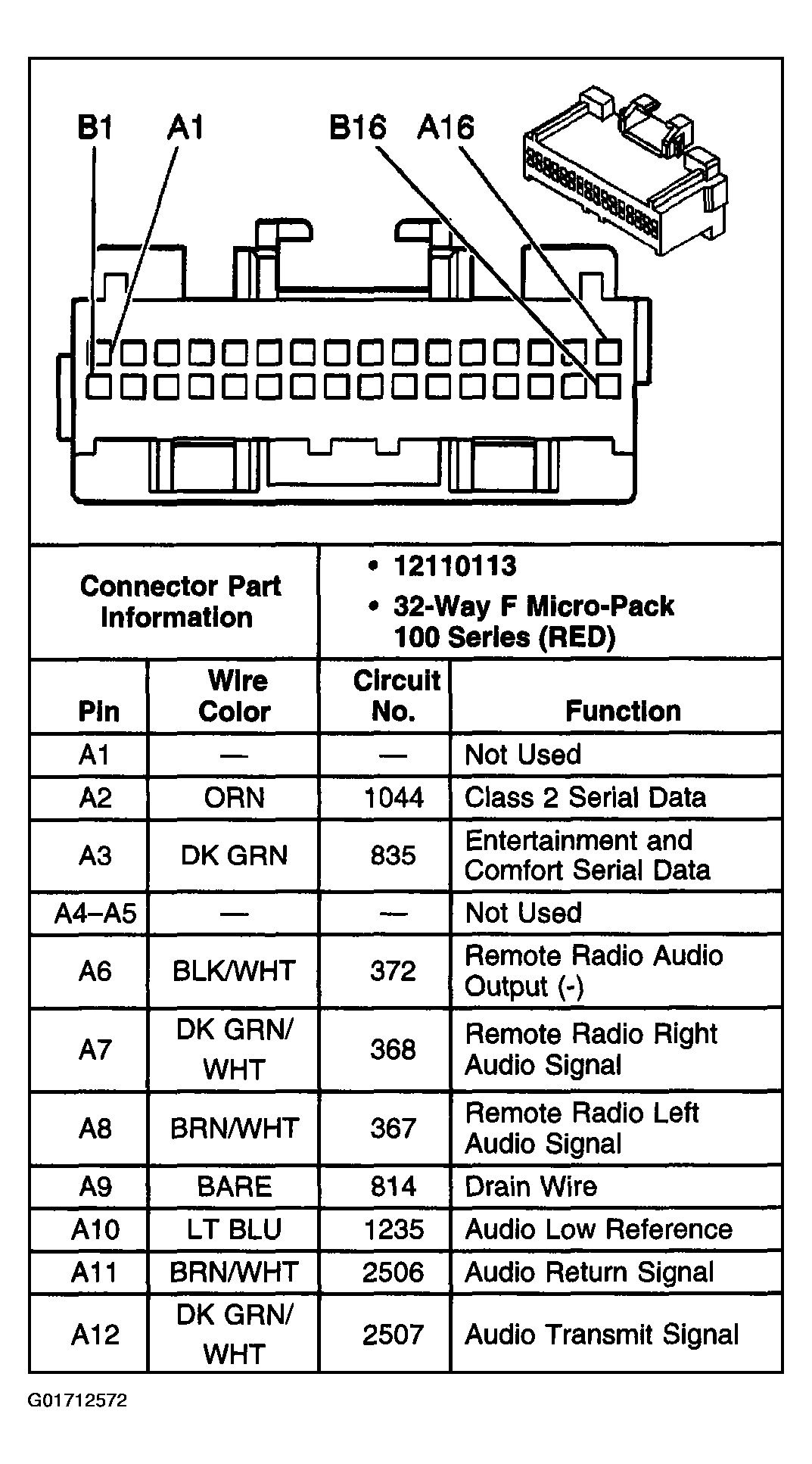

Fig 1: Identifying Vehicle Interface Unit (VIU) - C1 Connector Terminals (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

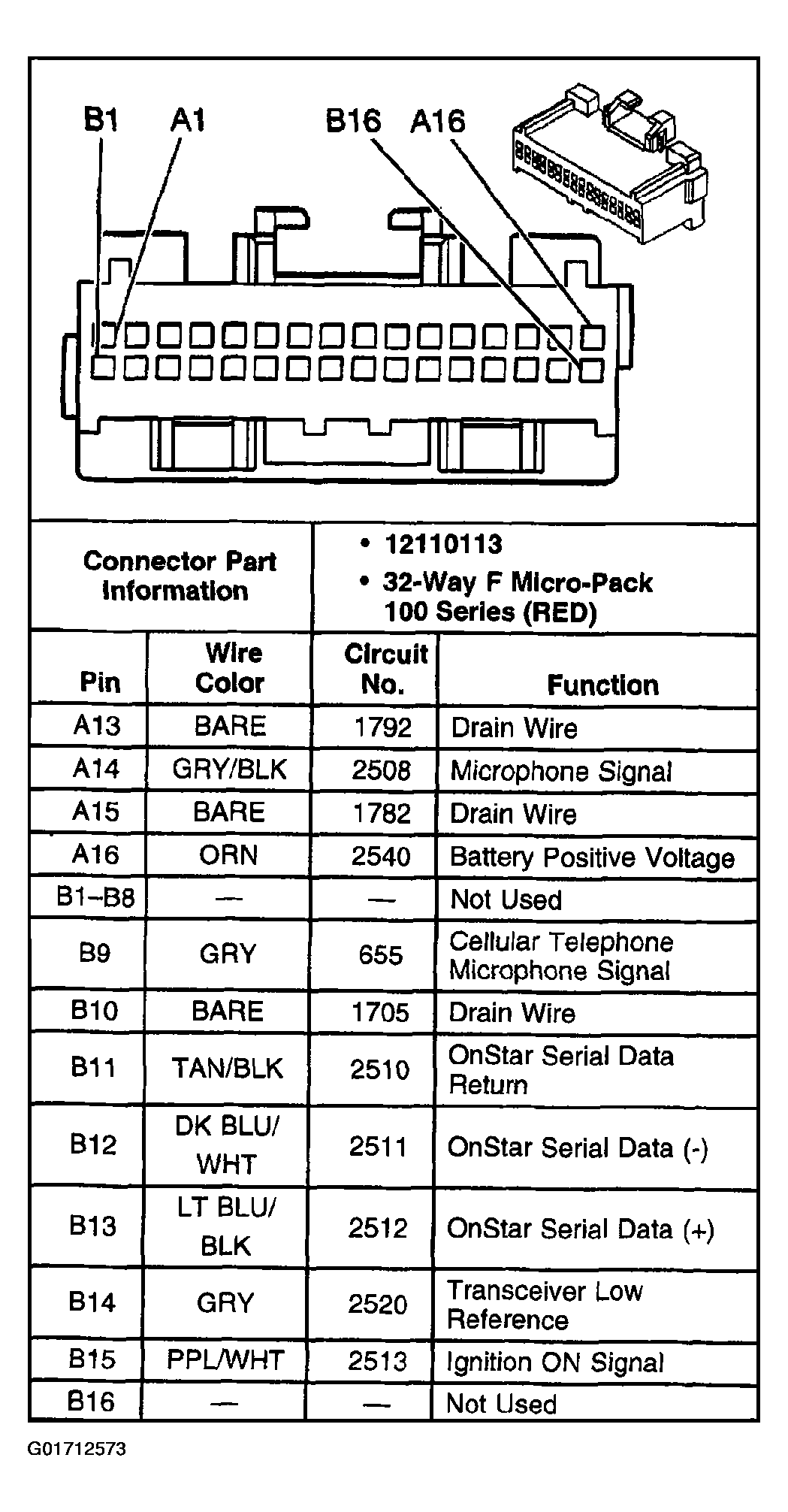

Fig 2: Identifying Vehicle Interface Unit (VIU) - C1 Connector Terminals (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

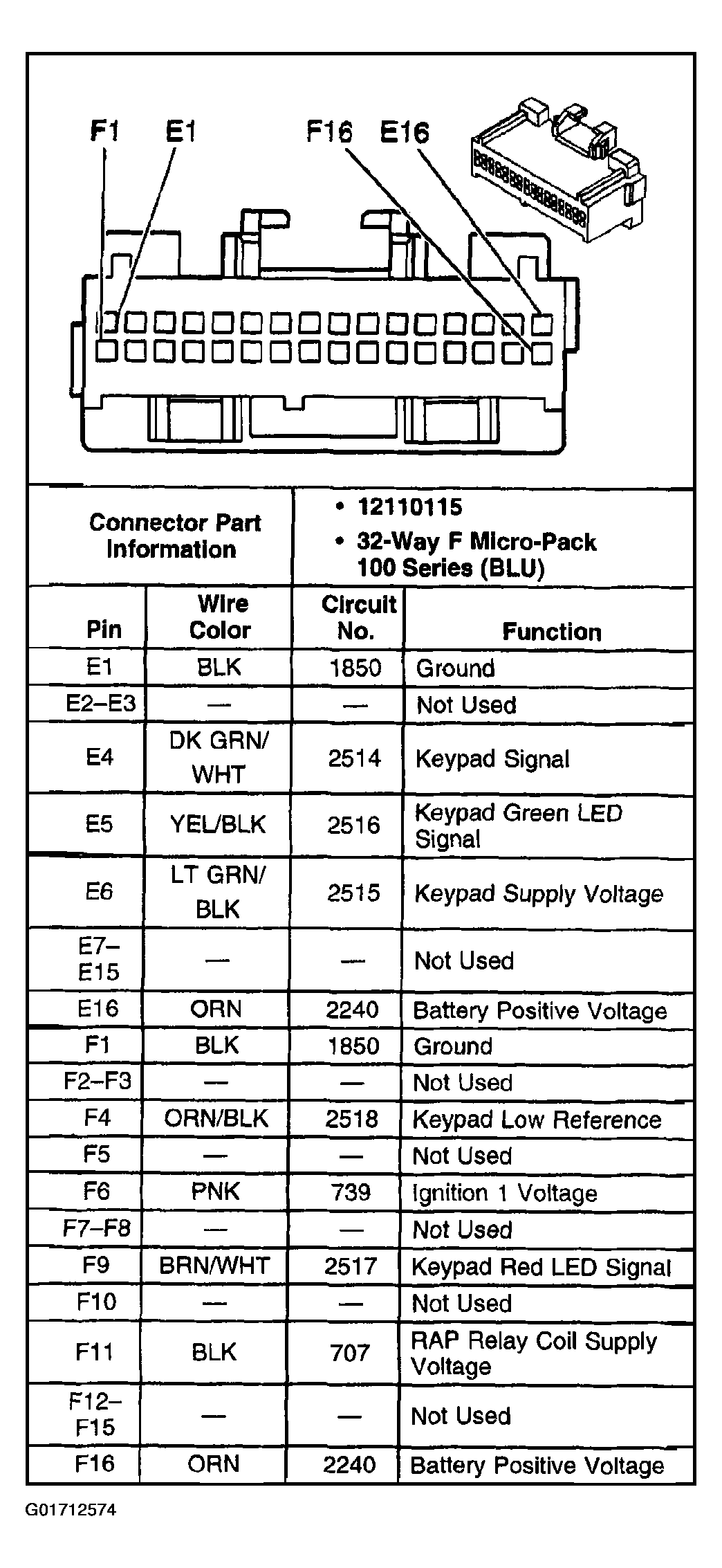

Fig 3: Identifying Vehicle Interface Unit (VIU) - C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

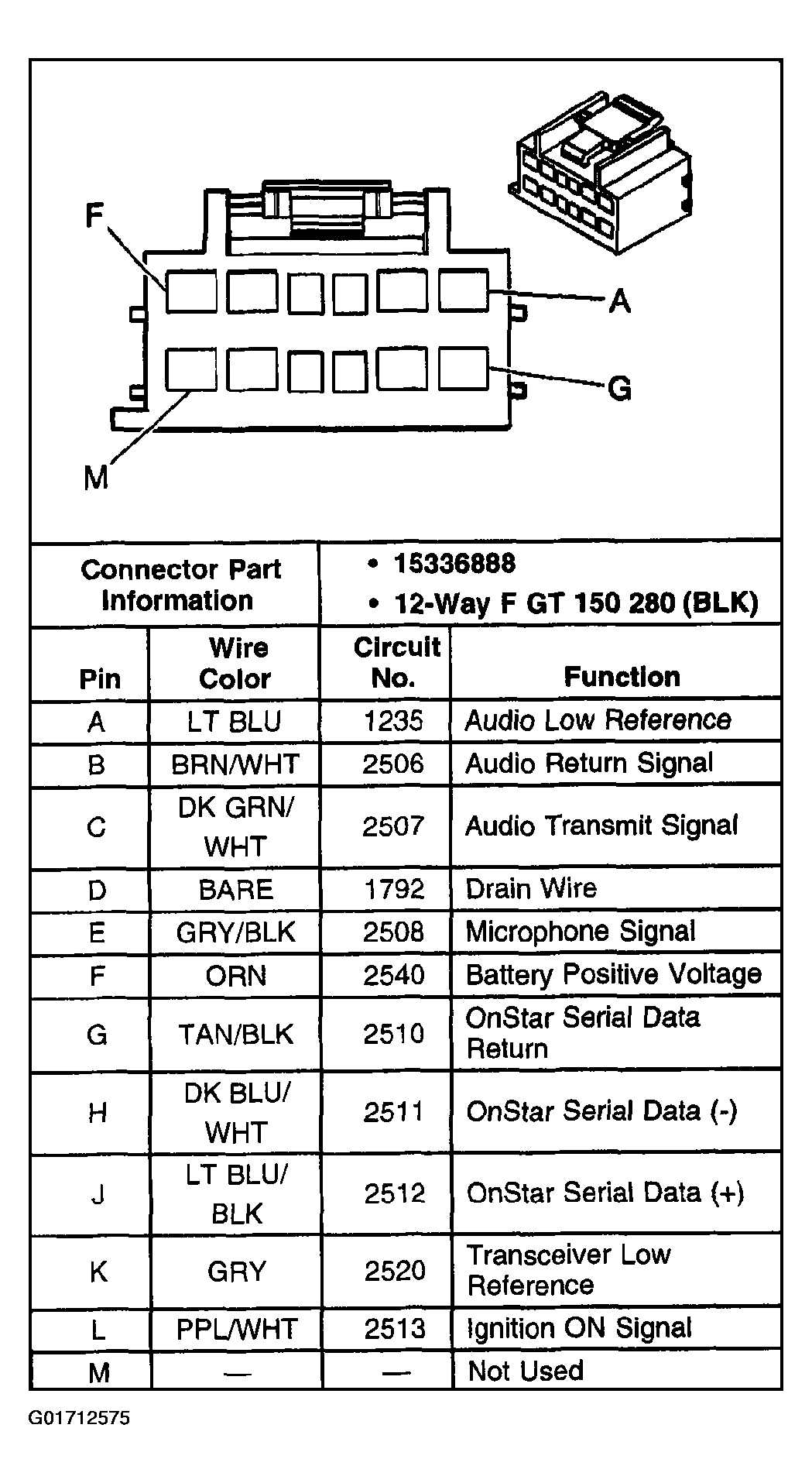

Fig 4: Identifying Vehicle Communication Unit (VCU) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

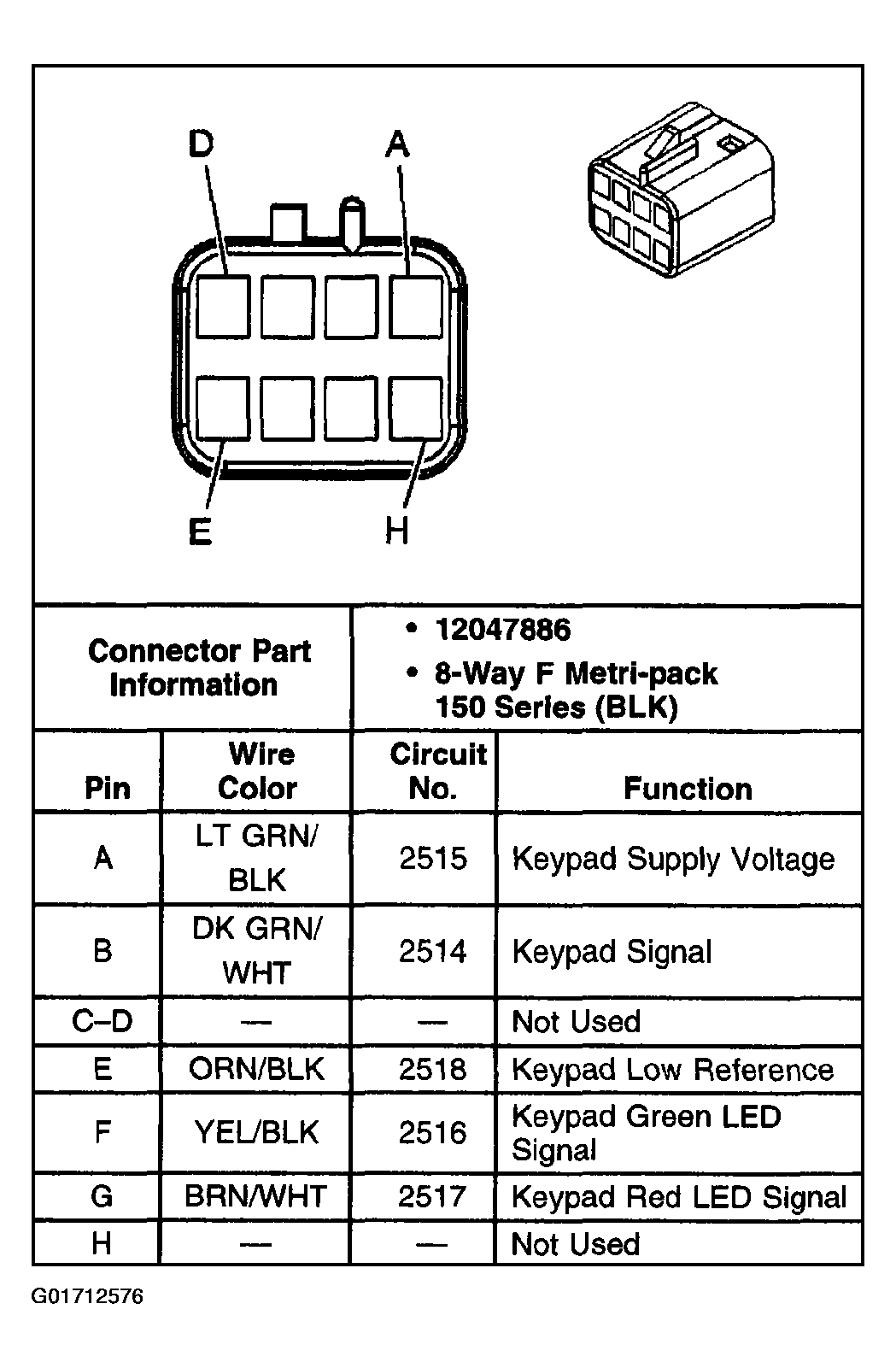

Fig 5: Identifying OnStar® Button Assembly Connector Terminals

Courtesy of GENERAL MOTORS CORP.

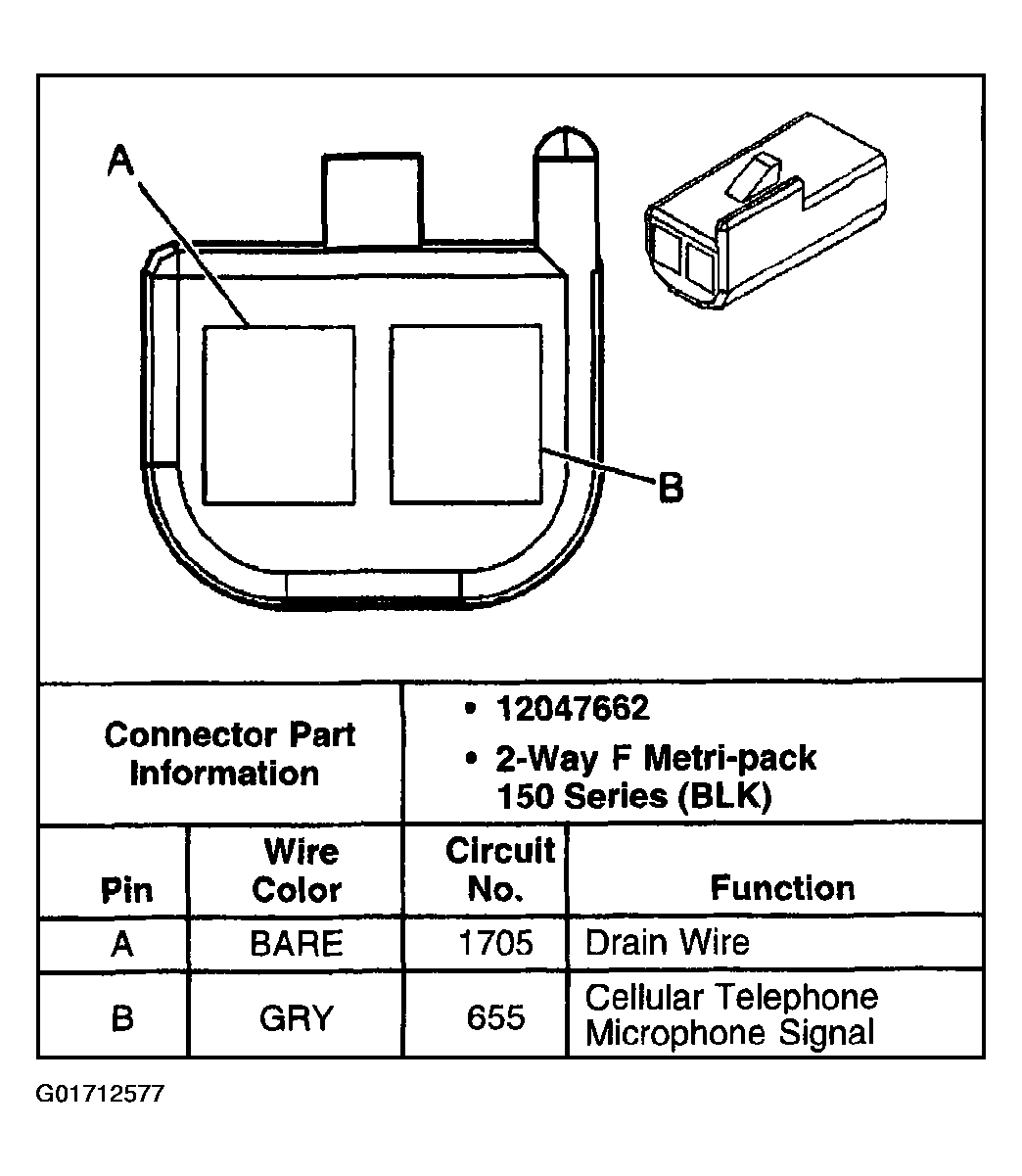

Fig 6: Identifying Cellular Telephone Microphone Connector Terminals

Courtesy of GENERAL MOTORS CORP.
