WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

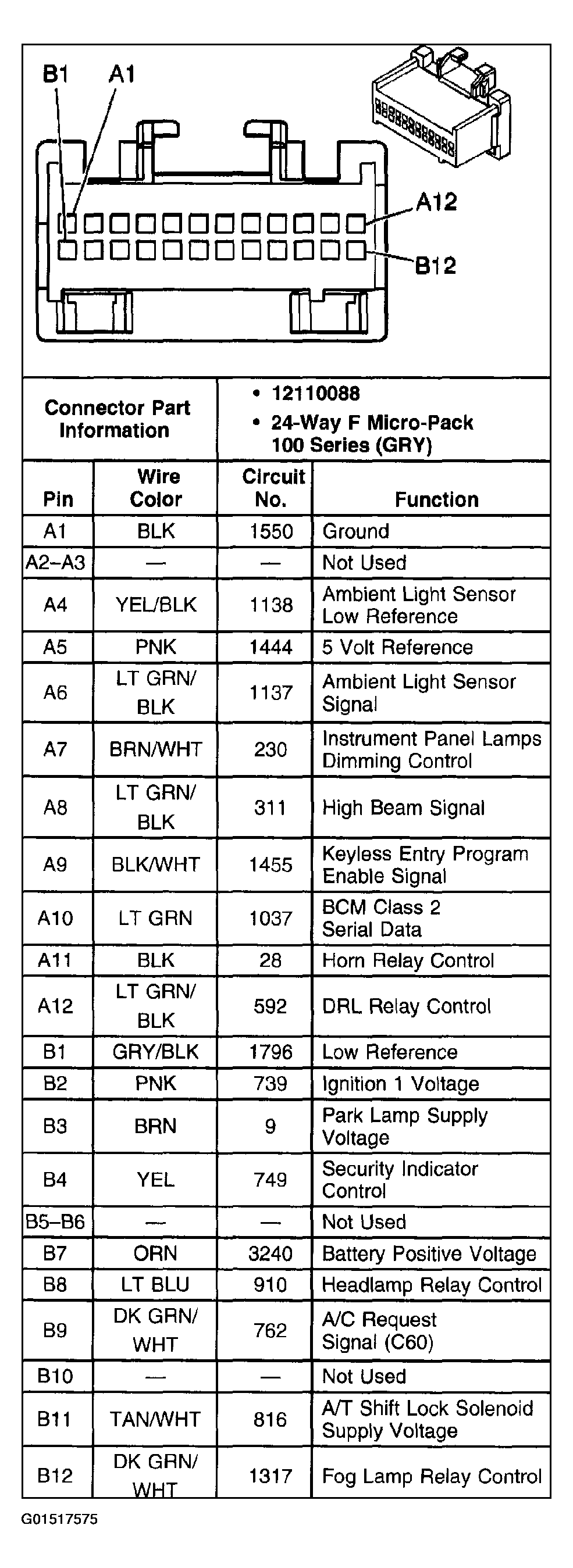

Fig 1: Identifying Body Control Module C0 Connector
Courtesy of GENERAL MOTORS CORP.

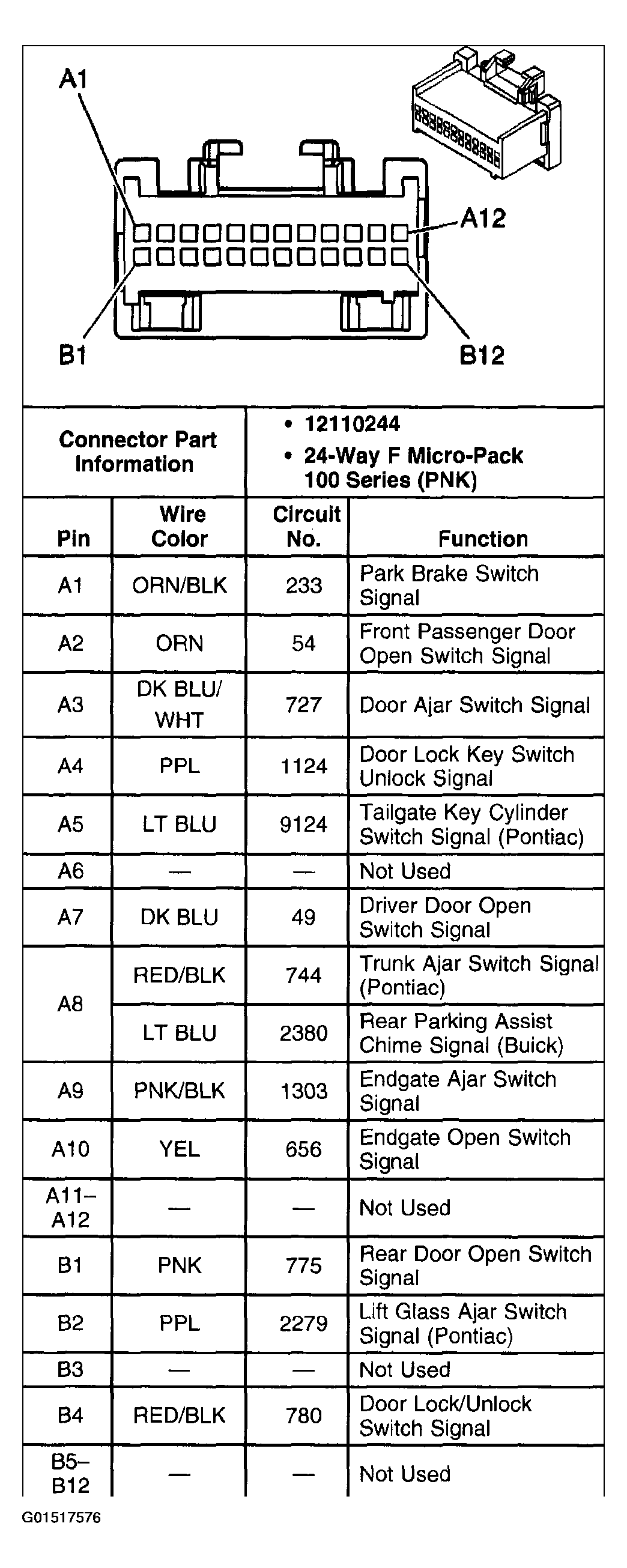

Fig 2: Identifying Body Control Module C1 Connector
Courtesy of GENERAL MOTORS CORP.

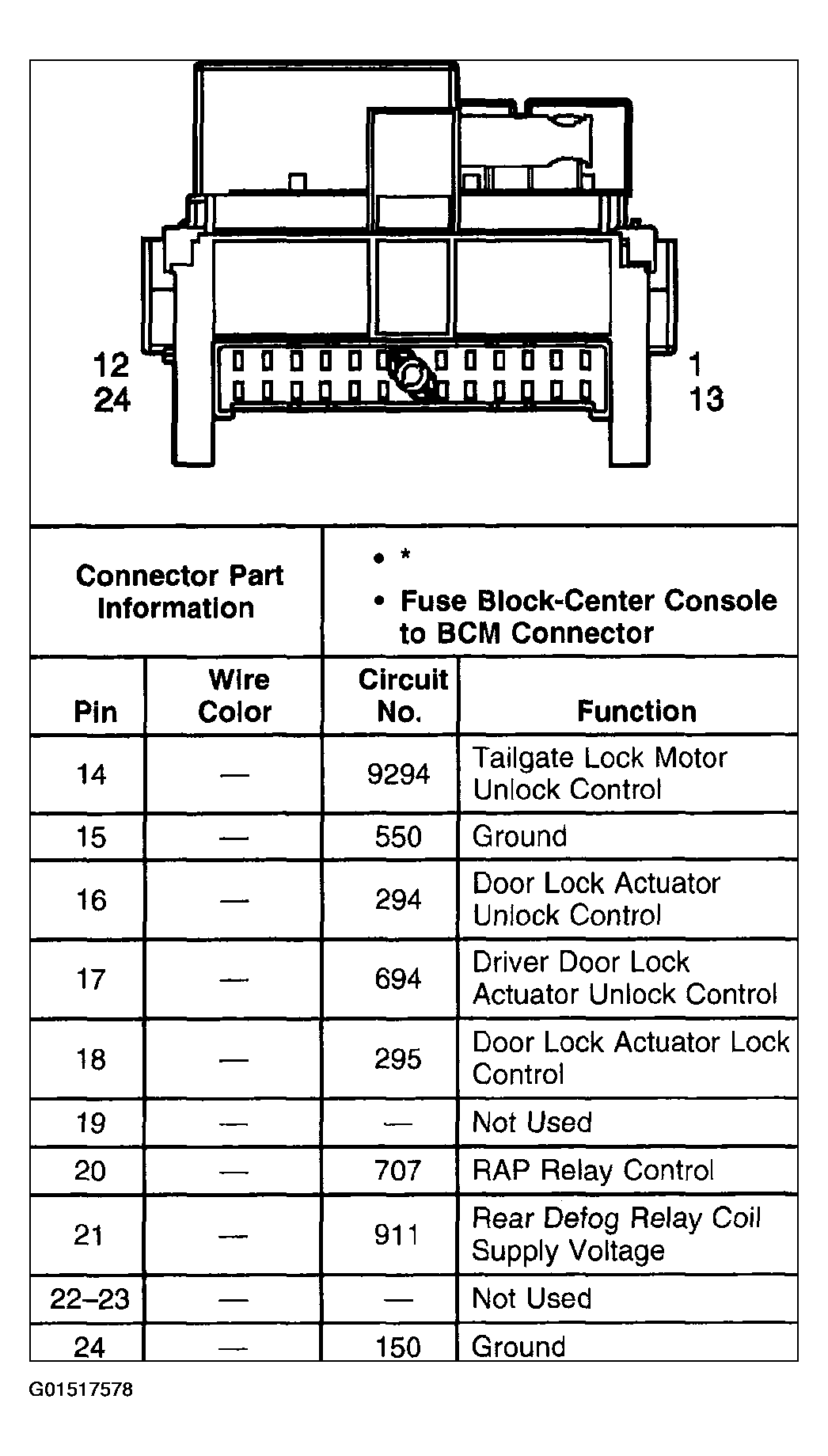

Fig 3: Identifying Body Control Module C2 Connector
Courtesy of GENERAL MOTORS CORP.

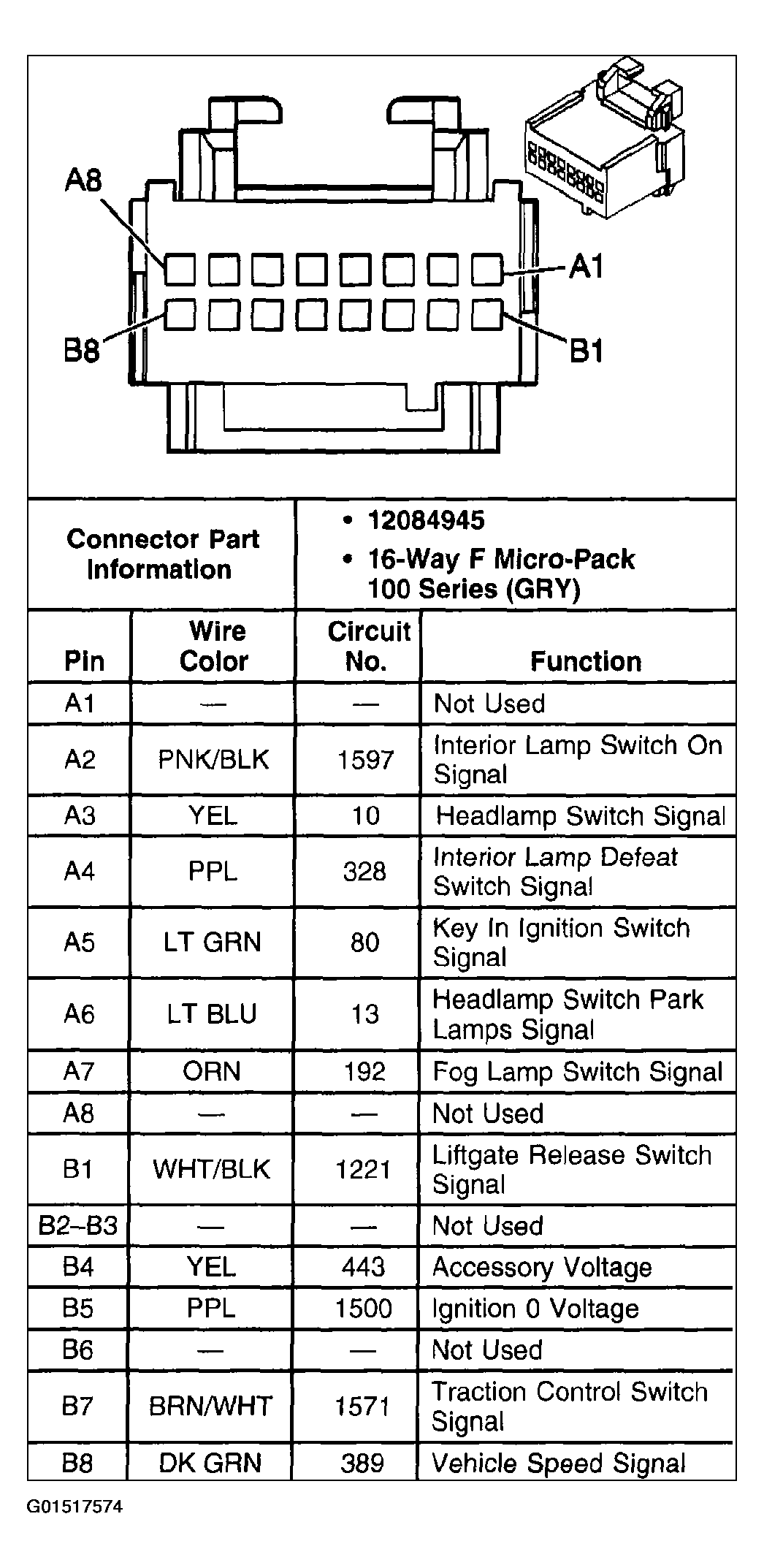

Fig 4: Identifying Body Control Module C3 Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

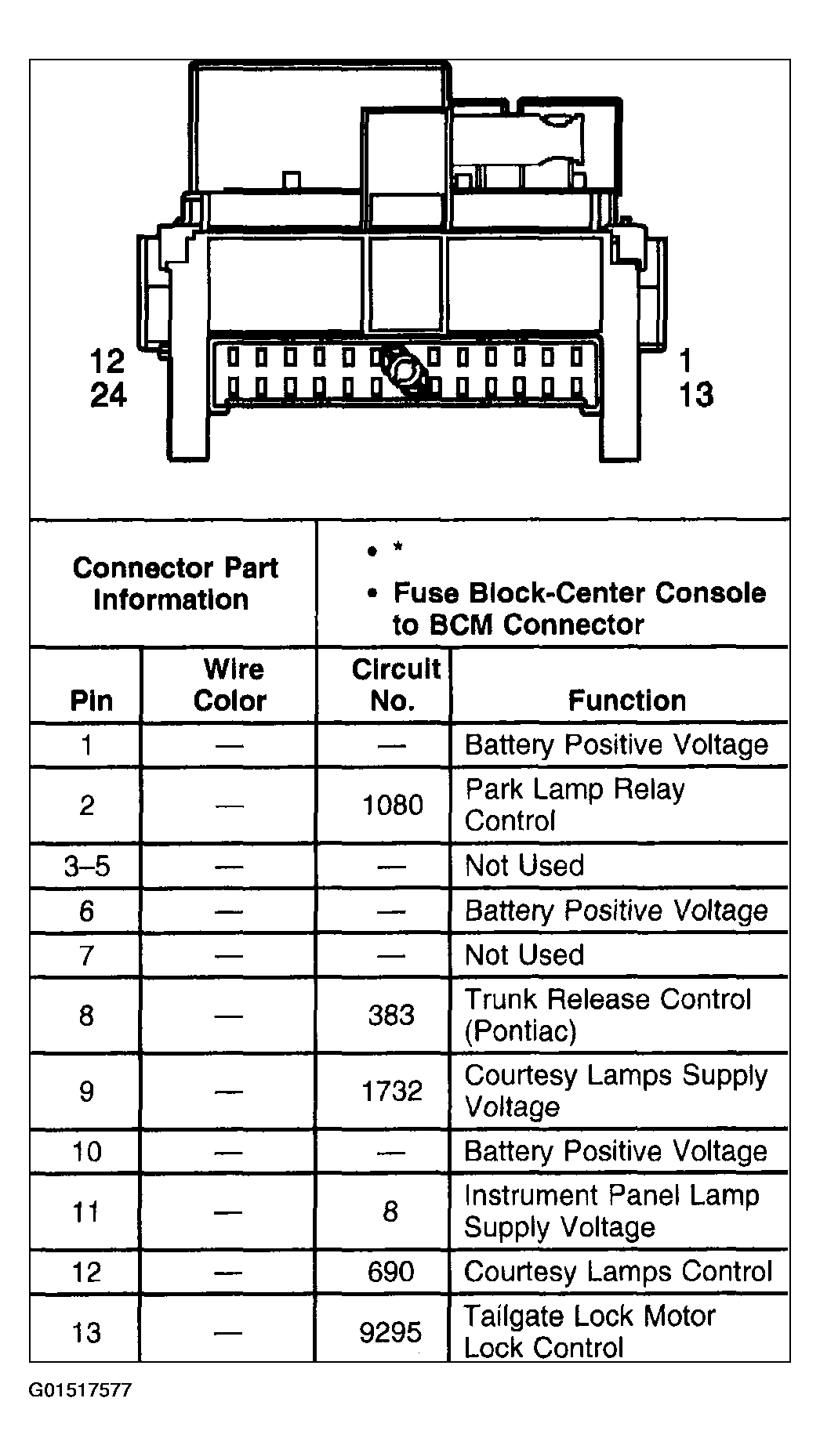

Fig 5: Identifying Body Control Module C3 Connector (2 Of 2)
