Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the remote control door lock receiver from the instrument panel sound insulator by snapping it.
Connect the electrical connector.
Install the left side instrument panel sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
Reprogram the transmitters. Refer to TRANSMITTER PROGRAMMING .
Test the operation of the system.

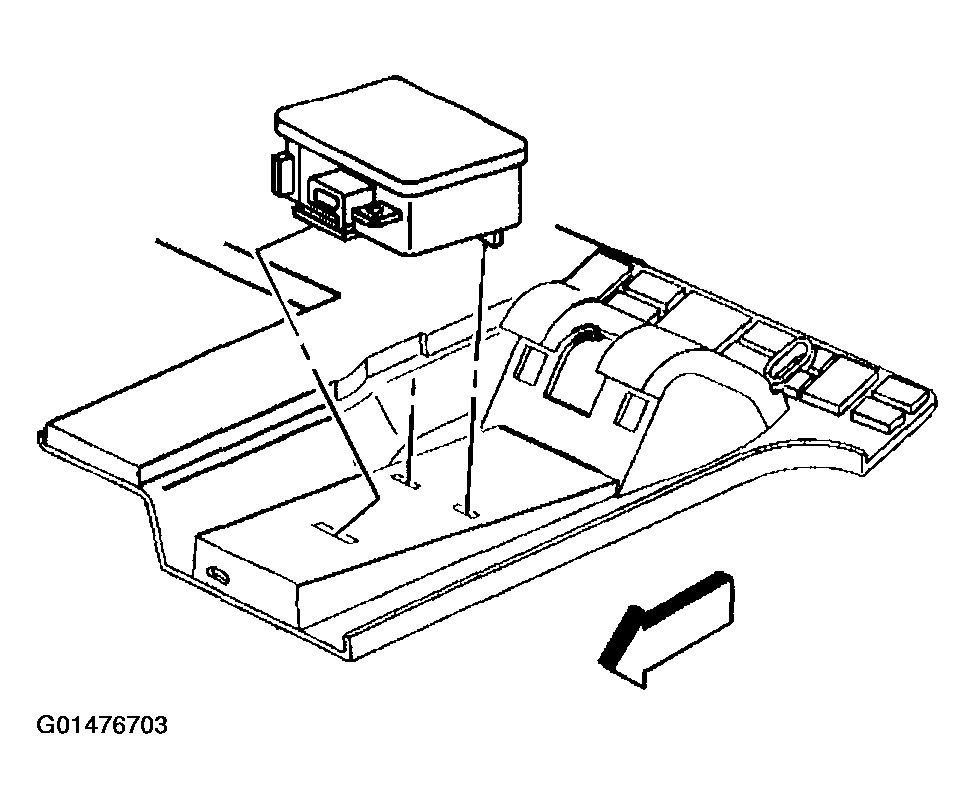

Fig 1: Installing Remote Control Door Lock Receiver From Instrument Panel Sound Insulator
Courtesy of GENERAL MOTORS CORP.
