Installation Procedure

  1. Install the ball joint to the lower control arm.
    Fig 1: Installing Ball Joint To Lower Control Arm
    G01746859Courtesy of GENERAL MOTORS CORP.
  2. Install the new ball joint bolts facing downward, away from the ball stud.
  3. Install the new ball joint retaining nuts.
  4. Install the lower control arm. Refer to Lower Control Arm Replacement .
  5. Install the tire and wheels. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  6. Lower the vehicle.
  7. Align the front suspension. Refer to MEASURING WHEEL ALIGNMENT .

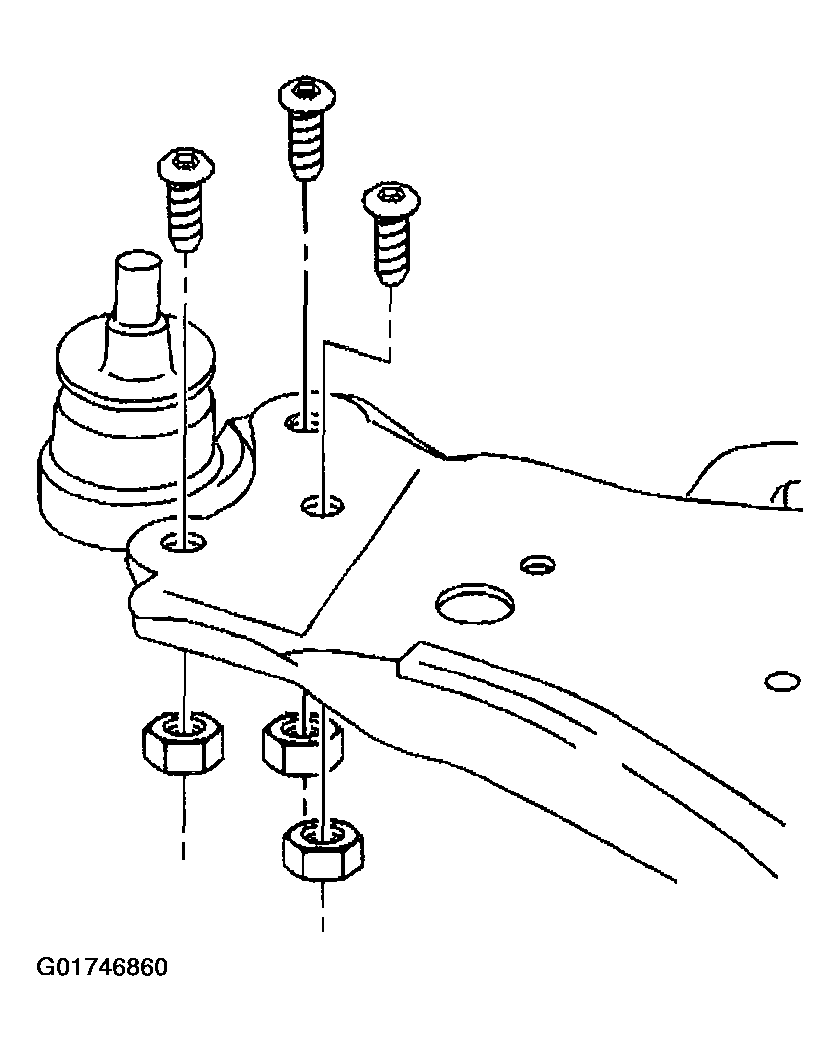

    Fig 2: Installing Ball Joint, Bolts & Retaining Nuts
    G01746860Courtesy of GENERAL MOTORS CORP.
