Installation Procedure

  1. Use a pry bar in order install the stabilizer shaft link insulators and the spacer.
  2. Install the stabilizer shaft link and insulators.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the stabilizer shaft link bolt and nut.

    Tighten

    Tighten the stabilizer shaft link nut to 23 N.m (17 lb ft).

  4. Lower the vehicle.

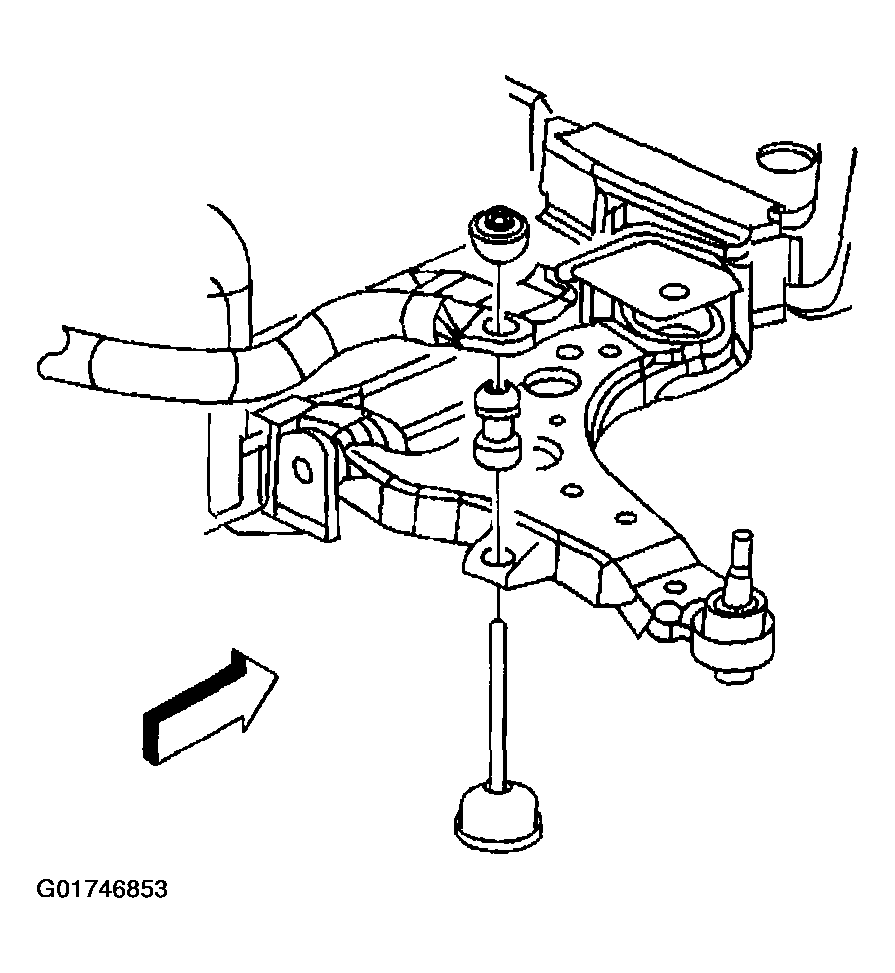

    Fig 1: Installing Stabilizer Shaft Link Bolt & Nut
    G01746853Courtesy of GENERAL MOTORS CORP.
