Installation Procedure

NOTE: Refer to FASTENER NOTICE .

Install the strut to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the strut upper nuts.
Tighten

Tighten the strut upper nuts to 41 N.m (30 lb ft).

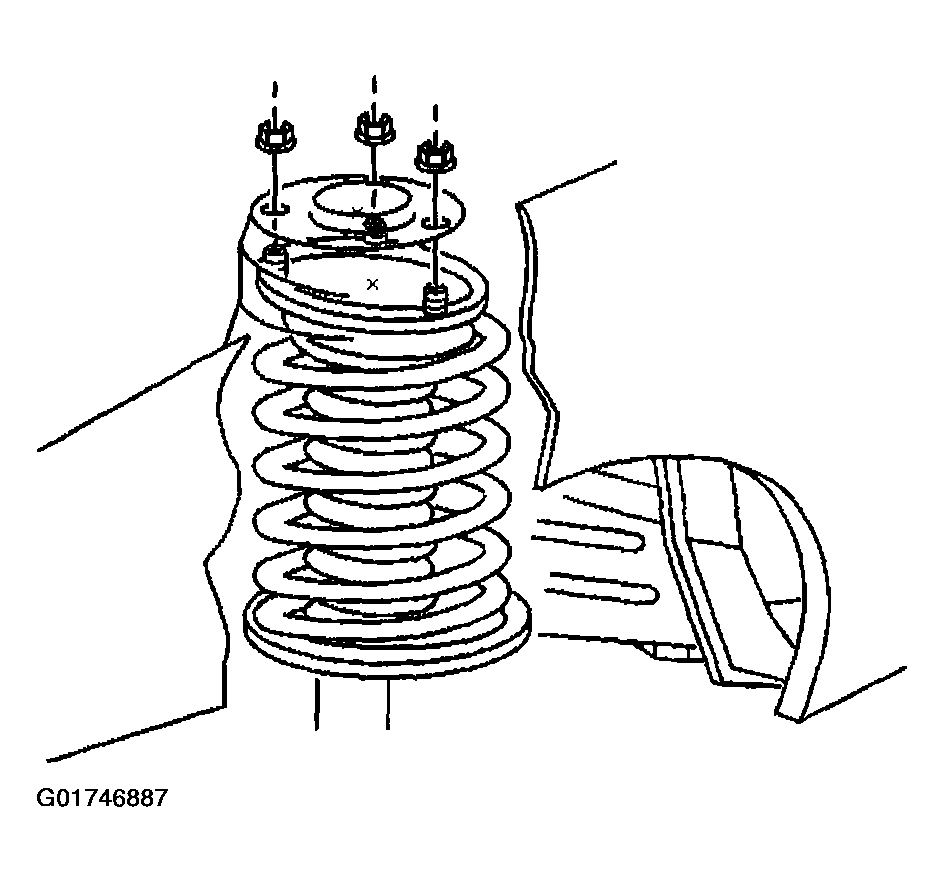

Fig 1: Installing Strut Upper Nuts
Courtesy of GENERAL MOTORS CORP.
Install the wiper module refer to WIPER MOTOR MODULE REPLACEMENT .
Install the strut lower bolts and nuts.

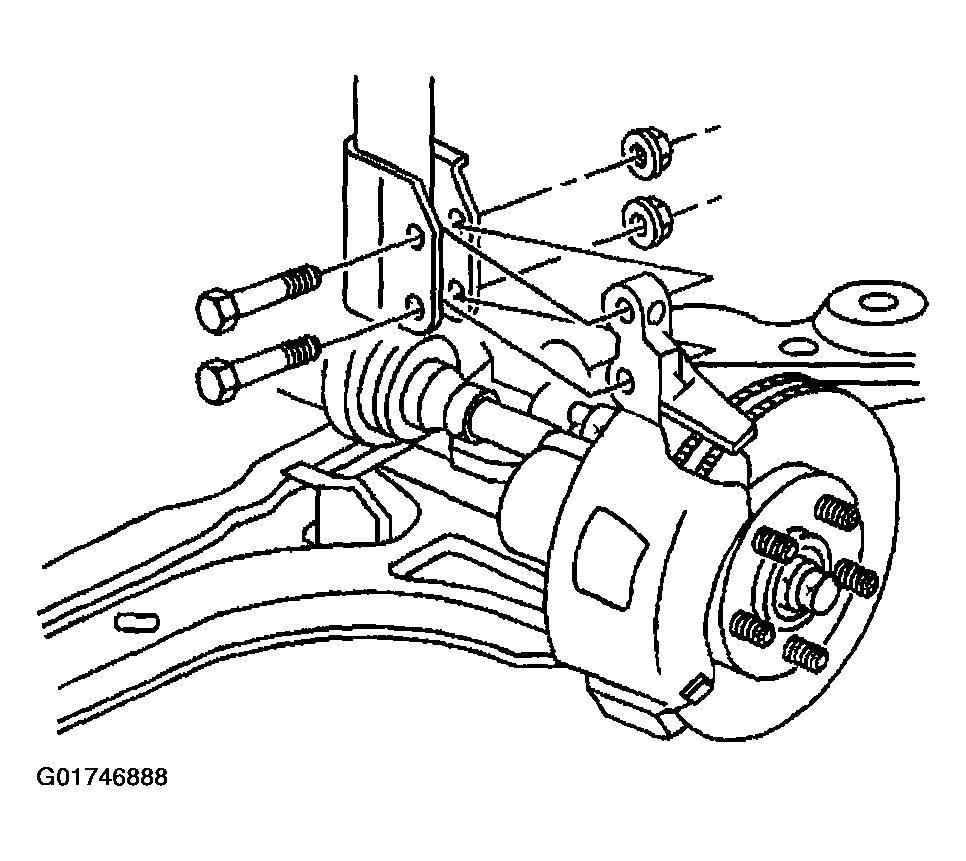

Fig 2: Installing Strut Lower Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.

Important: This is a prevailing torque type fastener. This fastener may be reused ONLY if:
- The fastener and its counterpart are clean and free from rust.
- The fastener develops 3 N.m (27 lb in) of torque (drag) against its counterpart prior to the fastener seating.
If the fastener does not meet these criteria, REPLACE the fastener.
Align the strut to the mark on the knuckle.
Tighten

Tighten the strut lower nuts to 123 N.m (90 lb ft).
Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Inspect the adjust the camber as necessary.
Lower the vehicle.

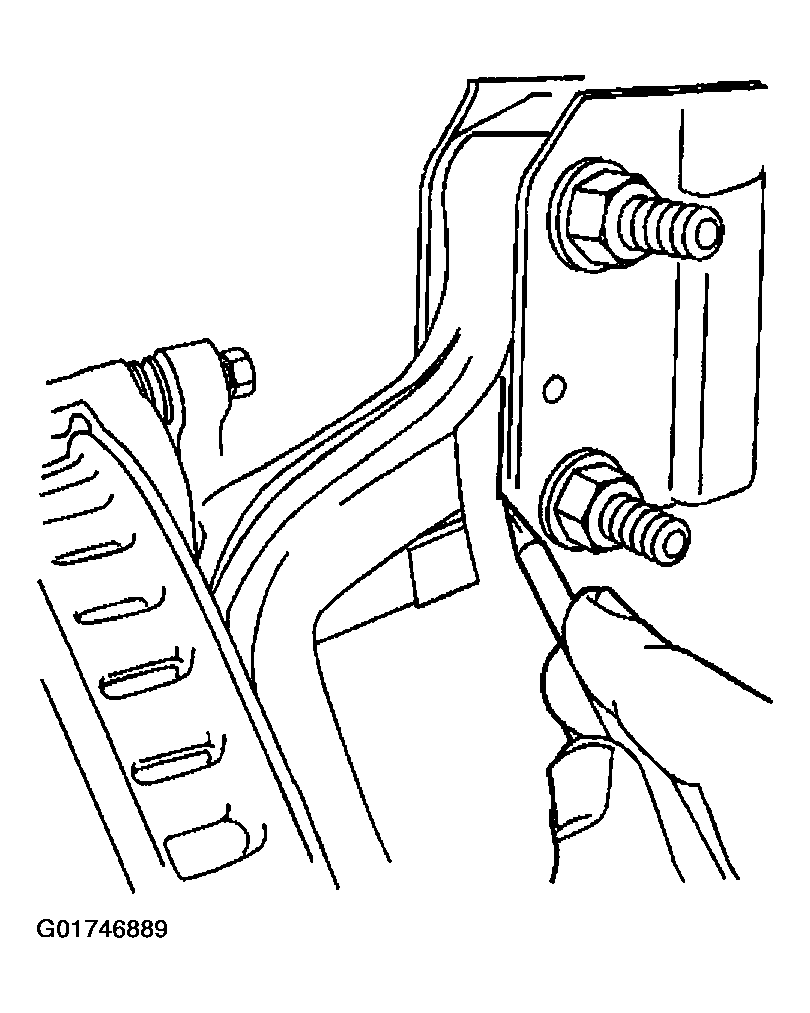

Fig 3: Aligning Strut To Mark On Knuckle
Courtesy of GENERAL MOTORS CORP.
