Floor Console Trim Plate: Installation

Align the trim plate to the front floor console. Position the trim plate over the gearshift lever. Install the trim plate to the front floor console and snap into place. See Fig 1. Install the rear trim plate screw and insert the cup holder liner. Tighten the screw to 18 INCH lbs. (2 N.m).

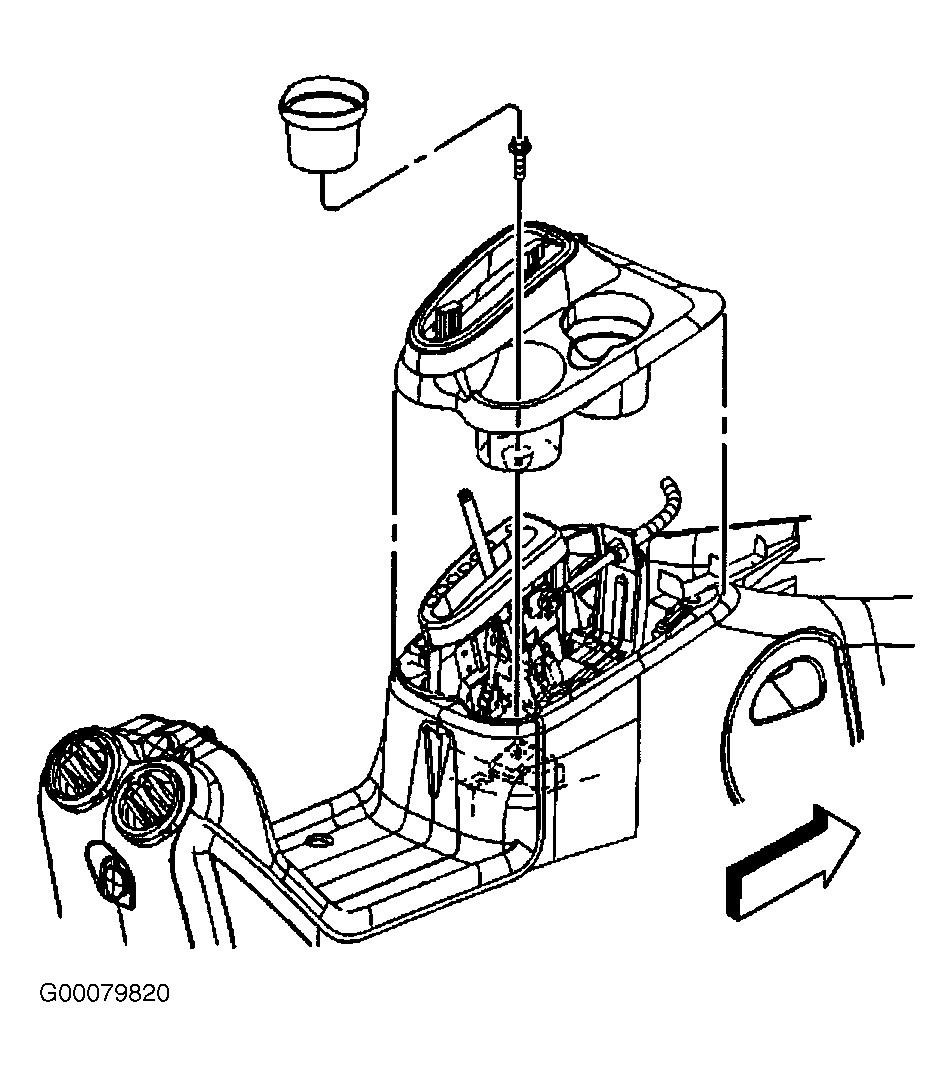

Fig 1: Removing & Installing Floor Console Trim Plate

Courtesy of GENERAL MOTORS CORP.
