Insulator Panel (Left Side): Installation

Snap the instrument panel courtesy light into the instrument panel insulator. See Fig 2. Position the instrument panel insulator to the instrument panel. Install the push-in retainers to the instrument panel insulator to instrument panel. Install the press-on retainers to the instrument panel insulator to dash mat. See Fig 1.

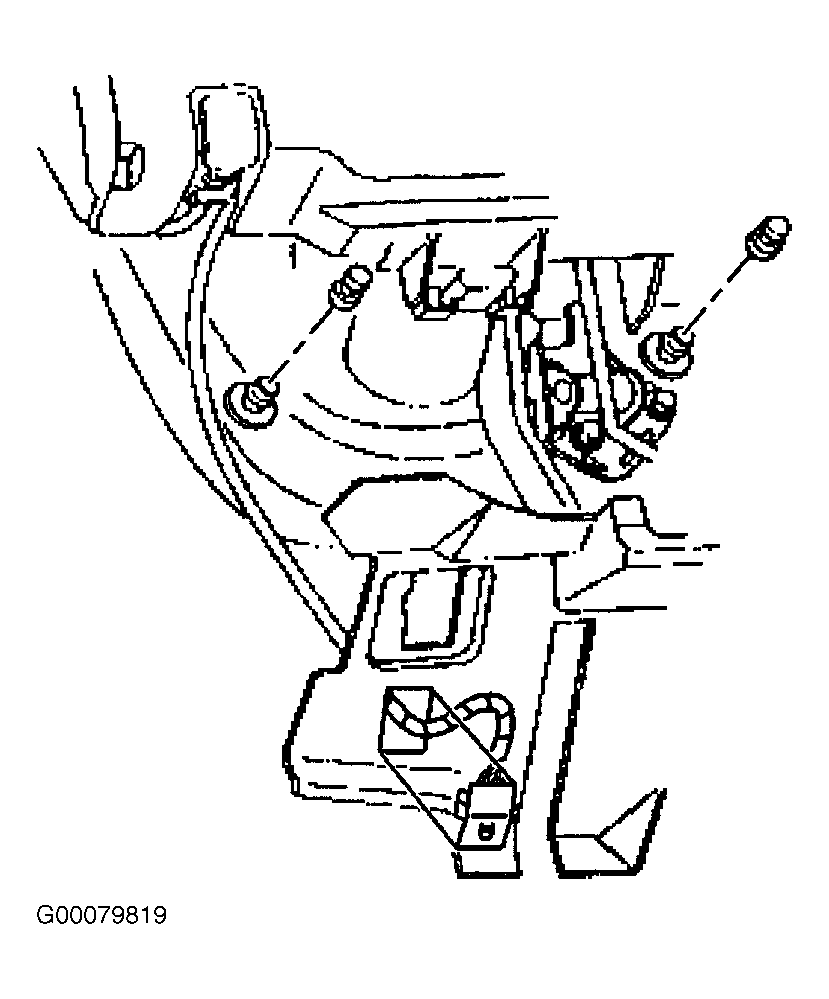

Fig 1: Removing & Installing Insulator Panel Retainers

Courtesy of GENERAL MOTORS CORP.

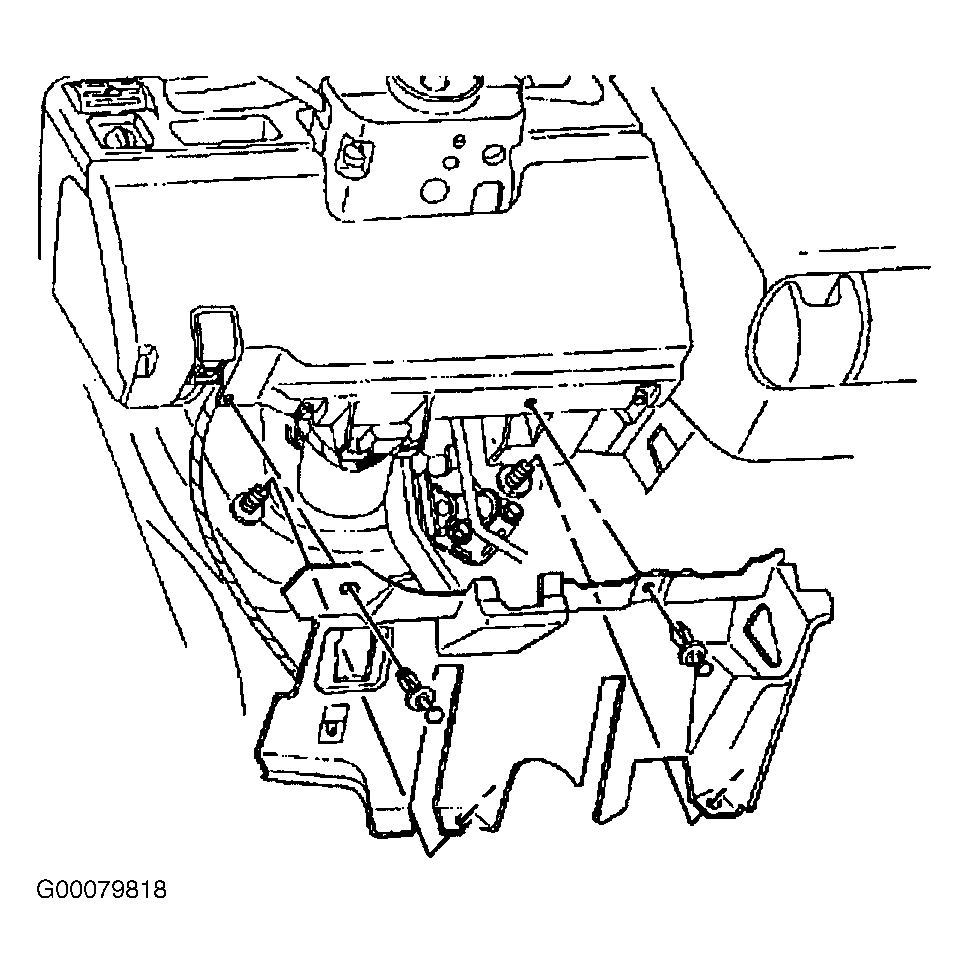

Fig 2: Removing & Installing Left Side Insulator

Courtesy of GENERAL MOTORS CORP.
