Connector Identification

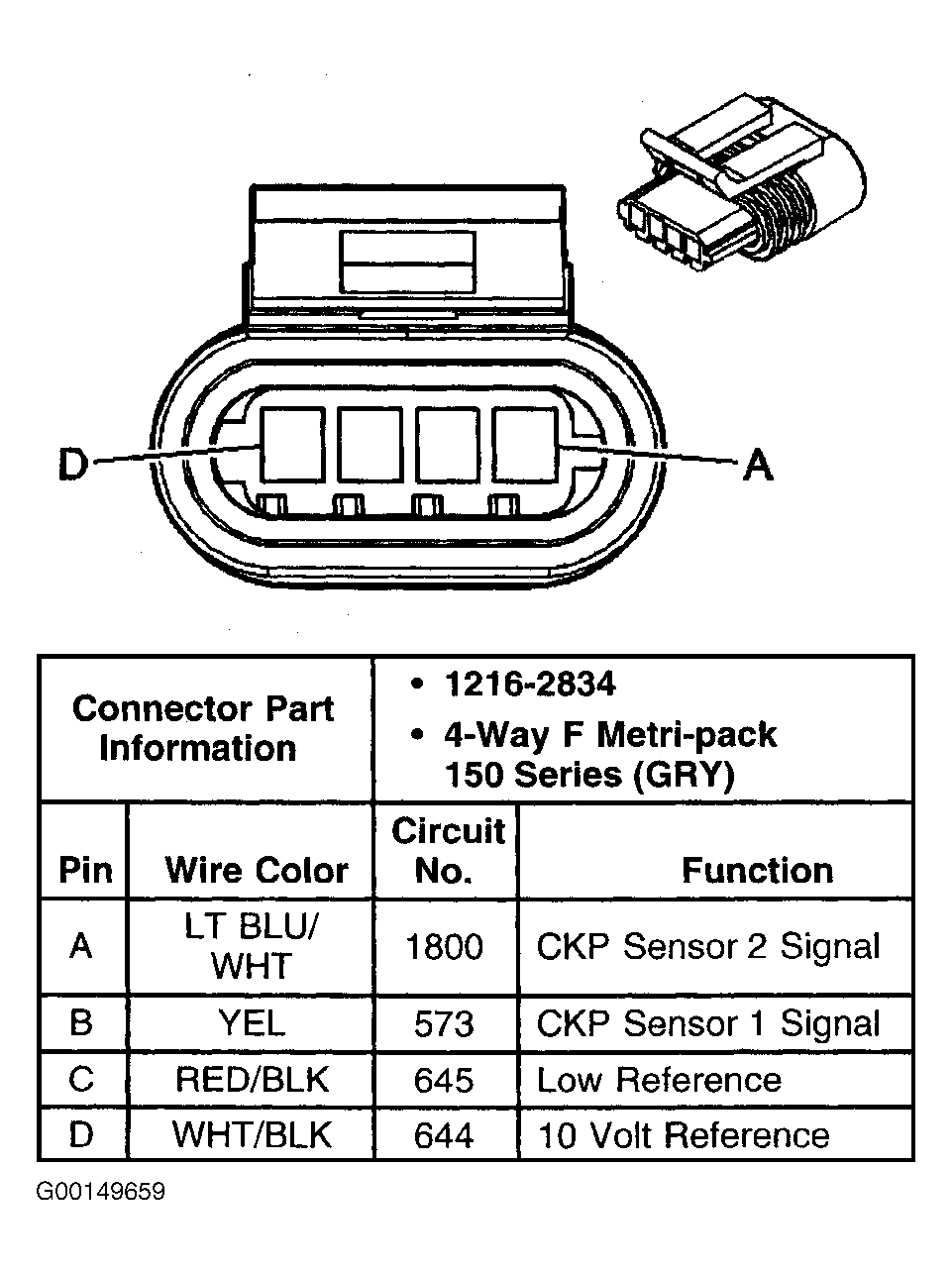

Fig 1: Identifying CKP Sensor Connector Terminals

G00149659

Courtesy of GENERAL MOTORS CORP.

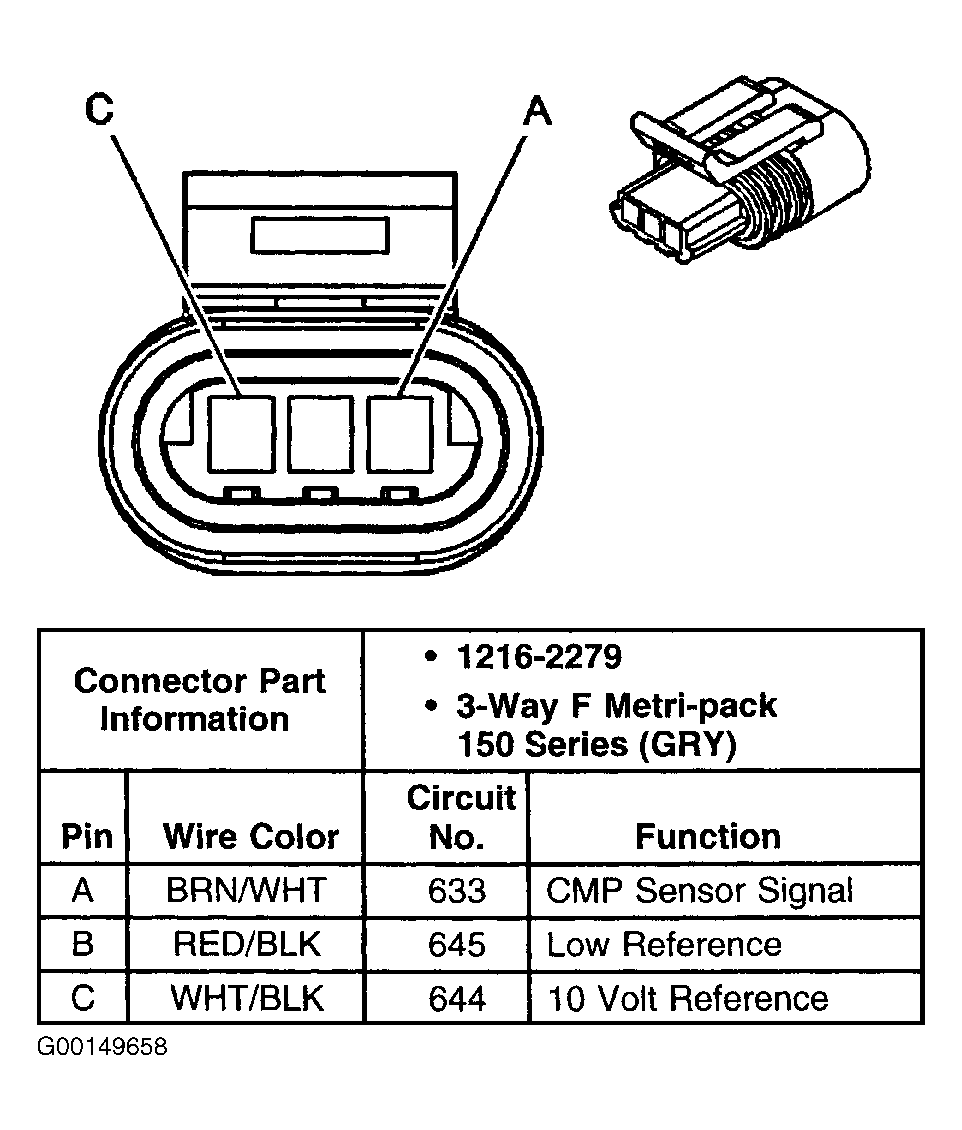

Fig 2: Identifying CMP Sensor Connector Terminals

G00149658

Courtesy of GENERAL MOTORS CORP.

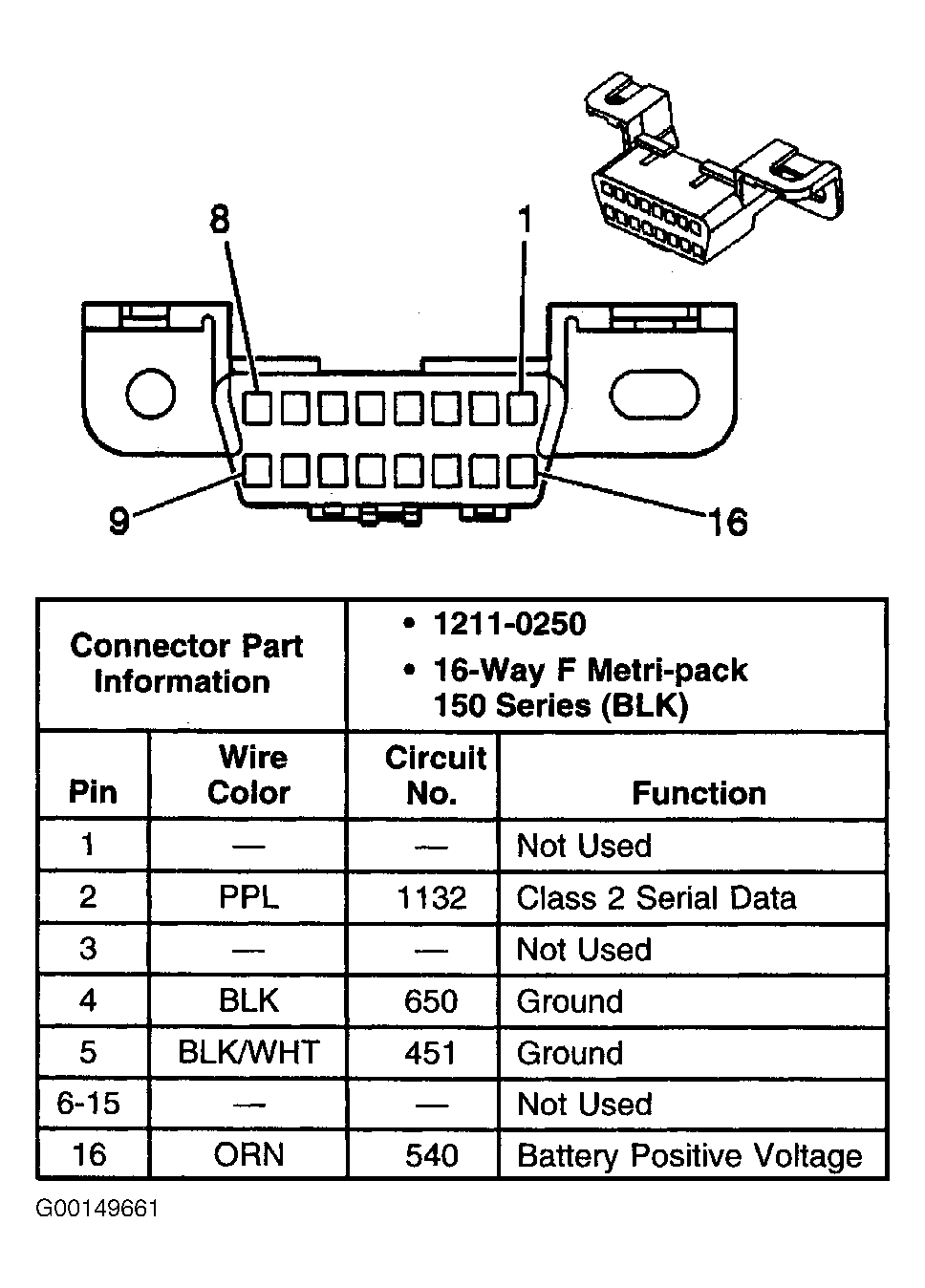

Fig 3: Identifying DLC Terminals

G00149661

Courtesy of GENERAL MOTORS CORP.

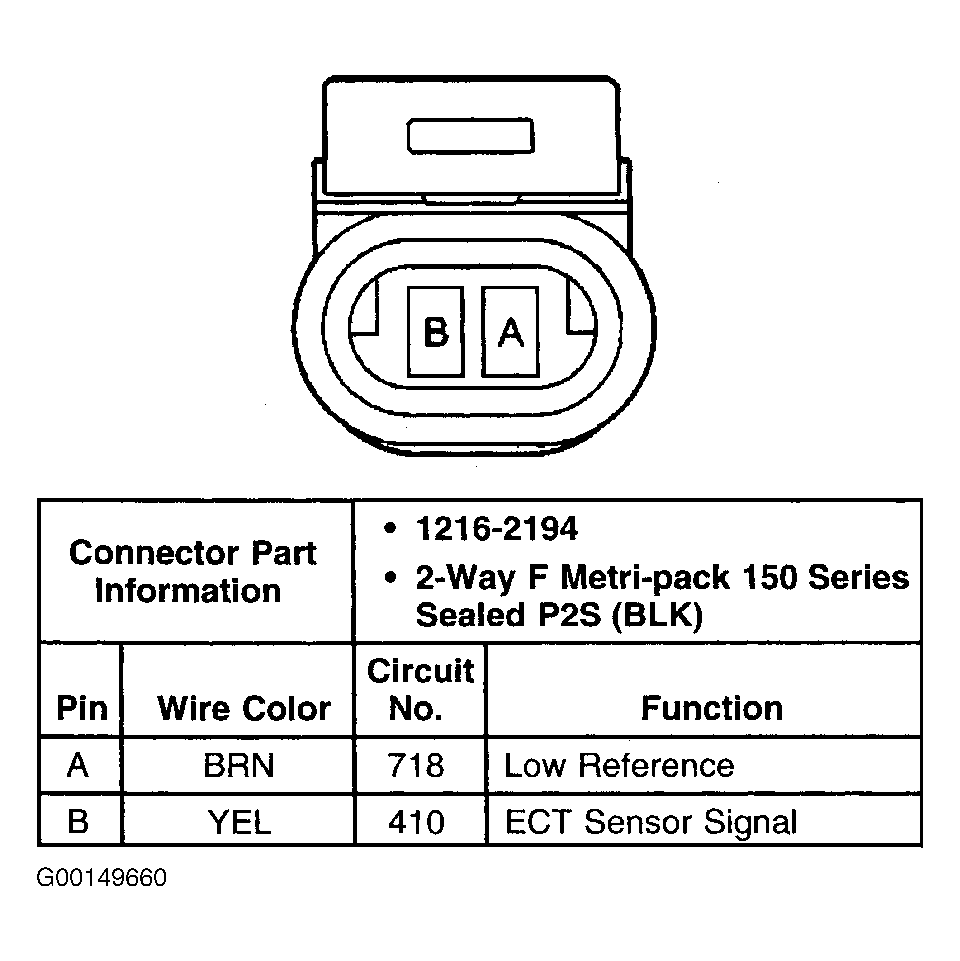

Fig 4: Identifying ECT Sensor Connector Terminals

G00149660

Courtesy of GENERAL MOTORS CORP.

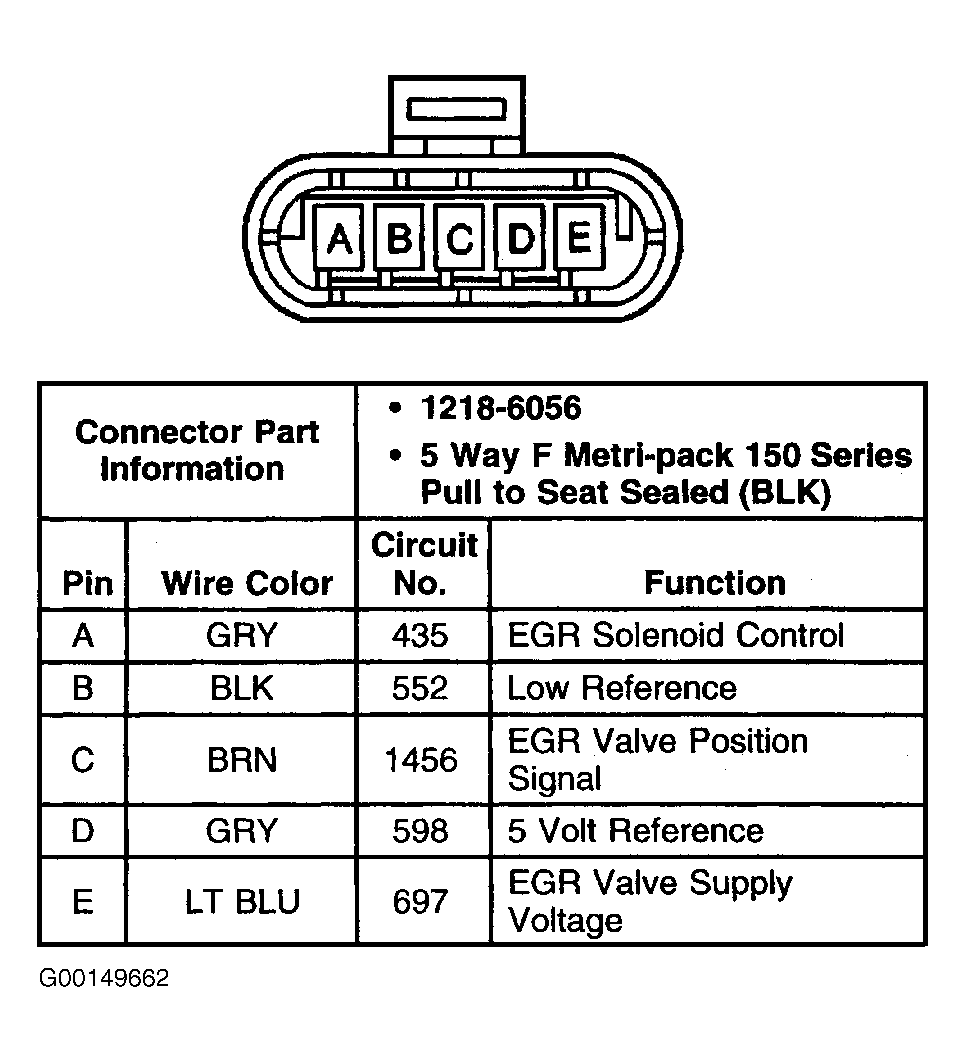

Fig 5: Identifying EGR Valve Connector Terminals

G00149662

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying EVAP Purge Solenoid Connector Terminals

G00113360

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EVAP Vent Solenoid Connector Terminals

G00113396

Courtesy of GENERAL MOTORS CORP.

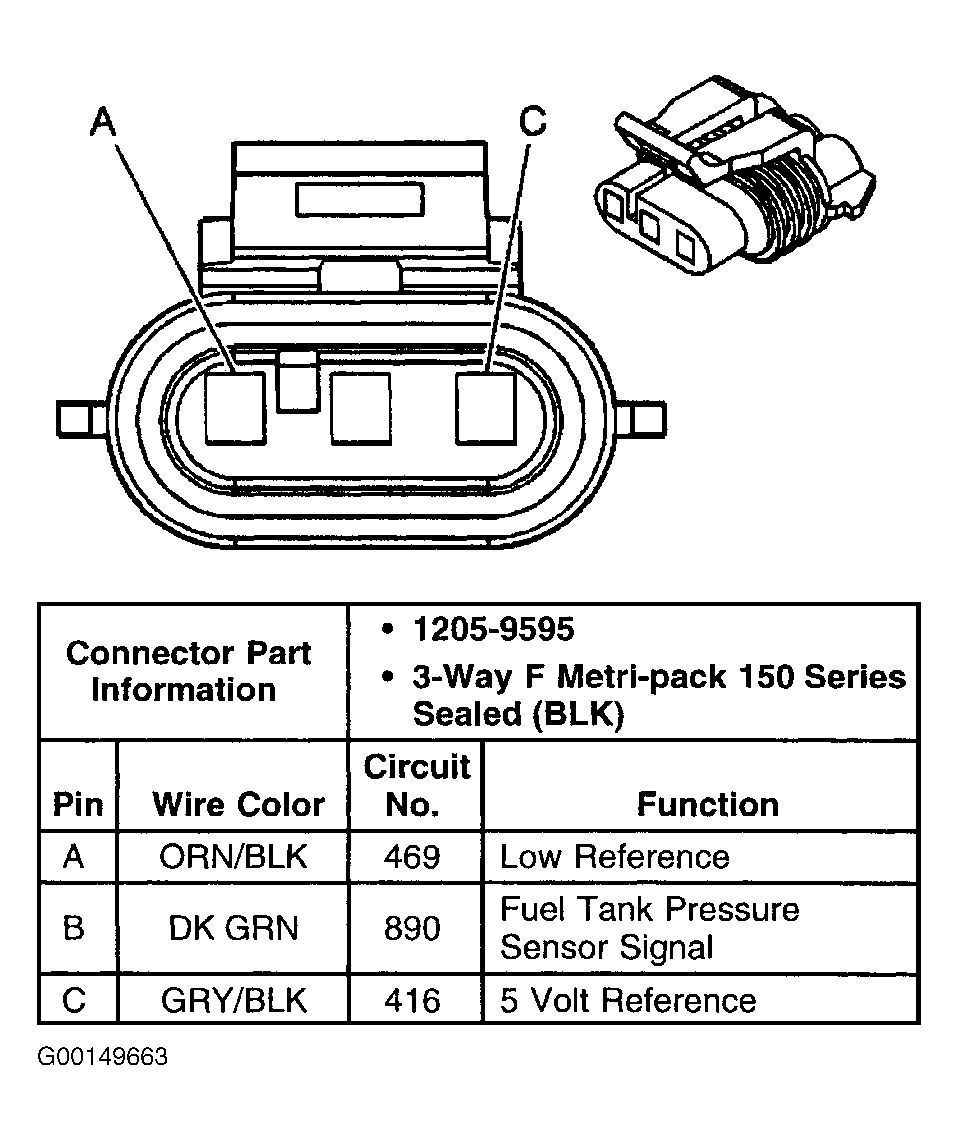

Fig 8: Identifying FTP Sensor Connector Terminals

G00149663

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Fuel Pump & Fuel Level Sender Connector Terminals

G00113397

Courtesy of GENERAL MOTORS CORP.

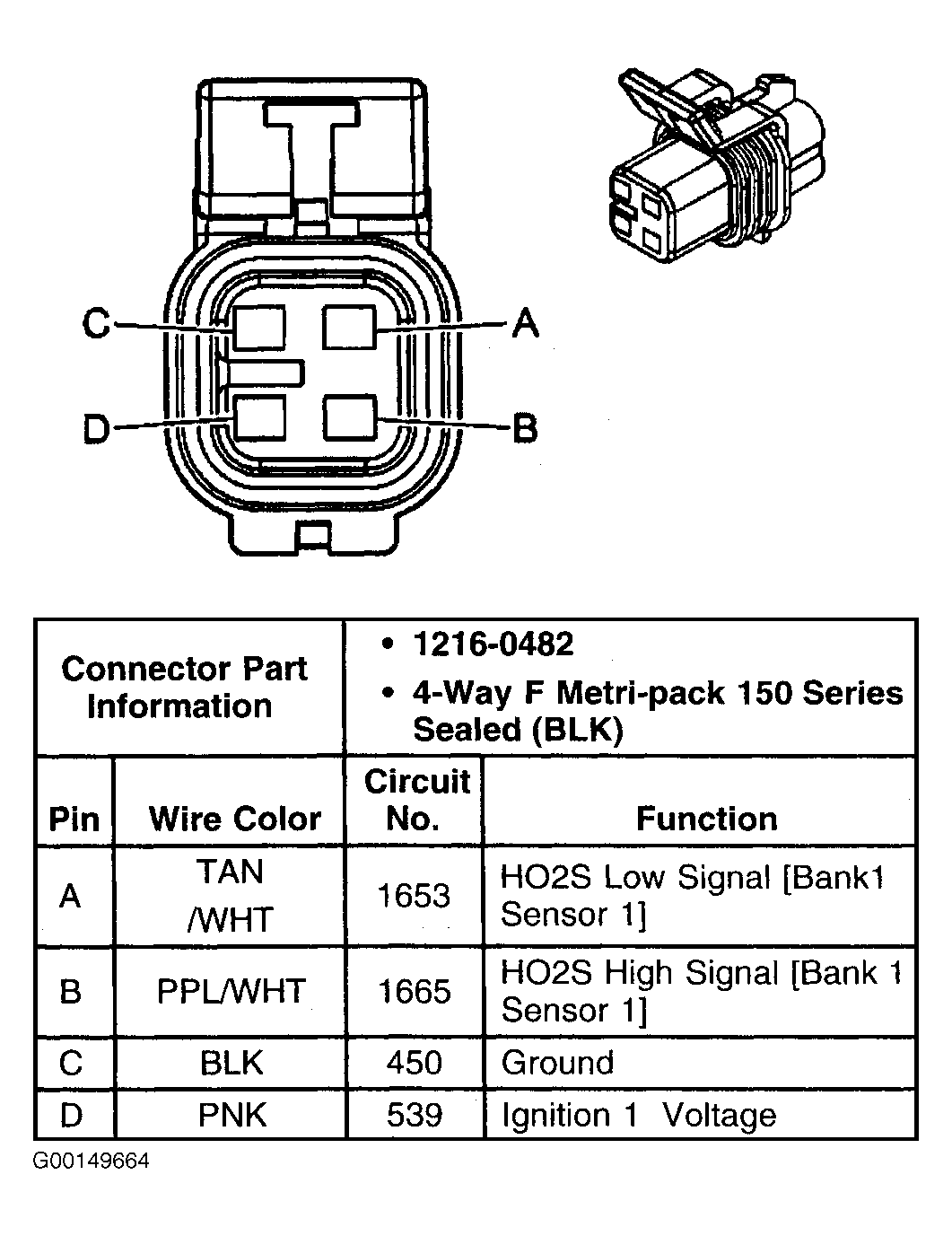

Fig 10: Identifying Heated Oxygen Sensor Bank 1 Sensor 1 Connector Terminals

G00149664

Courtesy of GENERAL MOTORS CORP.

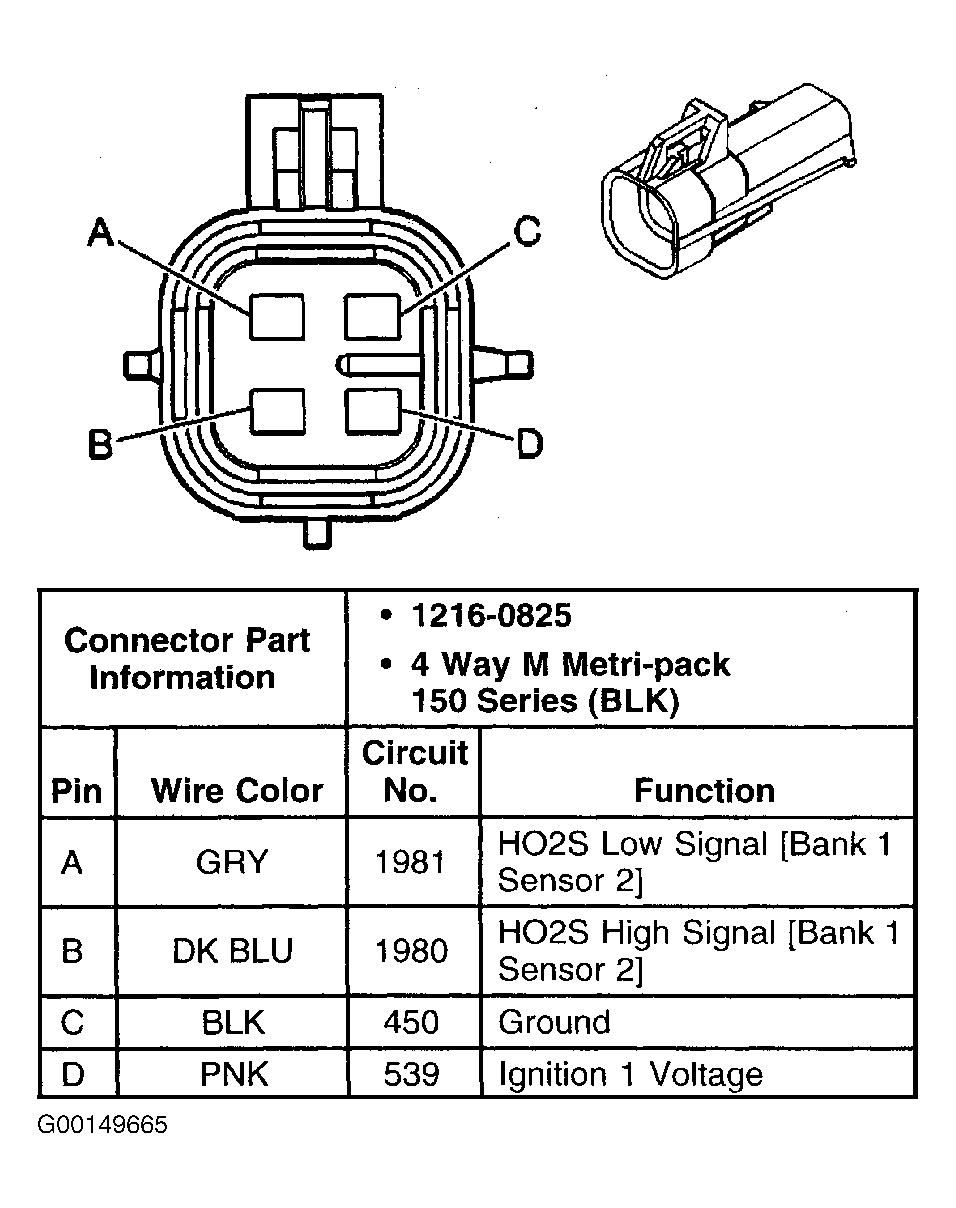

Fig 11: Identifying Heated Oxygen Sensor Bank 1 Sensor 2 Connector Terminals

G00149665

Courtesy of GENERAL MOTORS CORP.

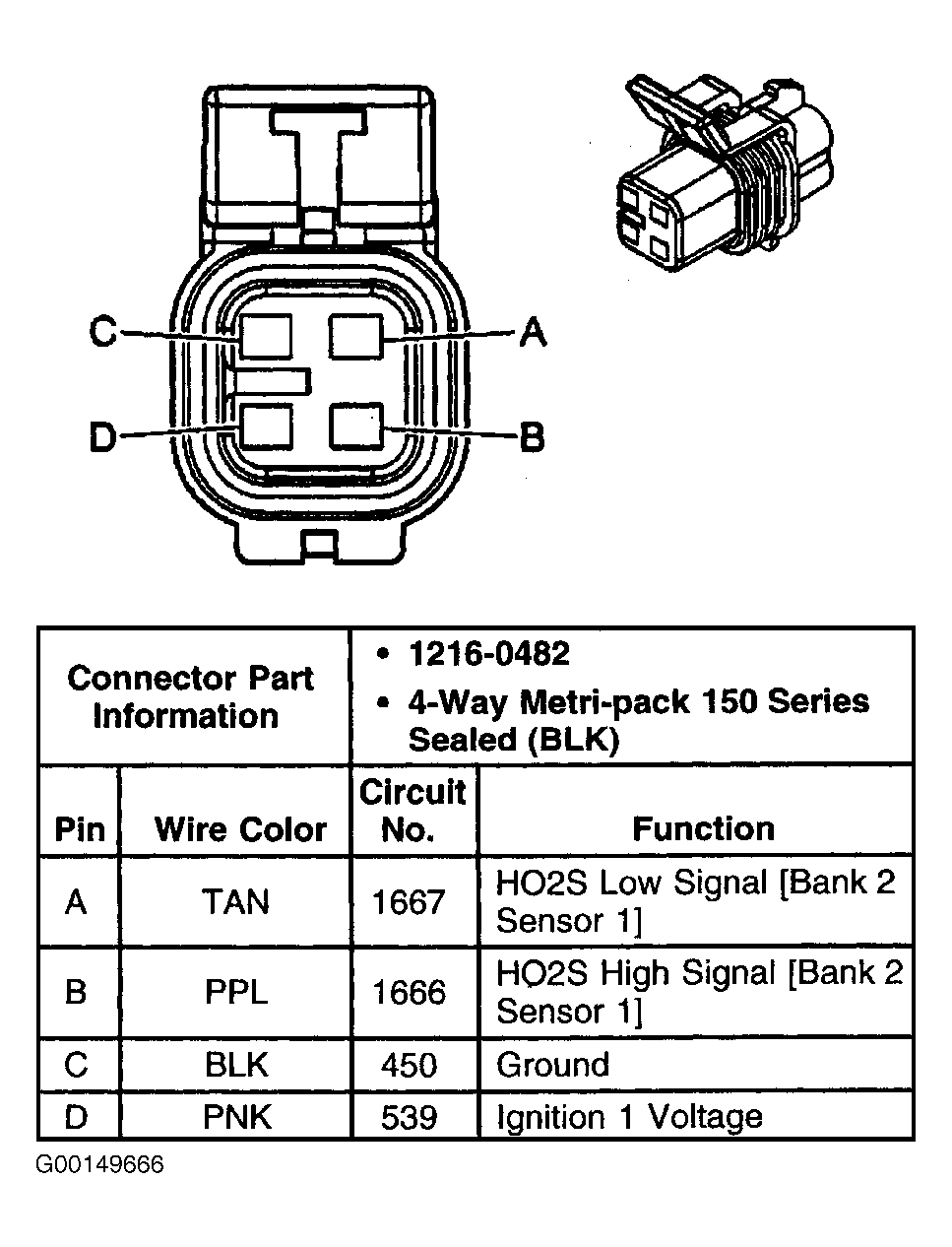

Fig 12: Identifying Heated Oxygen Sensor Bank 2 Sensor 1 Connector Terminals

G00149666

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying IAT Sensor Connector Terminals

G00114957

Courtesy of GENERAL MOTORS CORP.

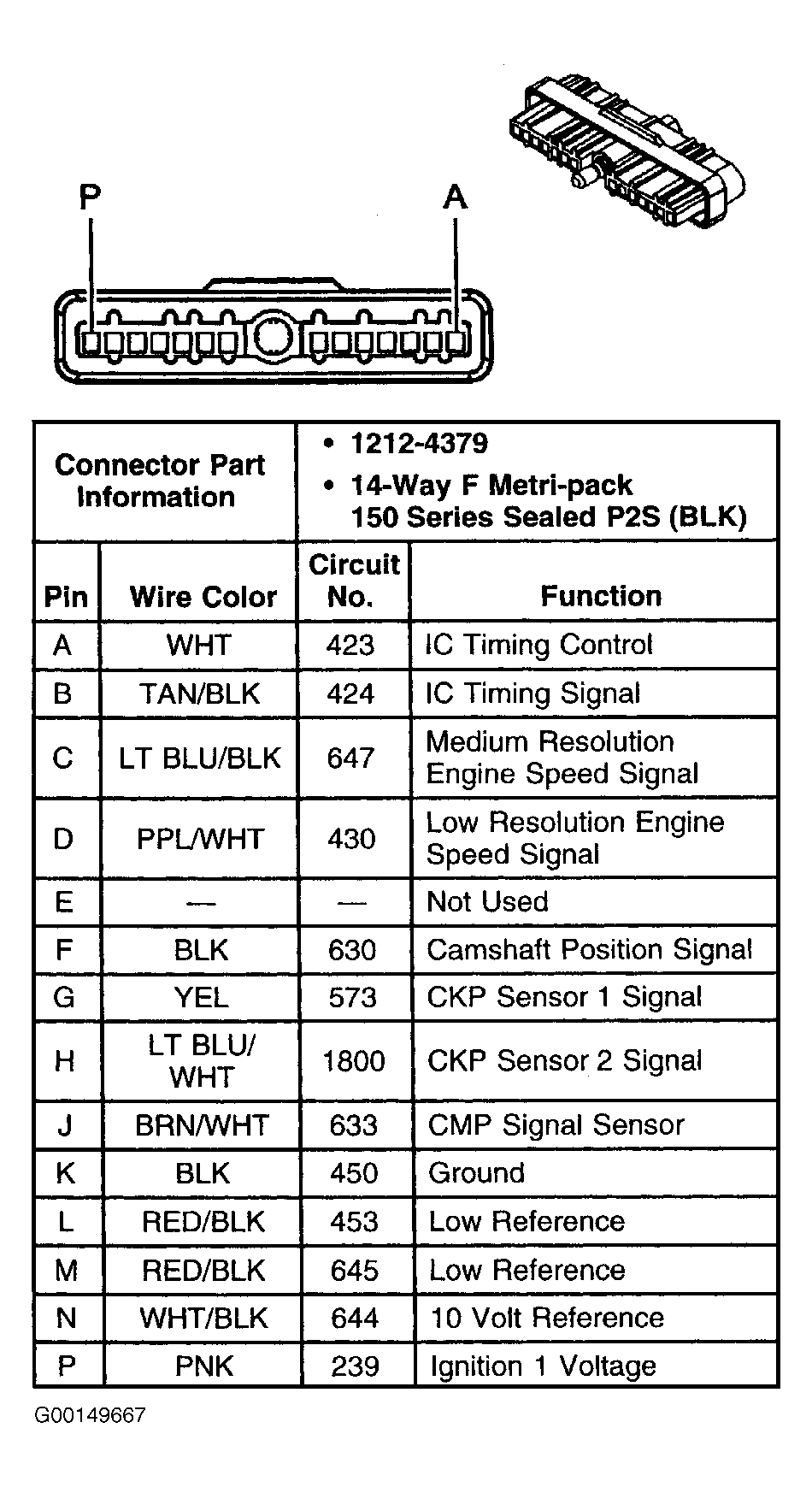

Fig 14: Identifying Ignition Control Module Connector

G00149667

Courtesy of GENERAL MOTORS CORP.

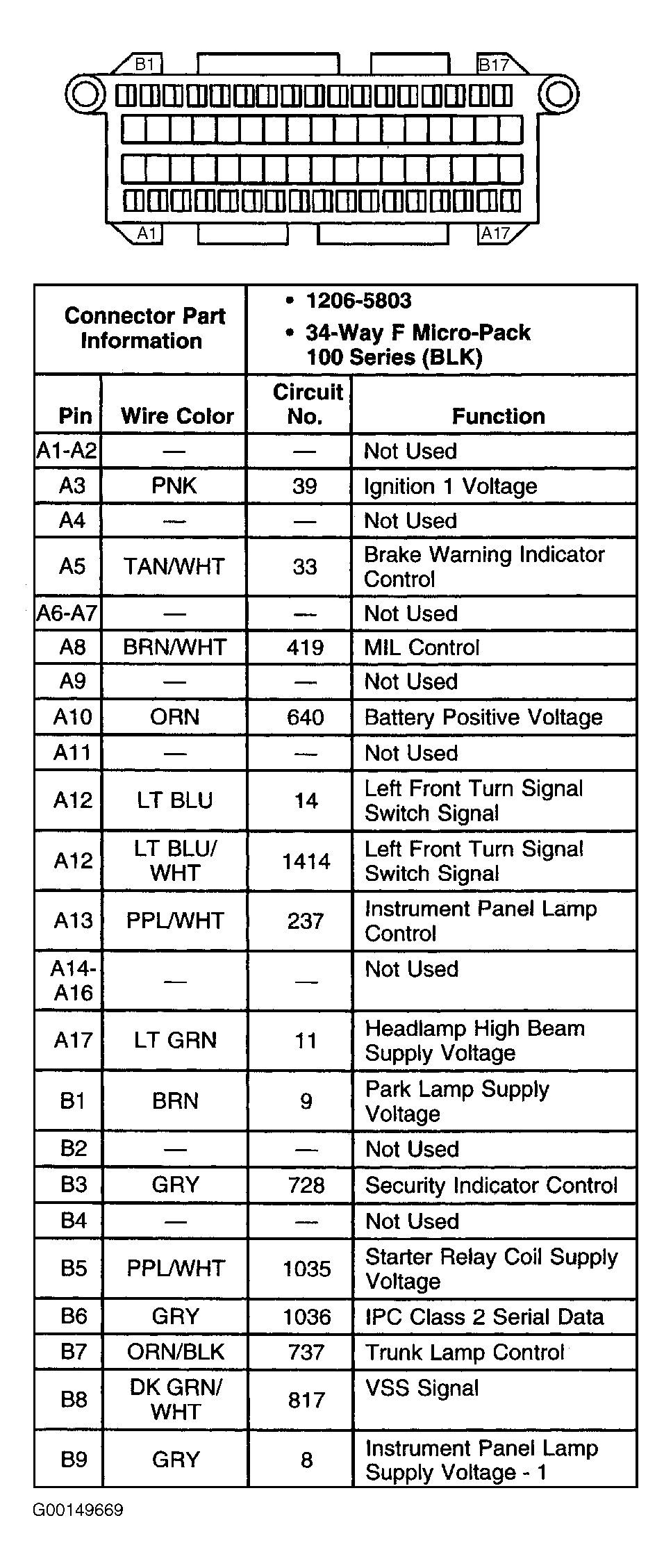

Fig 15: Identifying Instrument Cluster Connector Terminals (1 Of 2)

G00149669

Courtesy of GENERAL MOTORS CORP.

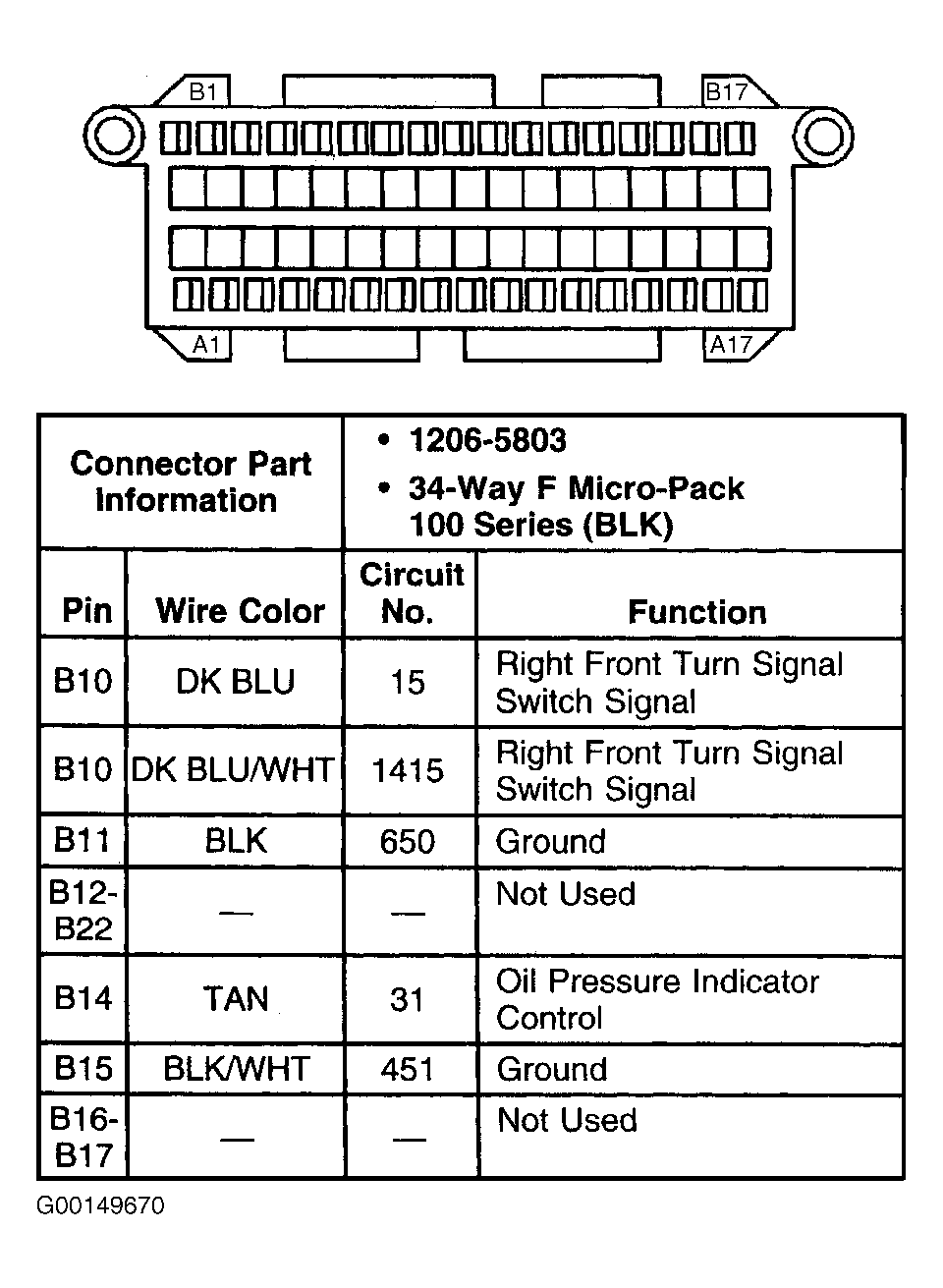

Fig 16: Identifying Instrument Cluster Connector Terminals (2 Of 2)

G00149670

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying MAF Sensor Connector Terminals

G00114959

Courtesy of GENERAL MOTORS CORP.

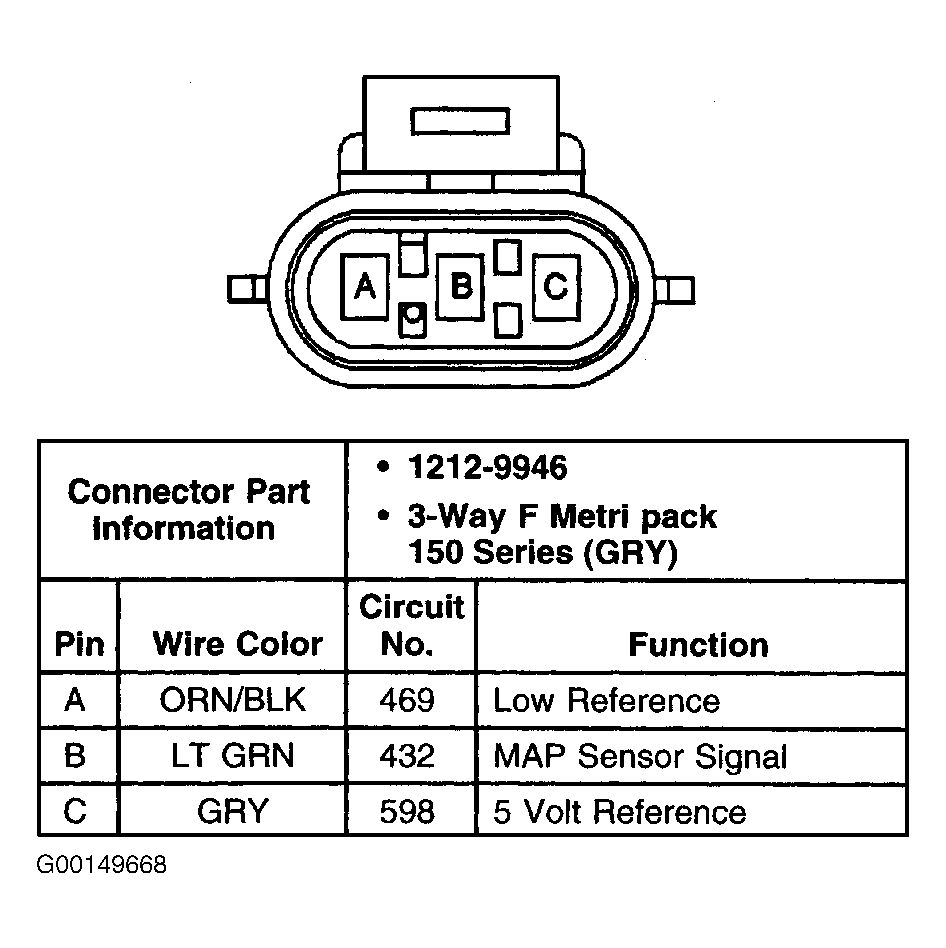

Fig 18: Identifying MAP Sensor Connector Terminals

G00149668

Courtesy of GENERAL MOTORS CORP.

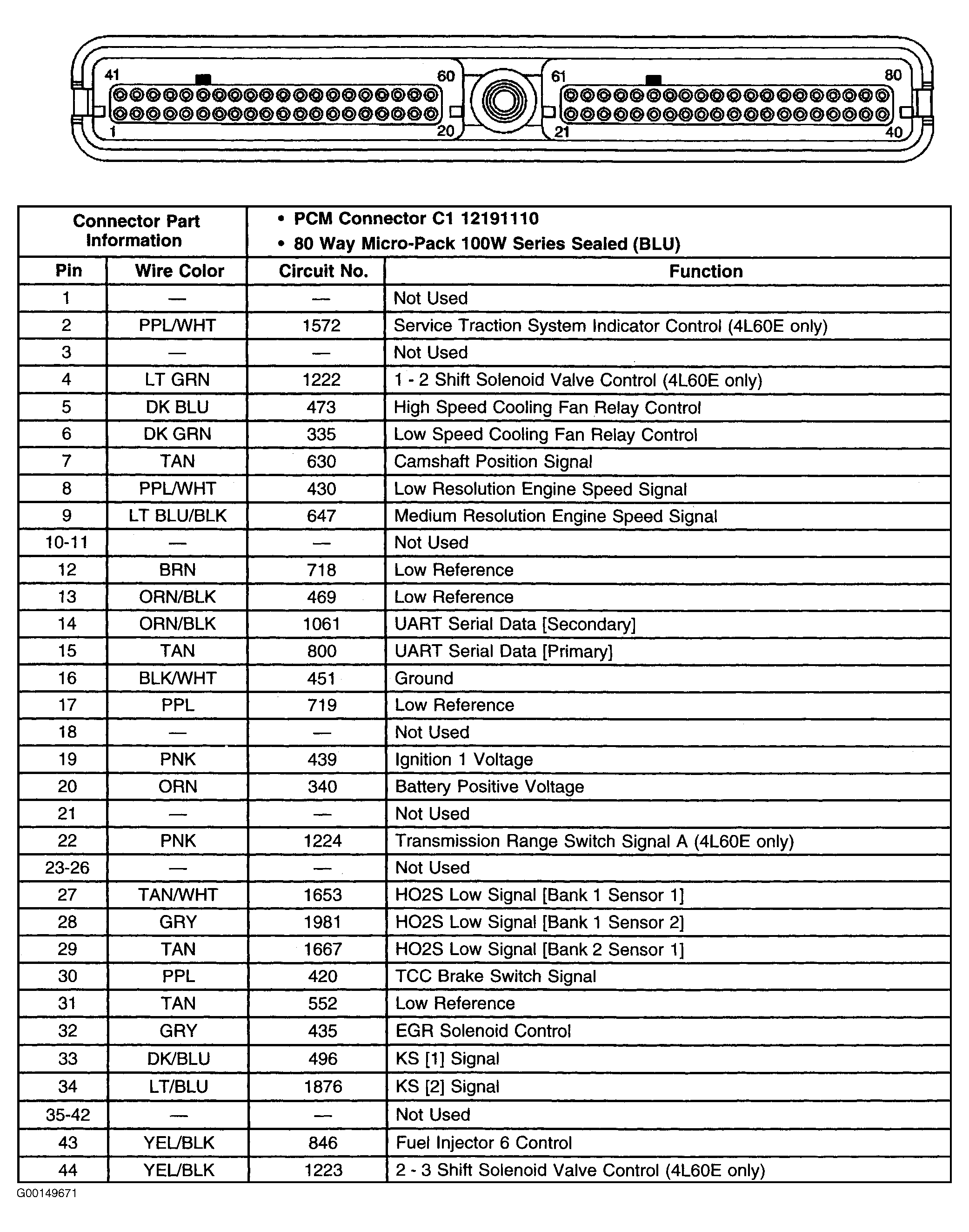

Fig 19: Identifying PCM Connector C1 Terminals (1 Of 2)

G00149671

Courtesy of GENERAL MOTORS CORP.

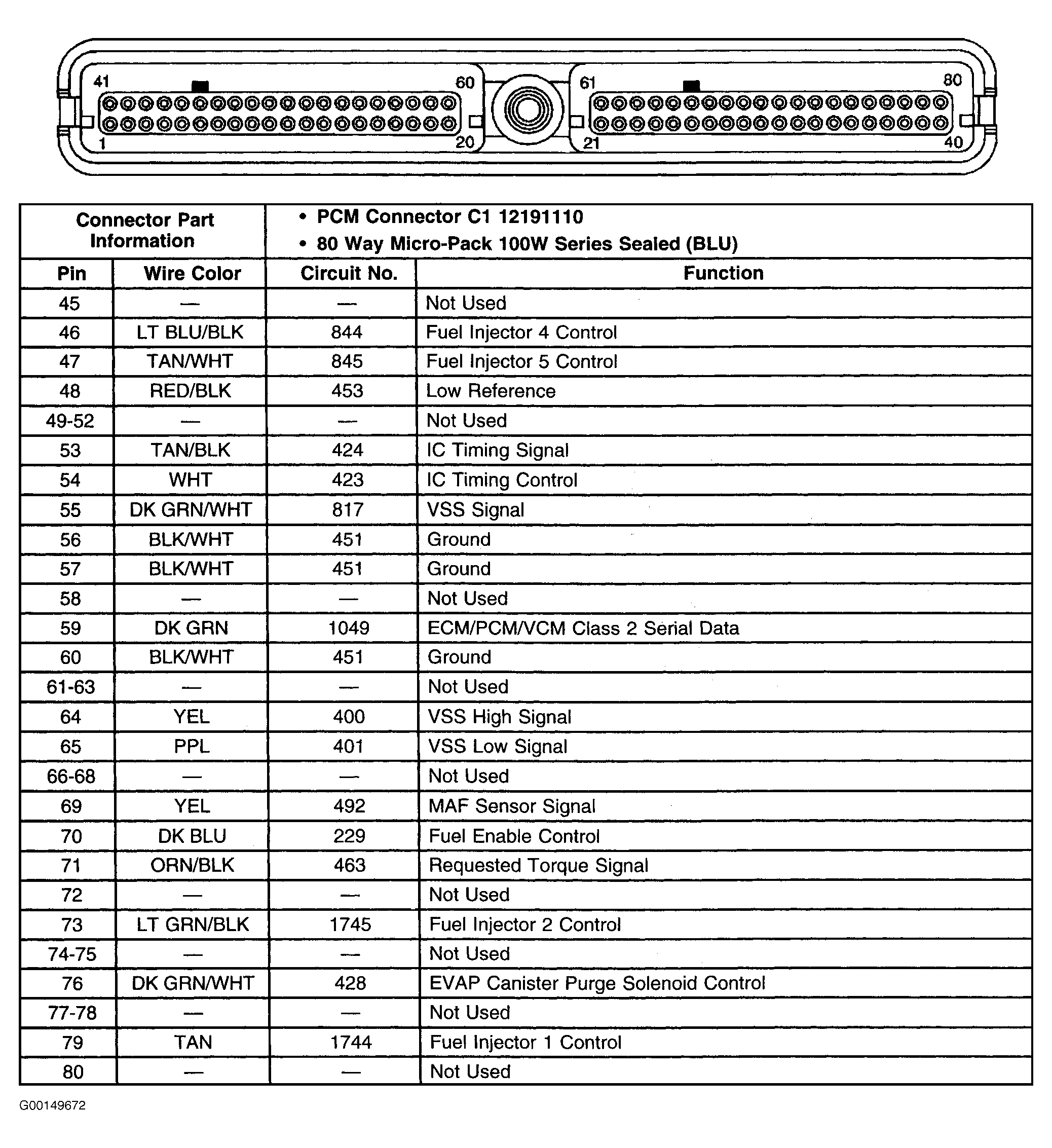

Fig 20: Identifying PCM Connector C1 Terminals (2 Of 2)

G00149672

Courtesy of GENERAL MOTORS CORP.

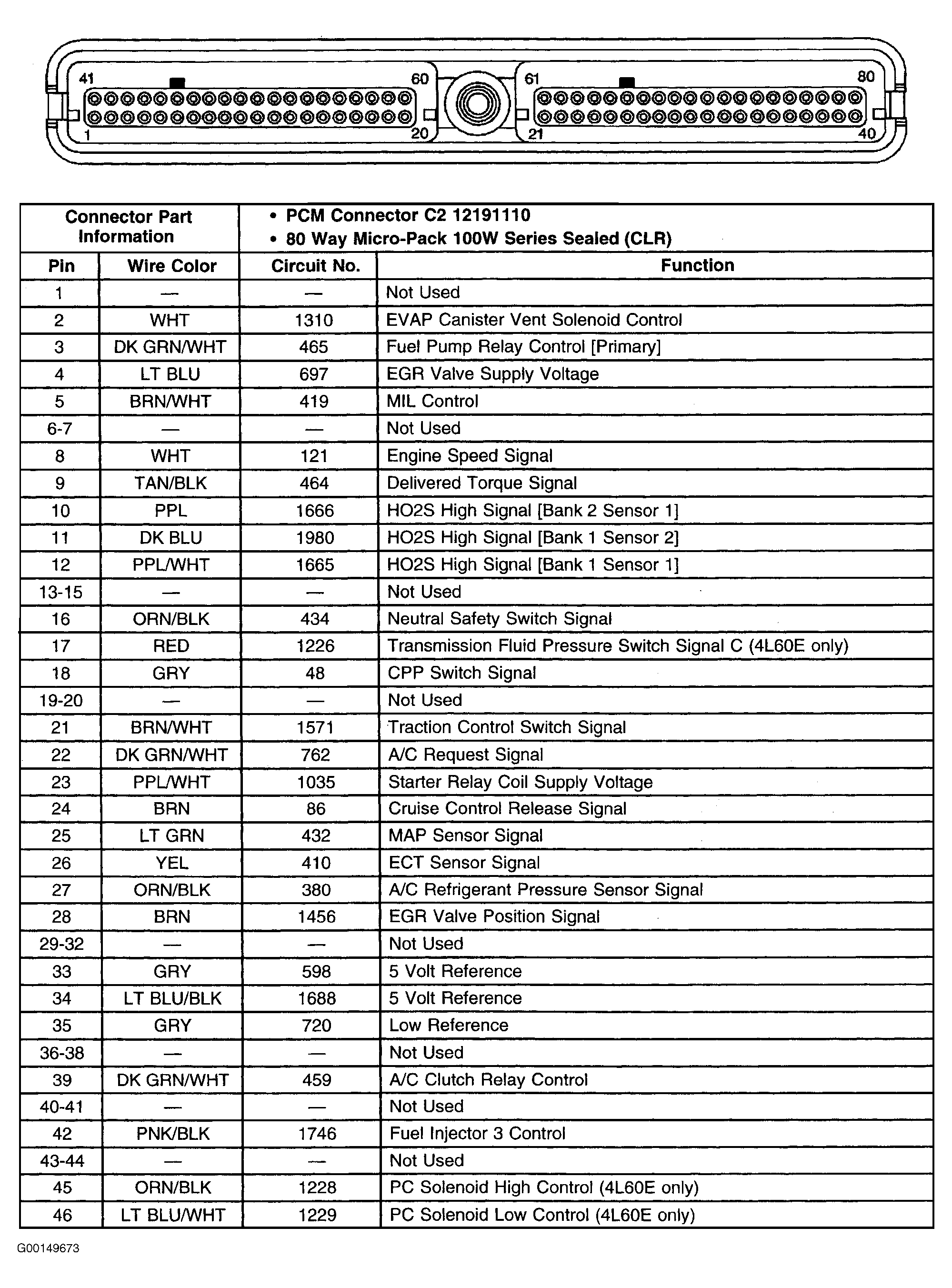

Fig 21: Identifying PCM Connector C2 Terminals (1 Of 2)

G00149673

Courtesy of GENERAL MOTORS CORP.

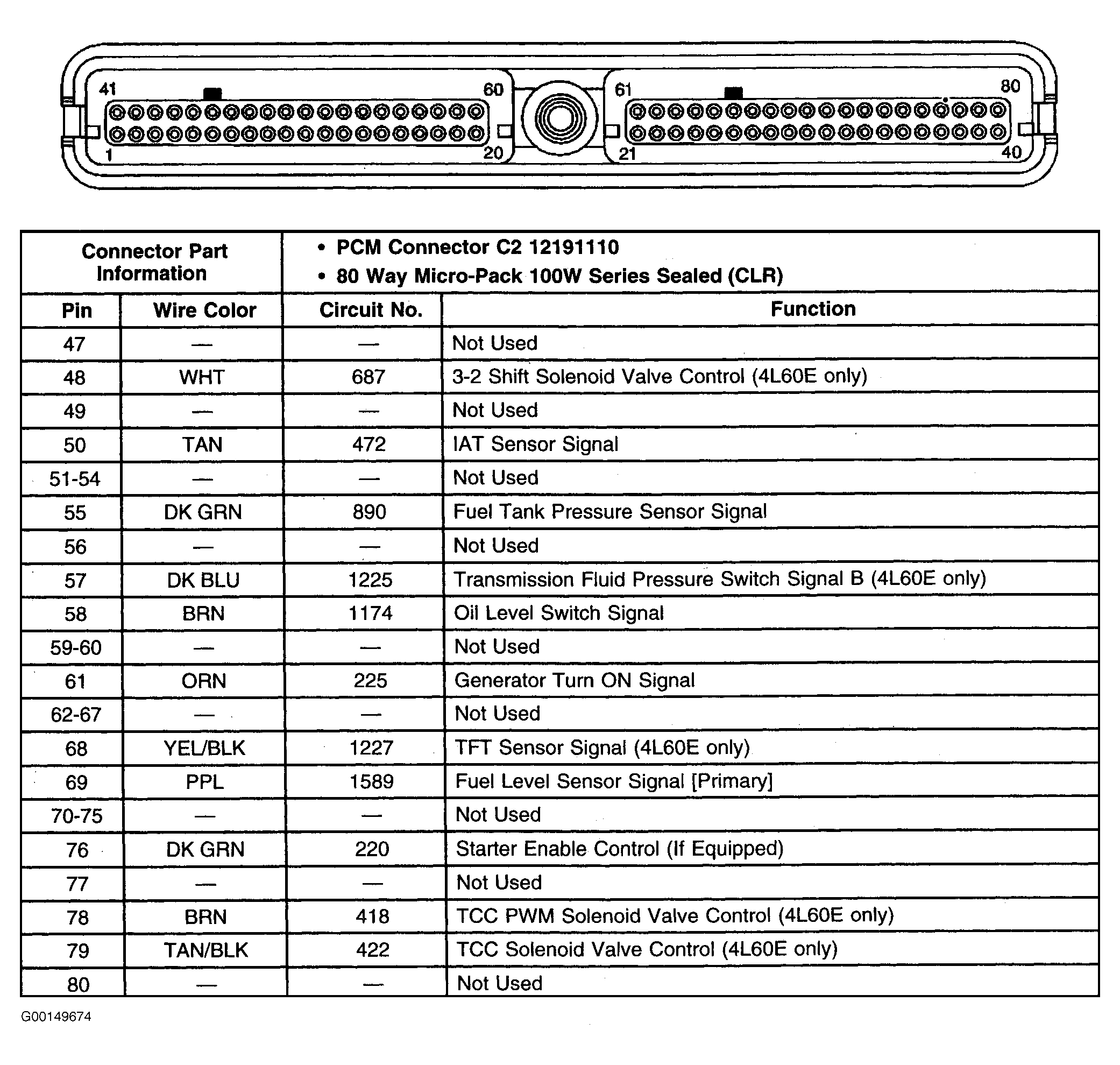

Fig 22: Identifying PCM Connector C2 Terminals (2 Of 2)

G00149674

Courtesy of GENERAL MOTORS CORP.

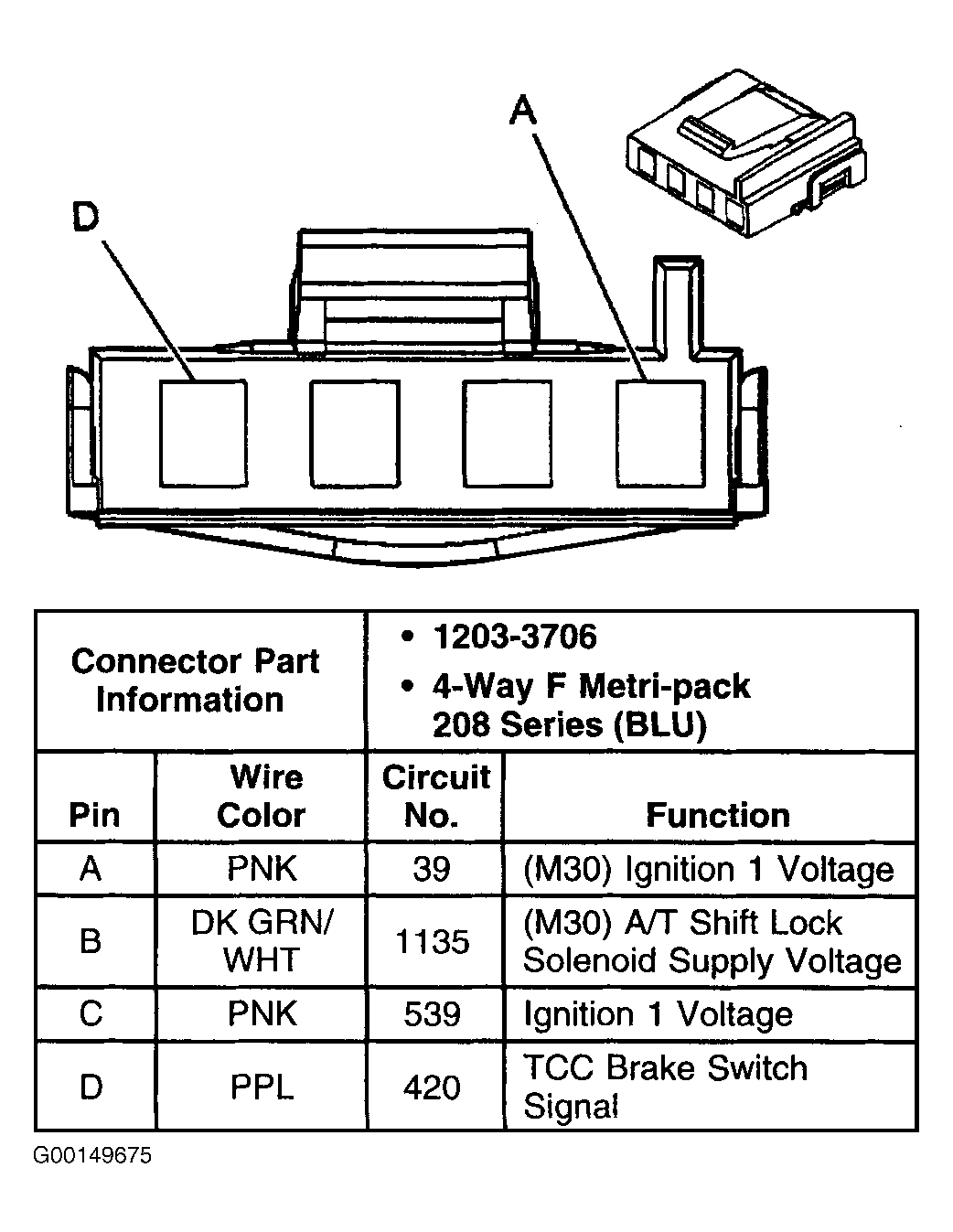

Fig 23: Identifying Stop Lamp/TCC Switch Connector C2 Terminals

G00149675

Courtesy of GENERAL MOTORS CORP.

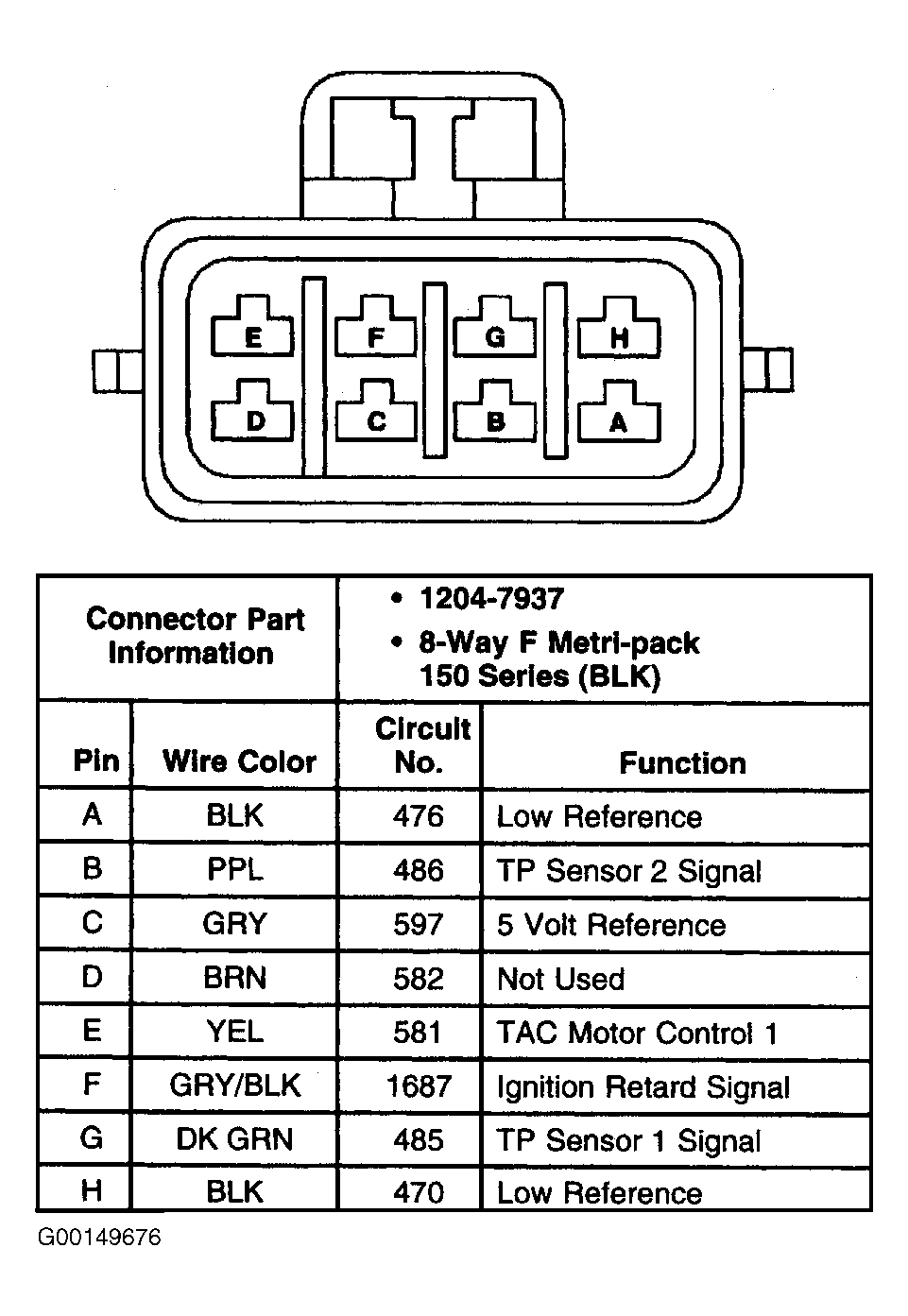

Fig 24: Identifying Throttle Actuator Control Connect Terminals

G00149676

Courtesy of GENERAL MOTORS CORP.

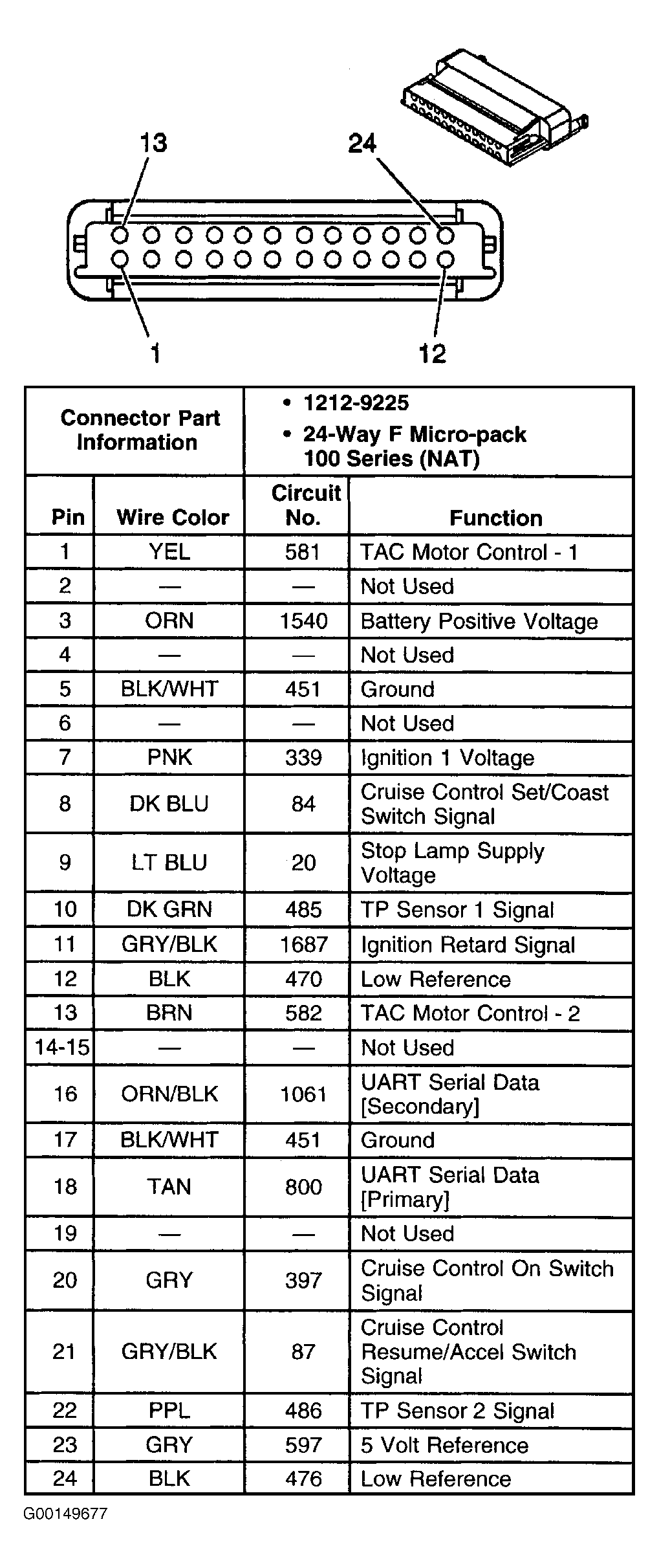

Fig 25: Identifying Throttle Actuator Control Module Connector Terminals

G00149677

Courtesy of GENERAL MOTORS CORP.
