Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 5 .
COMPONENT LOCATIONS

Component Location
Body Control Module Behind Right Side Of Instrument Panel, Near Blower Motor
Data Link Connector Below Left Side Of Instrument Panel, To Right Of Steering Column
Door Jam Switch Near Base Of Respective "A" Pillar
Fusible Links In Front Of Left Front Wheelwell, Behind Underhood Fuse Block
Instrument Panel Cluster On Left Side Of Instrument Panel
Instrument Panel Fuse Block Behind Left Side Of Instrument Panel
Powertrain Control Module On Right Side Of Engine Compartment, Near Rear Of Wheelwell
Rear Compartment Lid Ajar Indicator Switch Part Of Rear Compartment Lid Latch
Rear Compartment Lid Release Relay Behind Left Side Of Instrument Panel
Splice Pack Connector Below Left Side Of Instrument Panel, Near Data Link Connector
Theft Deterrent Relay Behind Instrument Panel, Mounted To Passenger's Air Bag Module Bracket
Theft Deterrent Shock Sensor Behind Right Rear Inner Trim Panel, Mounted To Wheelwell
Underhood Fuse Block (Bottom & Top) Left Front Corner Of Engine Compartment
Fig 1: Locating Body Control Module
G00050861Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Bottom & Top Underhood Fuse Blocks
G00050860Courtesy of GENERAL MOTORS CORP.

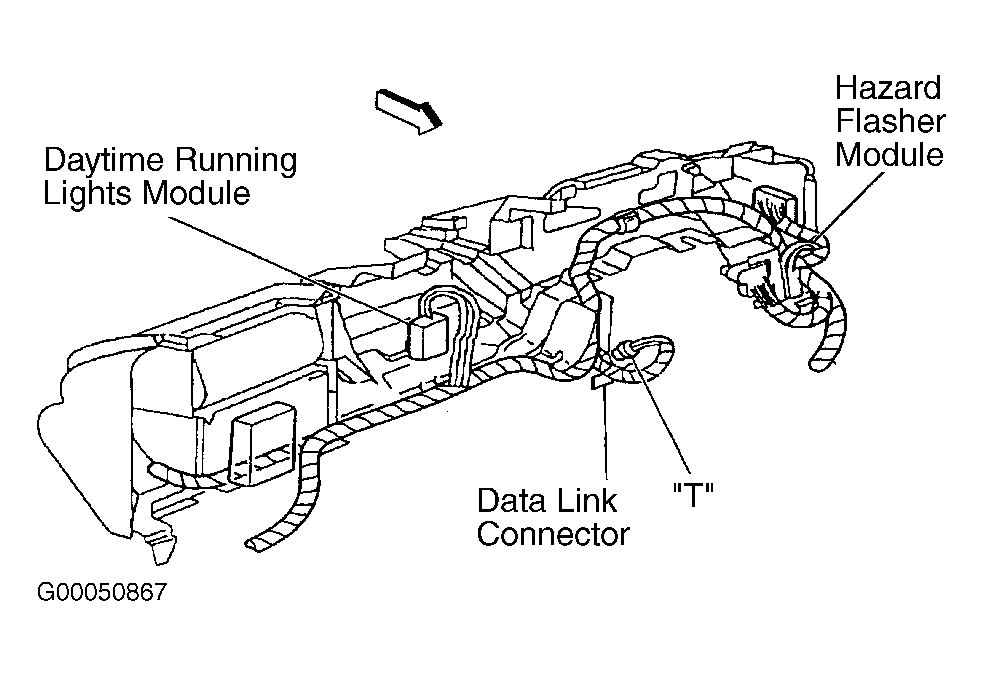

Fig 3: Locating Data Link Connector
G00050867Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Instrument Panel Fuse Block
G00050859Courtesy of GENERAL MOTORS CORP.

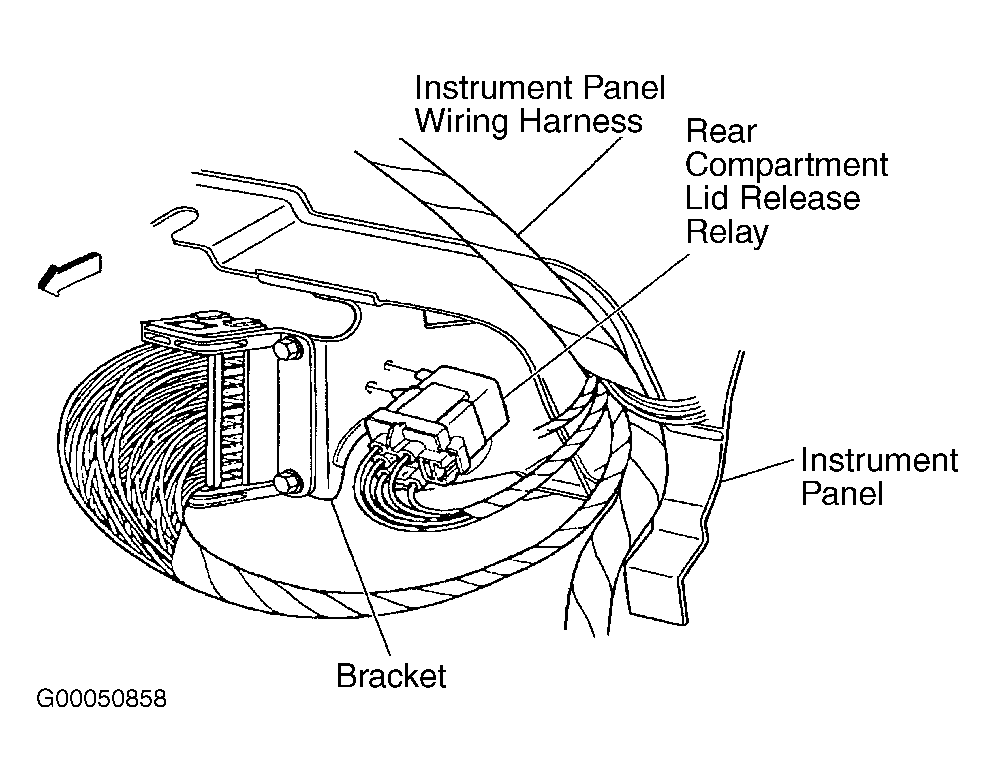

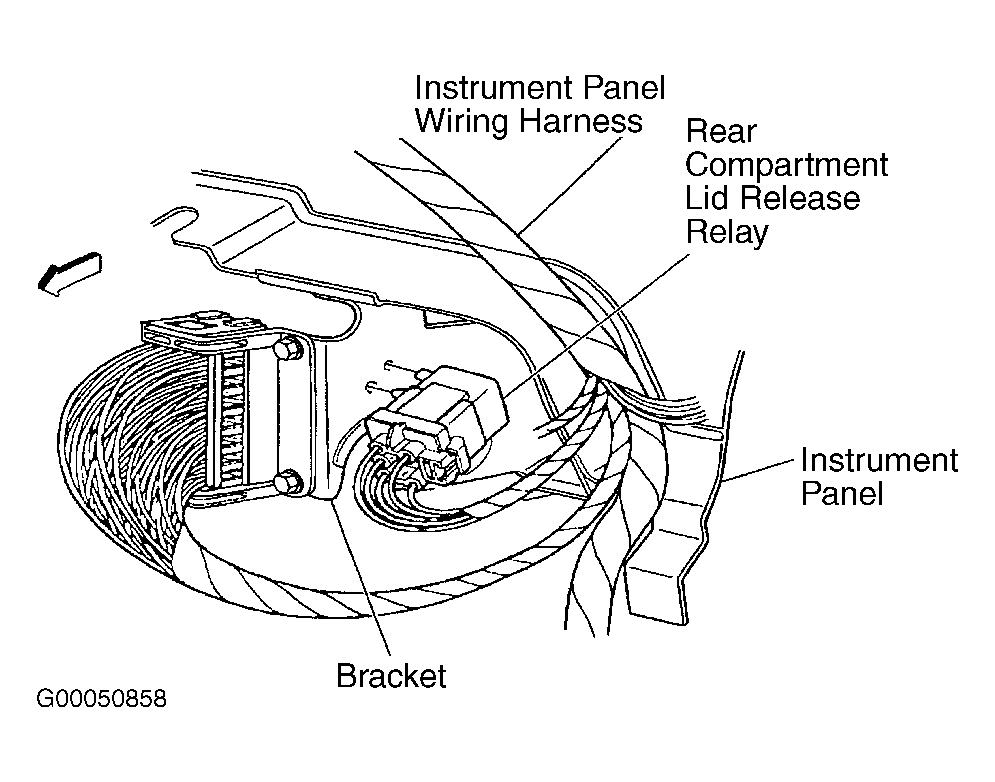

Fig 5: Locating Rear Compartment Lid Release Relay
G00050858Courtesy of GENERAL MOTORS CORP.
