Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Body Control Module	Behind Right Side Of Instrument Panel, Near Blower Motor
Express Down Relay	In Power Window Control Module
Instrument Panel Fuse Block	Behind Left Side Of Instrument Panel
Power Window Control Module	Mounted To Center Of Dash Mat, Above Floor Tunnel

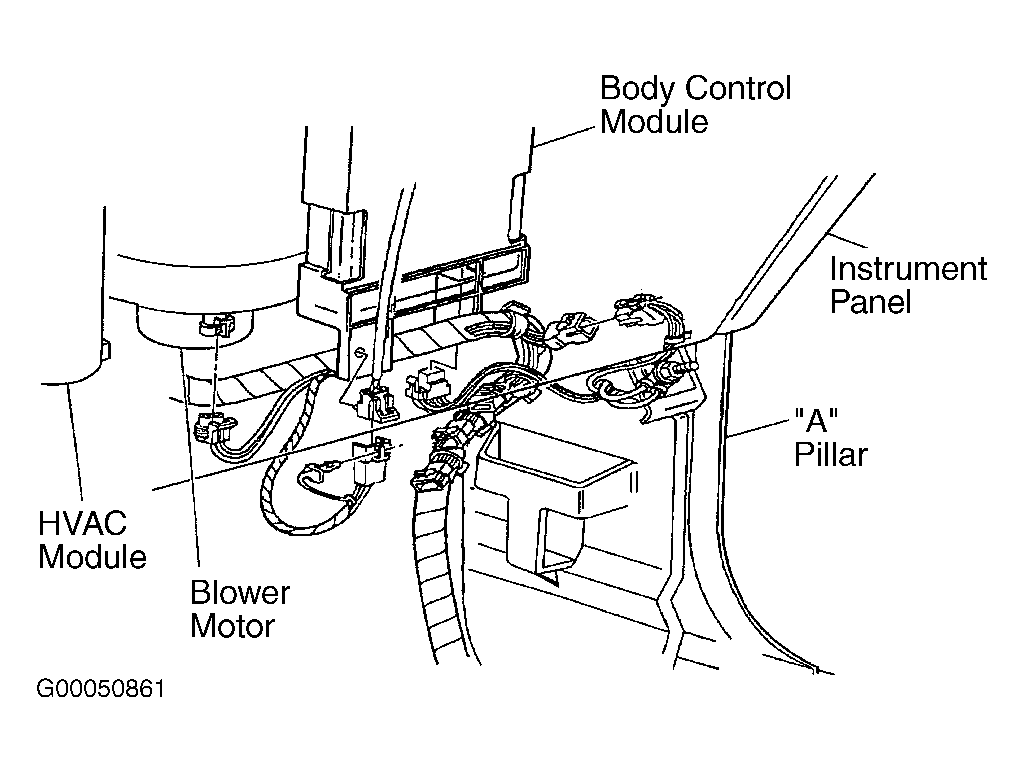

Fig 1: Locating Body Control Module

Courtesy of GENERAL MOTORS CORP.

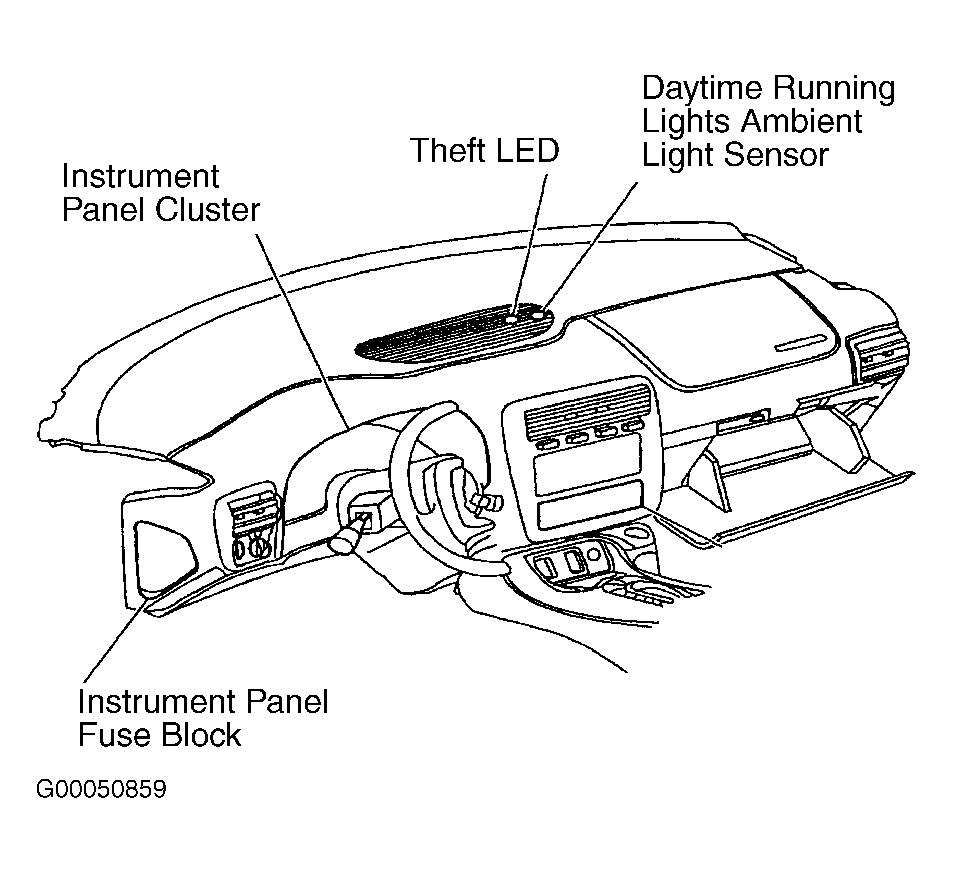

Fig 2: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

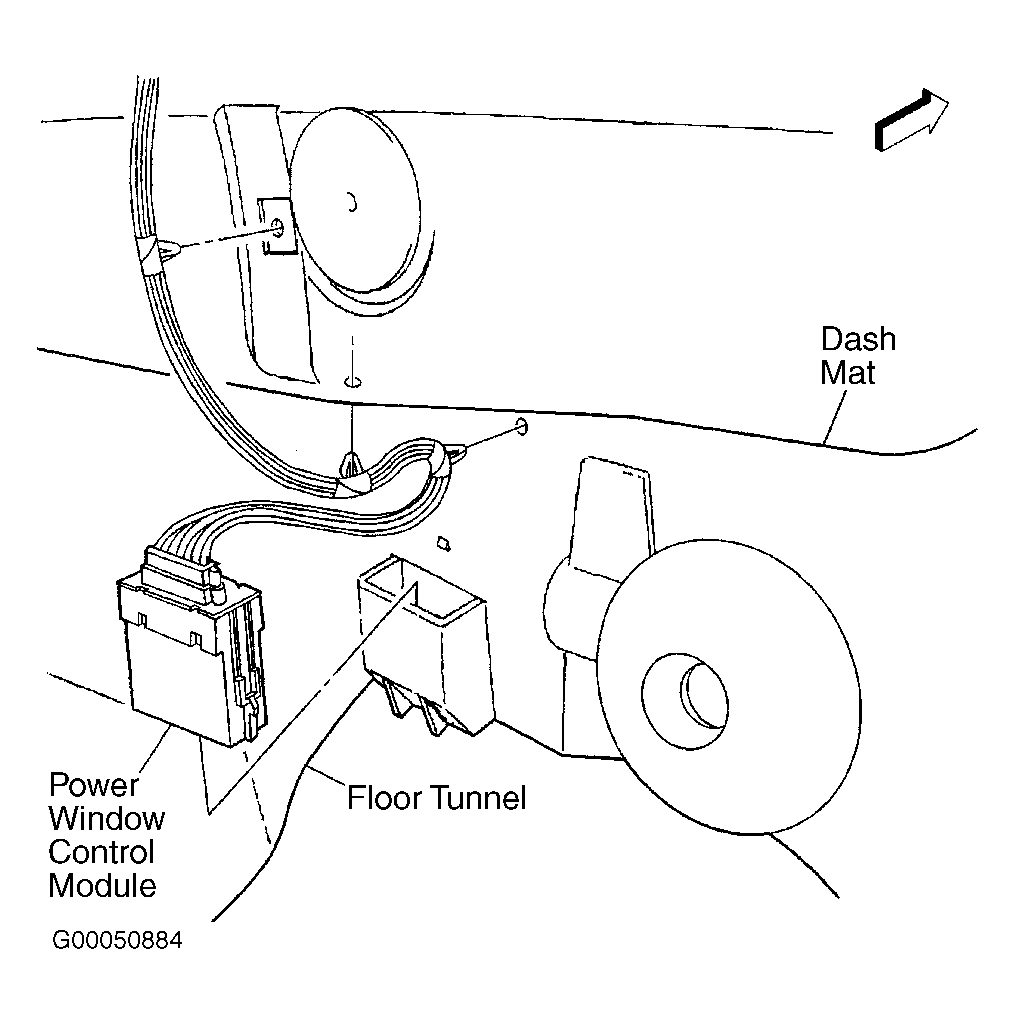

Fig 3: Locating Power Window Control Module

Courtesy of GENERAL MOTORS CORP.
