ABS Component Views

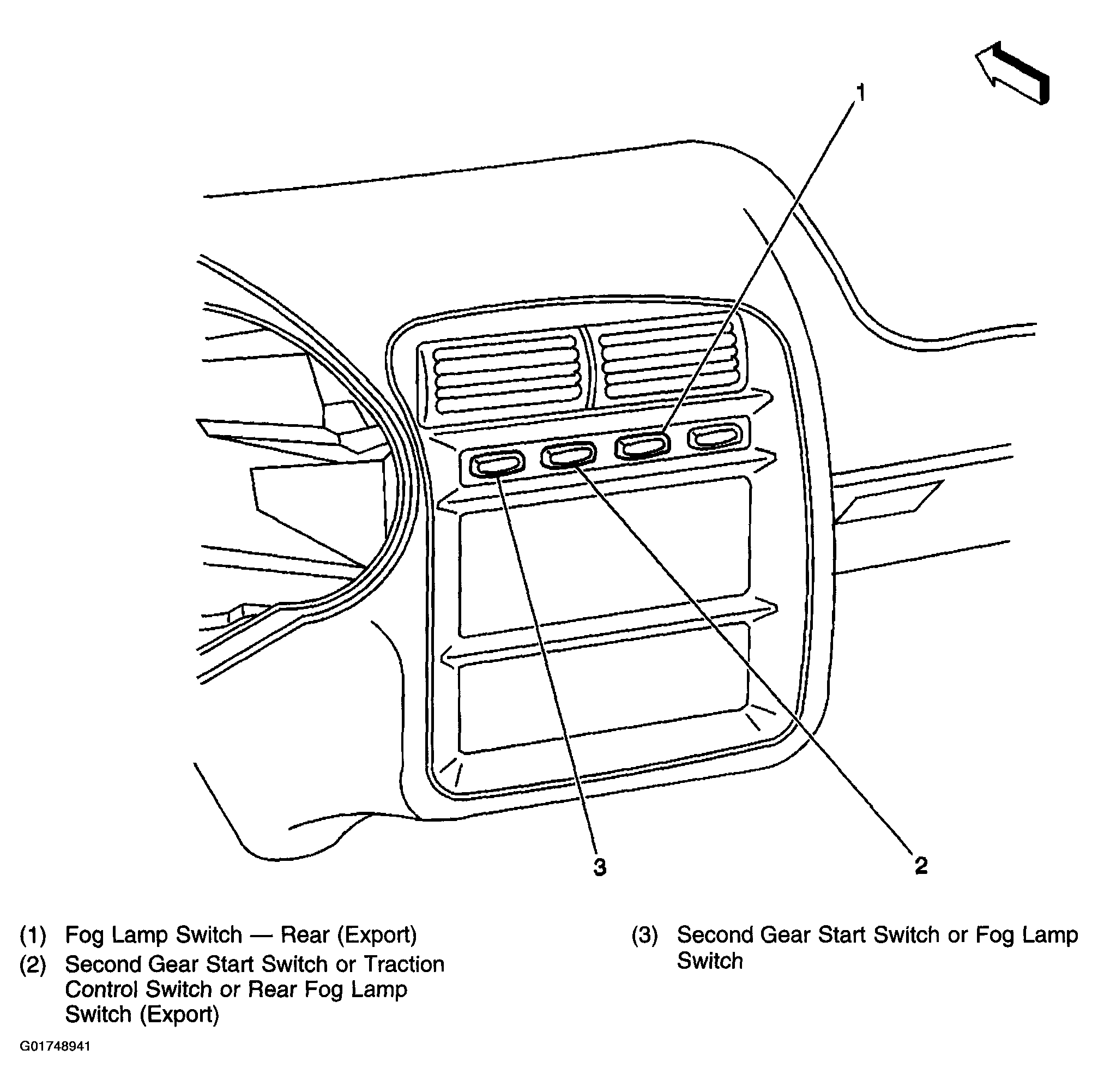

Fig 1: Center of Instrument Panel (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Behind the Lower Left Side of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

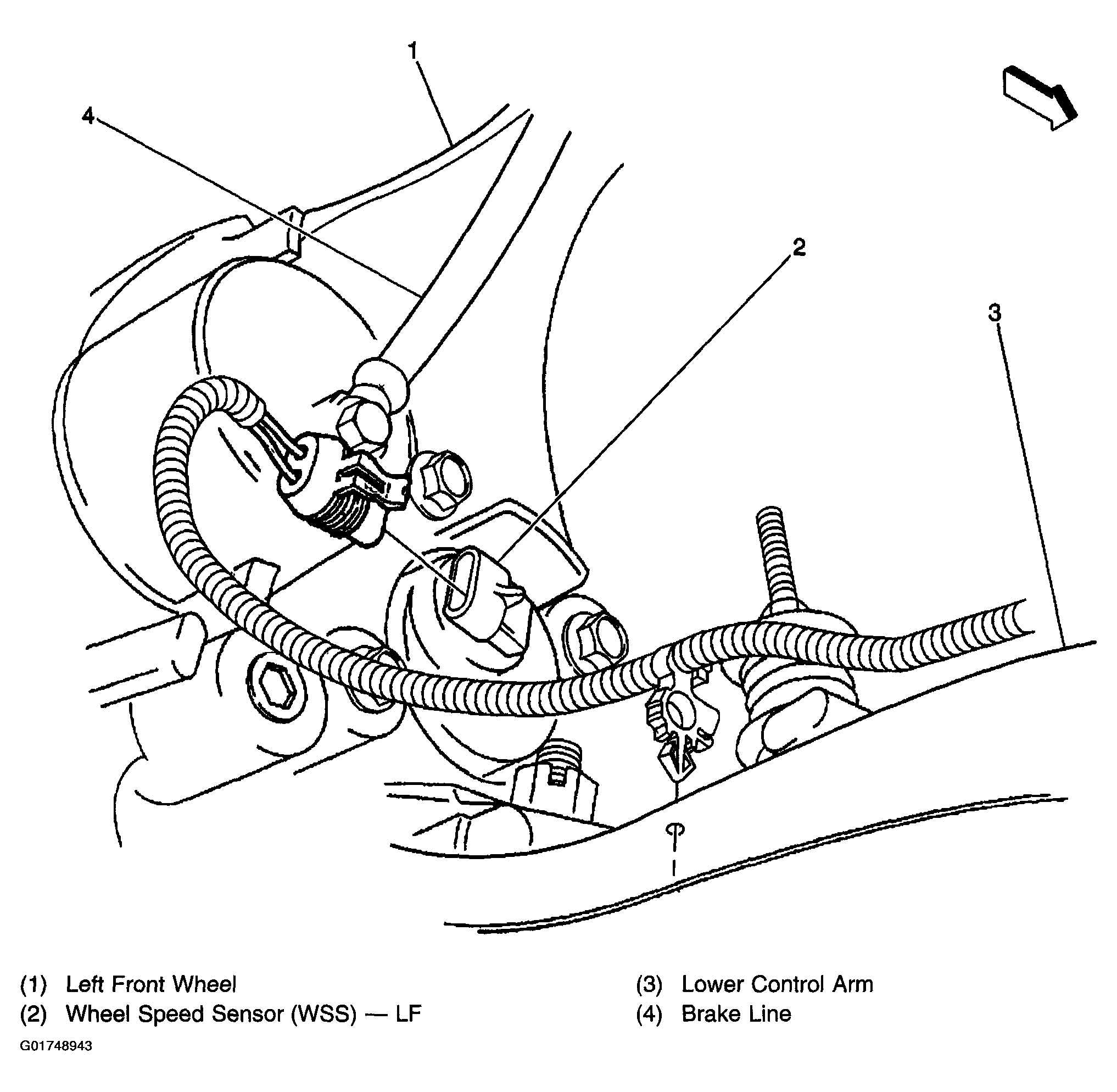

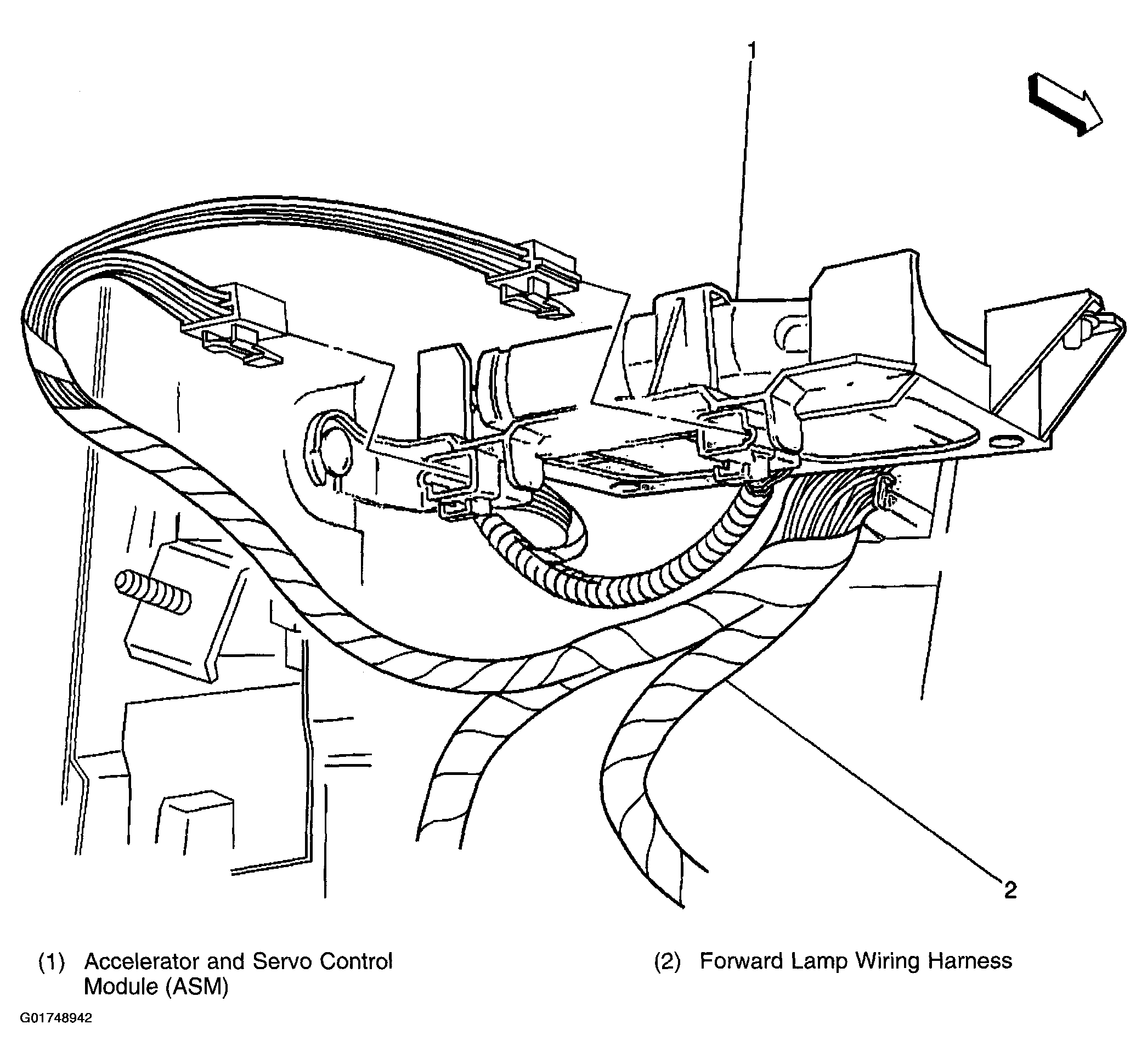

Fig 3: Inside of Left Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

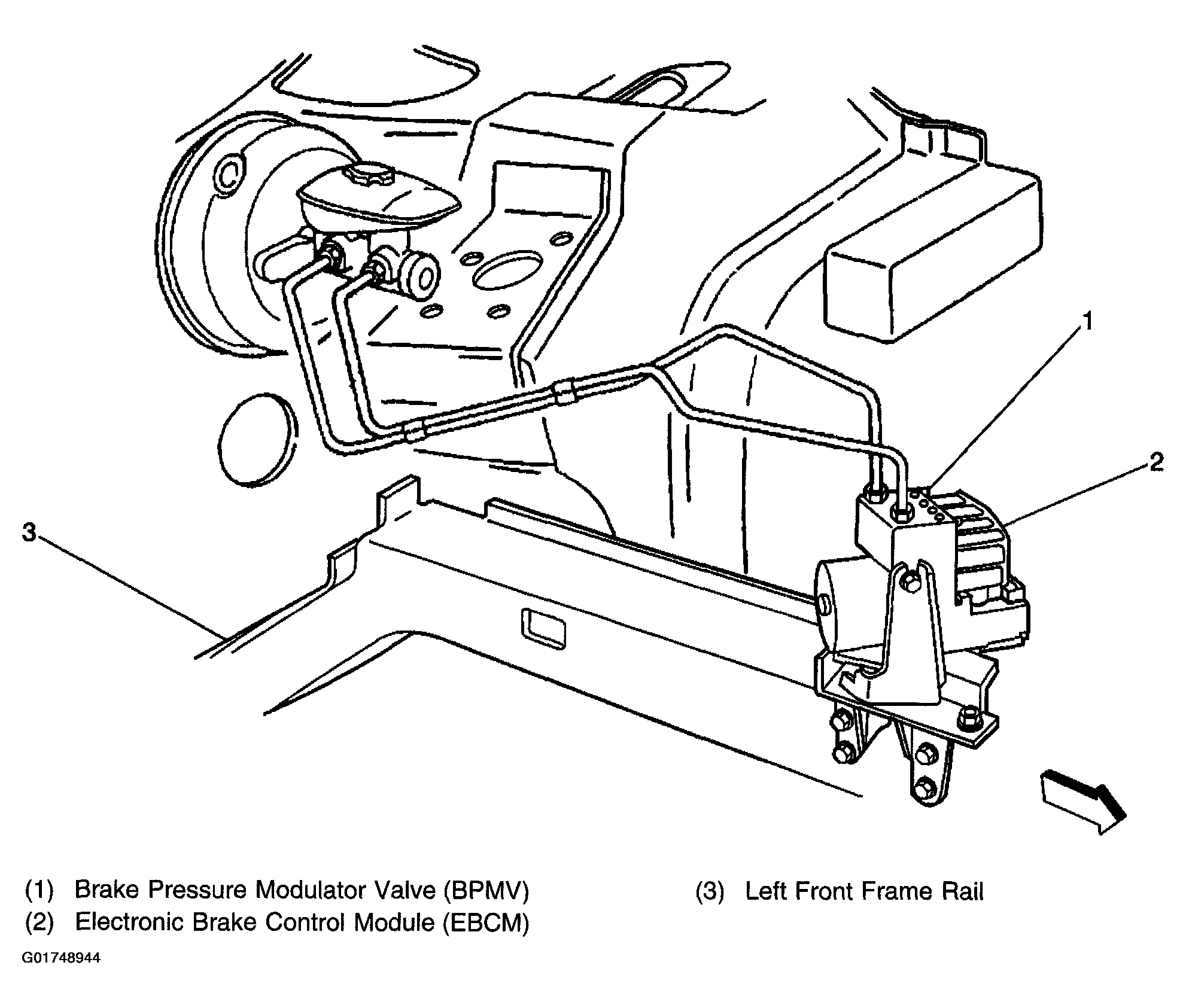

Fig 4: Lower Left Front of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

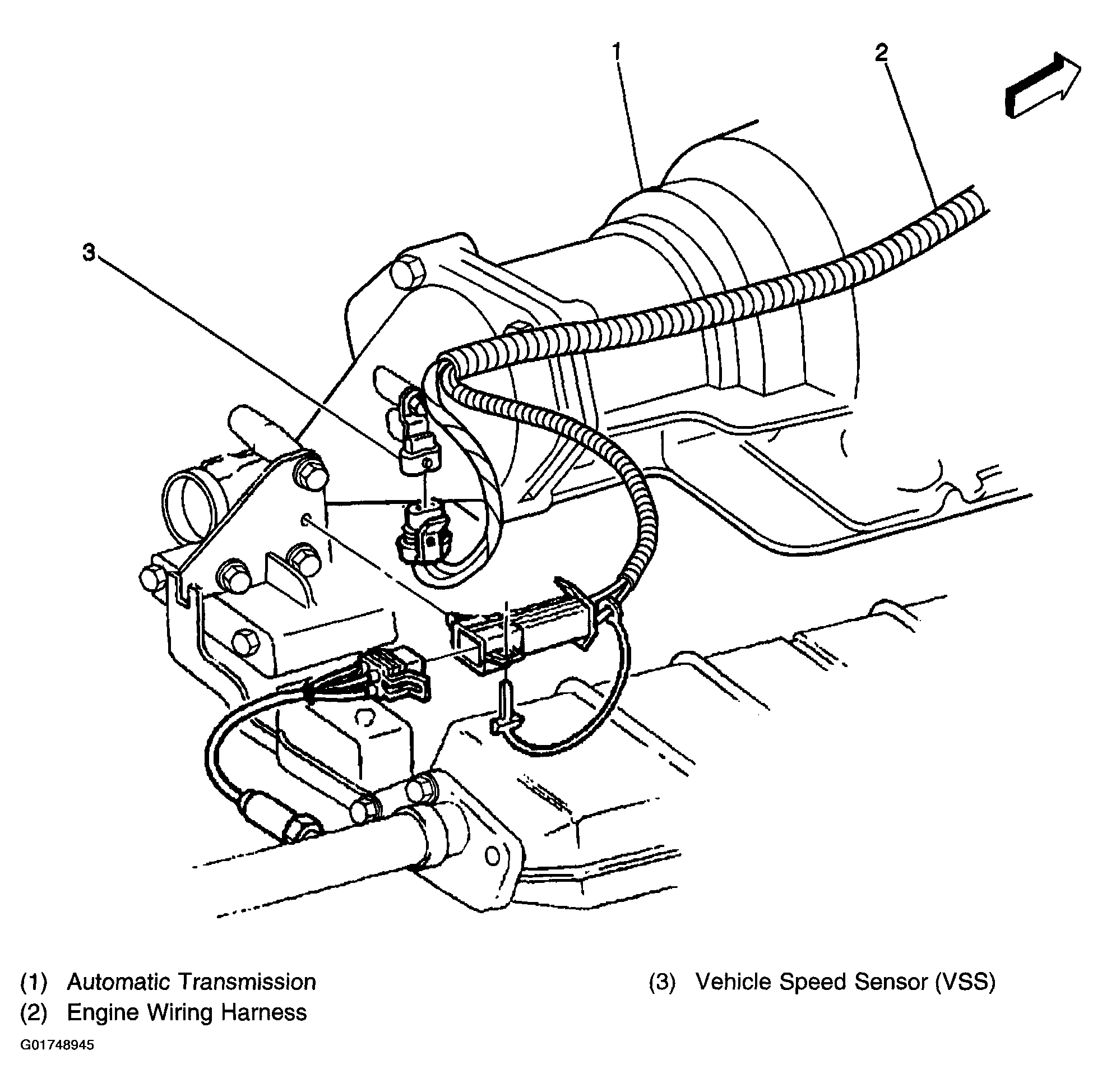

Fig 5: Right Side of the Automatic Transmission (M30)

Courtesy of GENERAL MOTORS CORP.

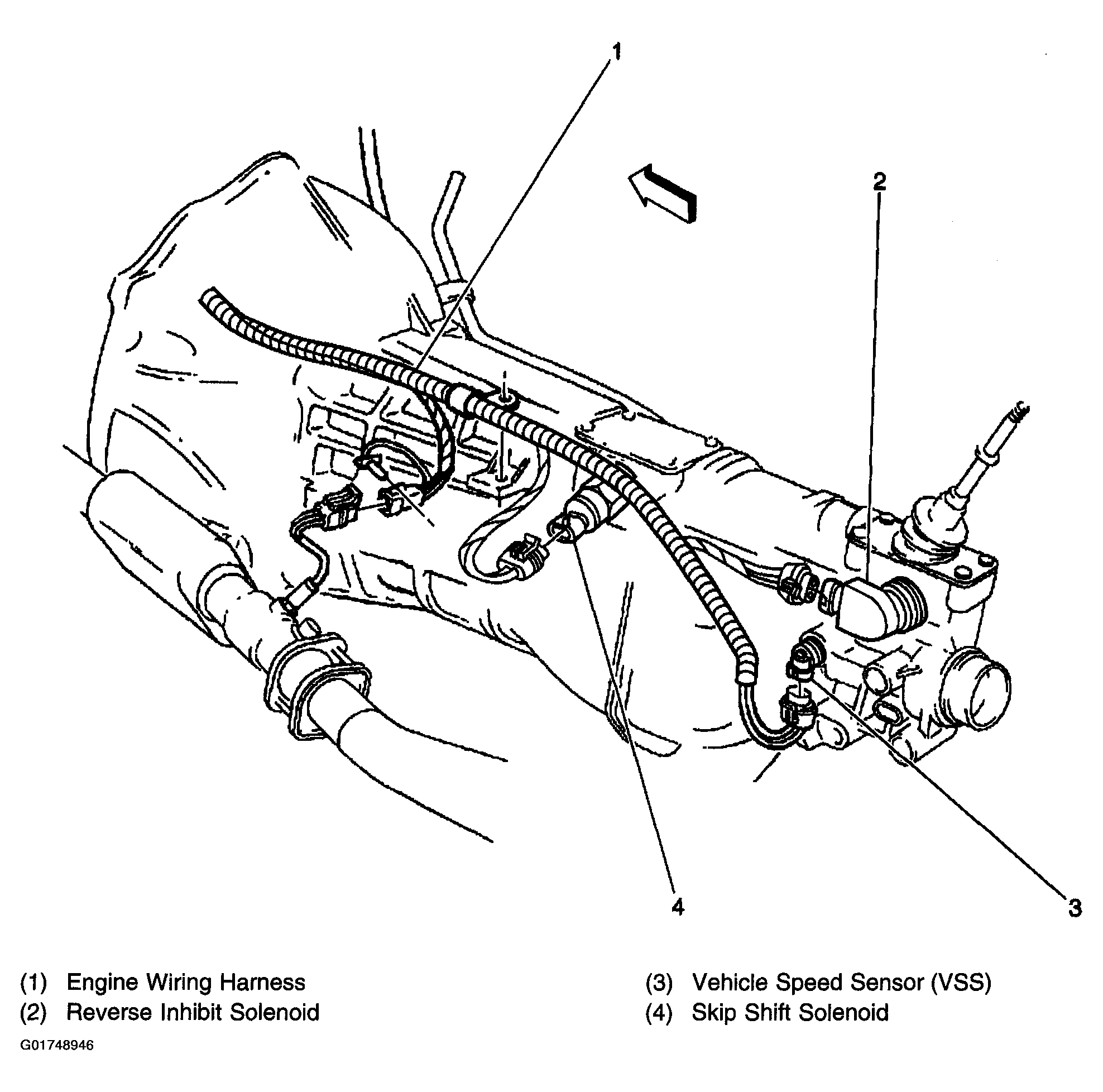

Fig 6: Left Side of the Manual Transmission (MM6)

Courtesy of GENERAL MOTORS CORP.

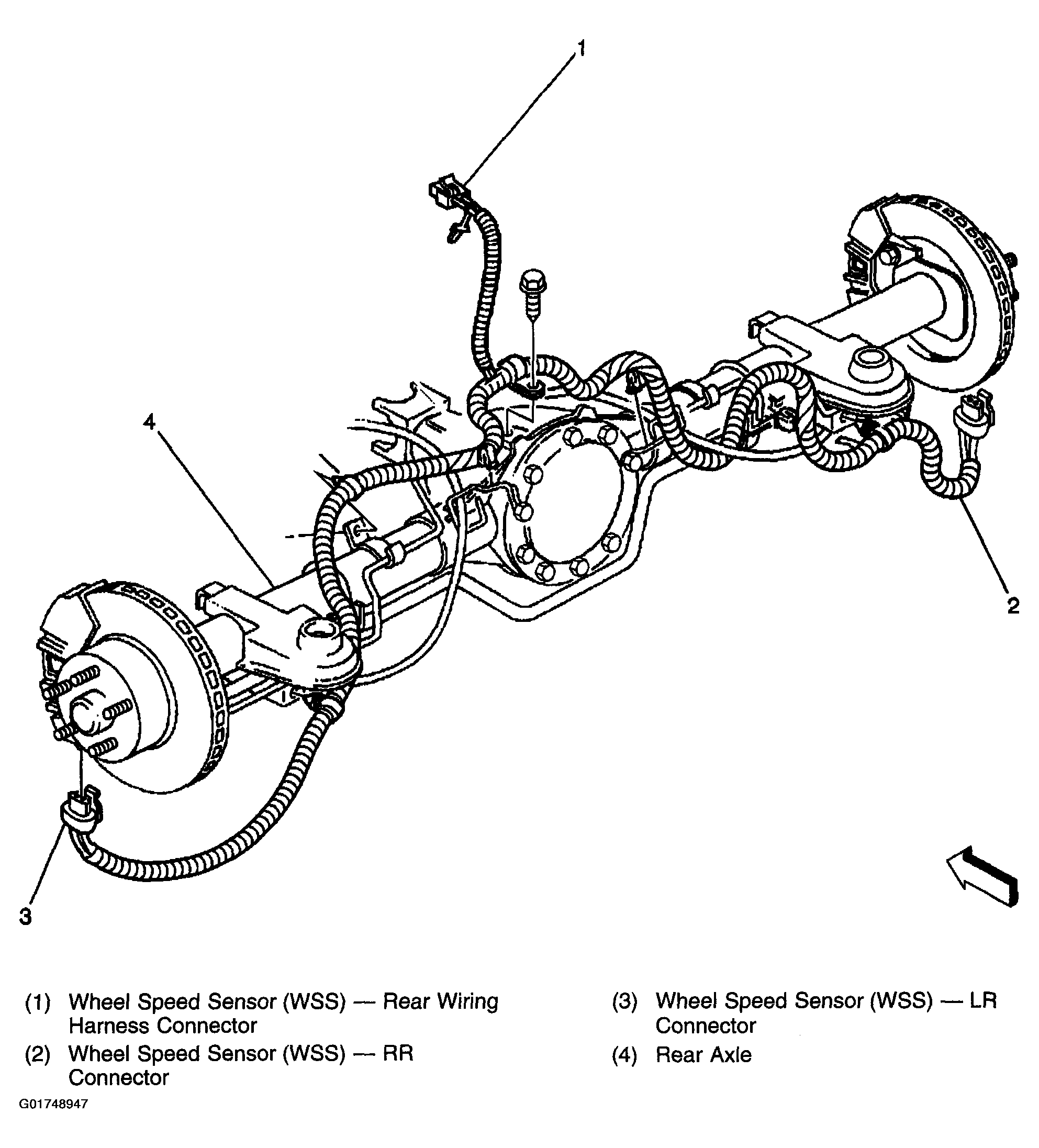

Fig 7: Rear Axle (VB LS1 w/NW9)

Courtesy of GENERAL MOTORS CORP.

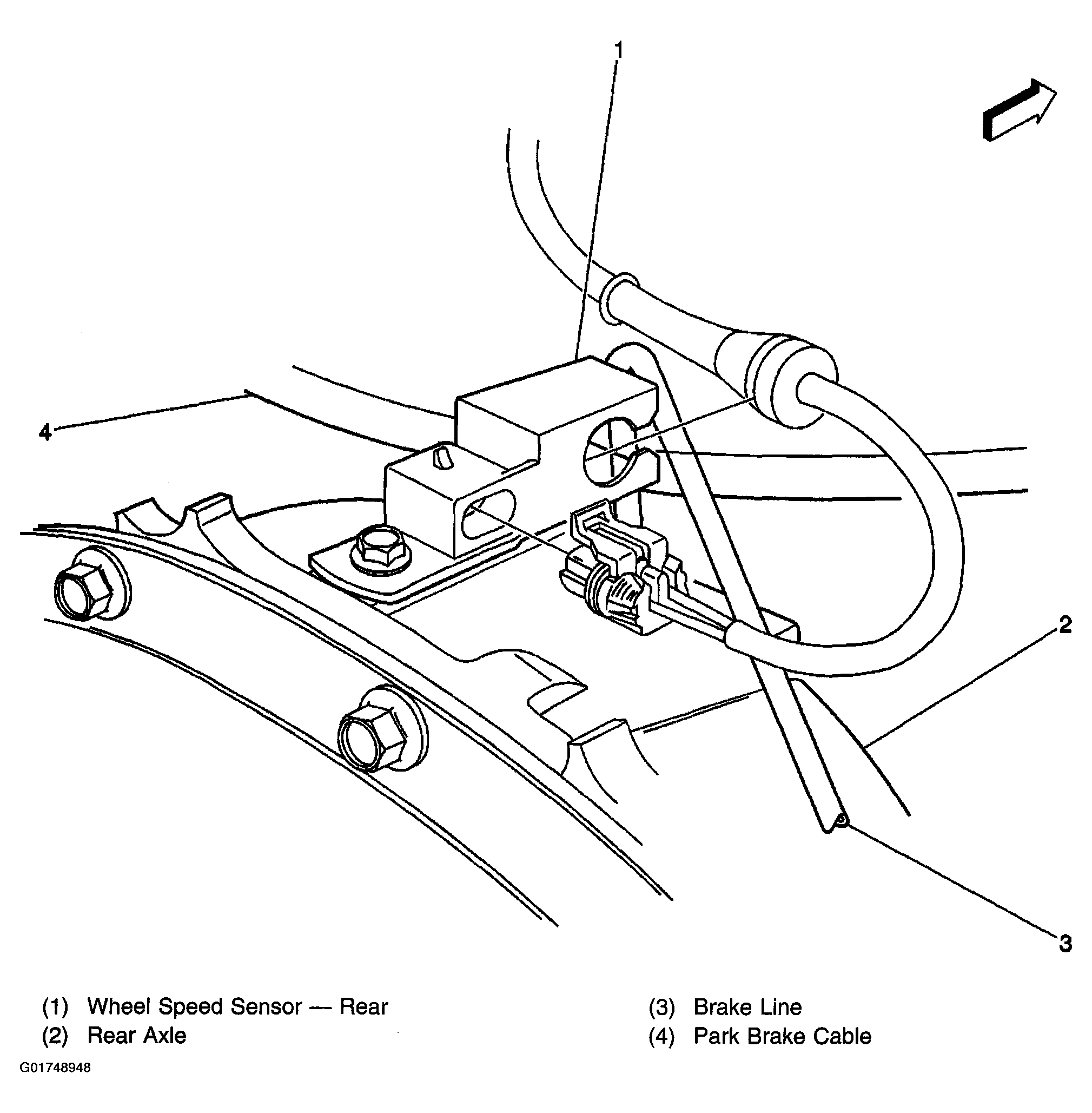

Fig 8: Rear Axle (V6 L36 and V8 LS1 w/o NW9)

Courtesy of GENERAL MOTORS CORP.
