ABS Connector End Views

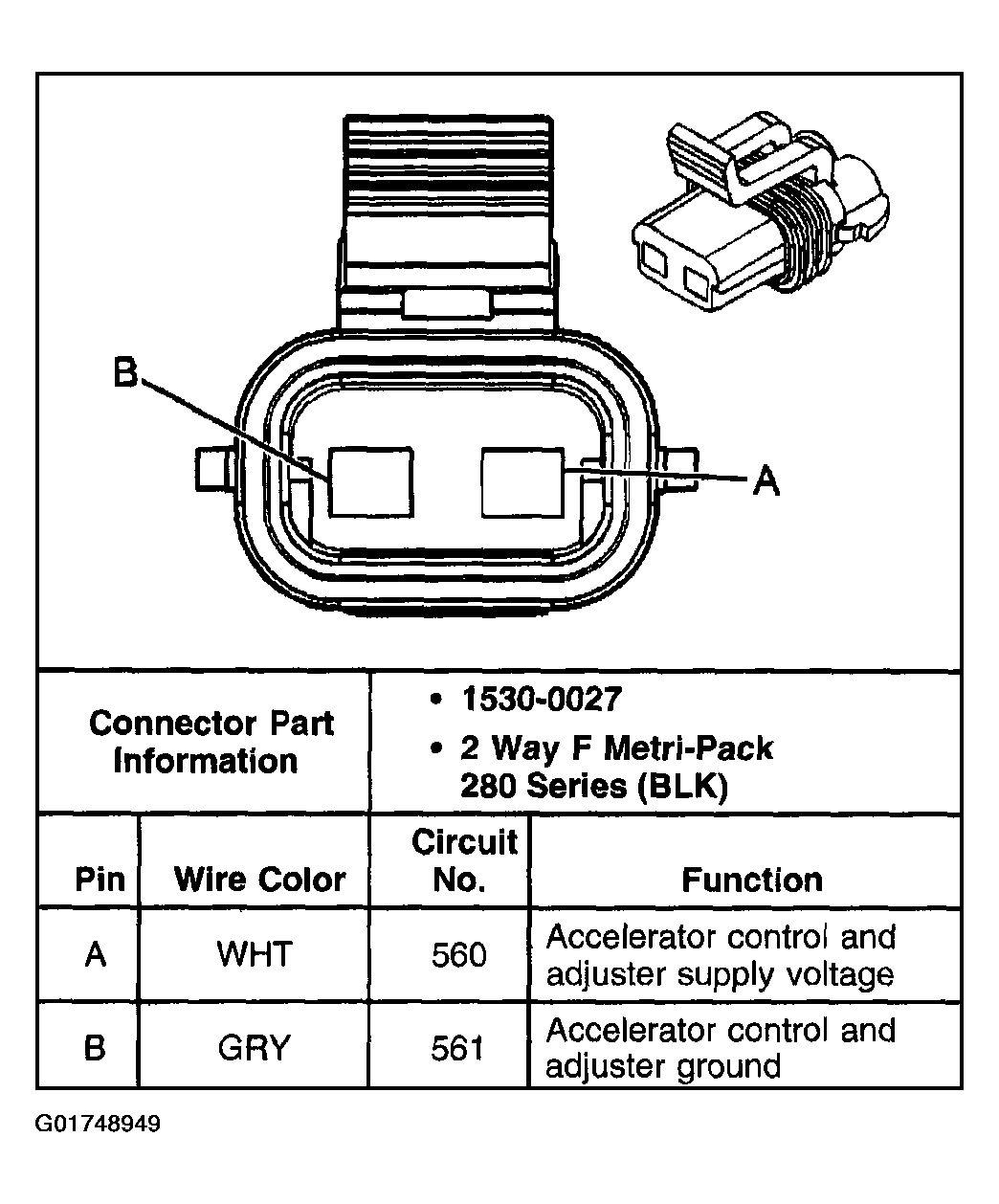

Fig 1: Accelerator Control and Adjuster

Courtesy of GENERAL MOTORS CORP.

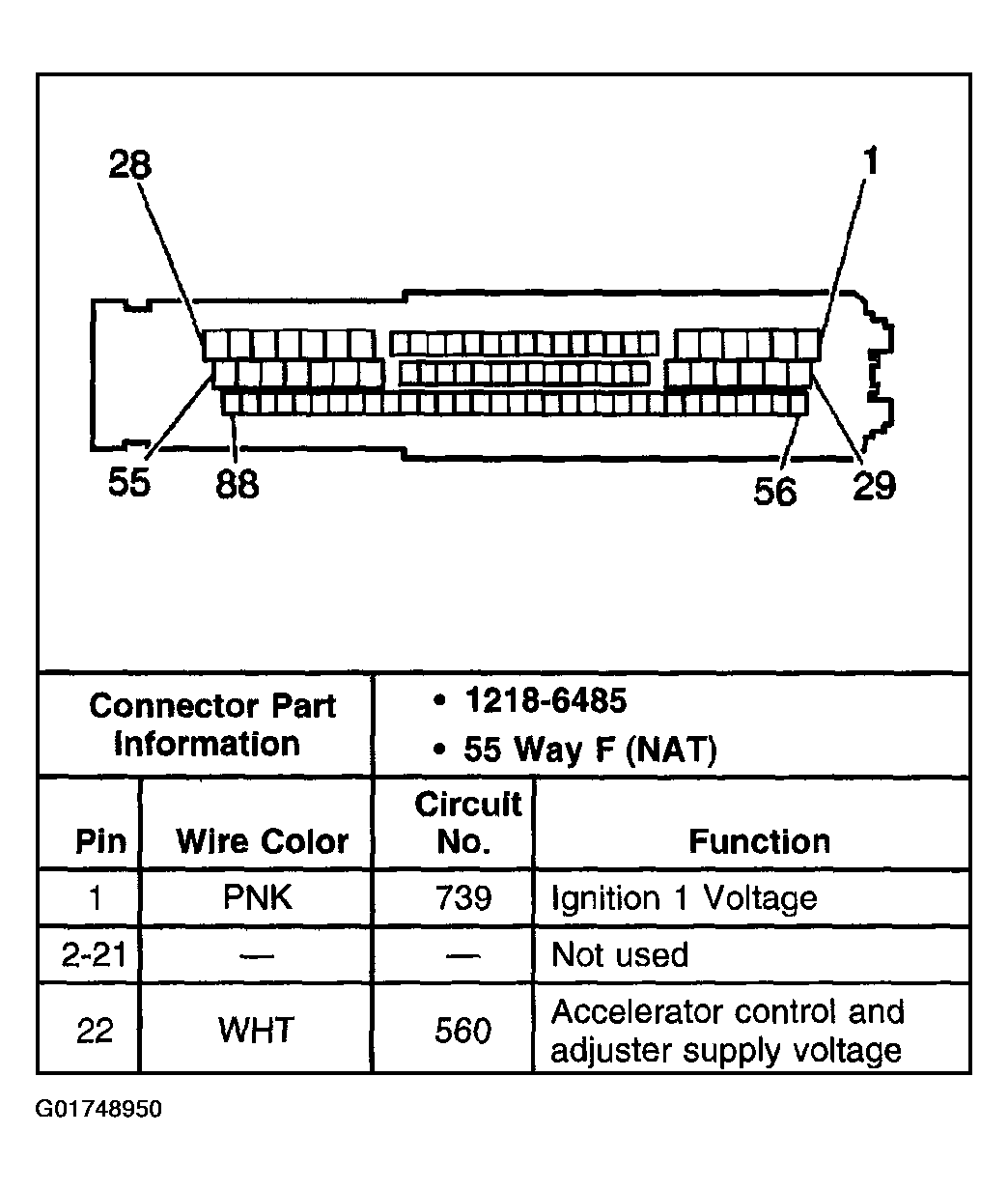

Fig 2: Accelerator and Servo Control Module (ASM - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

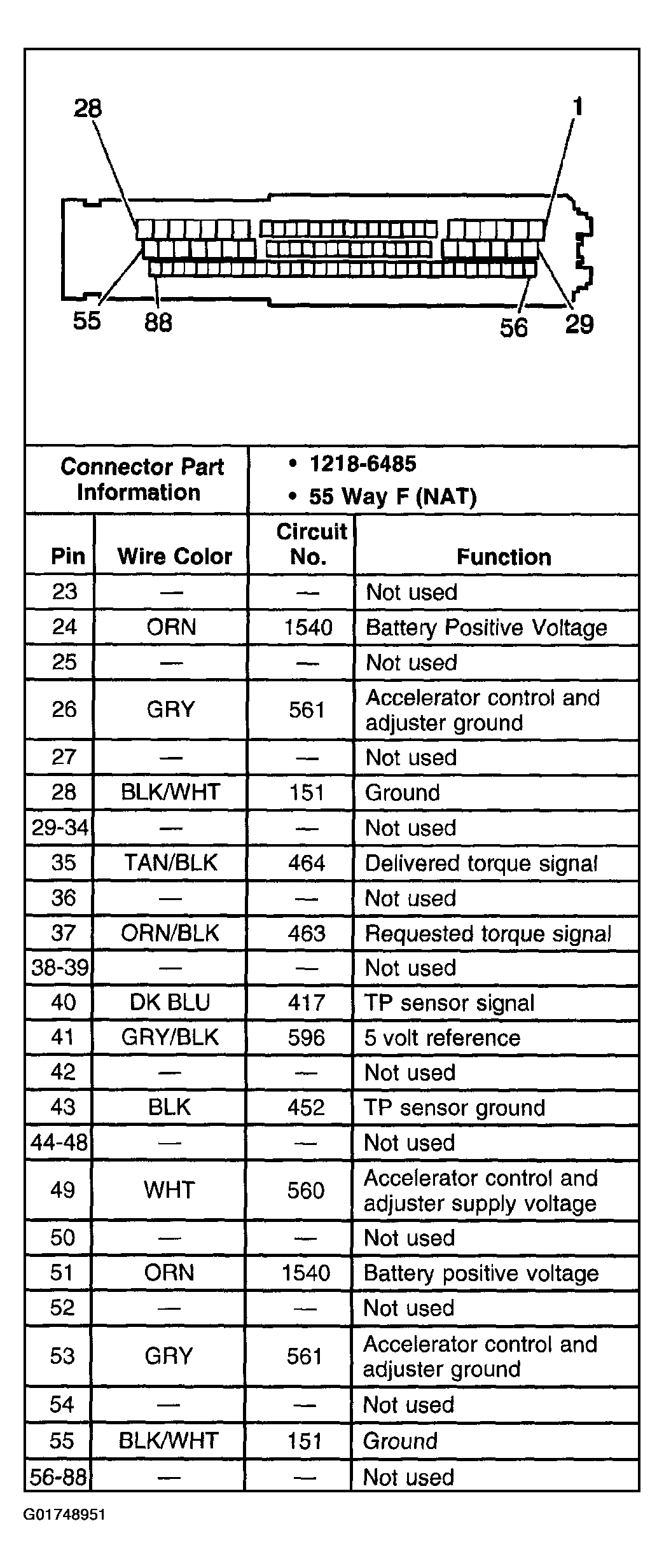

Fig 3: Accelerator and Servo Control Module (ASM - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

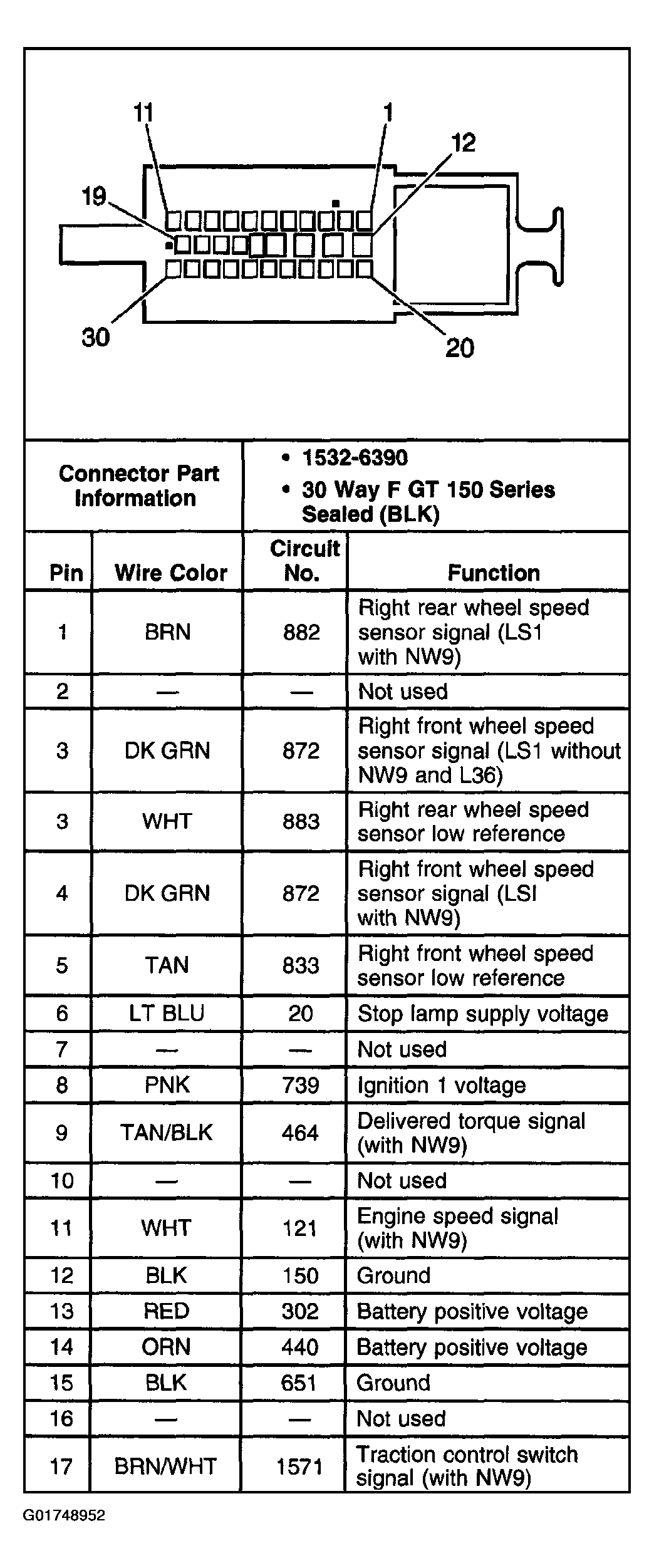

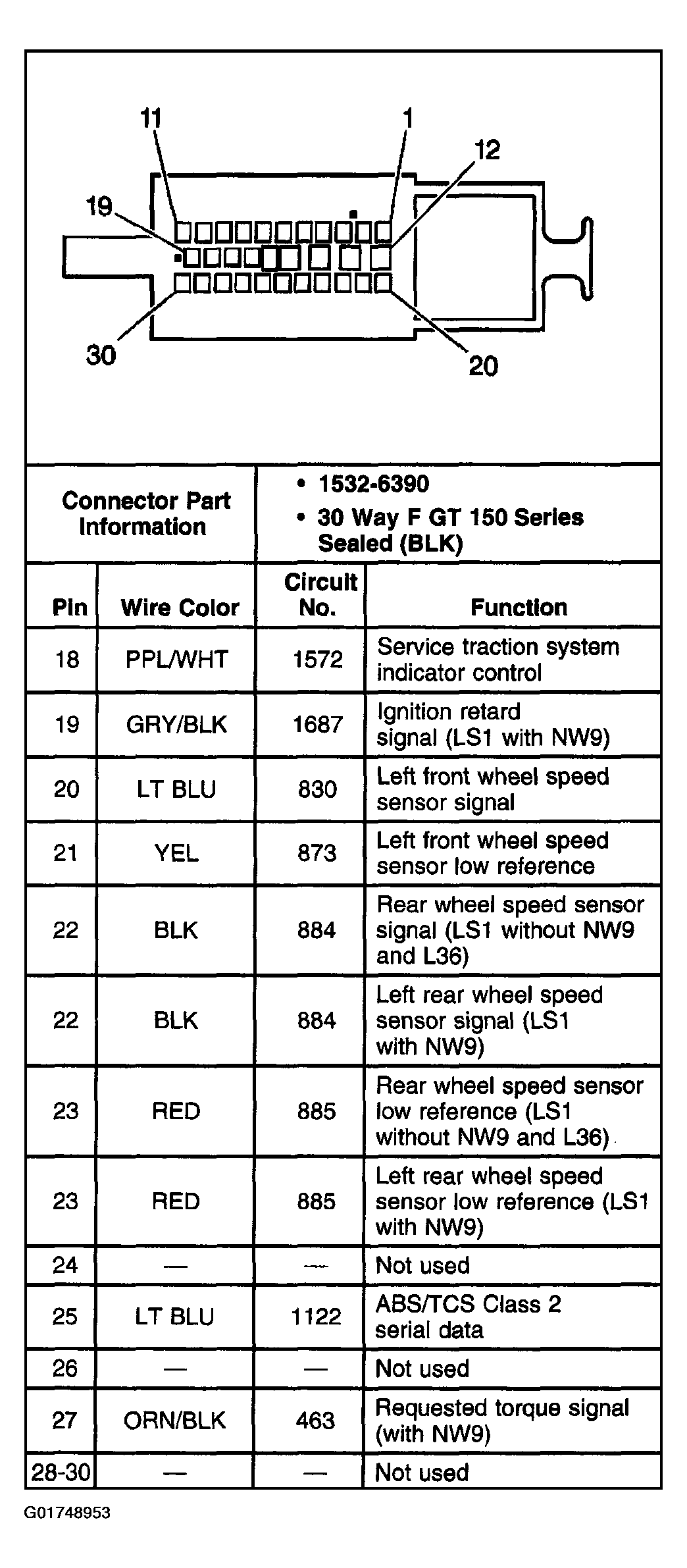

Fig 4: Electronic Brake Control Module (EBCM - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Electronic Brake Control Module (EBCM - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

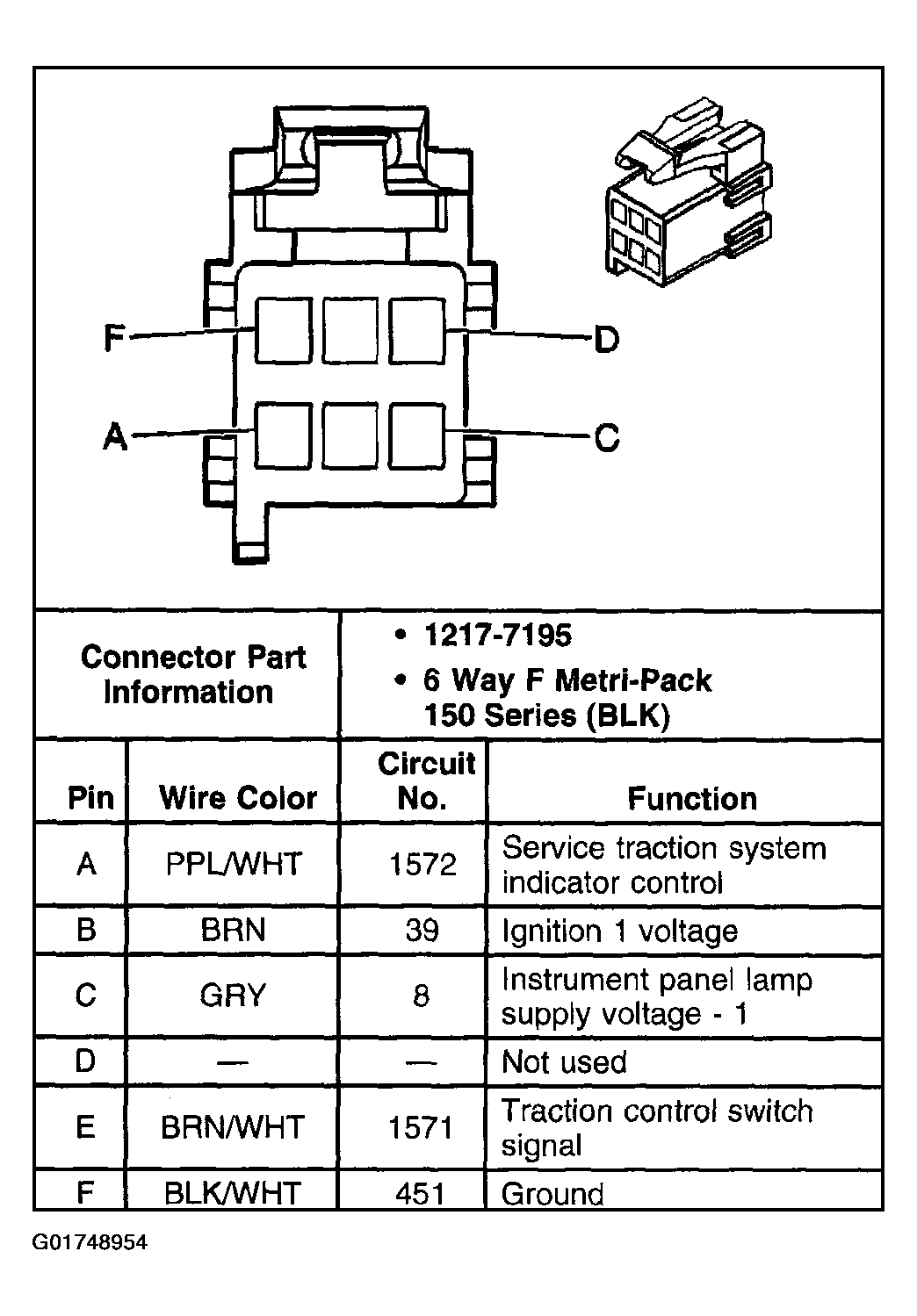

Fig 6: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

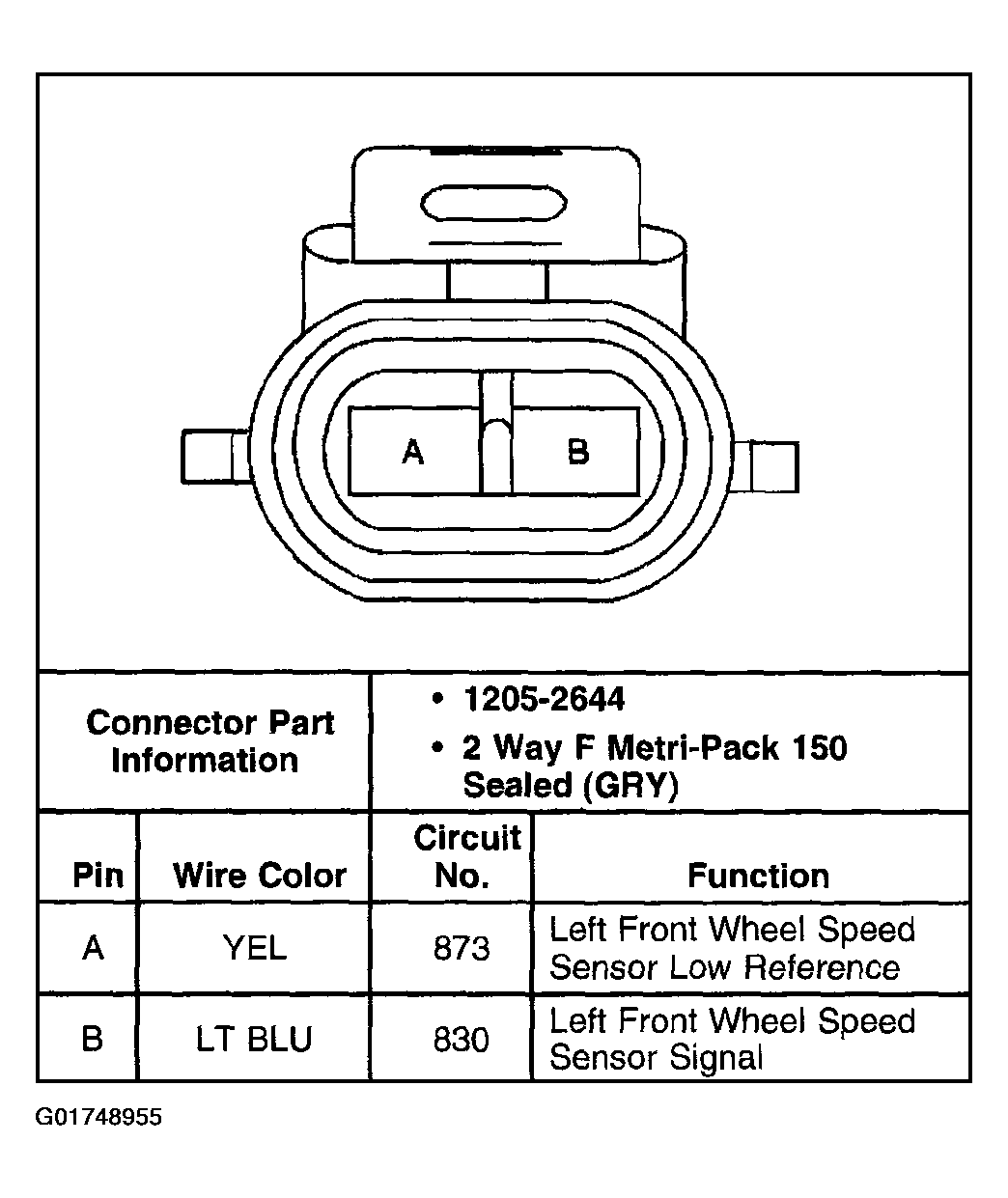

Fig 7: Wheel Speed Sensor (WSS) LF

Courtesy of GENERAL MOTORS CORP.

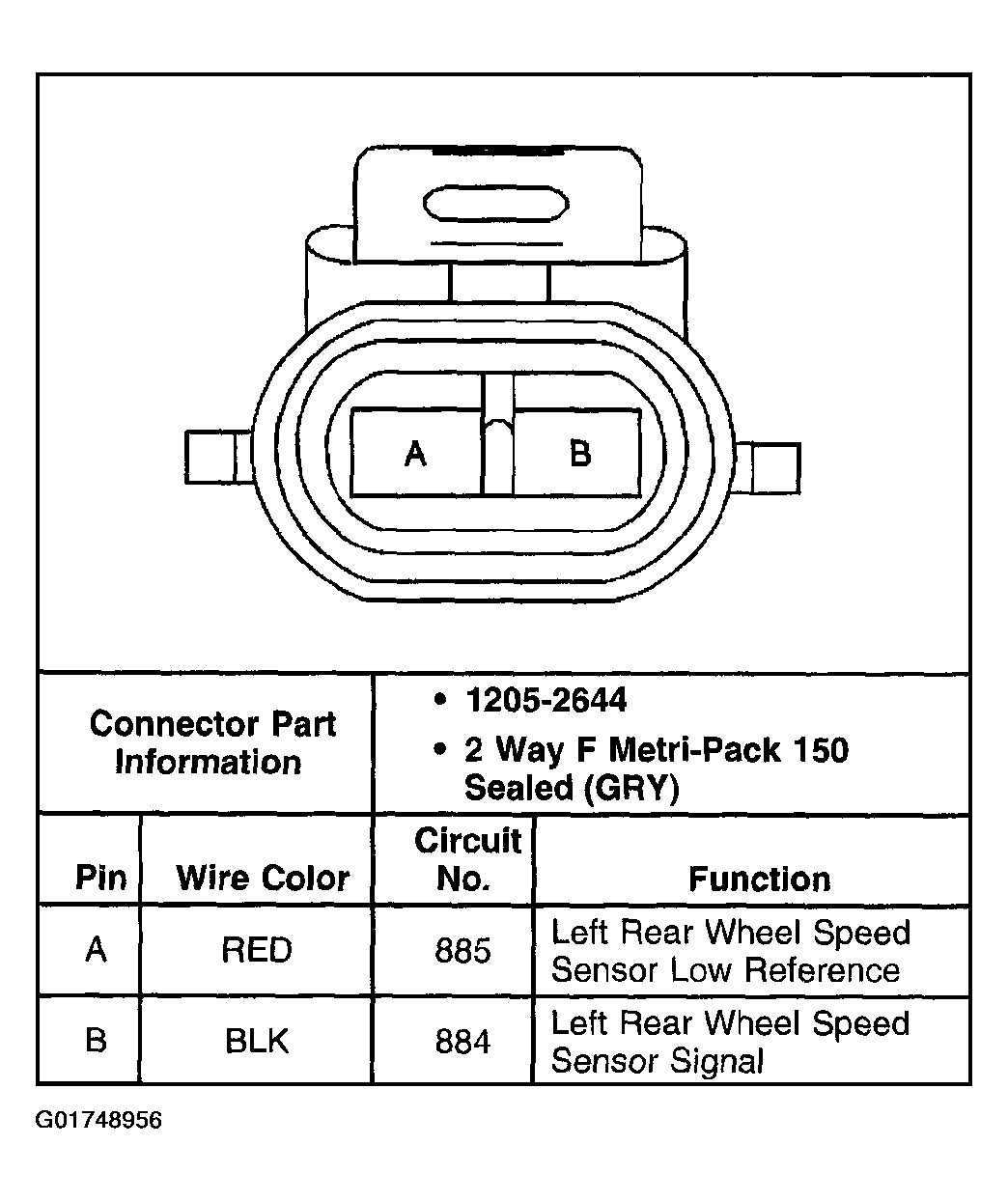

Fig 8: Wheel Speed Sensor (WSS) LR (V8 LS1 w/NW9)

Courtesy of GENERAL MOTORS CORP.

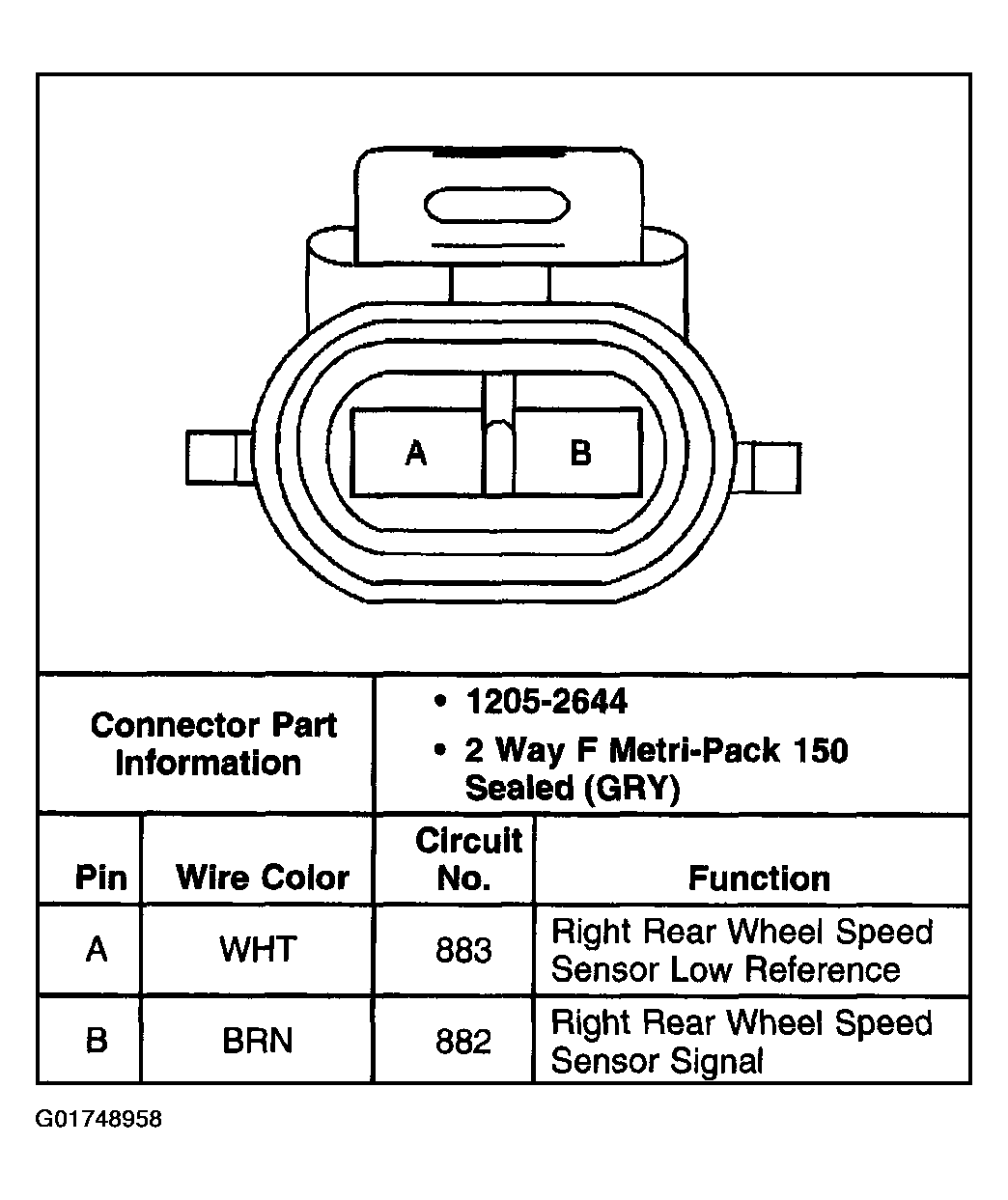

Fig 9: Wheel Speed Sensor (WSS) RF

Courtesy of GENERAL MOTORS CORP.

Fig 10: Wheel Speed Sensor (WSS) RR (V8 LS1 w/NW9)

Courtesy of GENERAL MOTORS CORP.

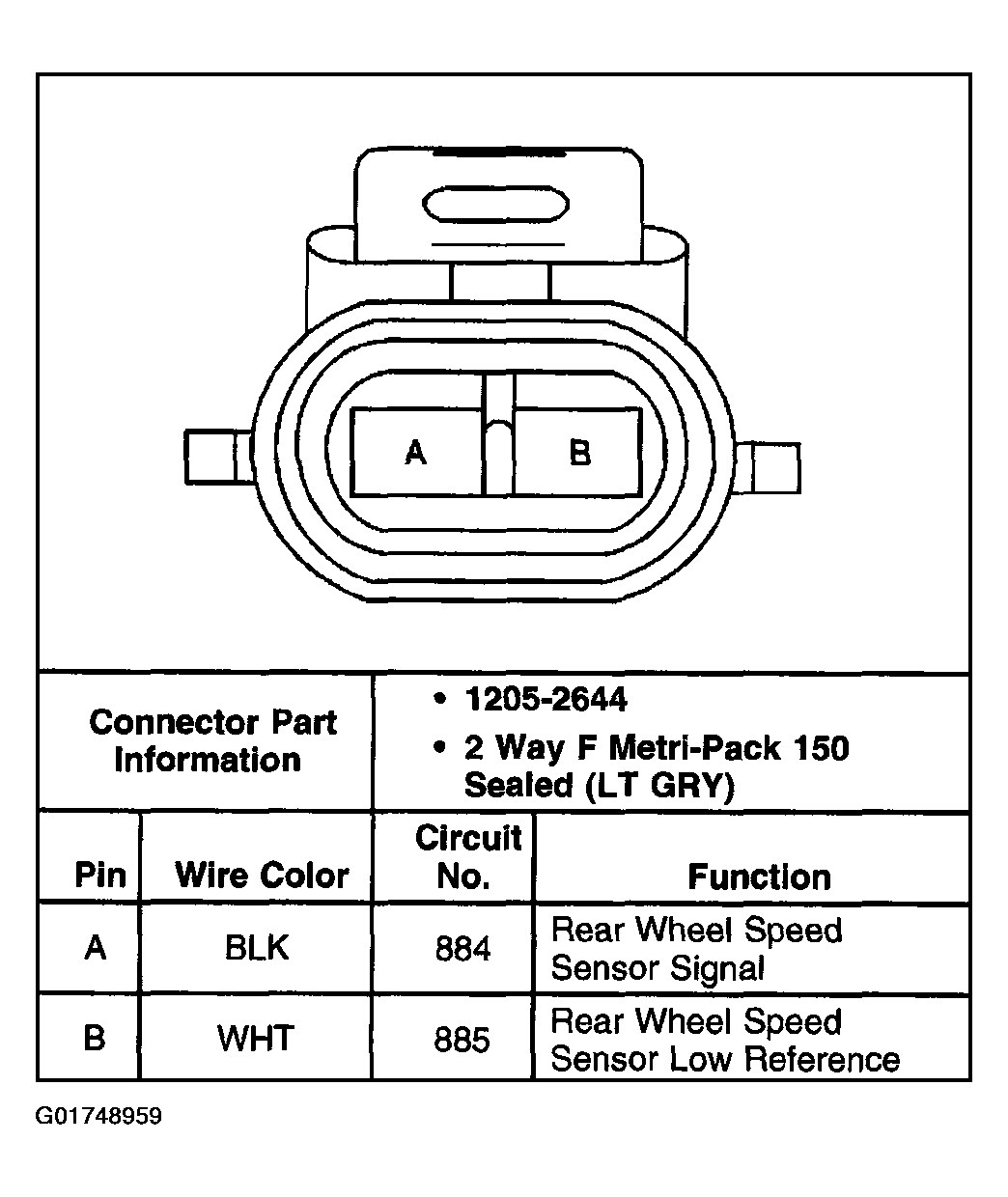

Fig 11: Wheel Speed Sensor Rear (V6 L36 or V8 LS1 w/o NW9)

Courtesy of GENERAL MOTORS CORP.
