Installation Procedure

  1. Install the ASM (1) to the ASM mounting bracket (2).
  2. Install the ASM bracket screws (3).
  3. Connect the ASM harness connector (4,5).
  4. Install the ASM bracket assembly (1,2) in the mounting place.
  5. Install the push-in retainer attaching the ASM bracket to the side wall.
  6. Install the bolt attaching the ASM bracket to the upper I/P.
  7. For vehicles equipped with a manual transmission, install the left side kick panel.
  8. Install the lower sound insulator panel in the vehicle.
  9. Install the fasteners to the lower sound insulator panel under the steering column.

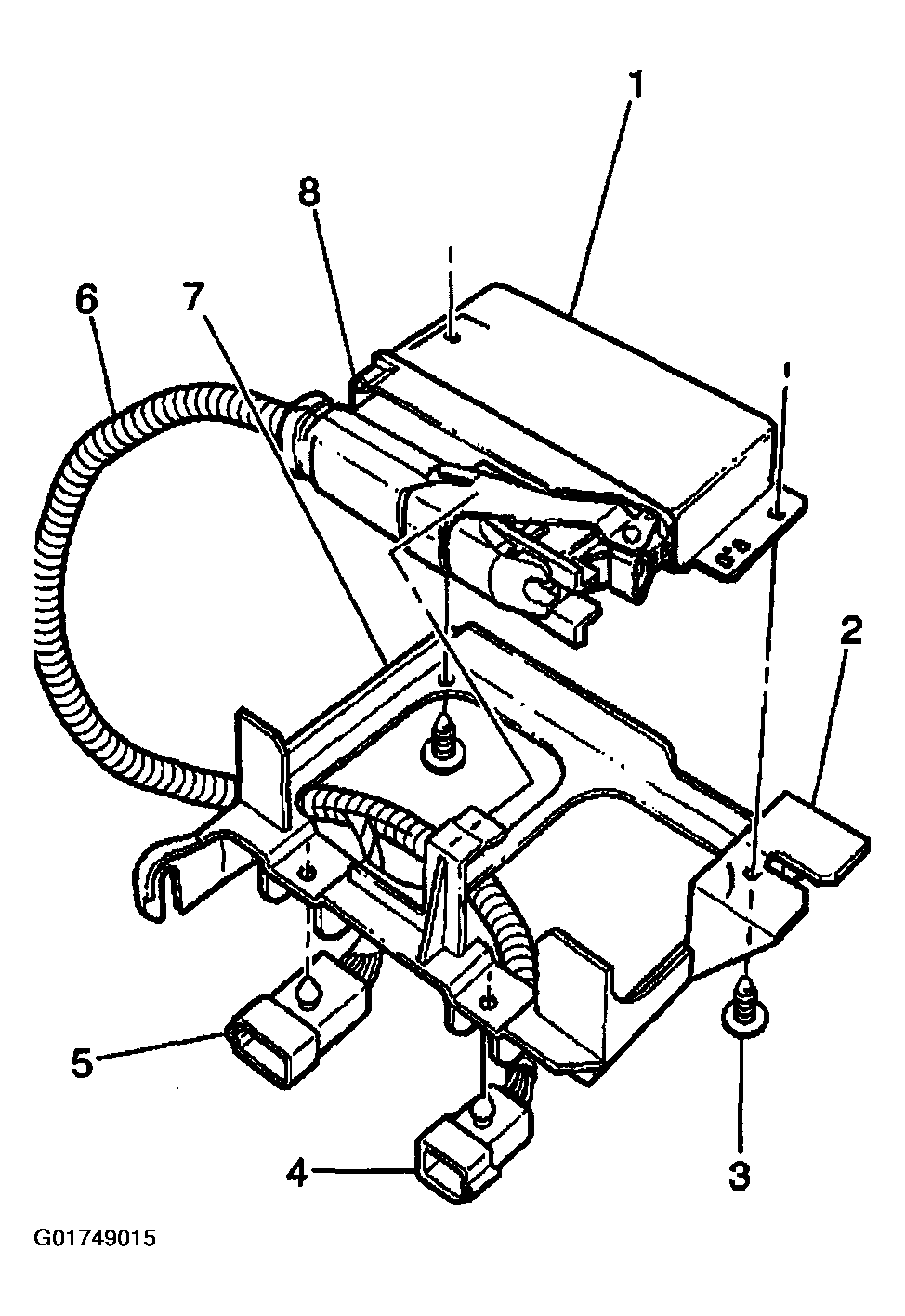

Fig 1: Installing Accelerator And Servo Control Module
G01749015Courtesy of GENERAL MOTORS CORP.
