Removal Procedure

  1. Disconnect the fasteners on the lower sound insulator panel under the steering column.
  2. Remove the lower sound insulator panel from the vehicle.
  3. For vehicles equipped with a manual transmission, remove the left side kick panel.
  4. Remove the bolt attaching the ASM bracket (2) to the upper I/P.
  5. Remove the push-in retainer attaching the ASM bracket (2) to the side wall.
  6. Remove the ASM bracket assembly (1,2) from the mounting place.
  7. Disconnect the ASM harness connector (4,5).
  8. Remove the mounting screws (3) which secure the ASM (1) to the ASM bracket (2).
  9. Remove the ASM and the ASM bracket from the vehicle.

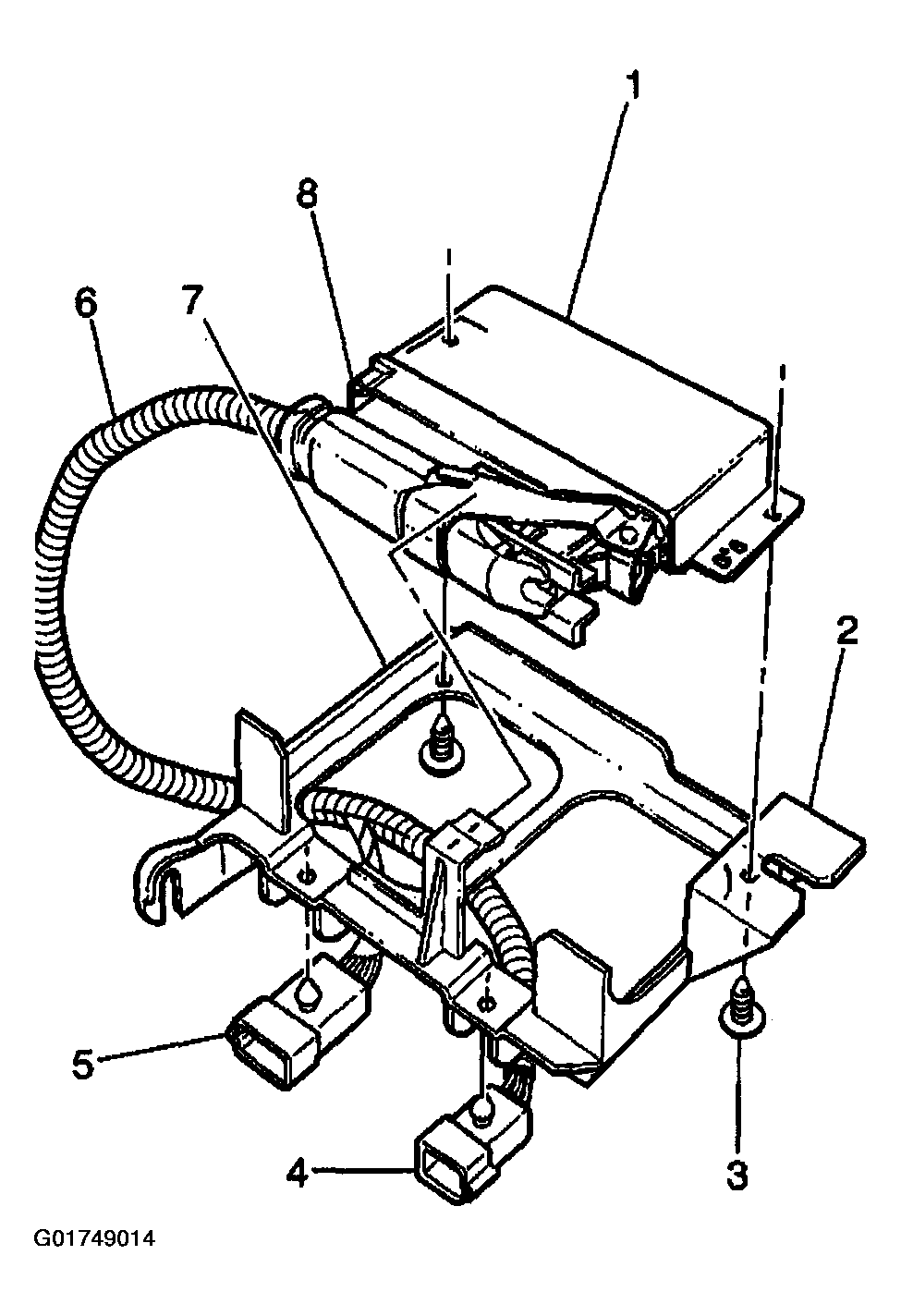

Fig 1: Removing Accelerator And Servo Control Module
G01749014Courtesy of GENERAL MOTORS CORP.
