Removal Procedure

  1. Release the front floor console accessory trim plate (2).

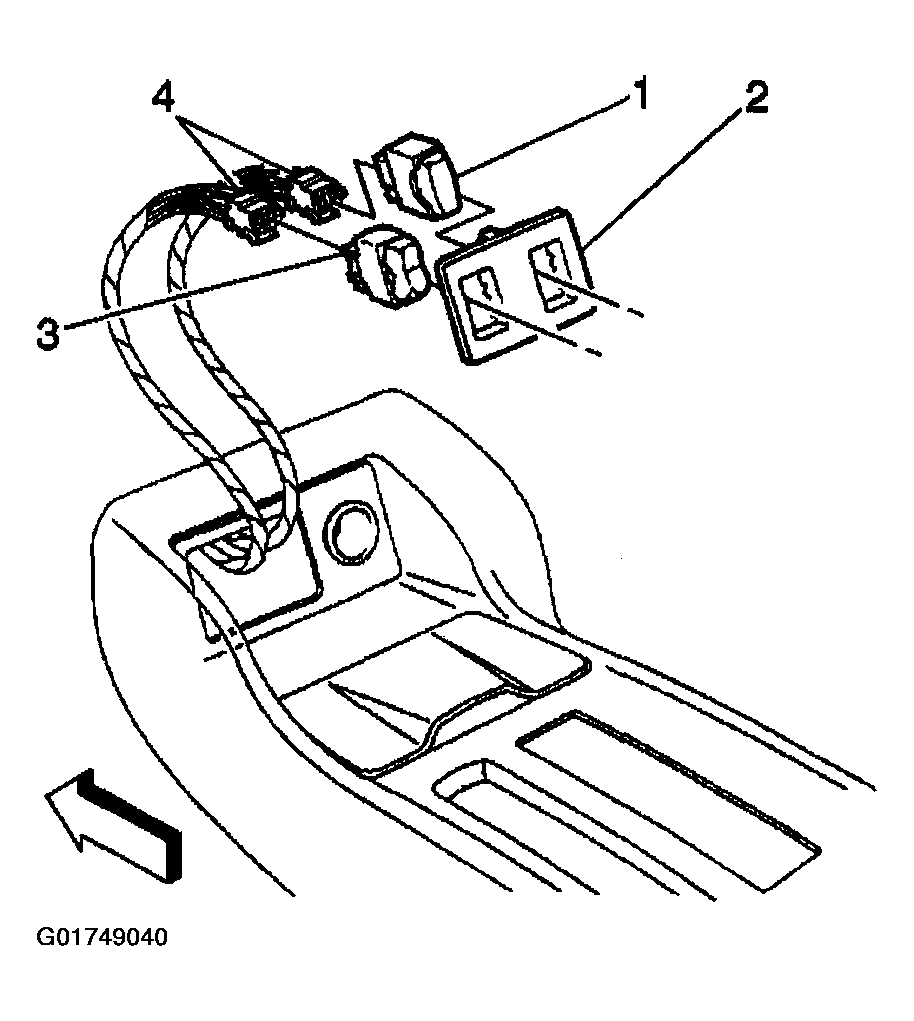

    Fig 1: Removing Traction Control Switch
    G01749040Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector (4) from the traction control switch (1).
  3. Disconnect the electrical connector (4) from the convertible top switch (3), if equipped.
  4. Release the traction control switch (1) from the front floor console accessory trim plate (2).
