Component Locations

COMPONENT LOCATIONS

Component

Location

Underhood Fuse Block (Bottom)

In Left Front Corner Of Engine Compartment

Powertrain Control Module (PCM) (V6 VIN K)

On Right Side Of Engine Compartment, Rear Of Wheelhouse

Powertrain Control Module (PCM) (V8 VIN G)

On Right Side Of Engine Compartment, Rear Of Wheelhouse

Starter (V6 VIN K) ⁽¹⁾

On Bottom Left Side Of Engine

Starter (V8 VIN G) ⁽²⁾

On Bottom Right Side Of Engine

Starter Relay

In Underhood Fuse Block (Bottom)

Starter Solenoid (V6 VIN K) ⁽¹⁾

On Bottom Left Side Of Engine, Above Starter Motor

Starter Solenoid (V8 VIN G) ⁽²⁾

On Bottom Right Side Of Engine, Above Starter Motor

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

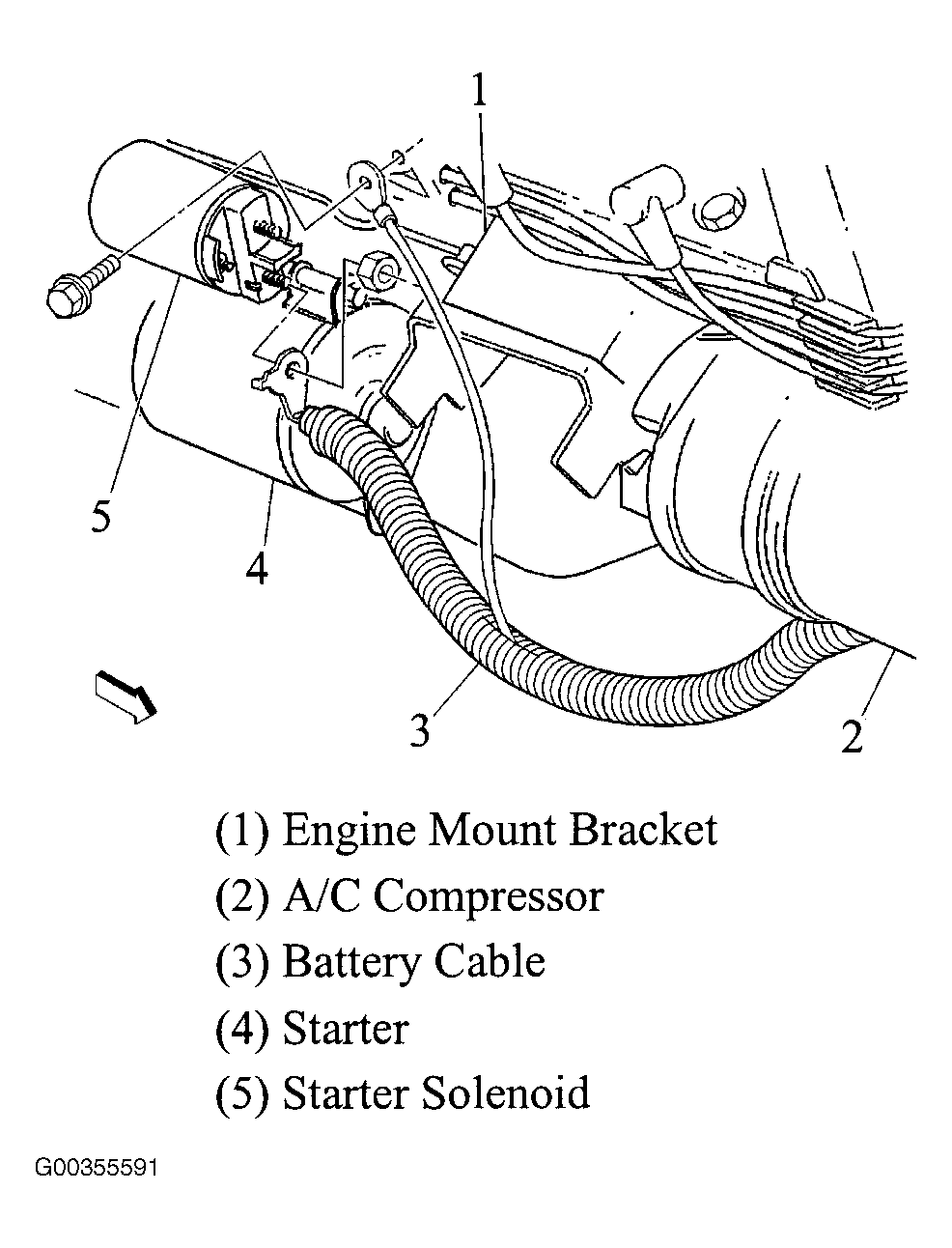

Fig 1: Locating Starter (V6)

Courtesy of GENERAL MOTORS CORP.

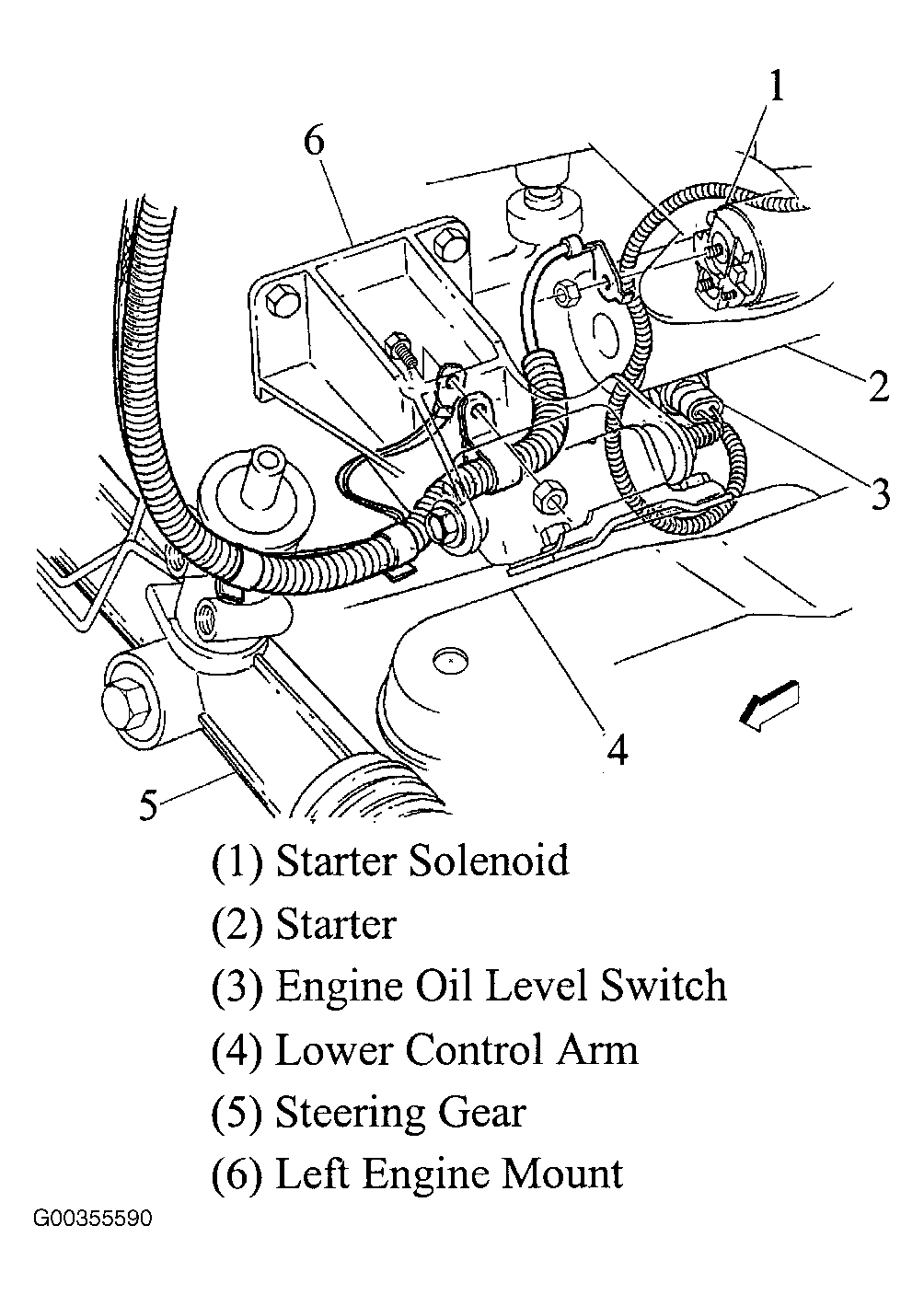

Fig 2: Locating Starter (V8)

Courtesy of GENERAL MOTORS CORP.
