Component Locations

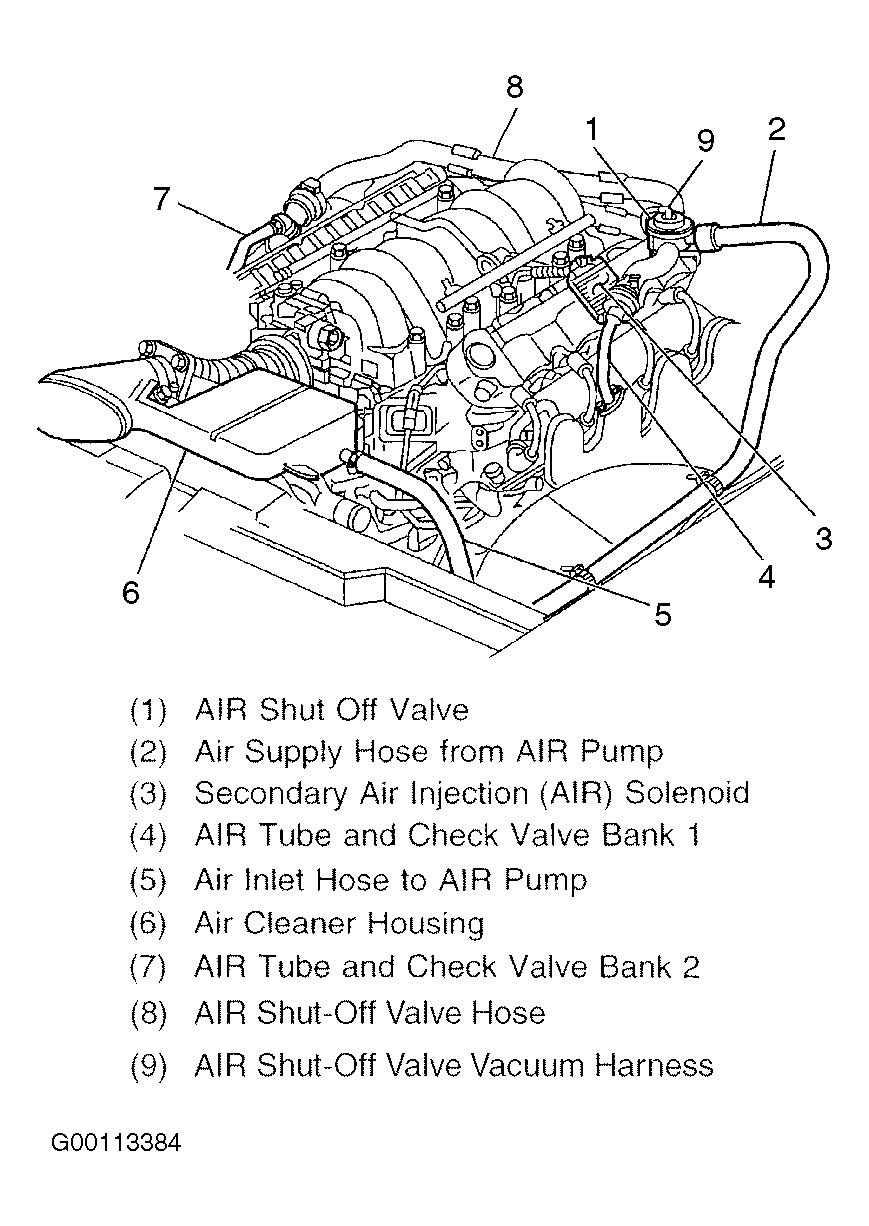

Fig 1: Locating AIR Components

Courtesy of GENERAL MOTORS CORP.

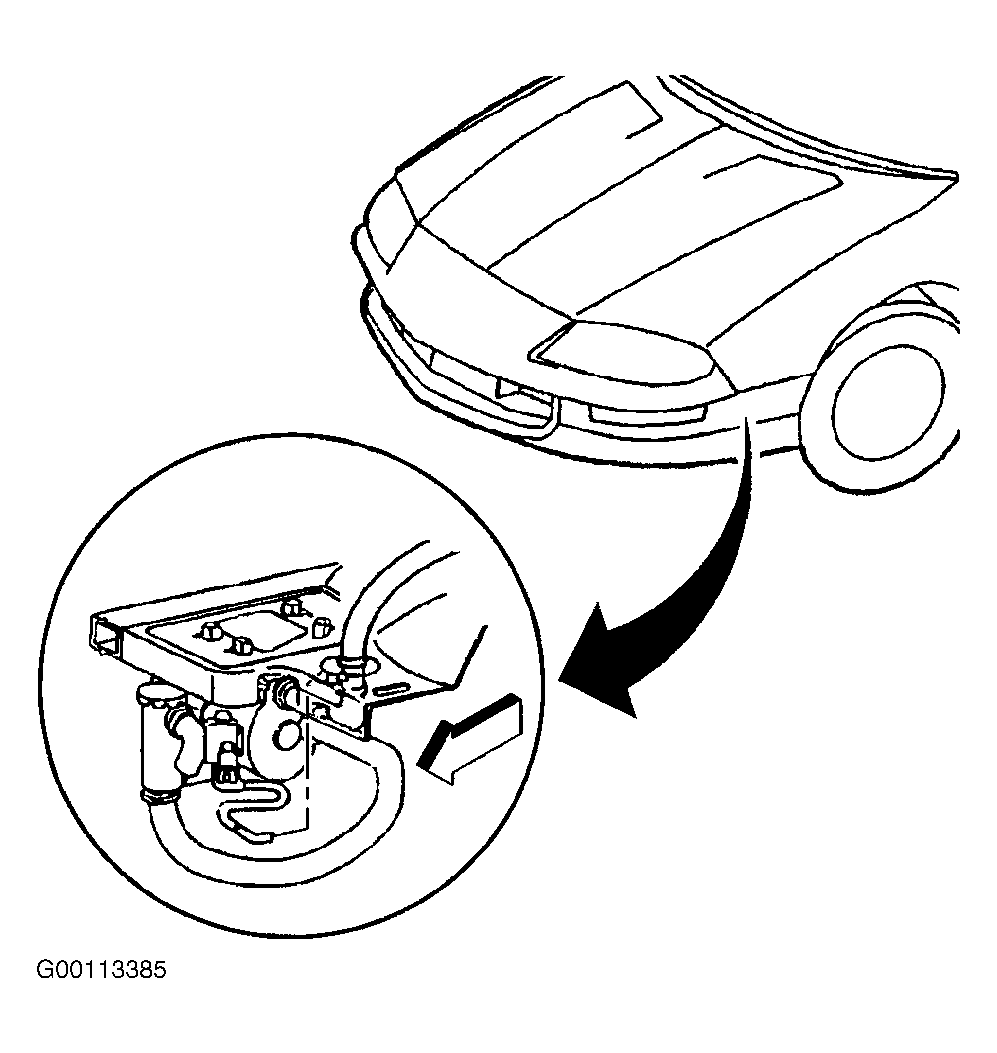

Fig 2: Locating AIR Pump

Courtesy of GENERAL MOTORS CORP.

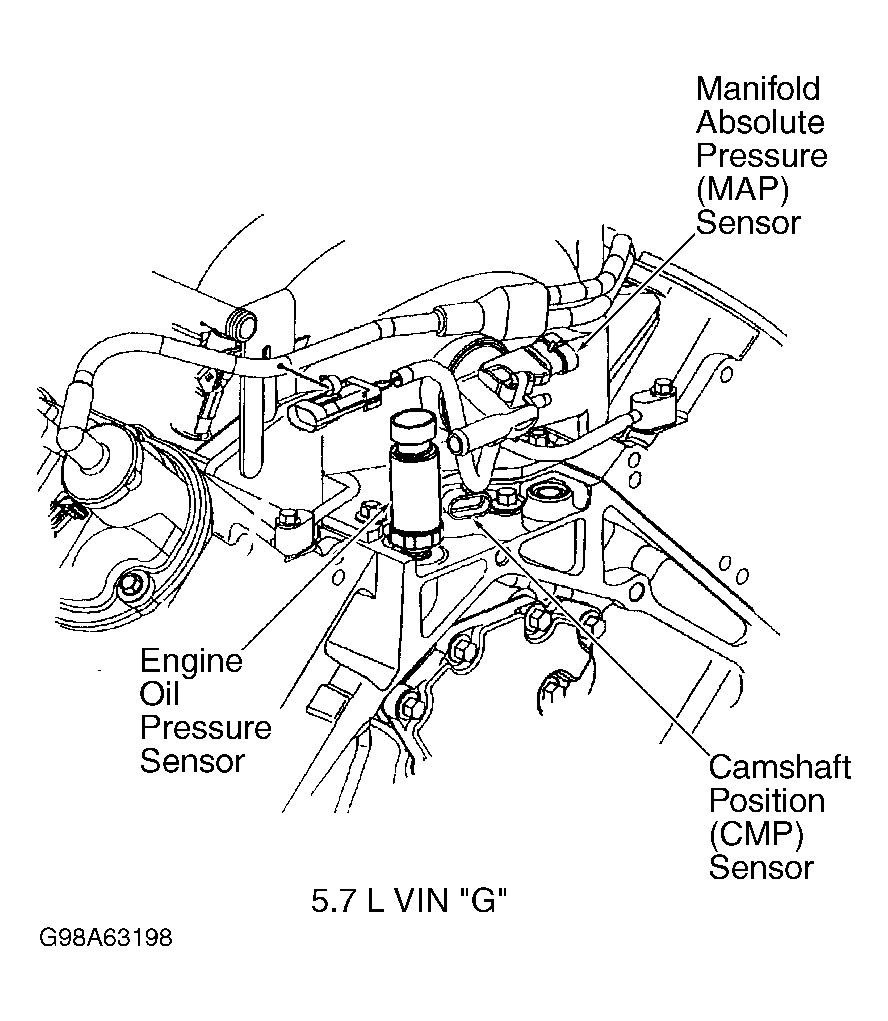

Fig 3: Locating CMP, Engine Oil Pressure & MAP Sensors

Courtesy of GENERAL MOTORS CORP.

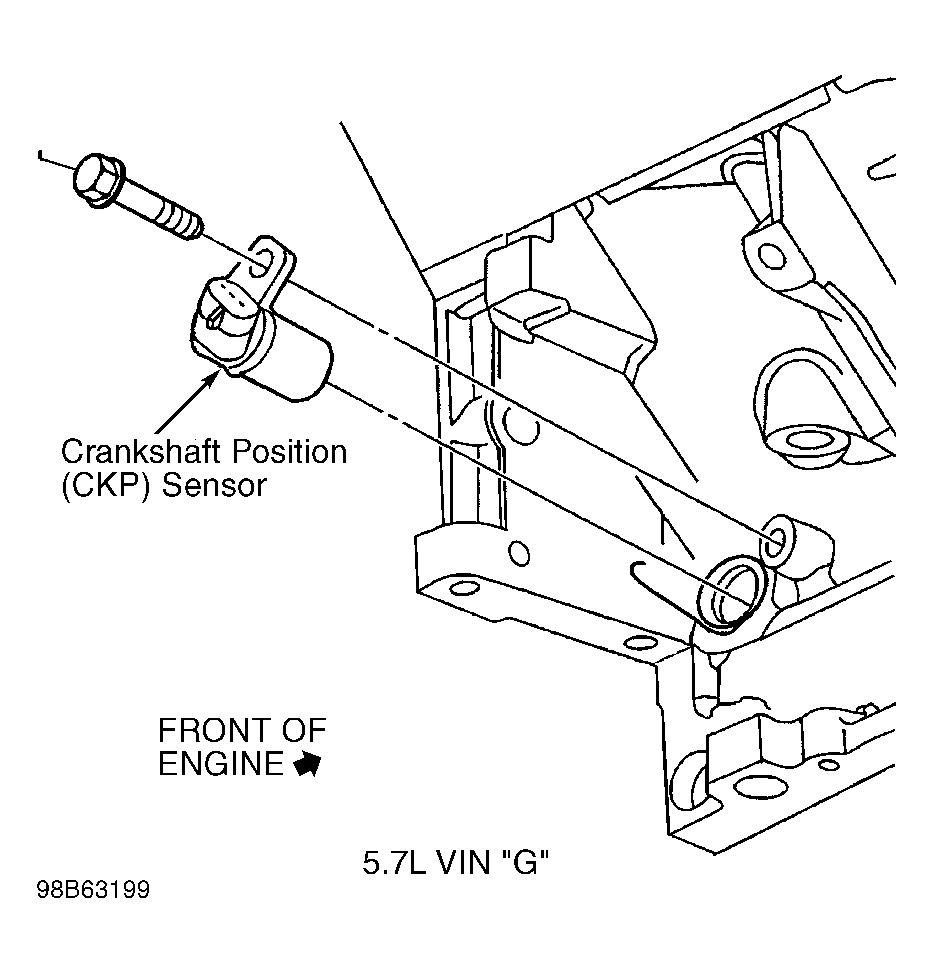

Fig 4: Locating CKP Sensor

Courtesy of GENERAL MOTORS CORP.

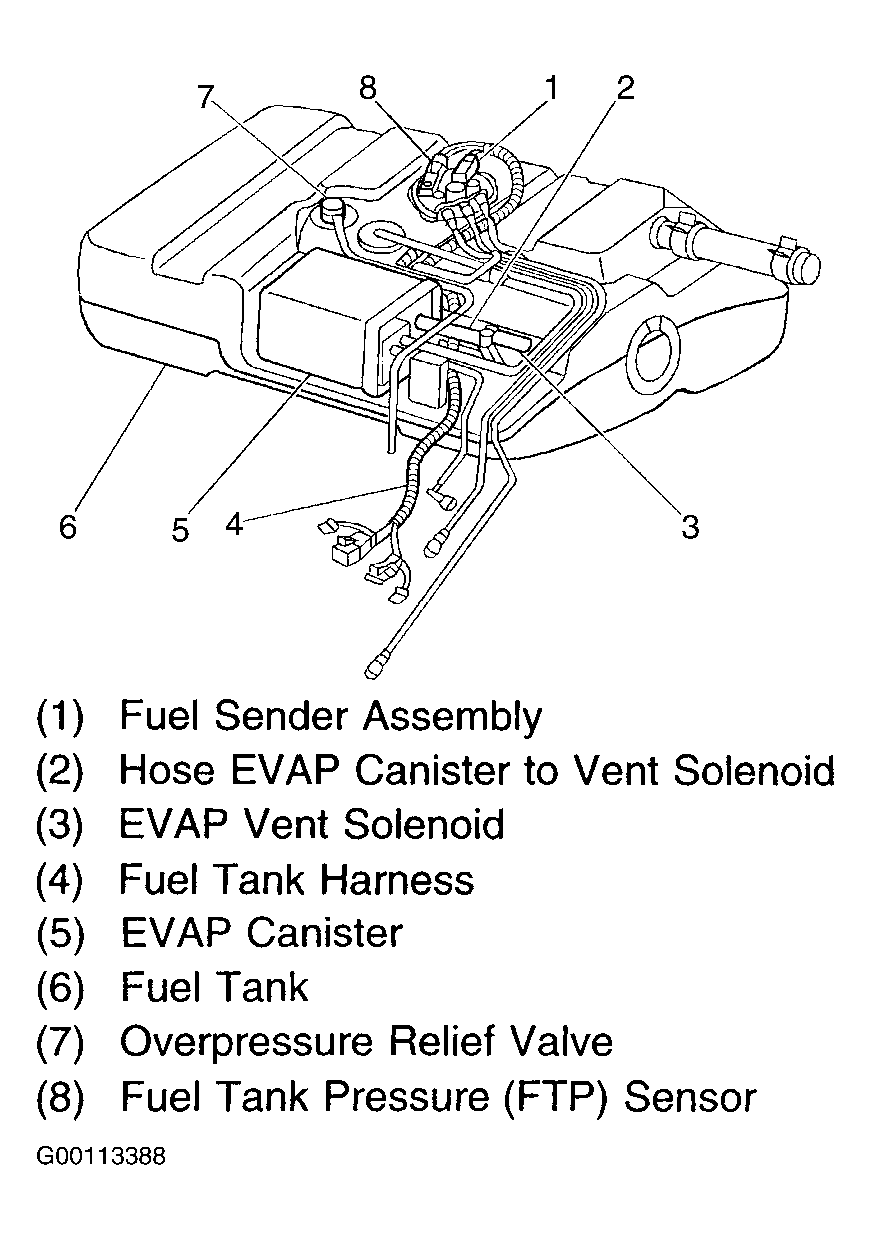

Fig 5: Locating EVAP Components

Courtesy of GENERAL MOTORS CORP.

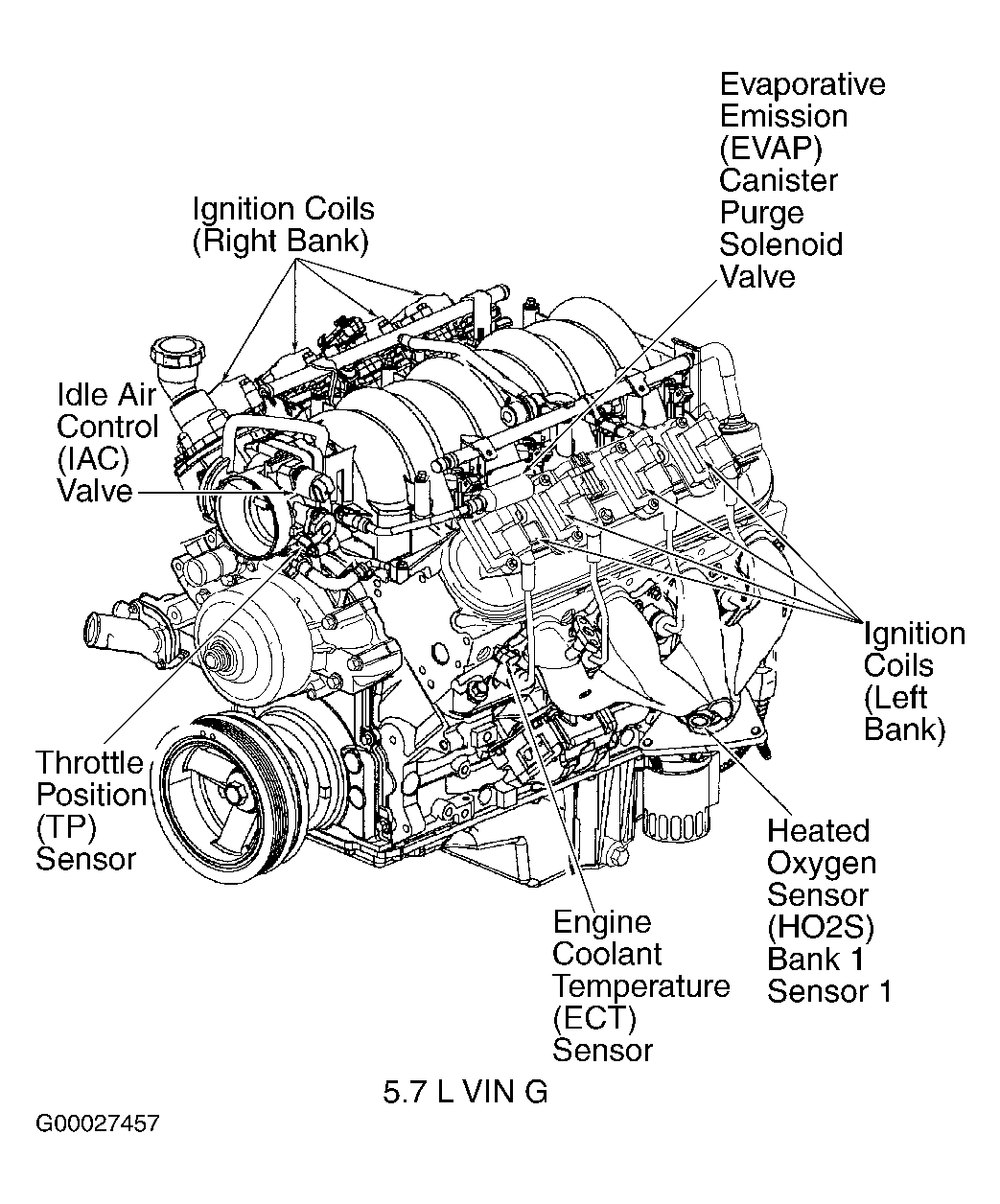

Fig 6: Locating EVAP Purge Solenoid, IAC, Ignition Coils, ECT, HO2S Bank 1 Sensor 1 & TP Sensors

Courtesy of GENERAL MOTORS CORP.

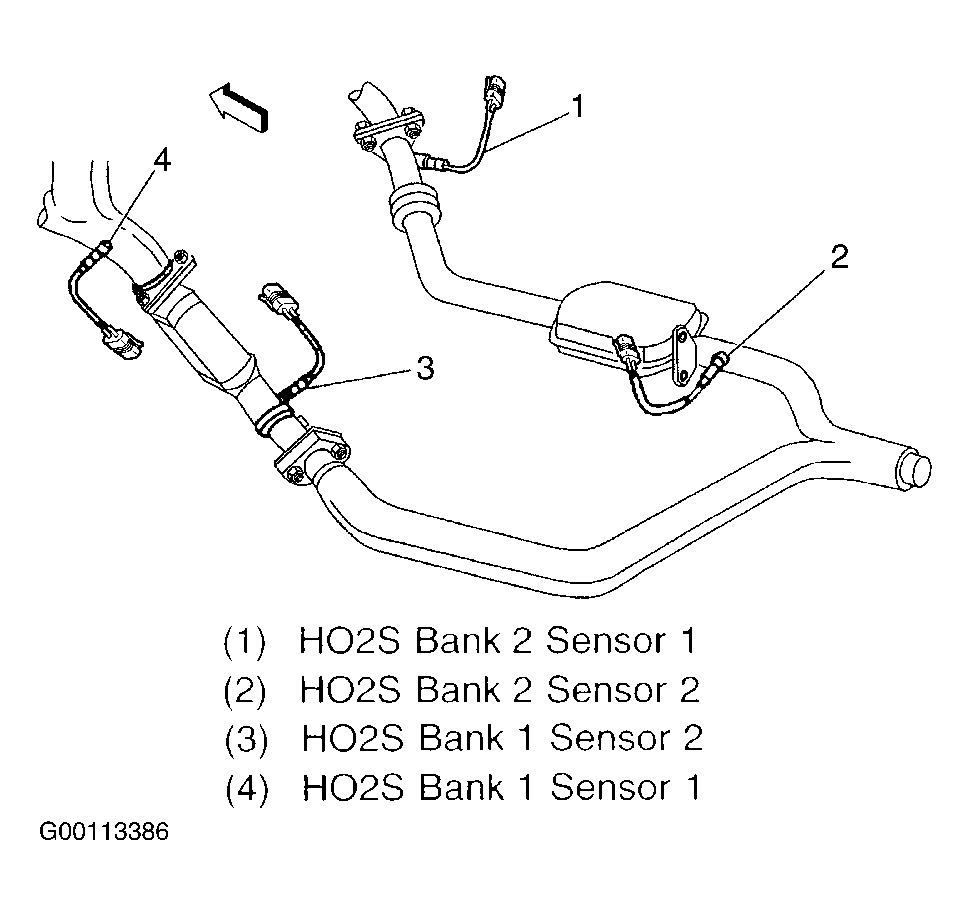

Fig 7: Locating HO2 Sensors

Courtesy of GENERAL MOTORS CORP.

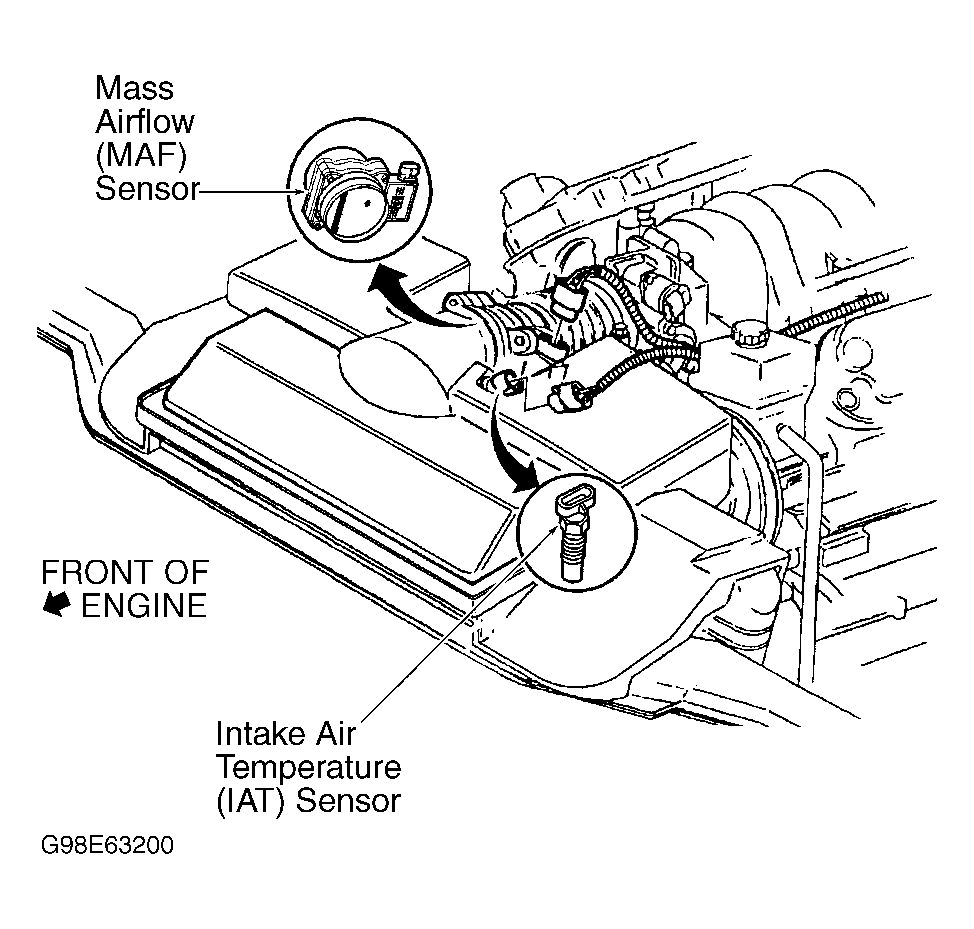

Fig 8: Locating IAT & MAF Sensors

Courtesy of GENERAL MOTORS CORP.

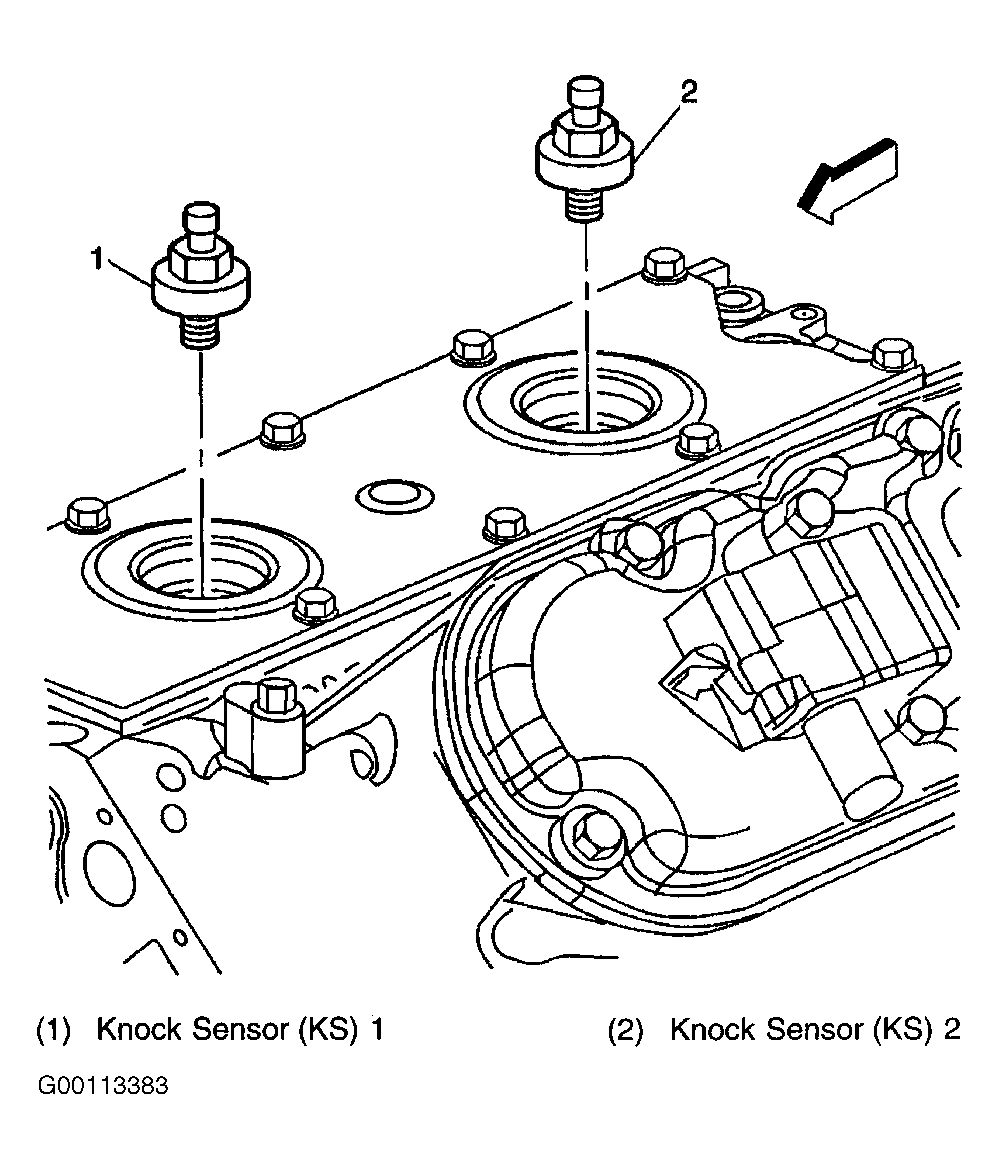

Fig 9: Locating Knock Sensors

Courtesy of GENERAL MOTORS CORP.

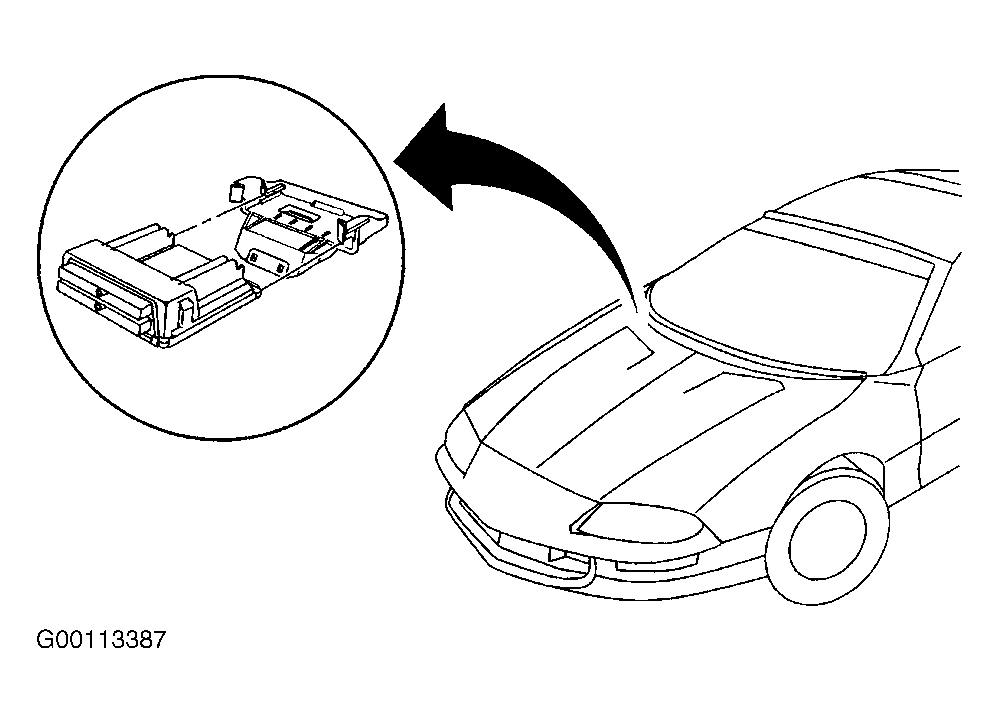

Fig 10: Locating PCM

Courtesy of GENERAL MOTORS CORP.
