Connector Identification

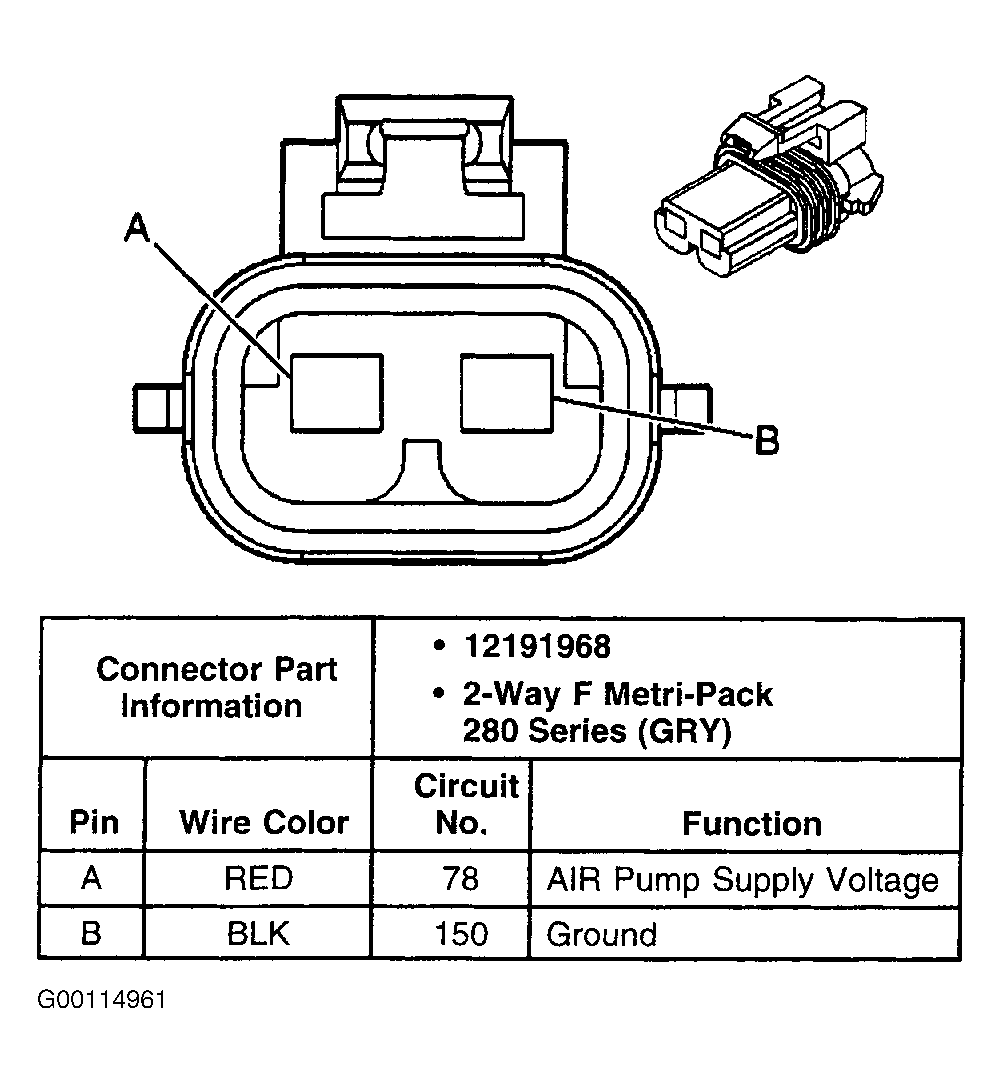

Fig 1: Identifying AIR Pump Connector Terminals

G00114961

Courtesy of GENERAL MOTORS CORP.

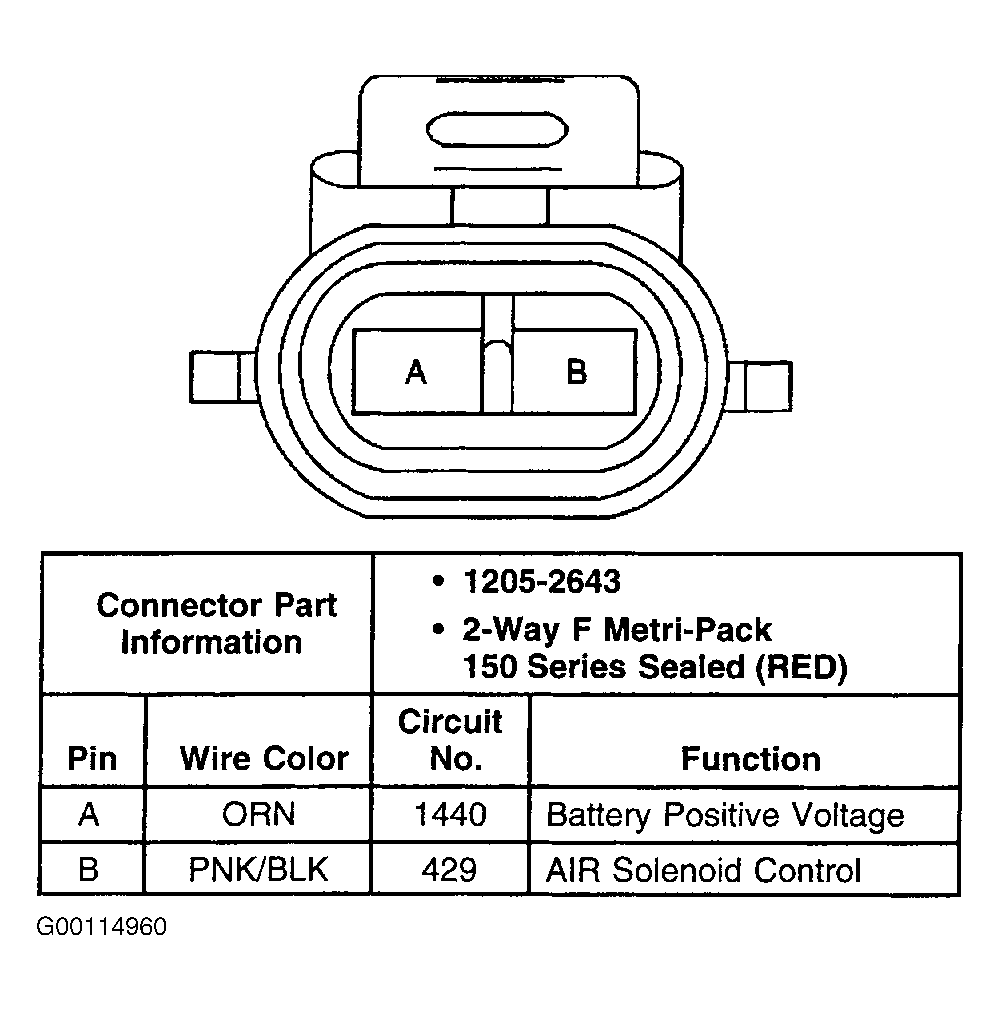

Fig 2: Identifying AIR Solenoid Connector Terminals

G00114960

Courtesy of GENERAL MOTORS CORP.

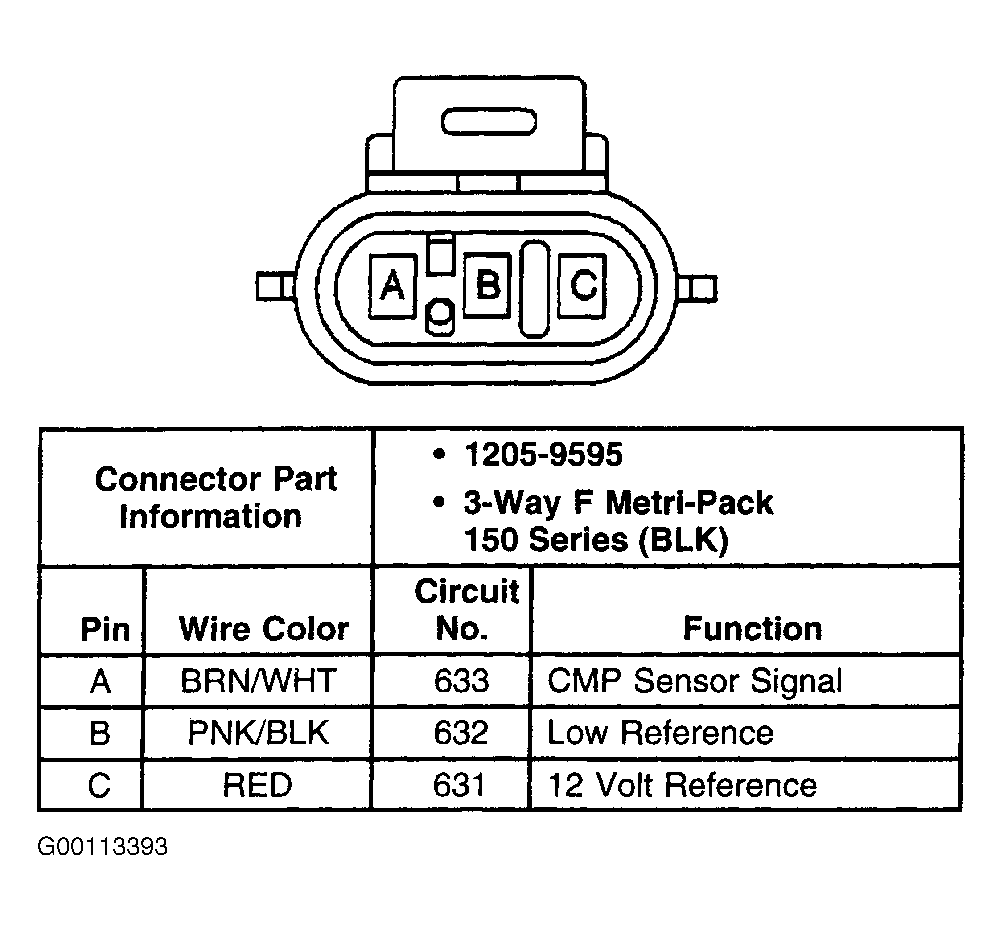

Fig 3: Identifying CMP Sensor Connector Terminals

G00113393

Courtesy of GENERAL MOTORS CORP.

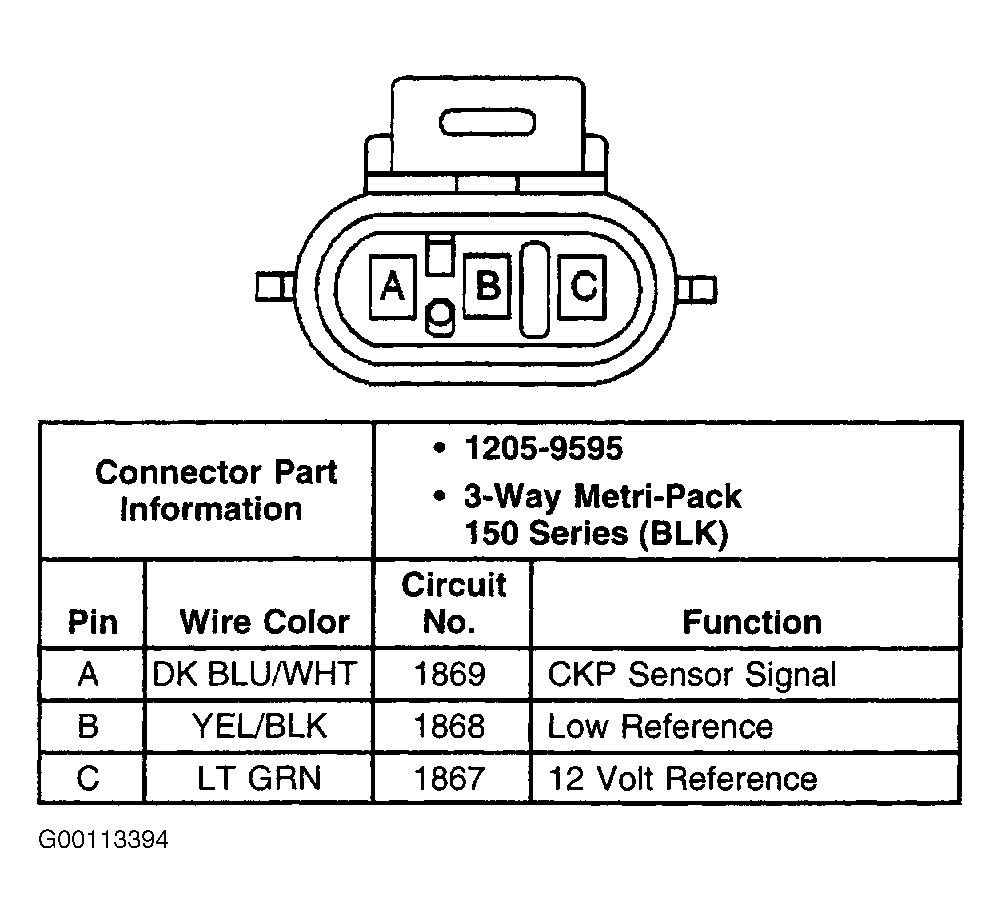

Fig 4: Identifying CKP Sensor Connector Terminals

G00113394

Courtesy of GENERAL MOTORS CORP.

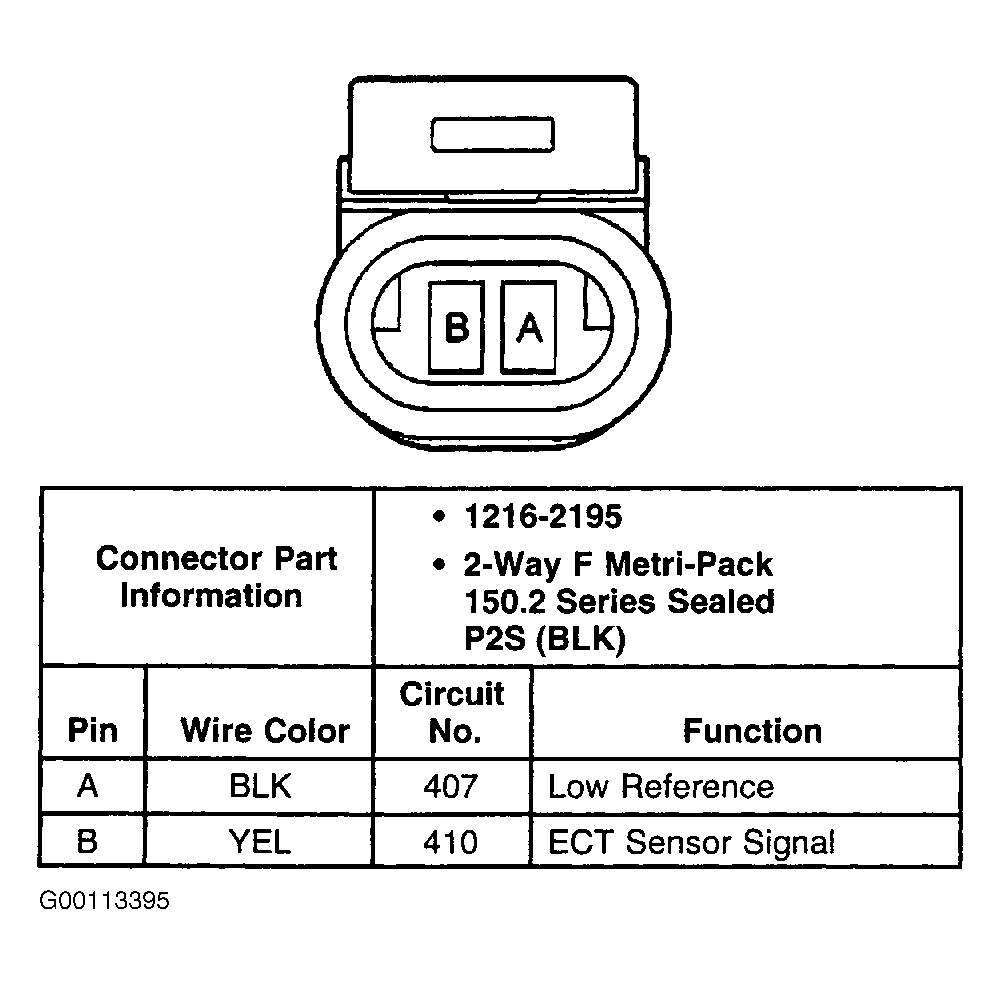

Fig 5: Identifying ECT Sensor Connector Terminals

G00113395

Courtesy of GENERAL MOTORS CORP.

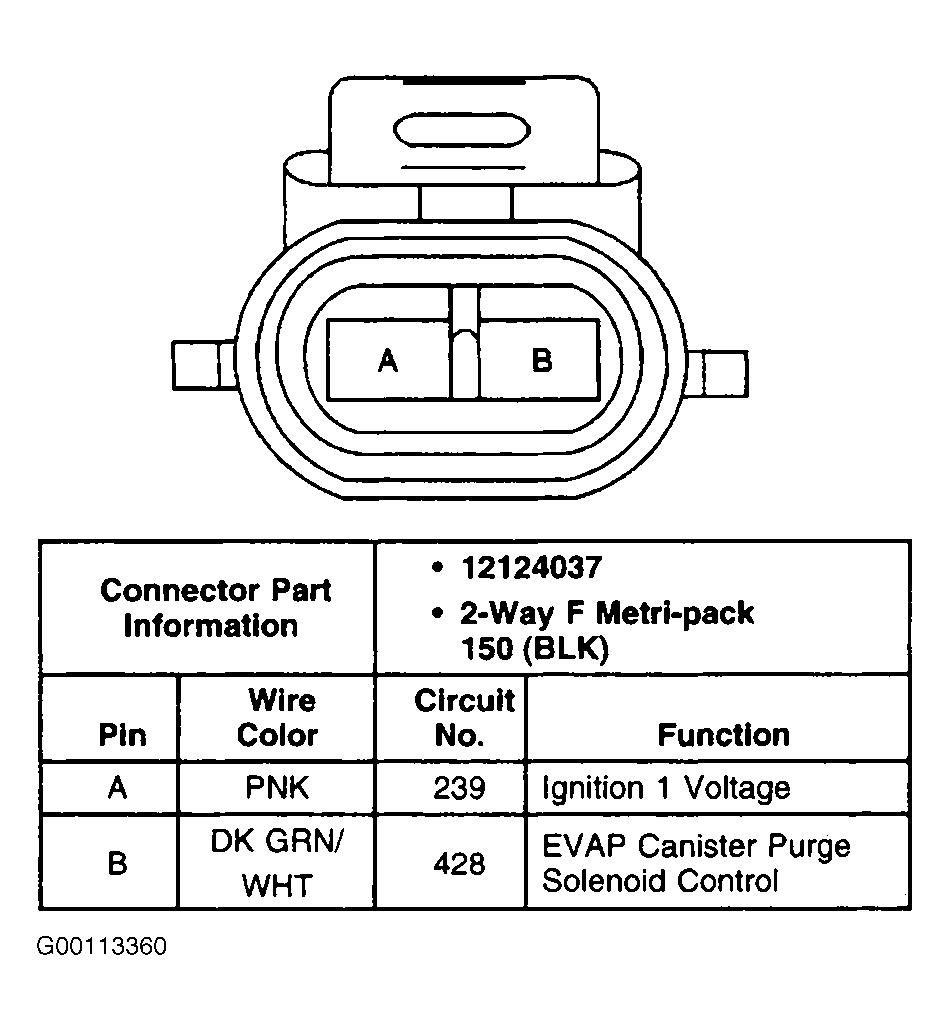

Fig 6: Identifying EVAP Purge Solenoid Connector Terminals

G00113360

Courtesy of GENERAL MOTORS CORP.

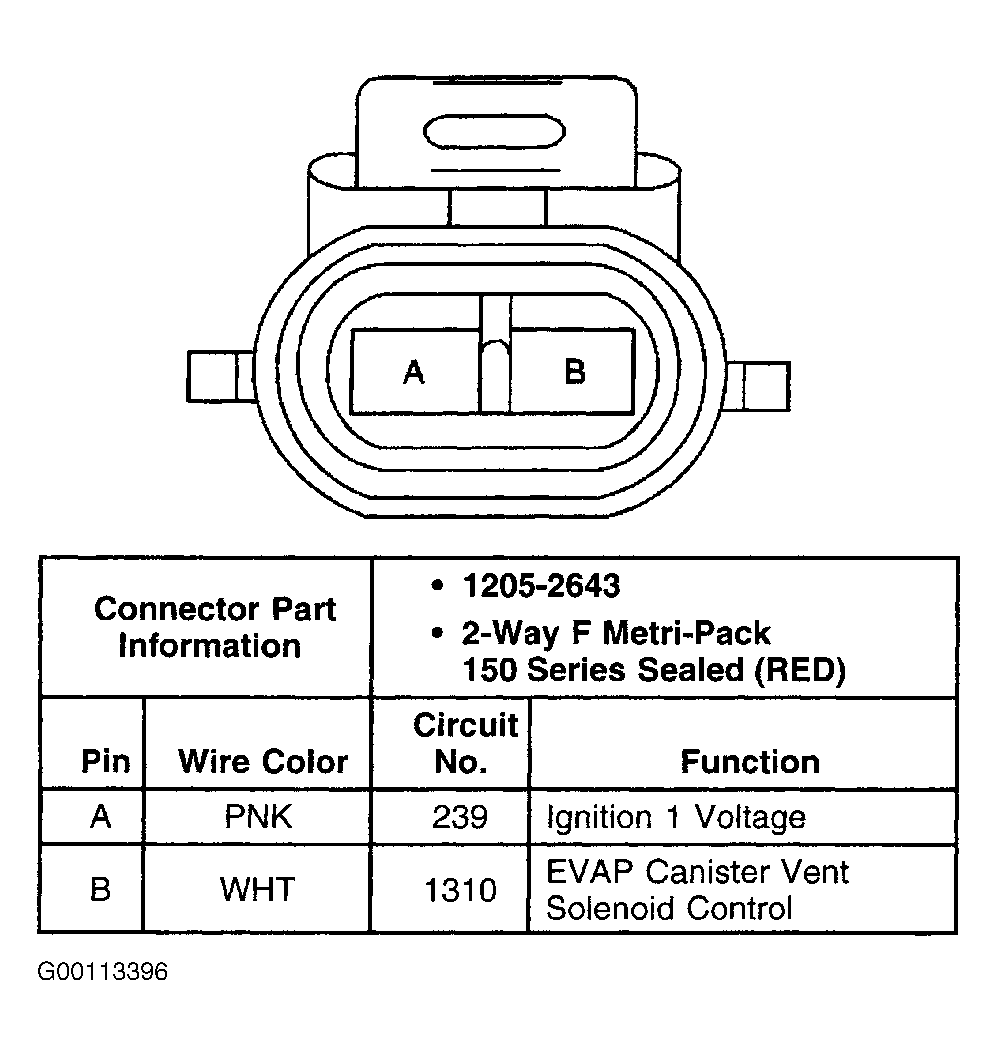

Fig 7: Identifying EVAP Vent Solenoid Connector Terminals

G00113396

Courtesy of GENERAL MOTORS CORP.

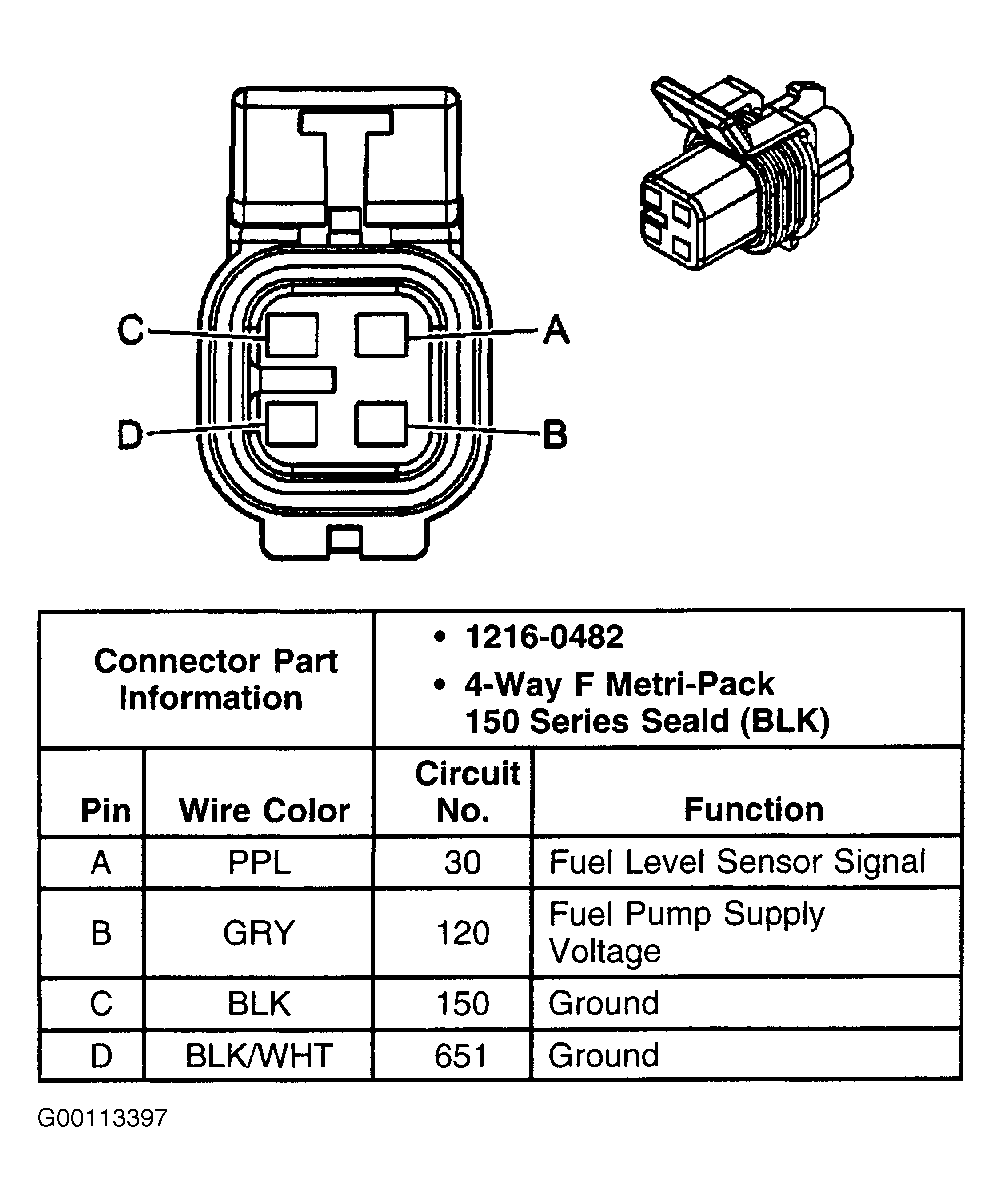

Fig 8: Identifying Fuel Pump & Fuel Level Sender Connector Terminals

G00113397

Courtesy of GENERAL MOTORS CORP.

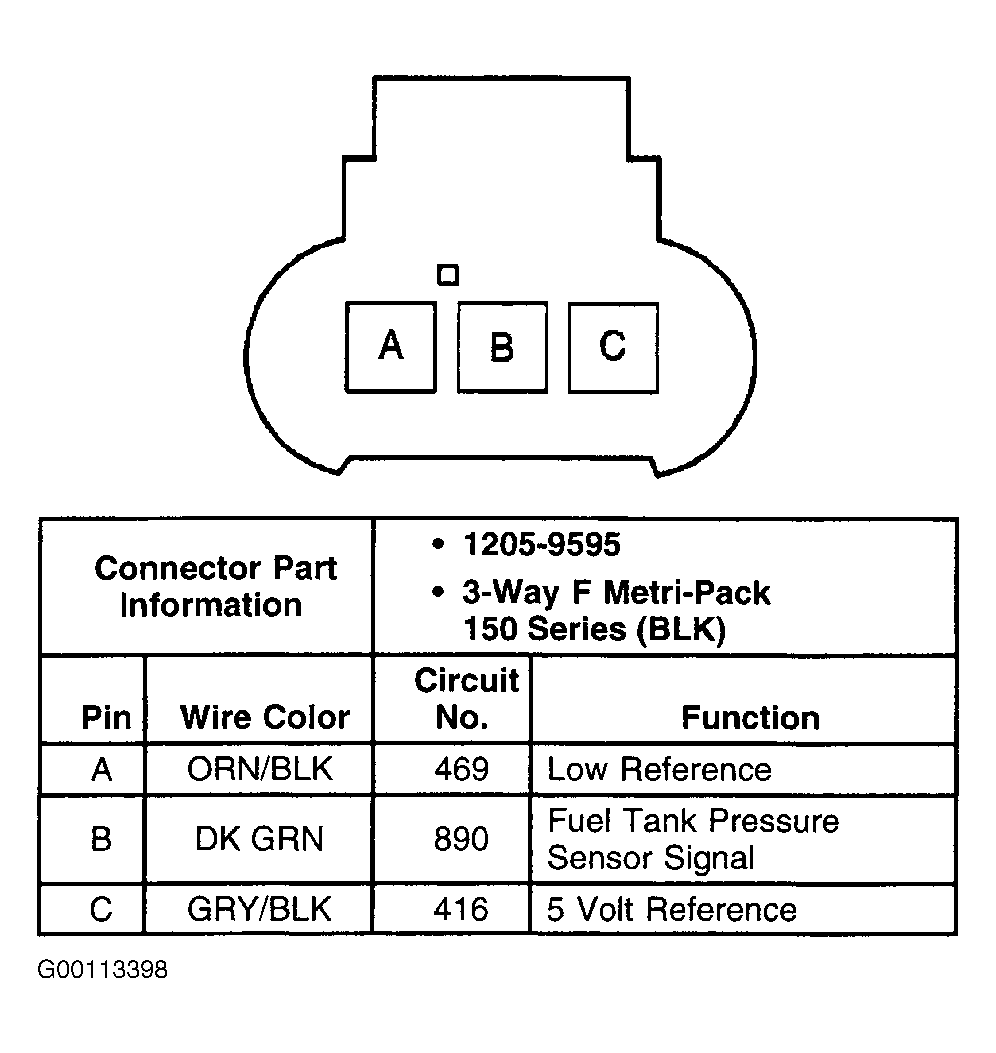

Fig 9: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00113398

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying HO2S Bank 1, Sensor 1 Connector Terminals

G00113399

Courtesy of GENERAL MOTORS CORP.

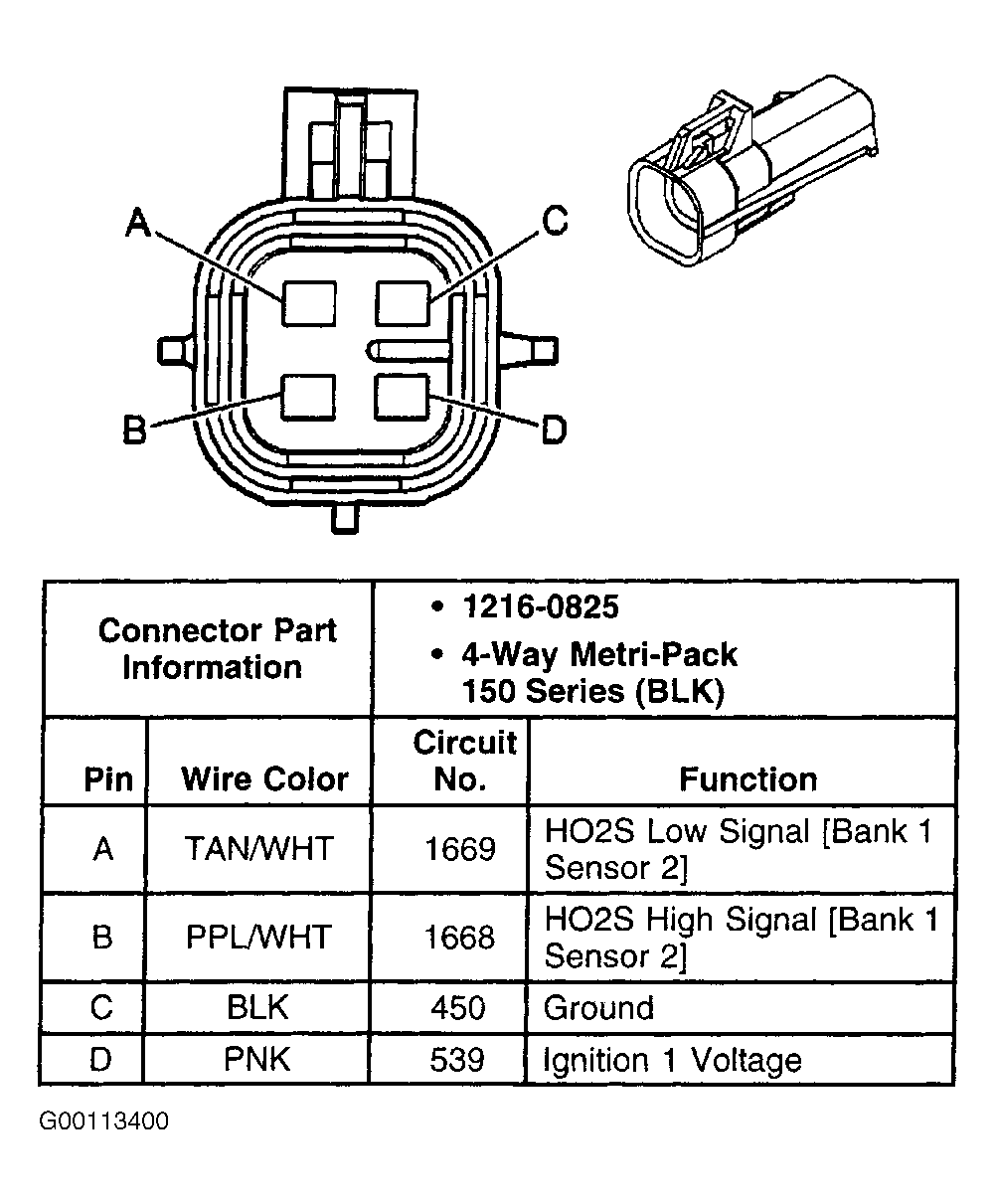

Fig 11: Identifying HO2S Bank 1, Sensor 2 Connector Terminals

G00113400

Courtesy of GENERAL MOTORS CORP.

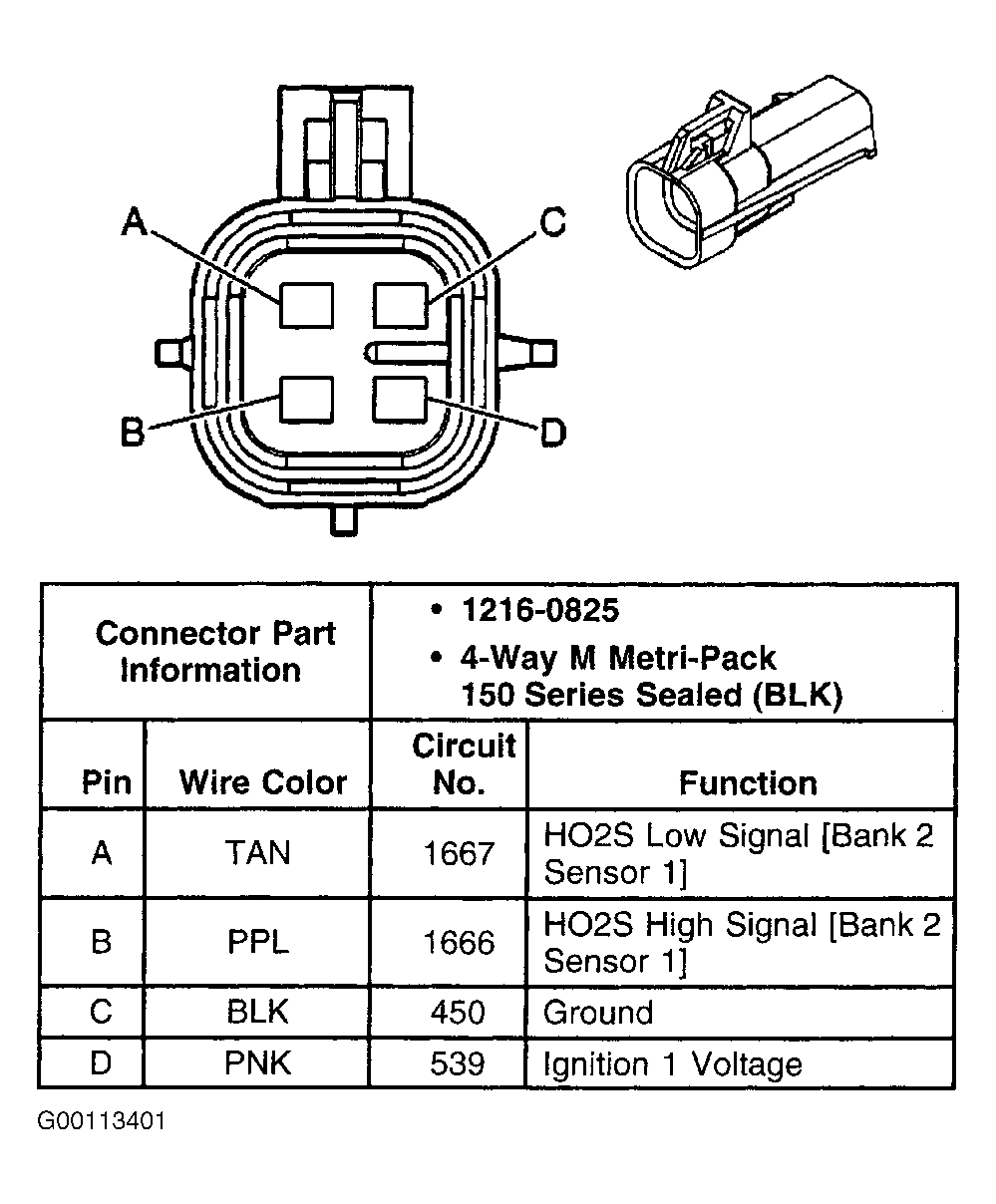

Fig 12: Identifying HO2S Bank 2, Sensor 1 Connector Terminals

G00113401

Courtesy of GENERAL MOTORS CORP.

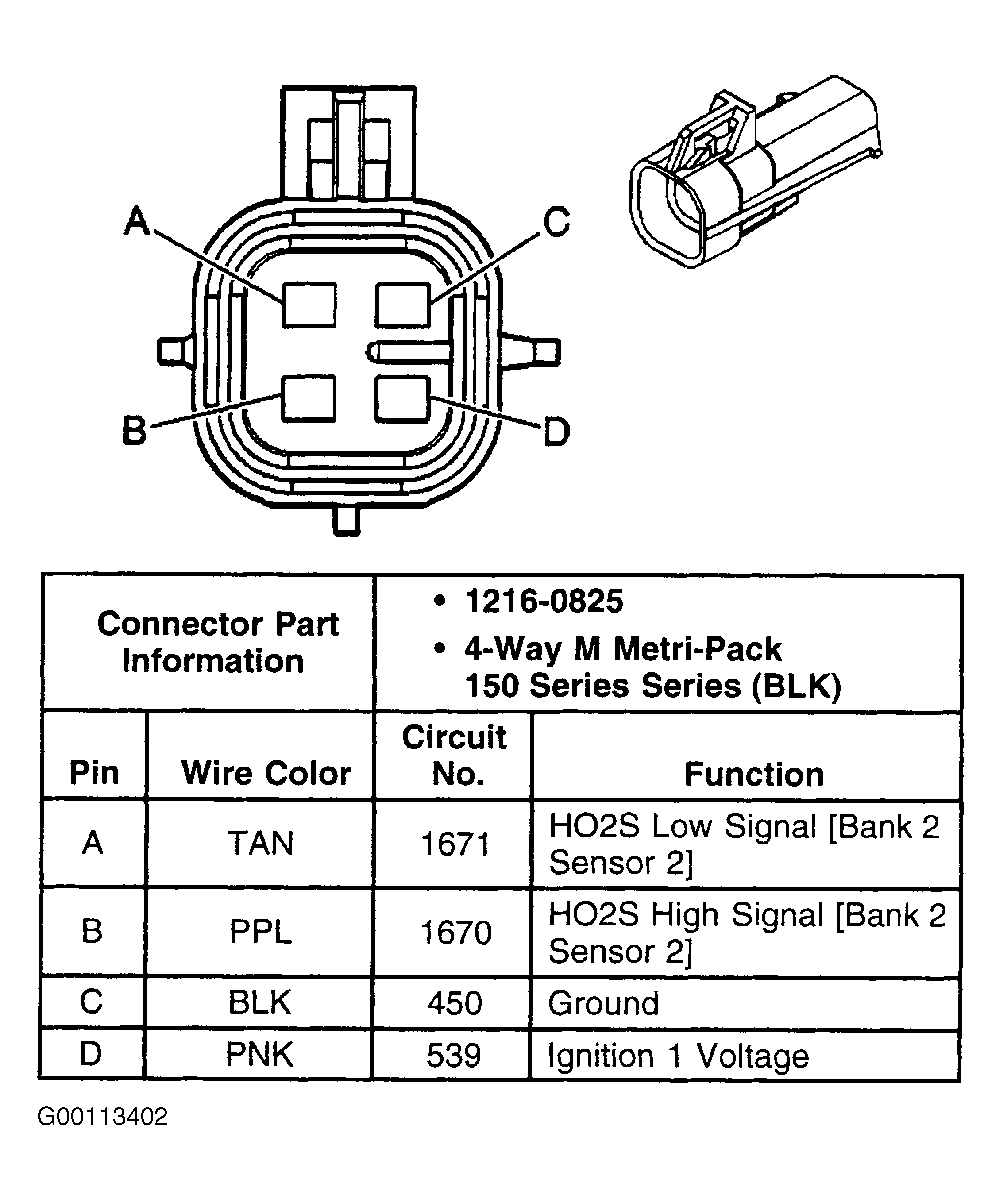

Fig 13: Identifying HO2S Bank 2, Sensor 2 Connector Terminals

G00113402

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying IAC Valve Connector Terminals

G00101510

Courtesy of GENERAL MOTORS CORP.

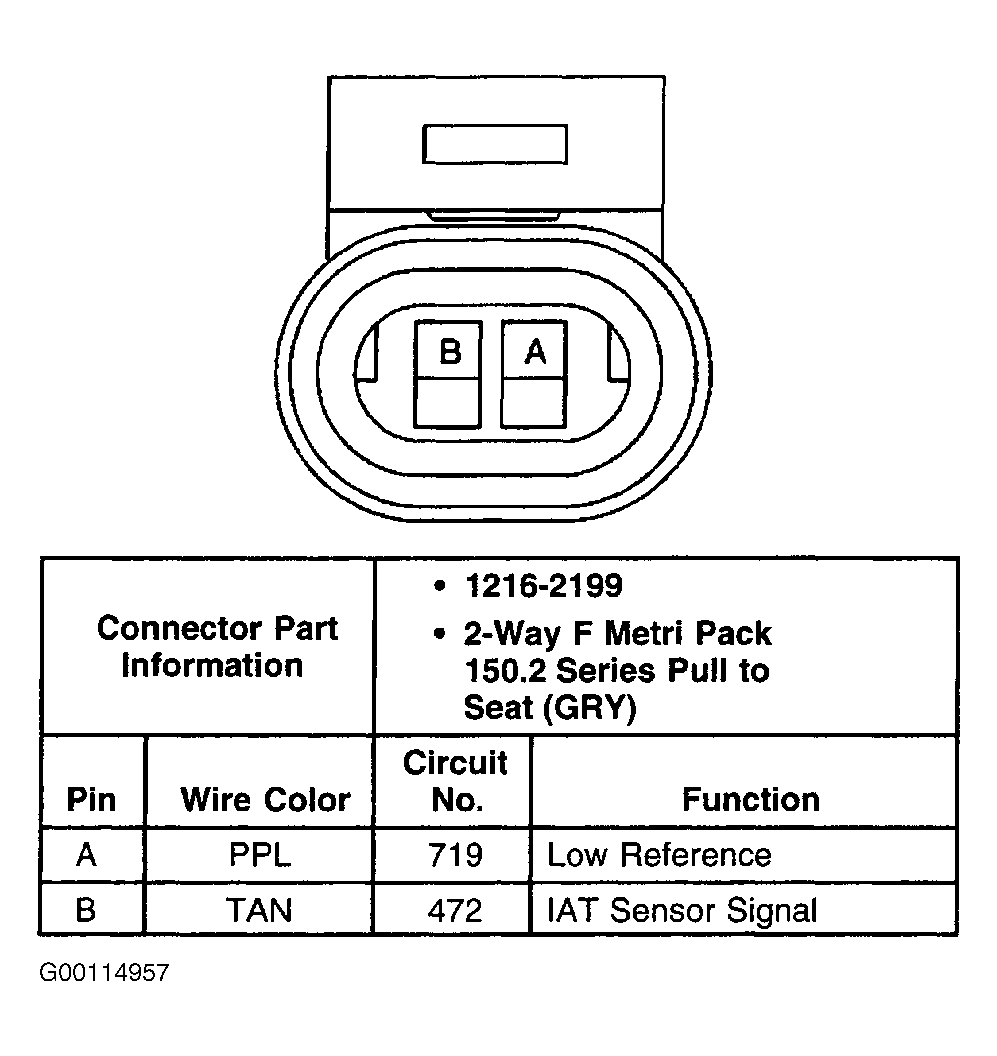

Fig 15: Identifying IAT Sensor Connector Terminals

G00114957

Courtesy of GENERAL MOTORS CORP.

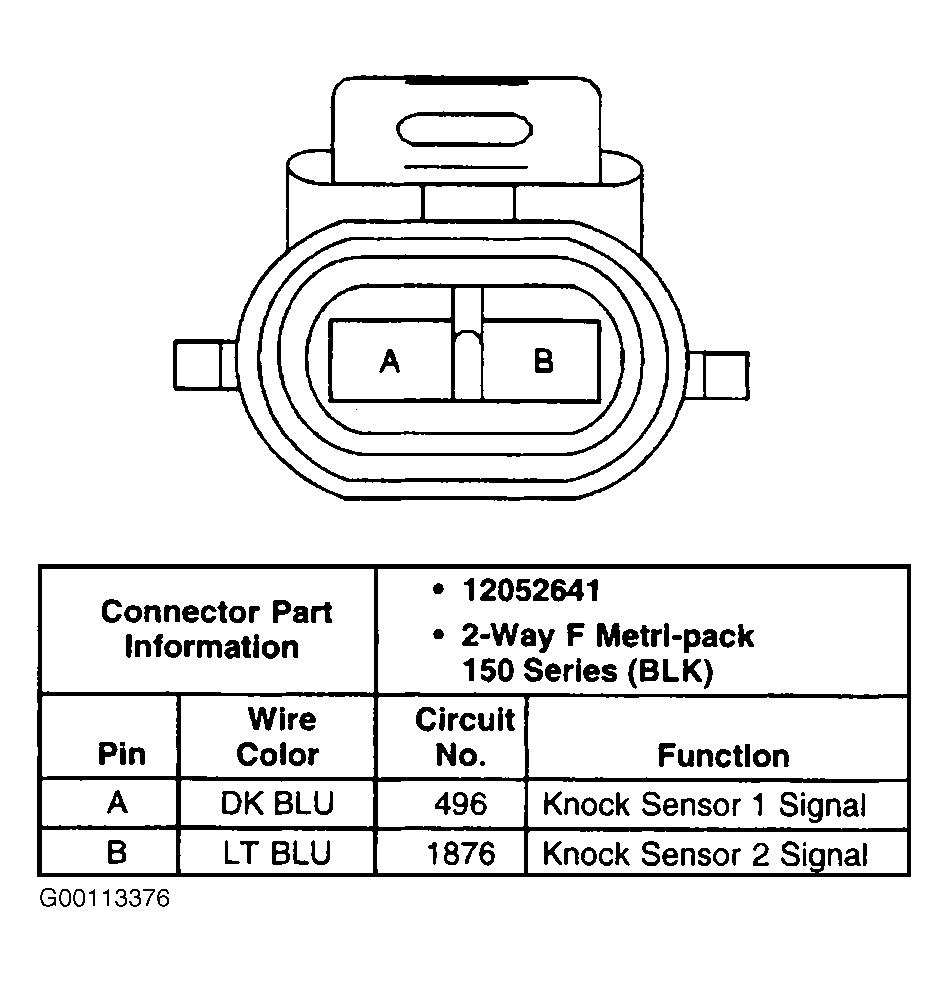

Fig 16: Identifying Knock Sensor Connector Terminals

G00113376

Courtesy of GENERAL MOTORS CORP.

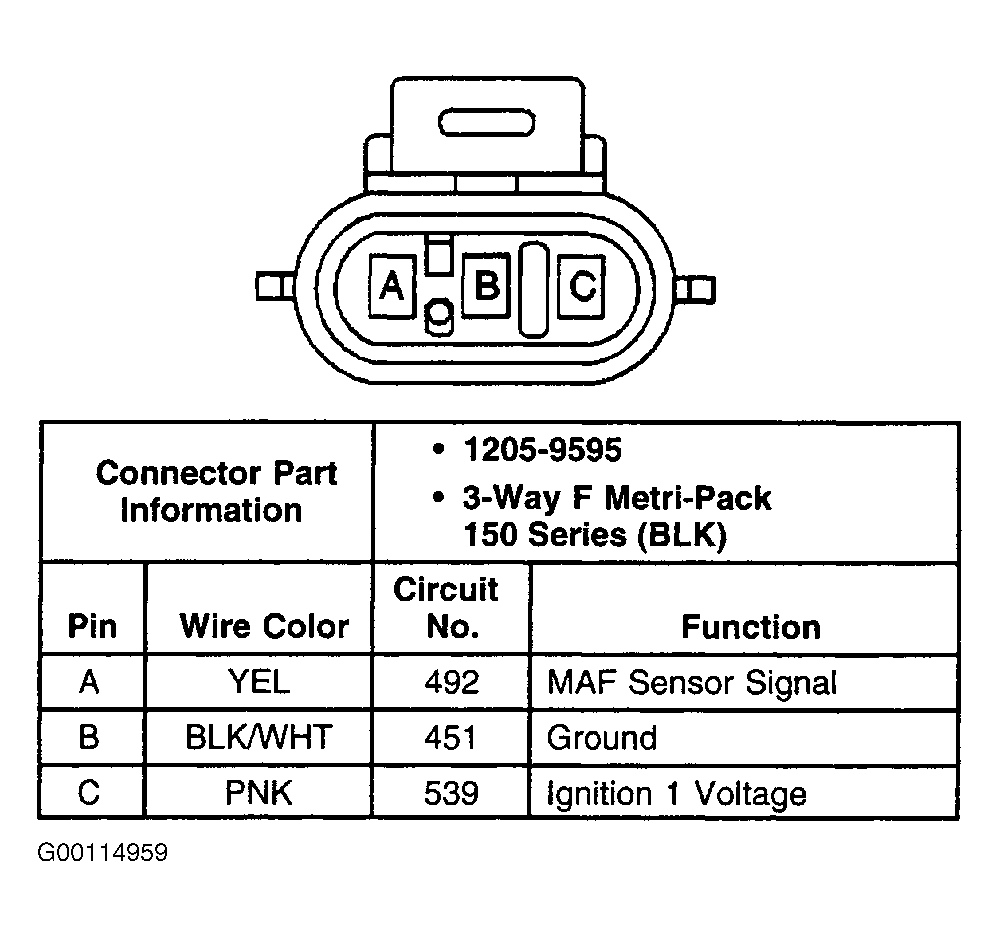

Fig 17: Identifying MAF Sensor Connector Terminals

G00114959

Courtesy of GENERAL MOTORS CORP.

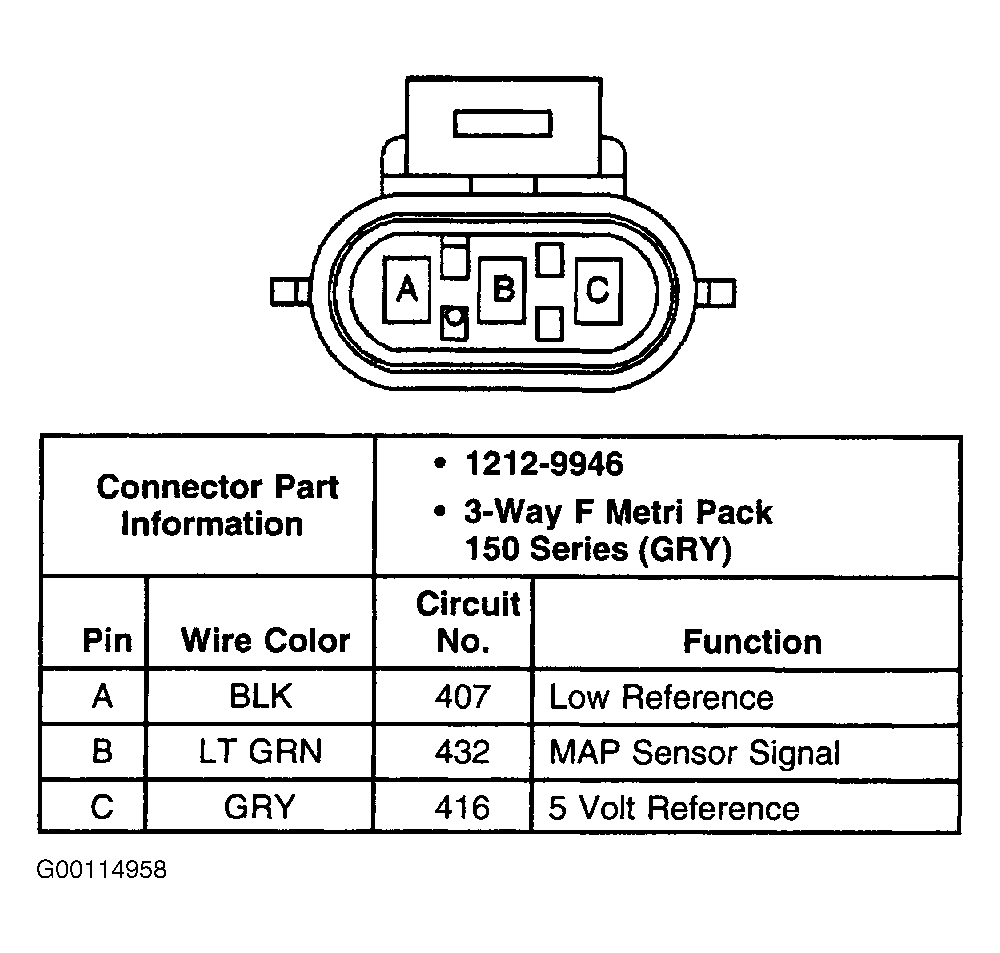

Fig 18: Identifying MAP Sensor Connector Terminals

G00114958

Courtesy of GENERAL MOTORS CORP.

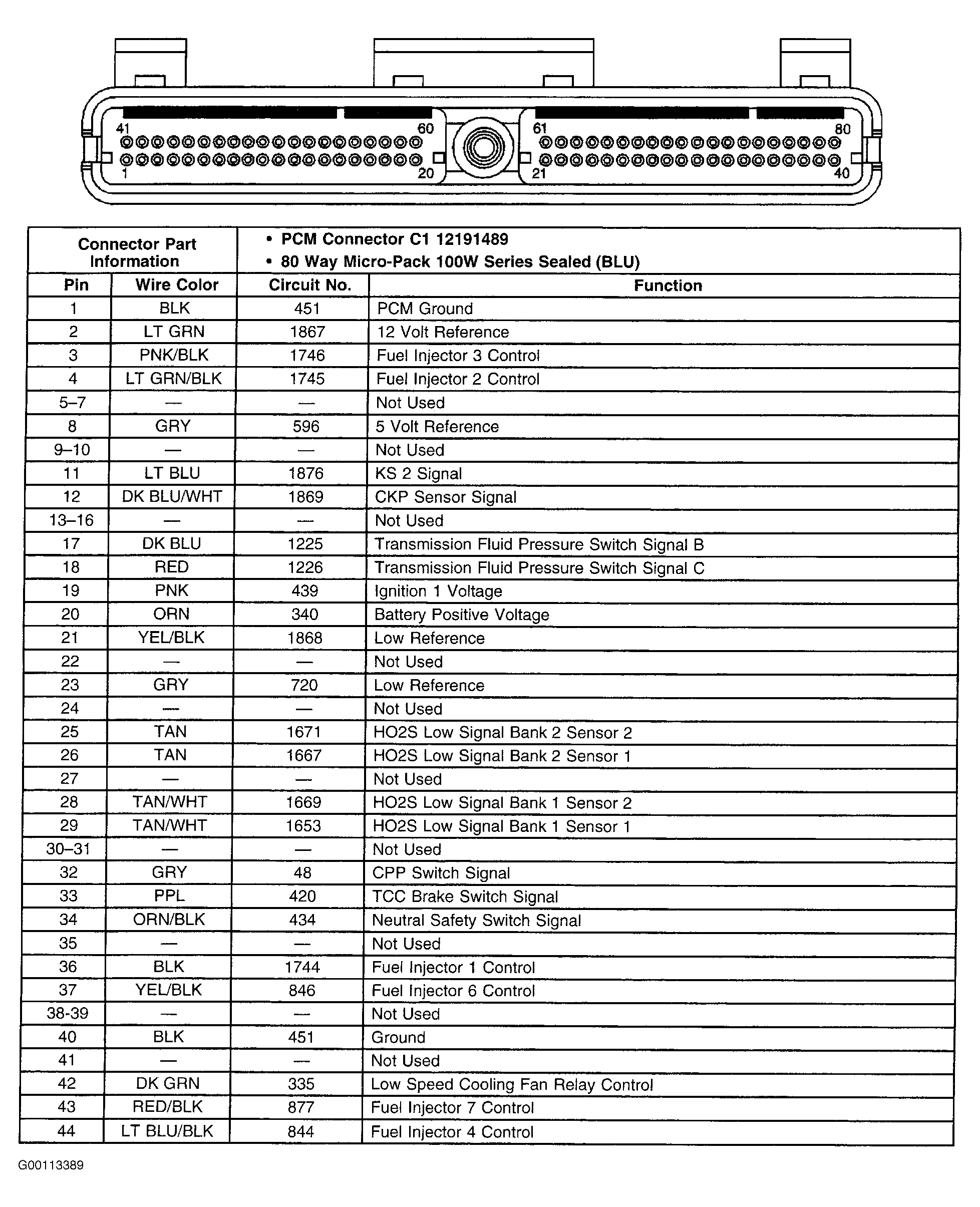

Fig 19: Identifying PCM Connector C1 Terminals (1 Of 2)

G00113389

Courtesy of GENERAL MOTORS CORP.

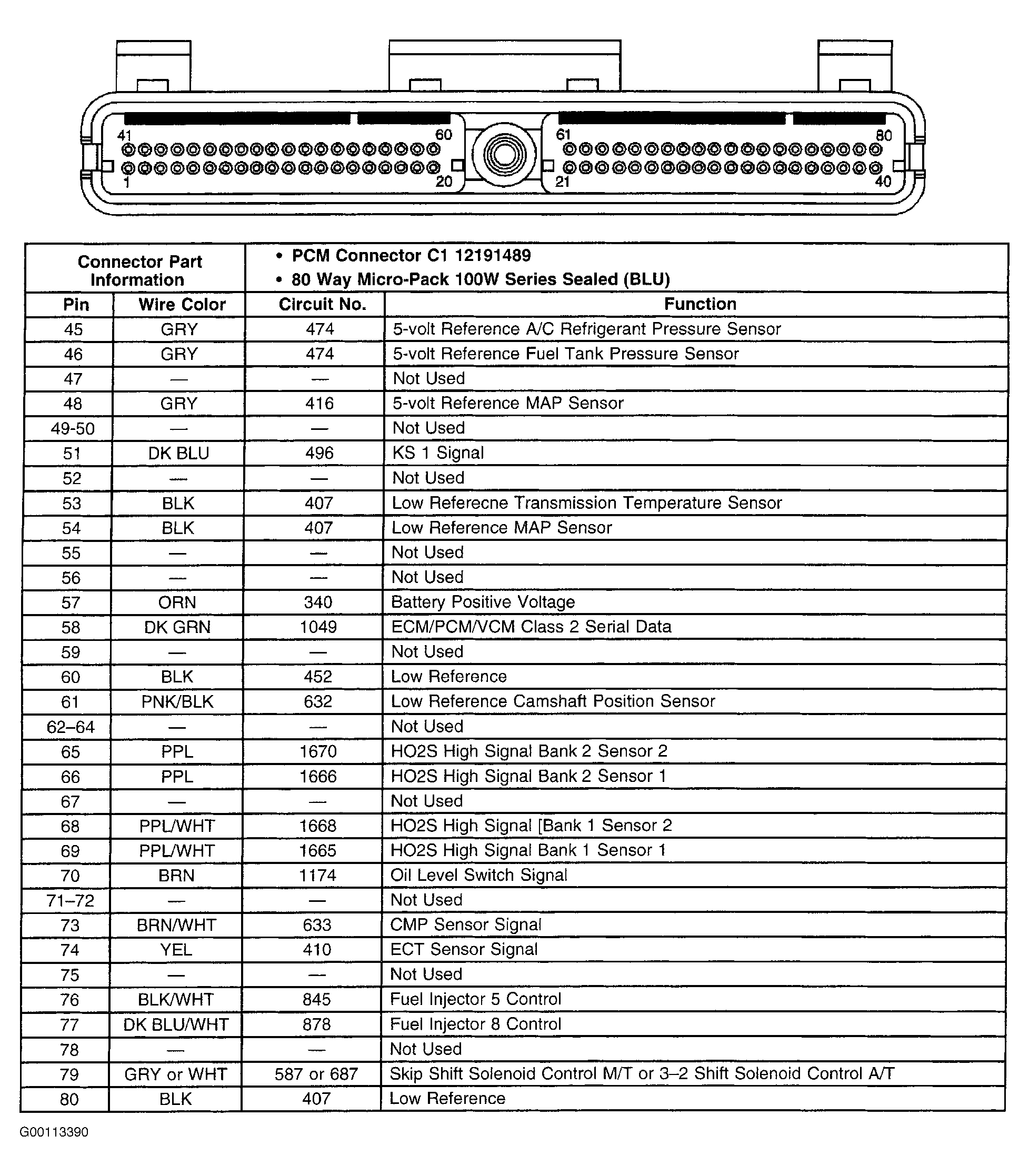

Fig 20: Identifying PCM Connector C1 Terminals (2 Of 2)

G00113390

Courtesy of GENERAL MOTORS CORP.

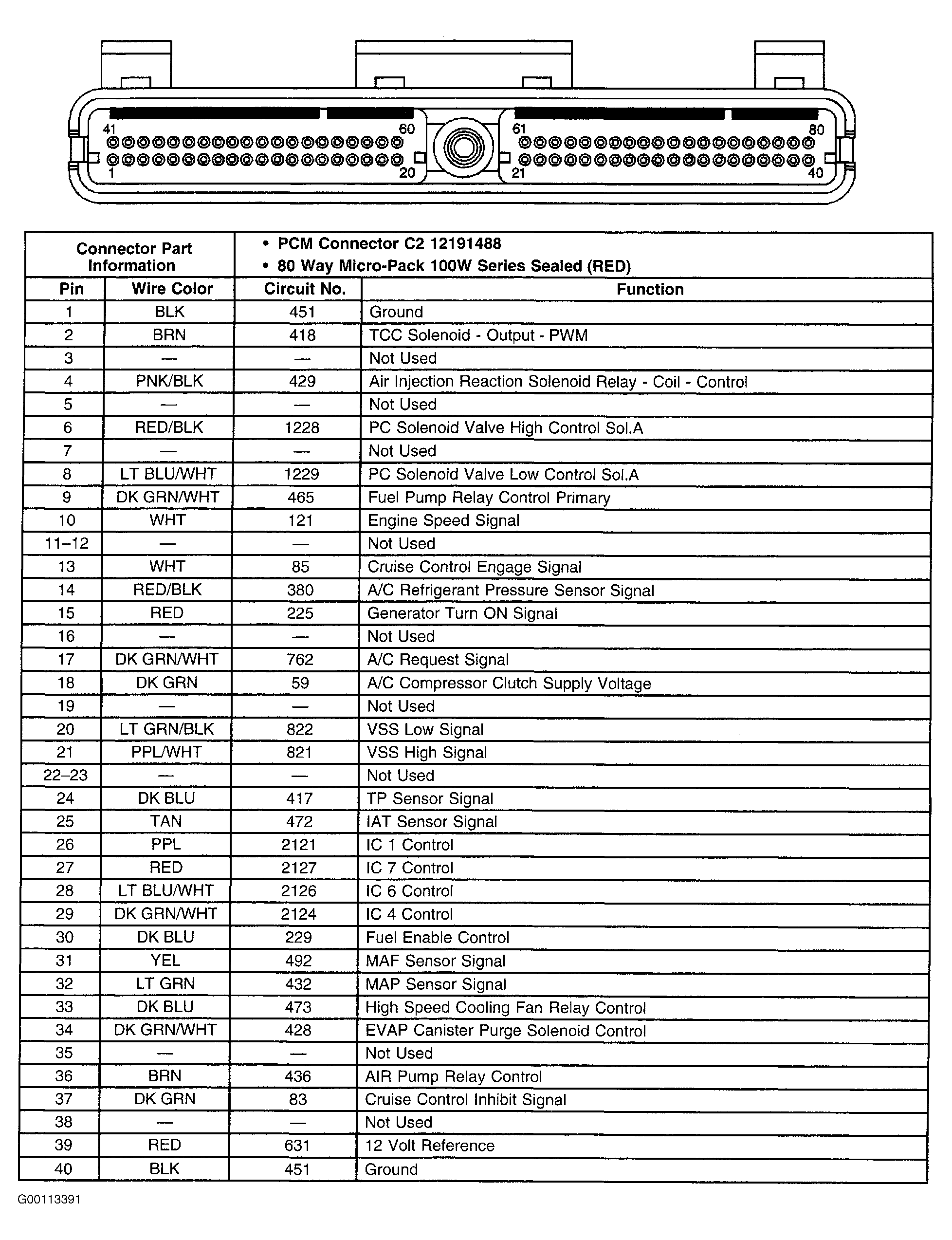

Fig 21: Identifying PCM Connector C2 Terminals (1 Of 2)

G00113391

Courtesy of GENERAL MOTORS CORP.

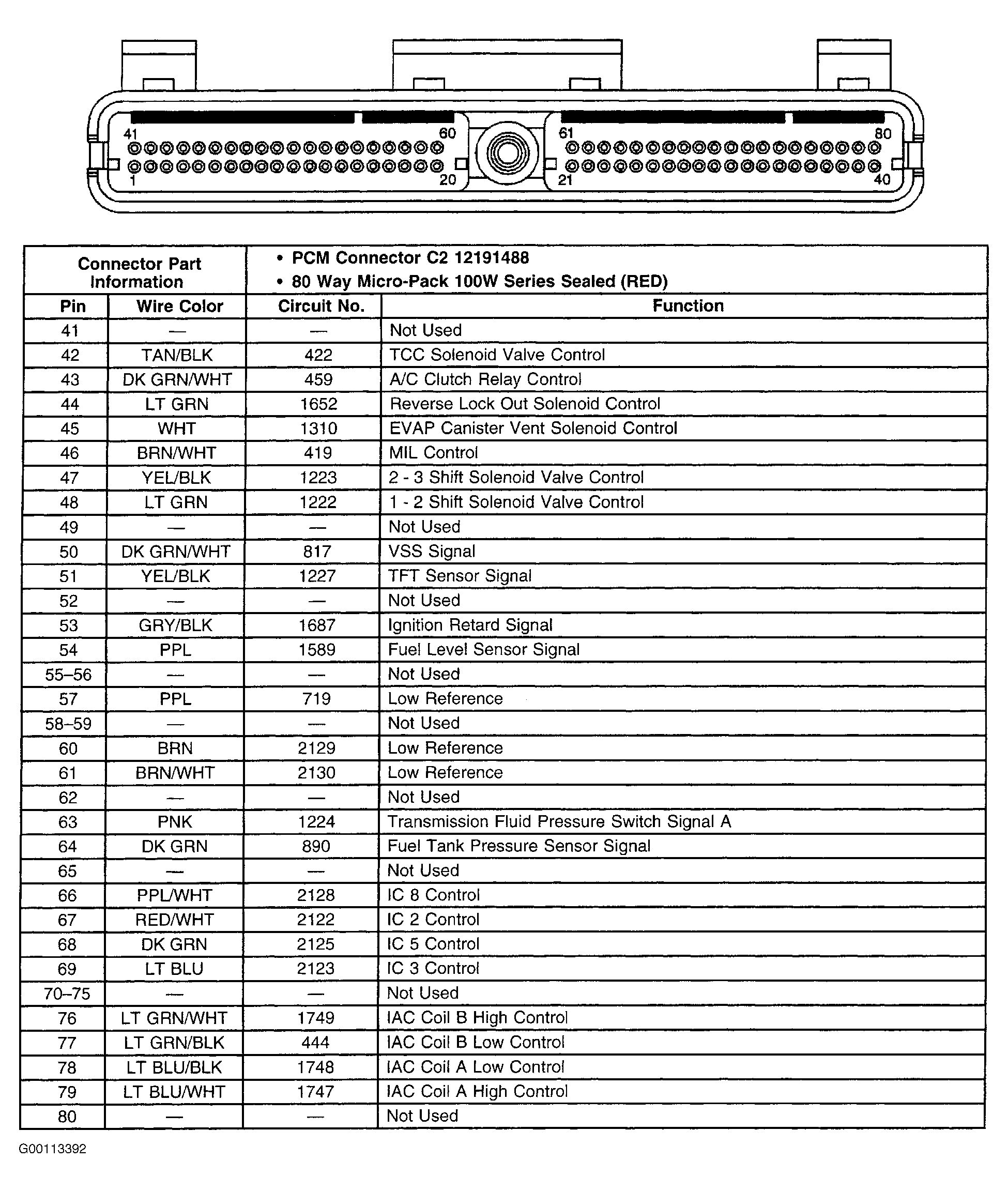

Fig 22: Identifying PCM Connector C2 Terminals (2 Of 2)

G00113392

Courtesy of GENERAL MOTORS CORP.

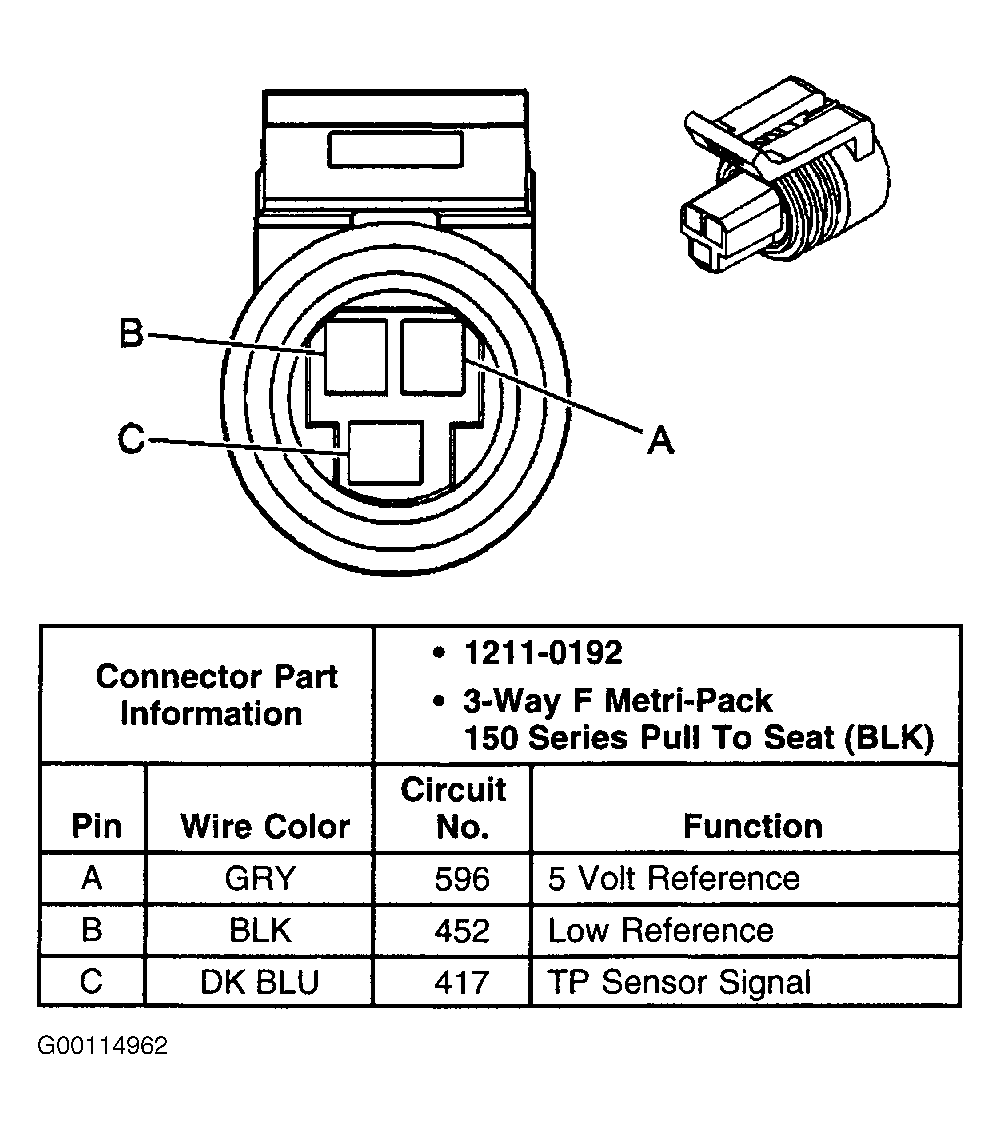

Fig 23: Identifying TP Sensor Connector Terminals

G00114962

Courtesy of GENERAL MOTORS CORP.
