Installation Procedure

  1. Connect the anchor bracket (1) to the anchor bracket mounting plate.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Important:  DO NOT use a nut driver to tighten this hardware or the fasteners will not be properly seated.

  2. Install the bolts.

    Tighten

    Tighten the bolts to 42 N.m (31 ft lbs).

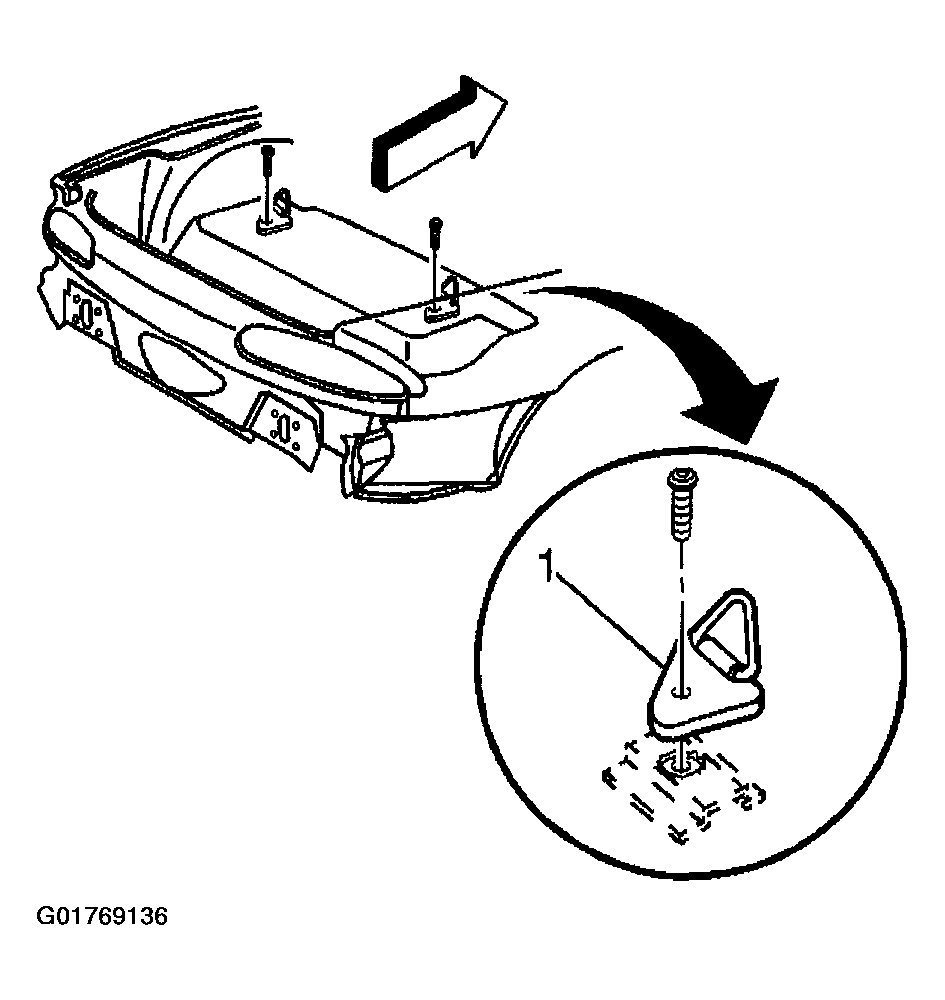

    Fig 1: Connecting Anchor Bracket
    G01769136Courtesy of GENERAL MOTORS CORP.
