Using Old Switch

  1. Loosely, install the Park/Neutral position switch screws to the transmission control. See Figure .
  2. Ensure that the vehicle will only start in the Park or the Neutral position. Readjust the switch, if the vehicle will start in any other position.

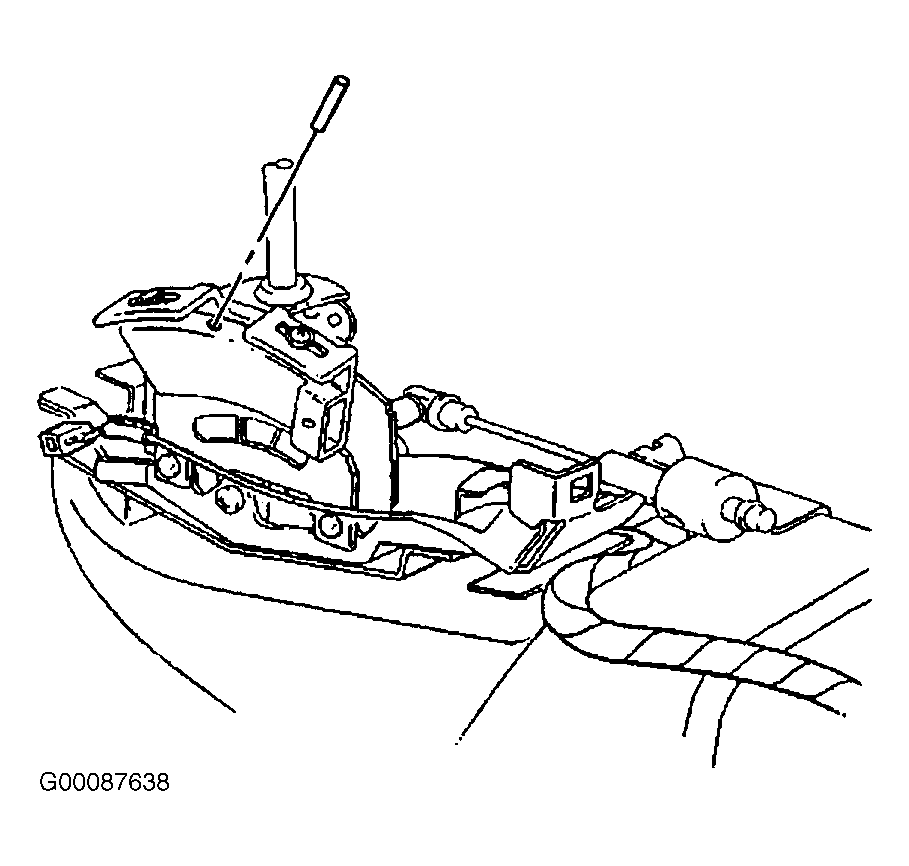

  3. Insert a 0.094" (2.34 mm) gage pin into the service adjustment hole. See Figure . Slide the switch until the gage pin drops to 0.59" (15 mm) depth.
  4. Tighten the Park/Neutral position switch bolts to specification. See TORQUE SPECIFICATIONS  . Remove the gage pin and verify proper operation of the switch.
