Trim Plate: Installation

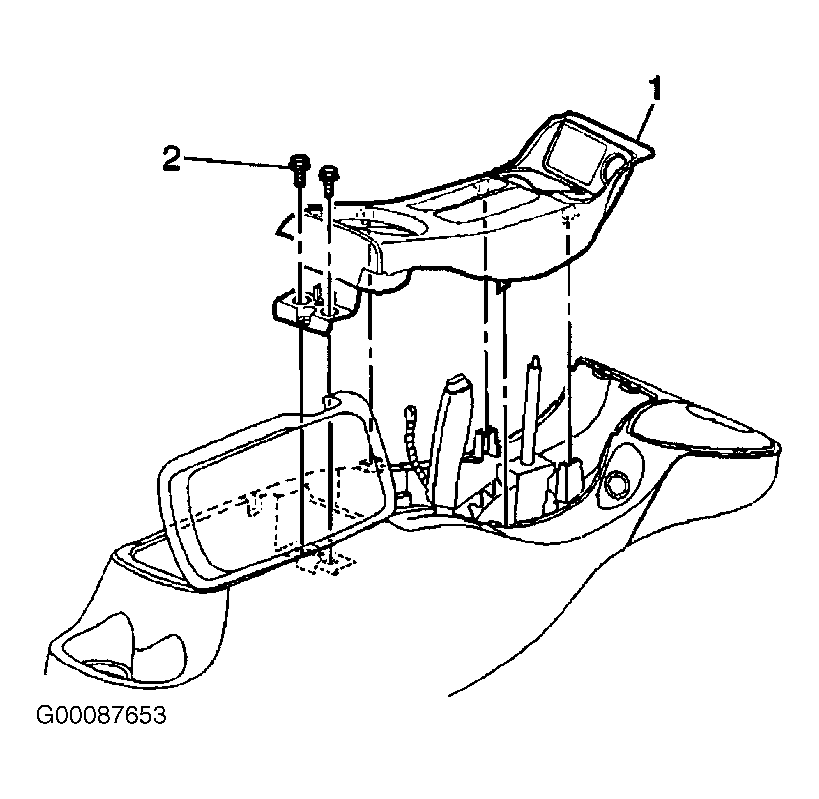

  1. Position the console trim plate (1) over the shift lever. See Figure . Connect the cigarette lighter electrical connector. Connect the PRNDL lamp connector. Insert the forward end of the trim plate (1) into the console. Apply pressure to the console trim plate (1) and snap the trim plate (1) into place.

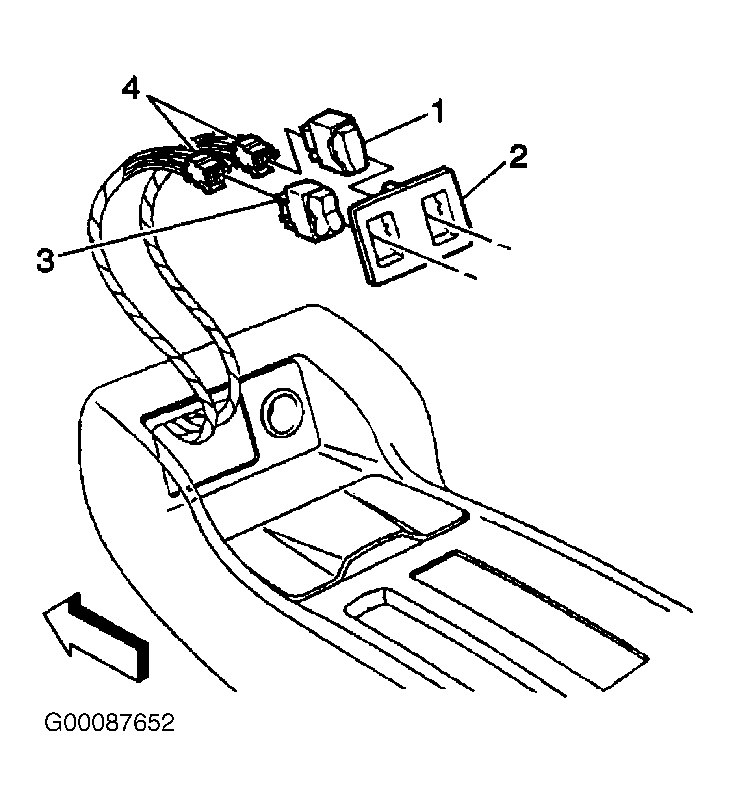

  2. Install the console trim plate bolts (2). Tighten trim plate bolts to specification. See TORQUE SPECIFICATIONS  . Snap the switch plate (2) to the floor console. See Figure . Connect the electrical connectors (4) to the switches (1, 3), if equipped.

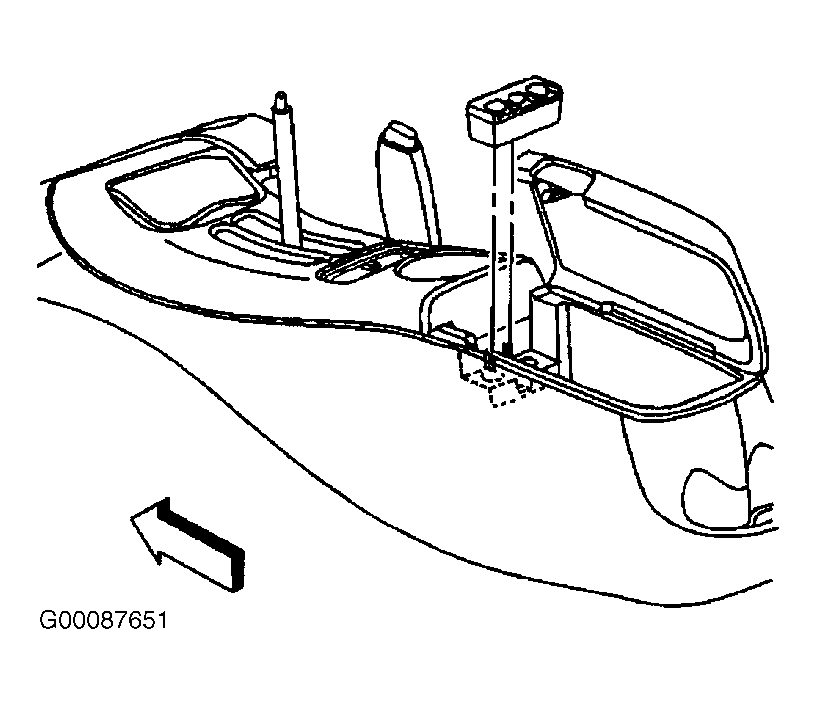

  3. Install the coin holder to inside the console. See Figure . Close the console armrest door. Install the shift control knob. Install the control lever knob onto the transmission control. Install the staple clip. See Figure . Push in the staple clip to retain the control knob. Place the shift lever in the PARK position. Turn the ignition key to the OFF position.
