Insulator Panel (Left Side): Installation

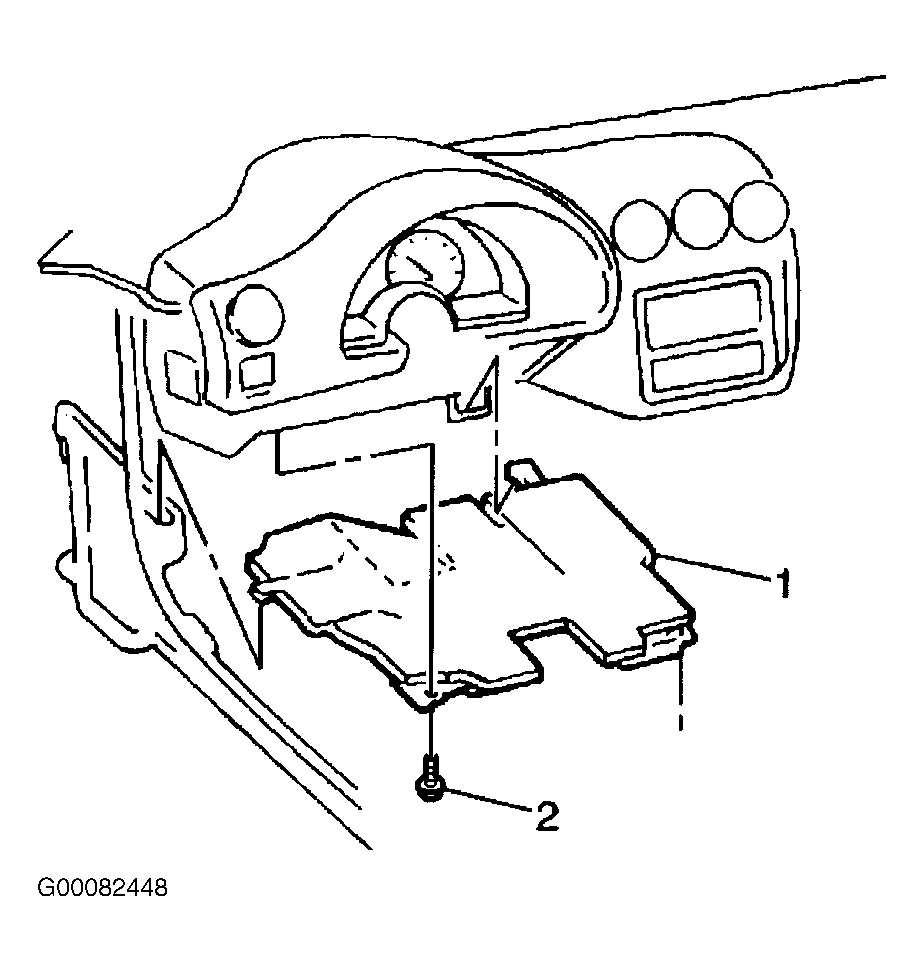

Align the instrument panel insulator (1) to the bottom of the instrument panel. Lift the flange on the instrument panel insulator (1) over the kick panel. See Fig 1 . Install the tab on the instrument panel insulator (1) into the retaining feature on the dash mat. Install the push-in retainers (2).
