STOPLAMP Switch: Removal

  1. Remove the left-side instrument panel insulator. See INSULATOR PANEL (LEFT SIDE)  .
  2. Disconnect the electrical connector from the switch.

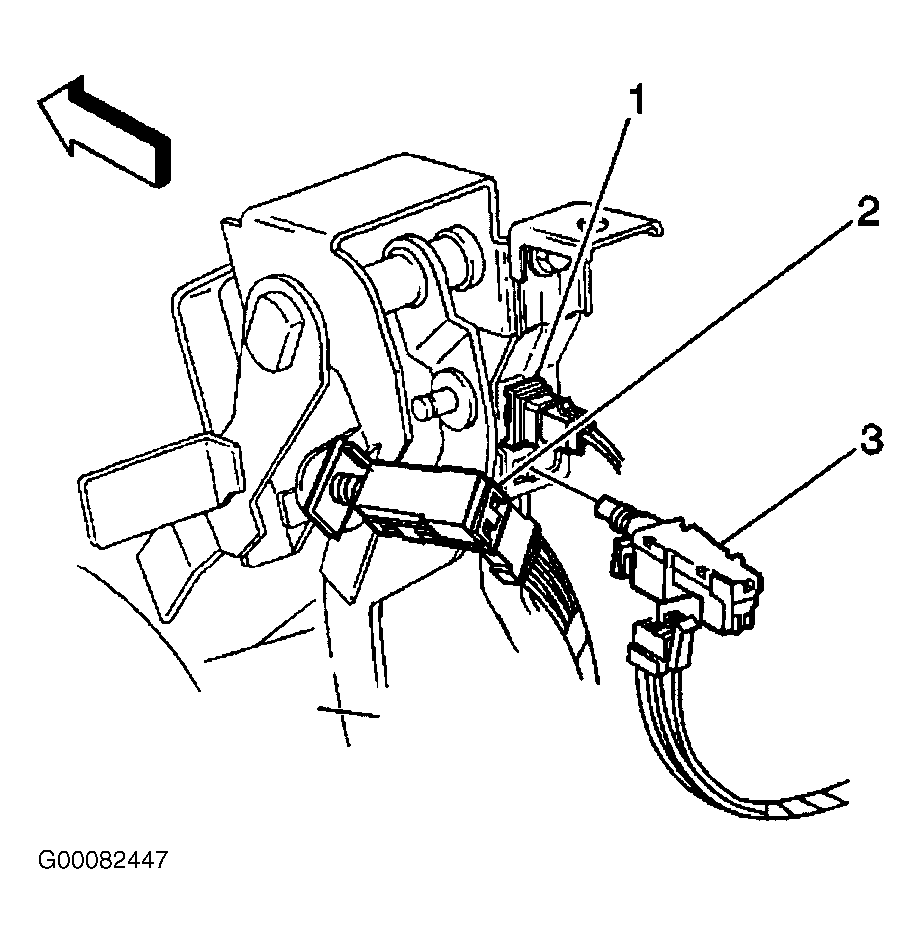

  3. Remove the stoplamp and TCC switch from the bracket. See Figure .
