Installation Procedure

  1. Install the cables (2), (3), and (5) to the relaxer assembly.

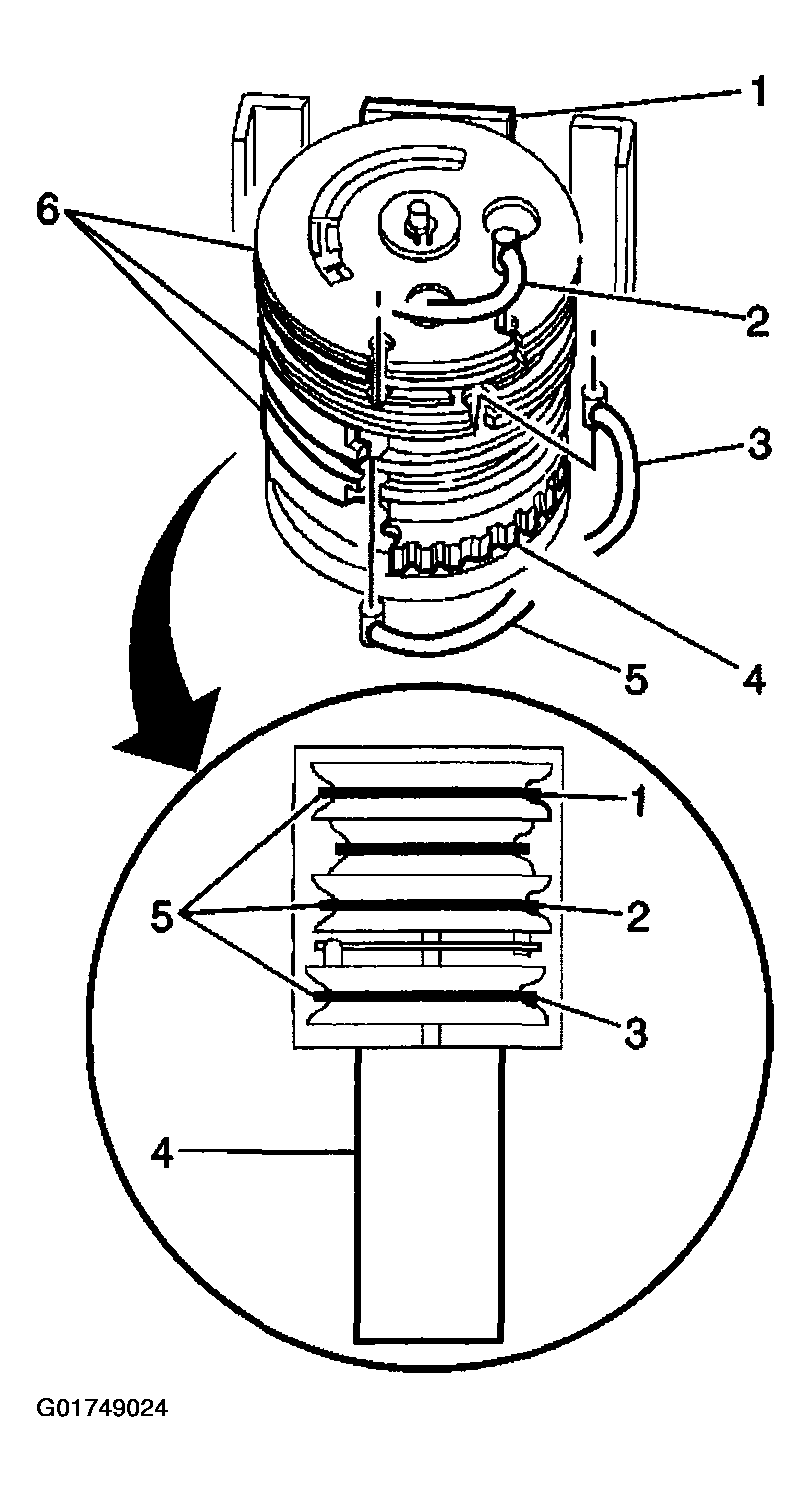

    Fig 1: Installing Cables To Relaxer Assembly
    G01749024Courtesy of GENERAL MOTORS CORP.
  2. Install the throttle relaxer assembly to the mounting bracket (3).

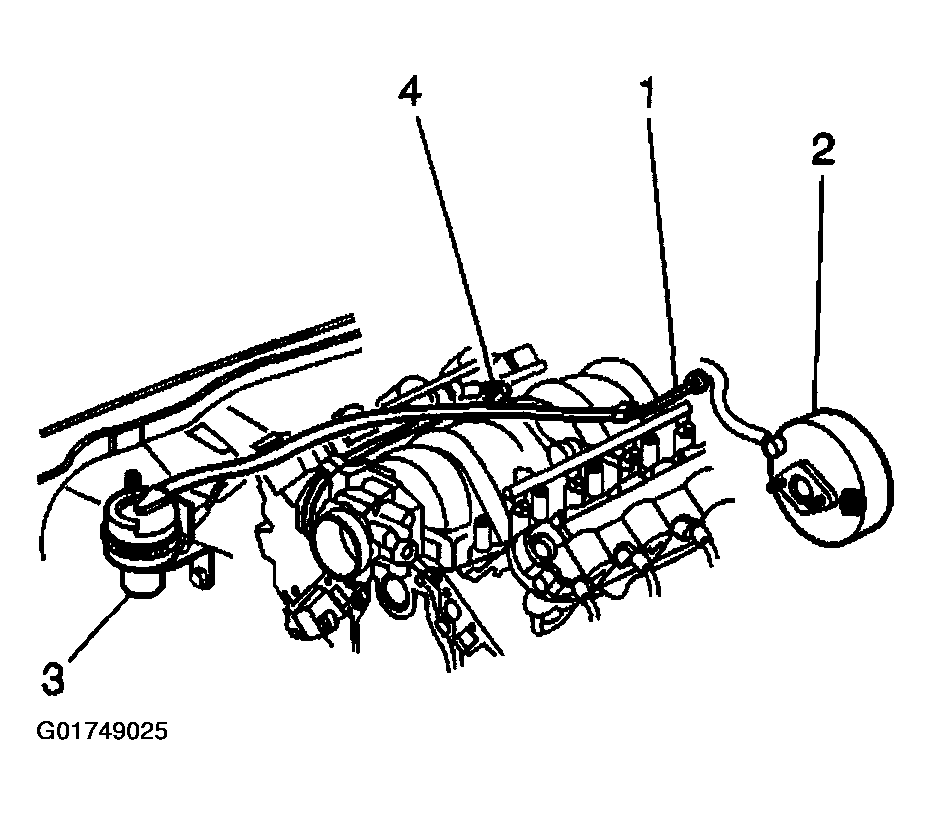

    Fig 2: Installing The Throttle Relaxer Assembly
    G01749025Courtesy of GENERAL MOTORS CORP.
  3. Install the relaxer assembly retaining nuts.

    Tighten

    Tighten the relaxer assembly retaining nuts to 25 N.m (18 lb ft).

  4. Connect the electrical connector to the throttle relaxer assembly.

    Important:  The throttle relaxer assembly cables must always be adjusted each time it is removed and/or replaced to ensure optimum system performance.

  5. Adjust the throttle relaxer assembly. Refer to Throttle Relaxer Assembly Adjustment .
  6. Install the cable cam cover.
  7. Install the relaxer assembly splash cover.

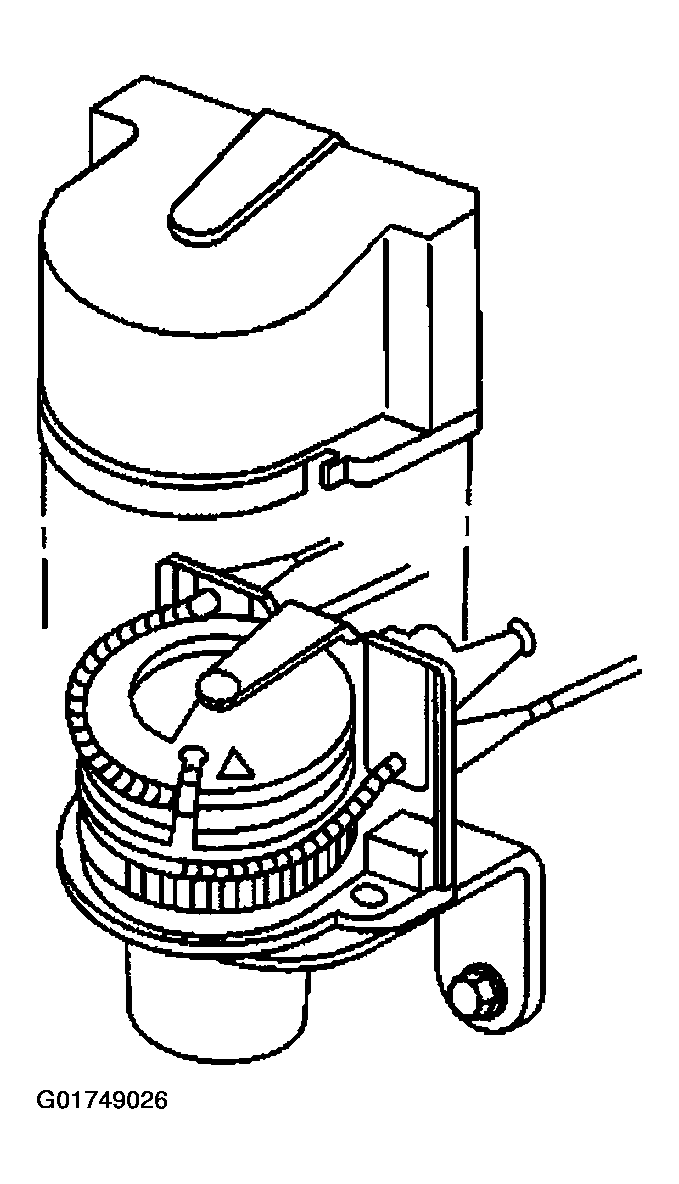

    Fig 3: Install The Relaxer Assembly Splash Cover
    G01749026Courtesy of GENERAL MOTORS CORP.
