Removal Procedure

  1. Remove the throttle relaxer assembly splash cover.

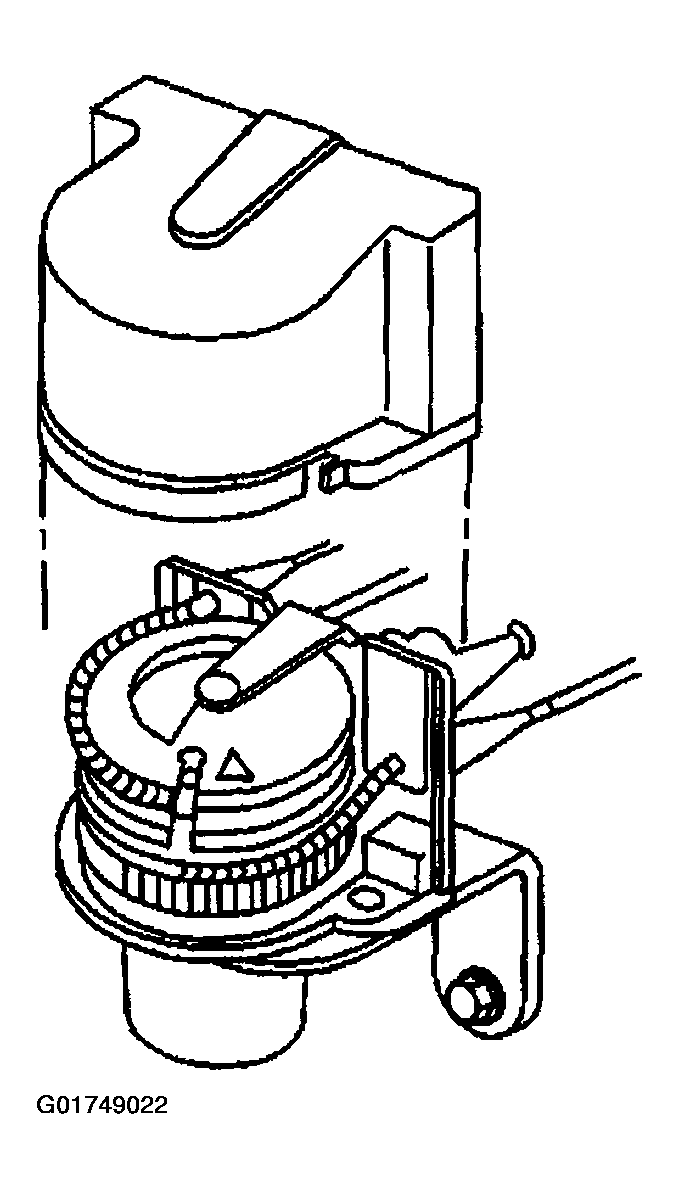

    Fig 1: Removing Throttle Relaxer Assembly Splash Cover
    G01749022Courtesy of GENERAL MOTORS CORP.
  2. Remove the cable cam cover.
  3. Disconnect the electrical connector from the throttle relaxer assembly.
  4. Remove the retaining nuts that attach the throttle relaxer assembly to the bracket.
  5. Remove the cables (2), (3), and (5) from the relaxer assembly.

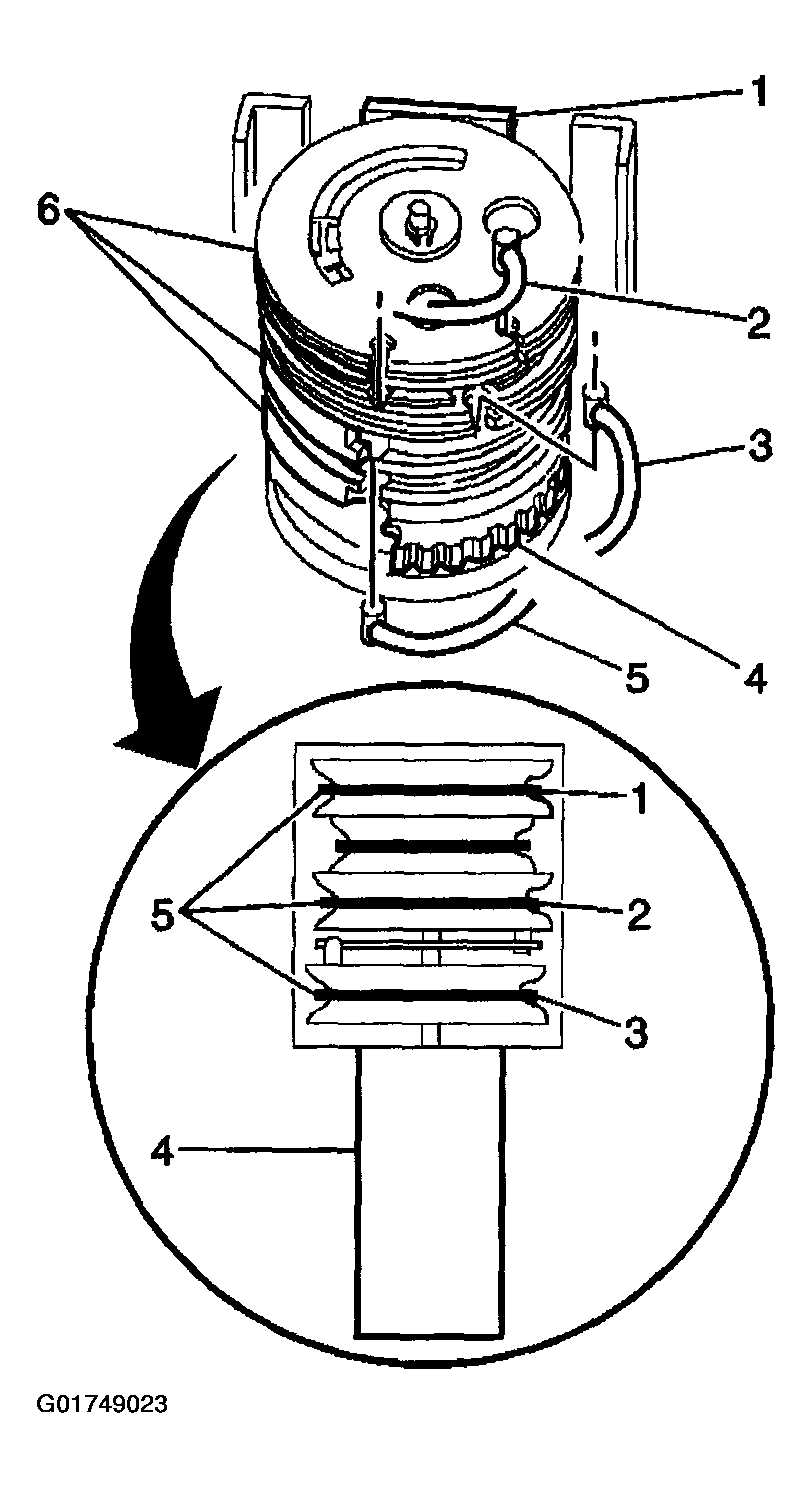

    Fig 2: Remove Cables From The Relaxer Assembly
    G01749023Courtesy of GENERAL MOTORS CORP.
