Removal Procedure

  1. Remove the cruise control cable from the module.

    Refer to CRUISE CONTROL CABLE REPLACEMENT  .

  2. Disconnect the electrical connector from the cruise control module.
  3. Remove the cruise control module from the bracket.

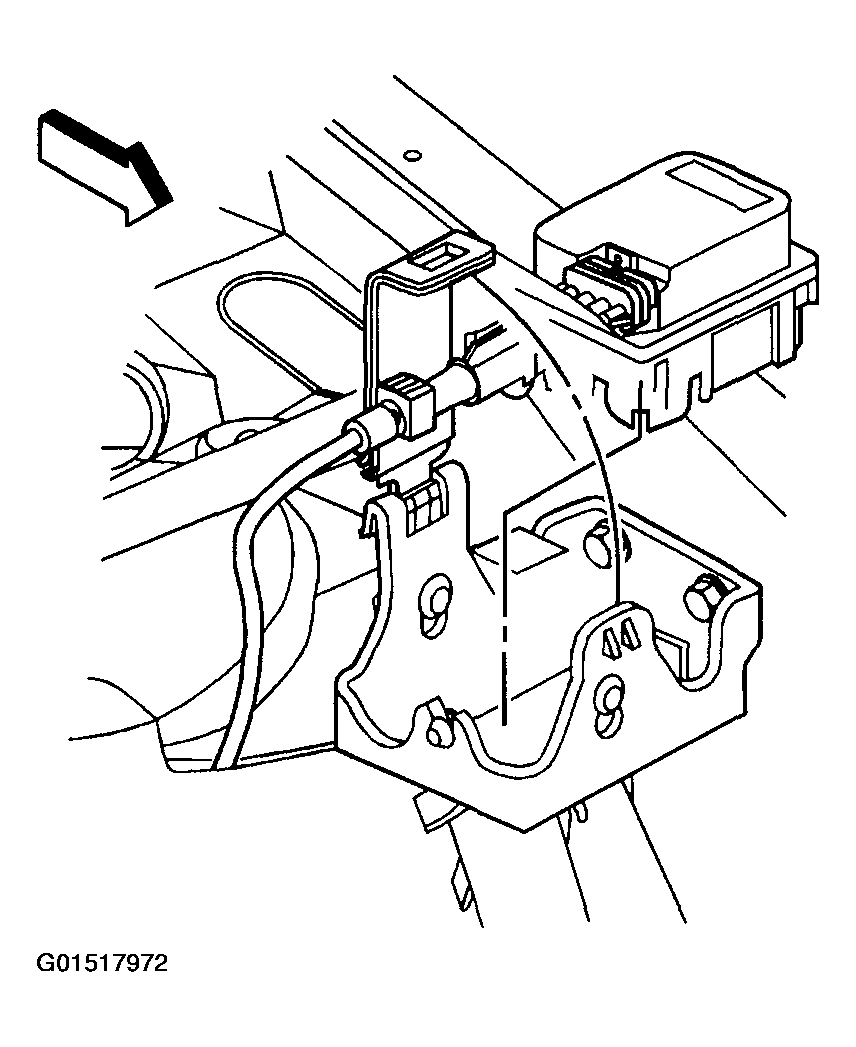

    Fig 1: Removing Cruise Control Module From Bracket
    G01517972Courtesy of GENERAL MOTORS CORP.
