Removal Procedure

Important:  The vehicle communication interface module (VCIM) has a specific set of unique numbers that tie the module to each vehicle. These numbers, the 10-digit station identification and the 11-digit electronic serial number, are used by the National Cellular Network and OnStar® to identify the specific vehicle. Because these numbers are tied to the vehicle identification number of the vehicle, you must never exchange these parts with those of another vehicle.

1. Remove the right insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) .

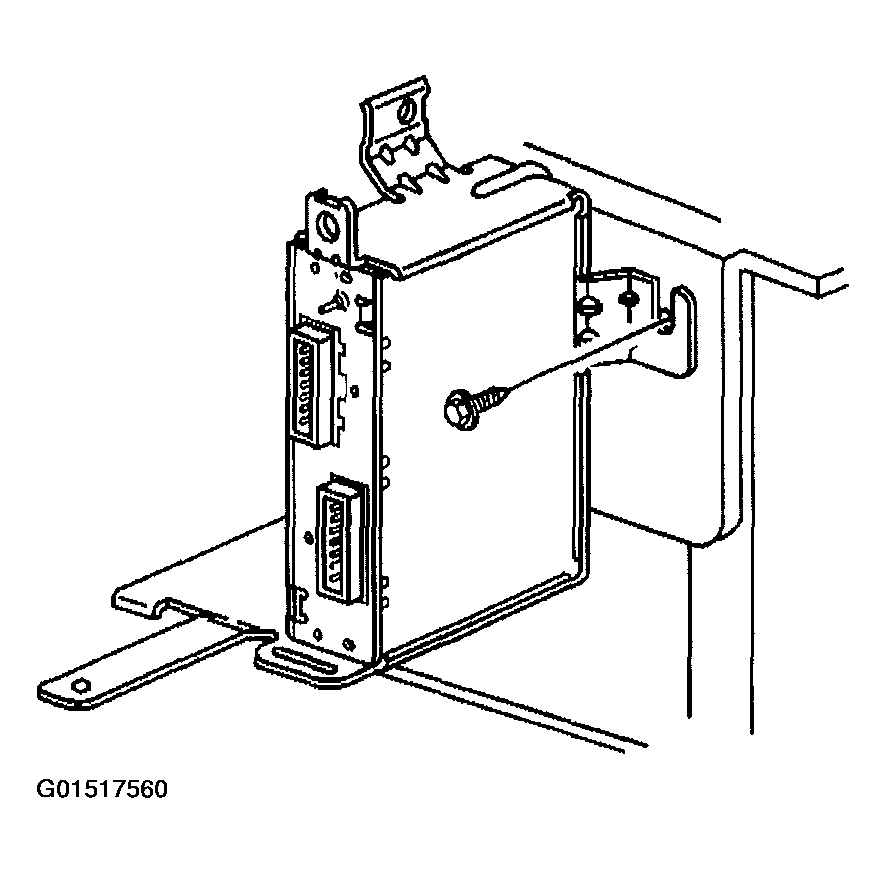

   Fig 1: Removing VCIM Bracket Screws

   Courtesy of GENERAL MOTORS CORP.
3. Remove the screws securing the VCIM bracket to the instrument panel metal brace.
4. Disconnect the electrical connectors.
5. Disconnect the cell antenna coaxial cable from the VCIM.

   Important:  The old VCIM must be returned for core credit.

6. Remove the VCIM from the bracket and the vehicle.

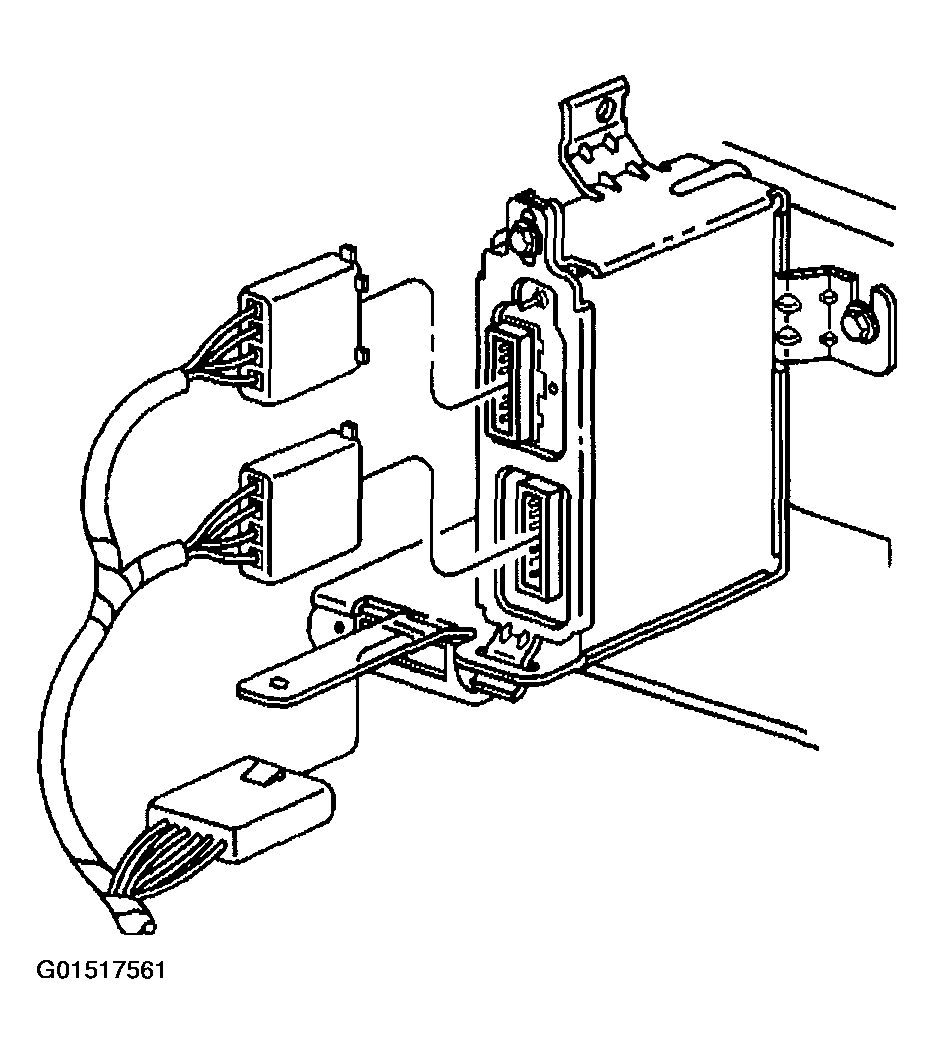

   Fig 2: Disconnecting Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.
