Installation Procedure

  1. Install the memory seat module to the seat frame.
  2. Press the module into the bracket until the module is firmly seated.
  3. Connect the electrical connector to the memory seat module.
    Fig 1: Installing Memory Seat Module To Seat Frame
    G01518117Courtesy of GENERAL MOTORS CORP.
  4. Install the seat cushion assembly (1) to the seat riser.
  5. Install the fasteners (2) to the seat cushion assembly (1).

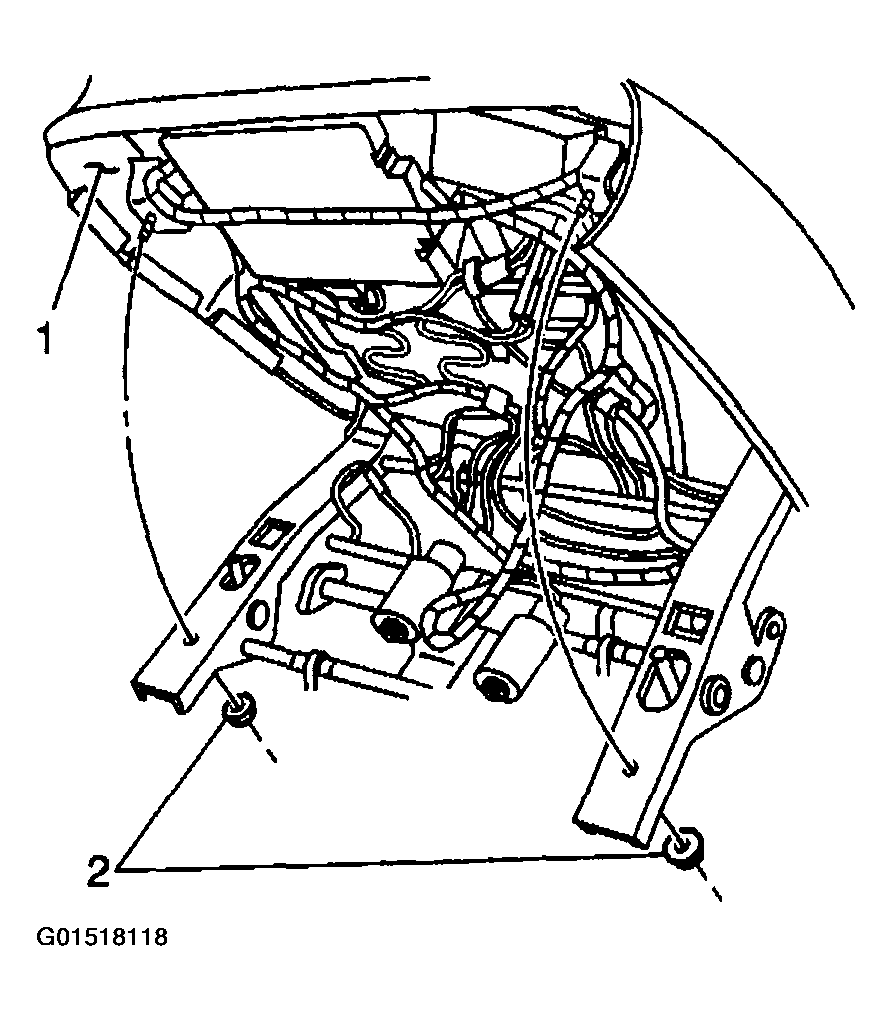

    Fig 2: Installing Seat Cushion Assembly To Seat Riser
    G01518118Courtesy of GENERAL MOTORS CORP.
  6. Adjust the front seat assembly up and forward in order to access the fasteners (1).
  7. Install the fasteners (1) to the seat cushion assembly.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  8. Angle the front seat cushion up, in order to access the assembly fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  9. Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

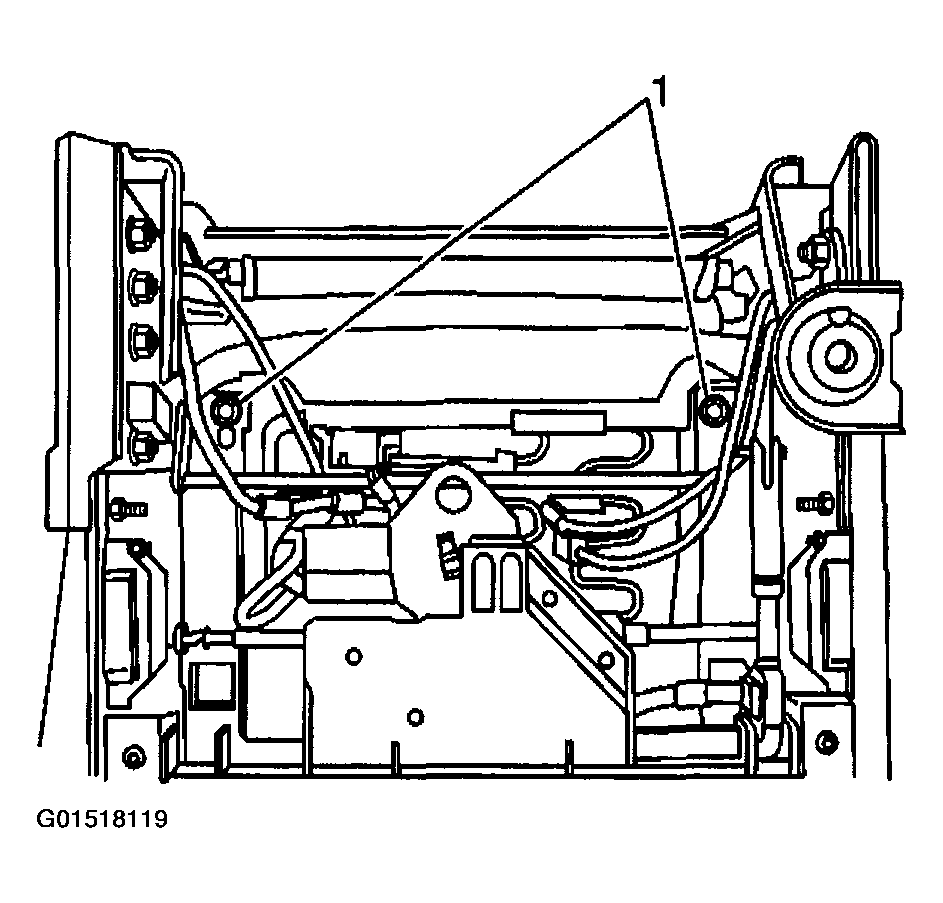

    Fig 3: Installing Fasteners To Seat Cushion Assembly
    G01518119Courtesy of GENERAL MOTORS CORP.
