Installation Procedure

  1. Connect the electrical connectors to the sunroof control module.
  2. Position the control module retainer tabs to the slots in the sunroof module.

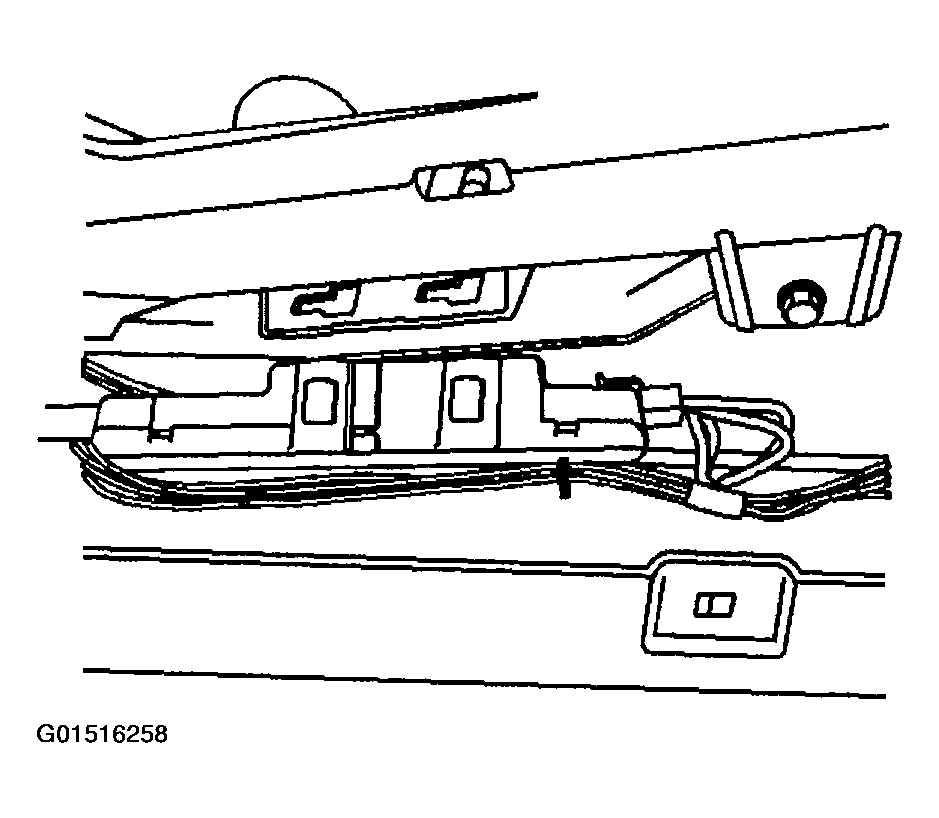

    Fig 1: Connecting Electrical Connectors To Sunroof Control Module
    G01516258Courtesy of GENERAL MOTORS CORP.
  3. Install the control module to the sunroof module by sliding the control module to the right, pressing into place until fully seated.
  4. Inspect for the proper operation of the sunroof.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (AZTEK) or HEADLINER REPLACEMENT (RENDEZVOUS) .

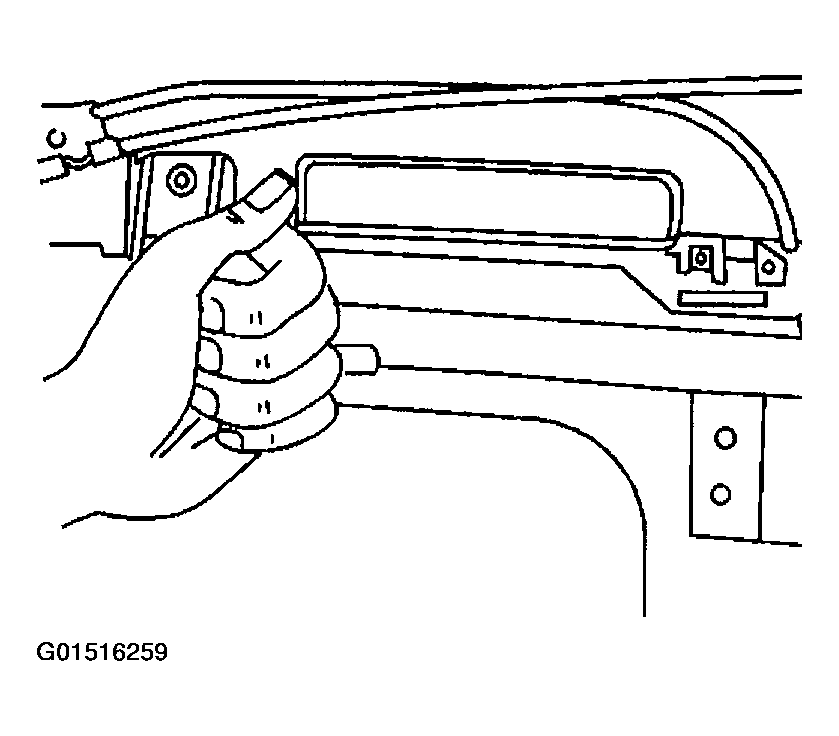

    Fig 2: Sliding Control Module To Right
    G01516259Courtesy of GENERAL MOTORS CORP.
