Component Locator: Notes

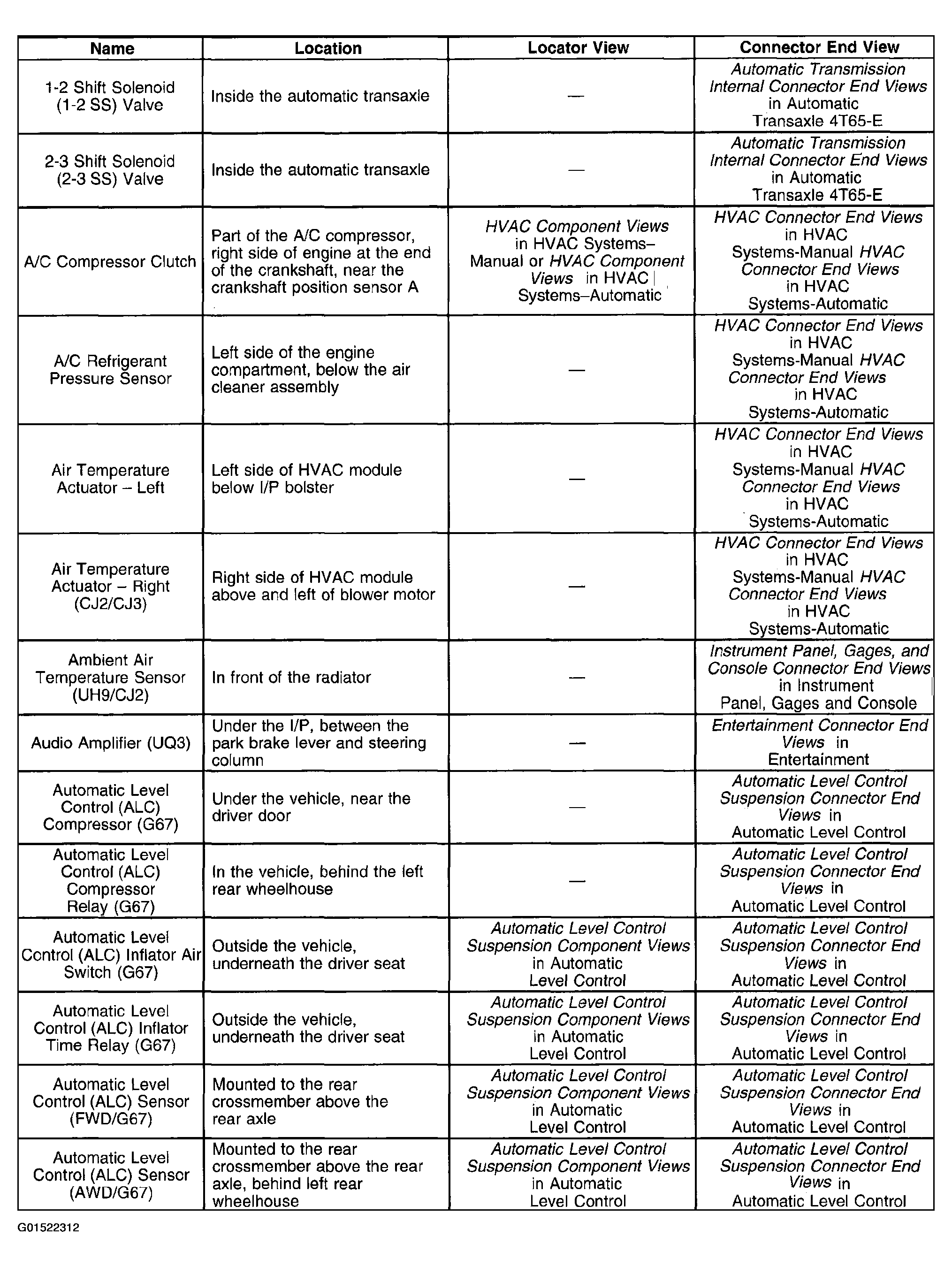

Fig 1: Electrical Component Locator (1 Of 17)

G01522312

Courtesy of GENERAL MOTORS CORP.

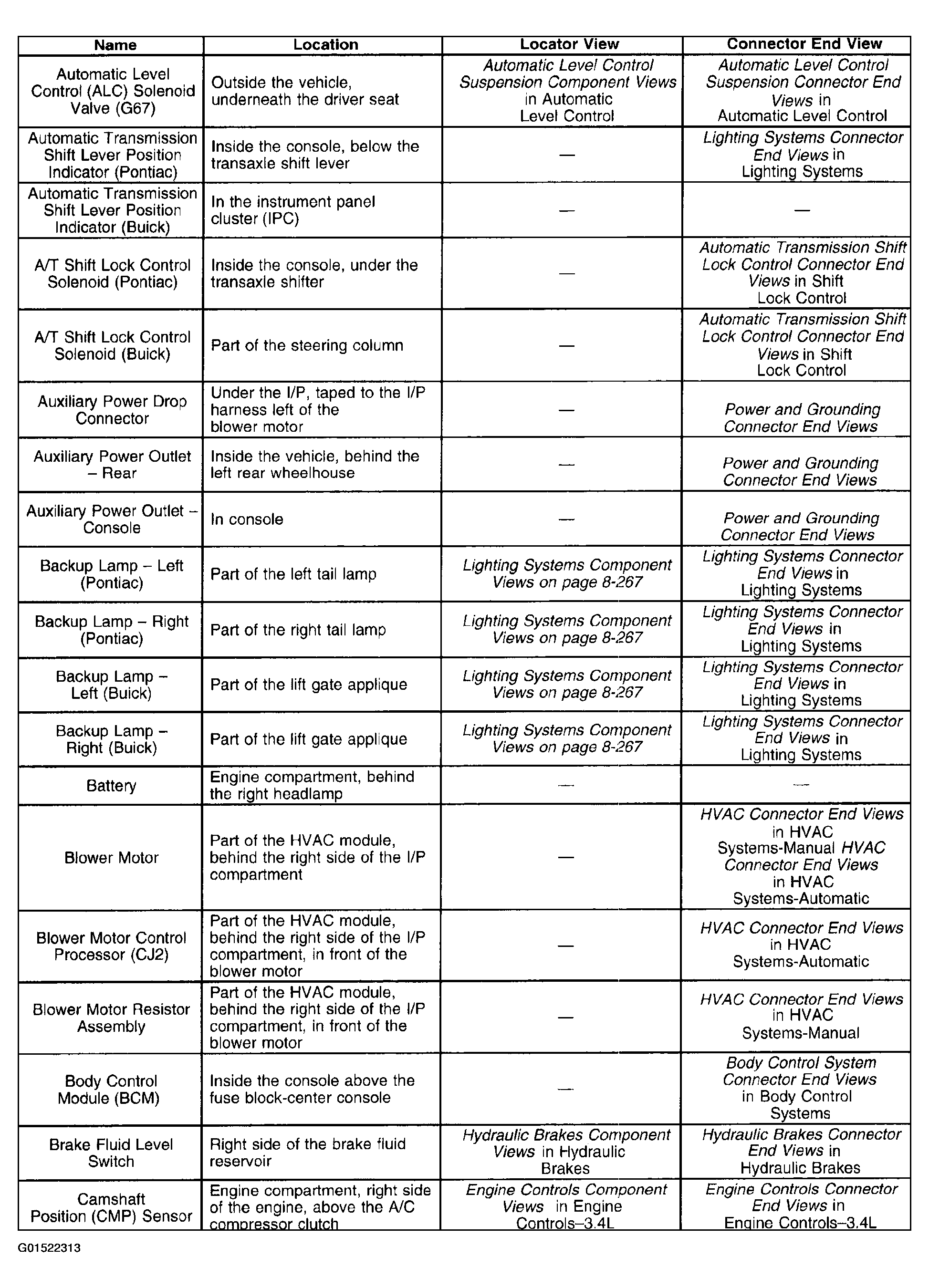

Fig 2: Electrical Component Locator (2 Of 17)

G01522313

Courtesy of GENERAL MOTORS CORP.

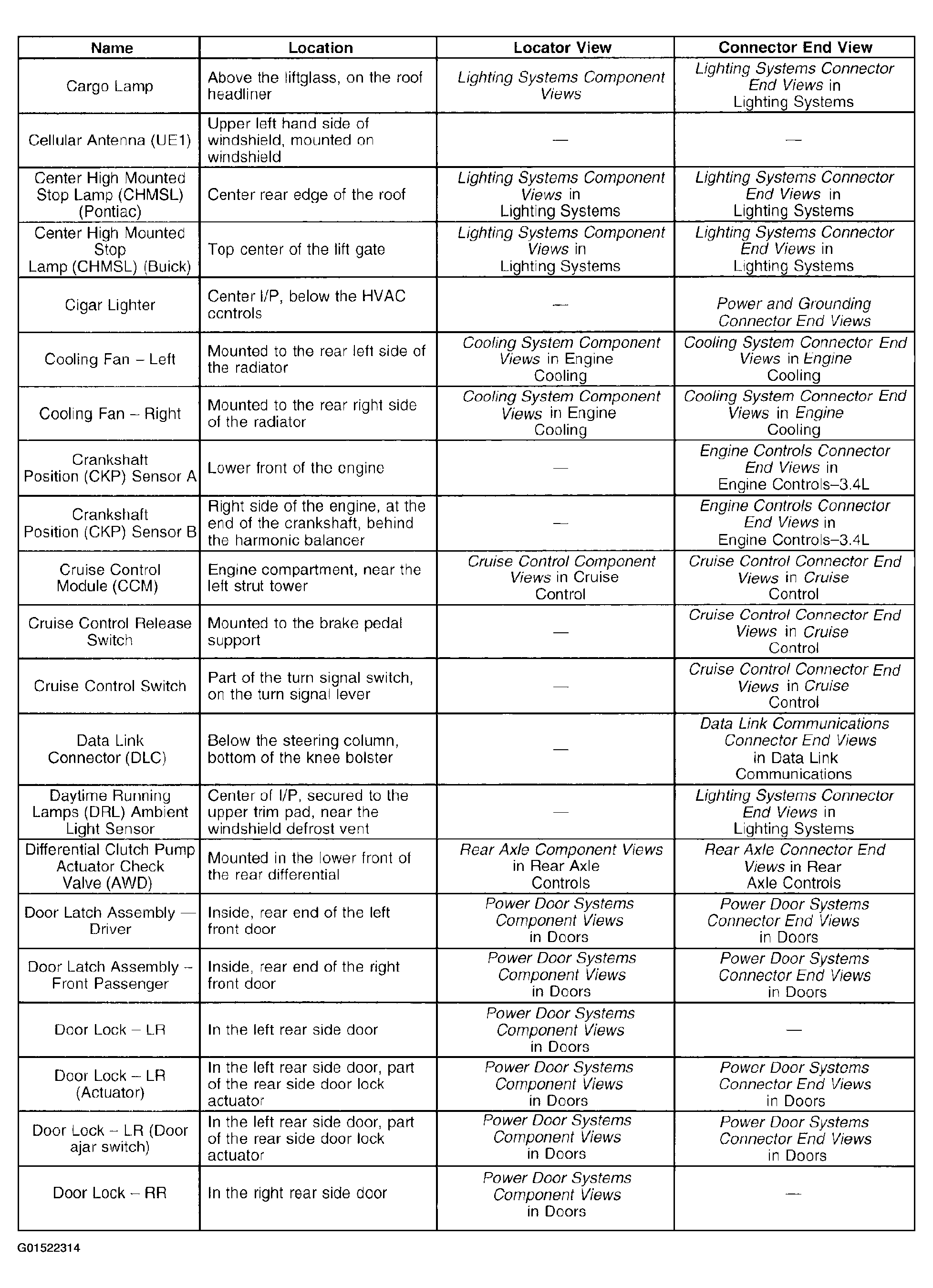

Fig 3: Electrical Component Locator (3 Of 17)

G01522314

Courtesy of GENERAL MOTORS CORP.

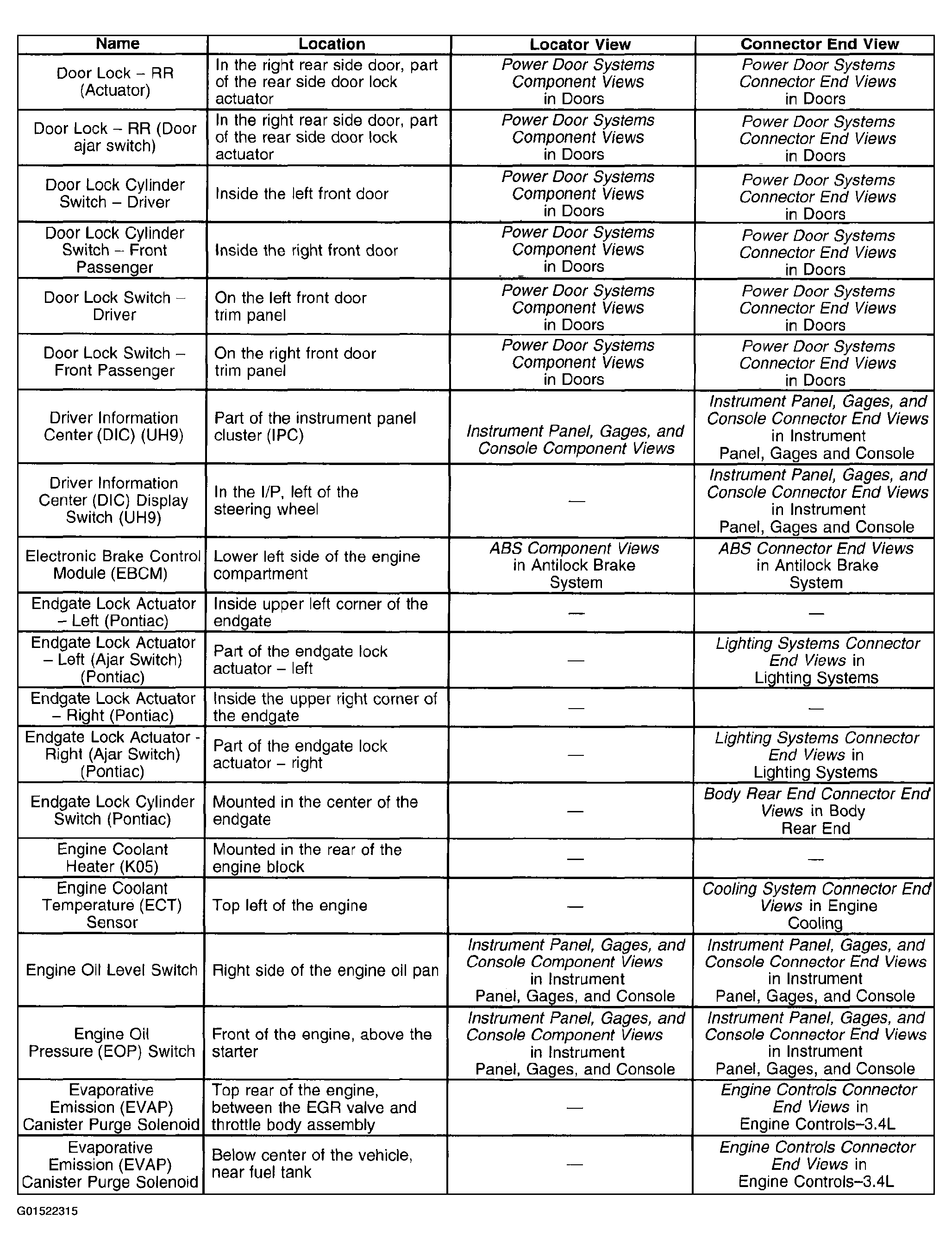

Fig 4: Electrical Component Locator (4 Of 17)

G01522315

Courtesy of GENERAL MOTORS CORP.

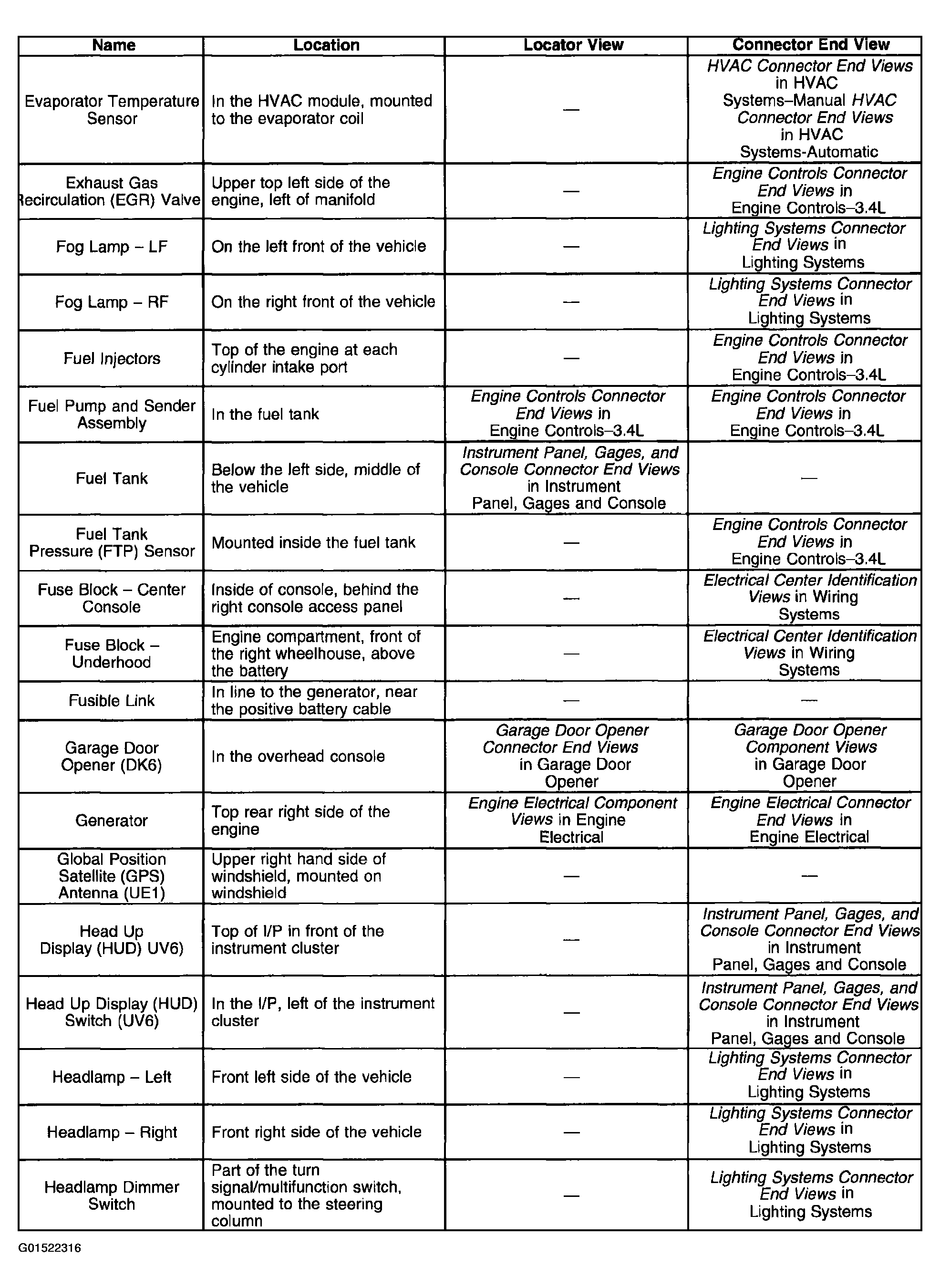

Fig 5: Electrical Component Locator (5 Of 17)

G01522316

Courtesy of GENERAL MOTORS CORP.

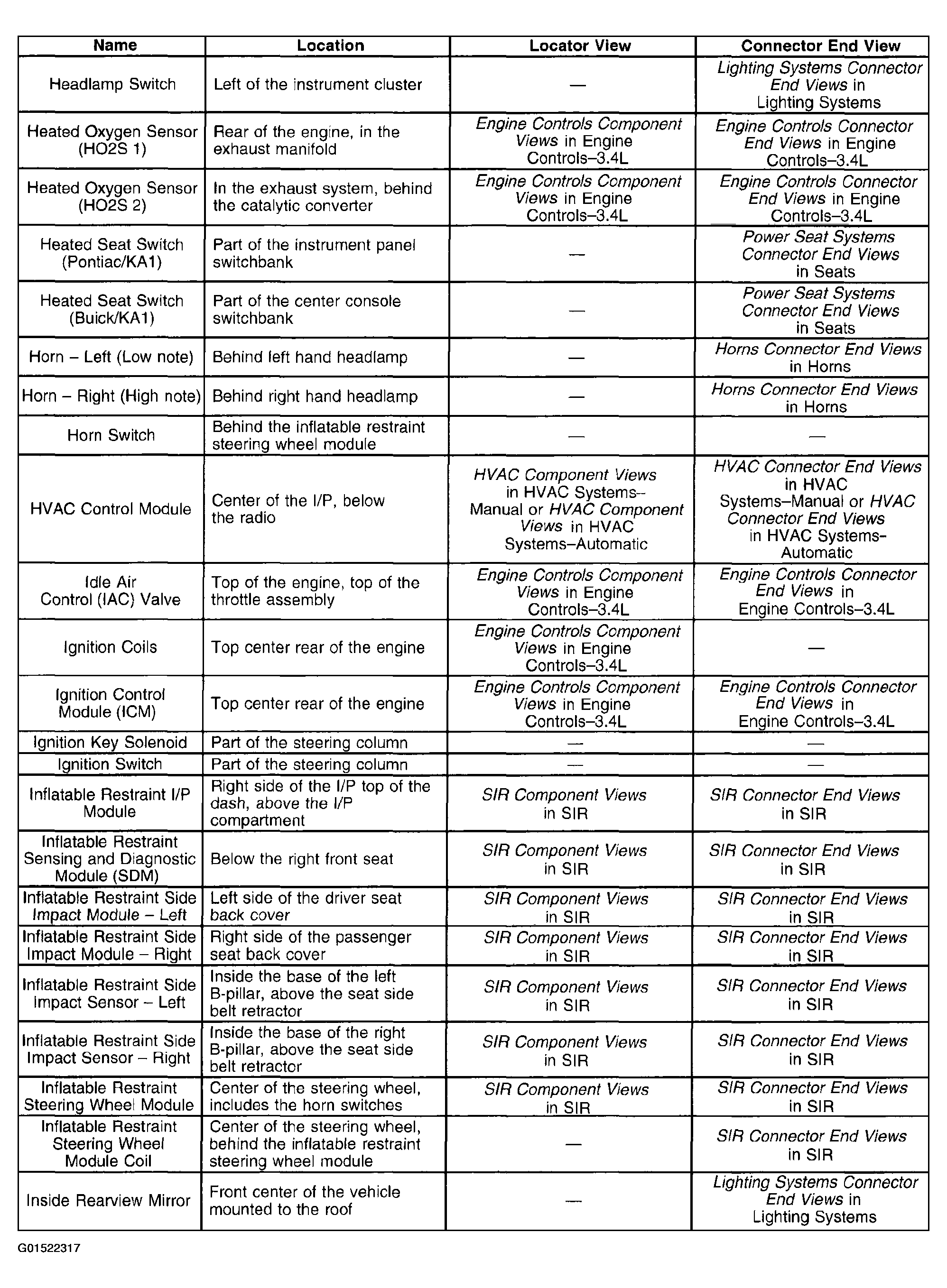

Fig 6: Electrical Component Locator (6 Of 17)

G01522317

Courtesy of GENERAL MOTORS CORP.

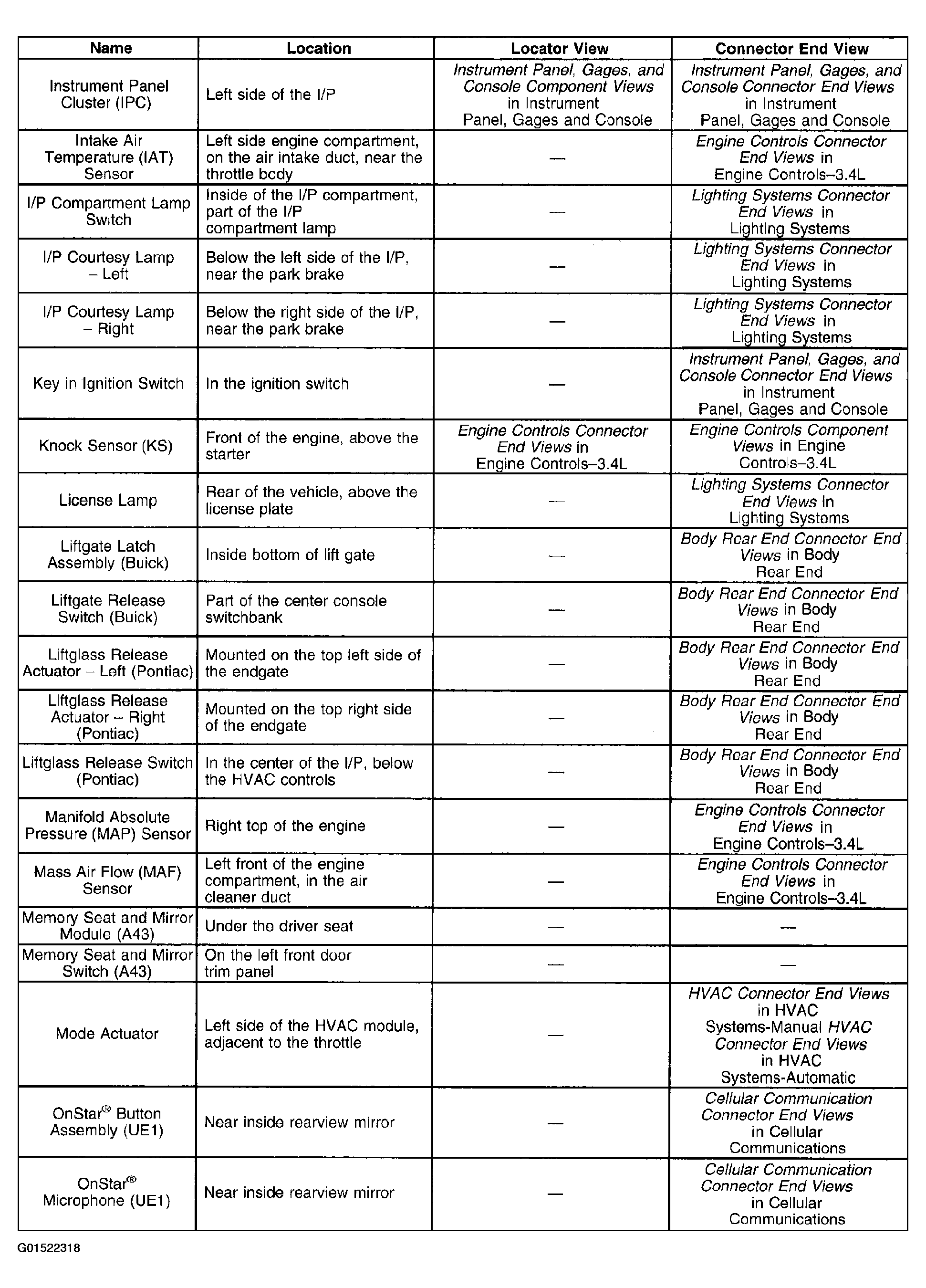

Fig 7: Electrical Component Locator (7 Of 17)

G01522318

Courtesy of GENERAL MOTORS CORP.

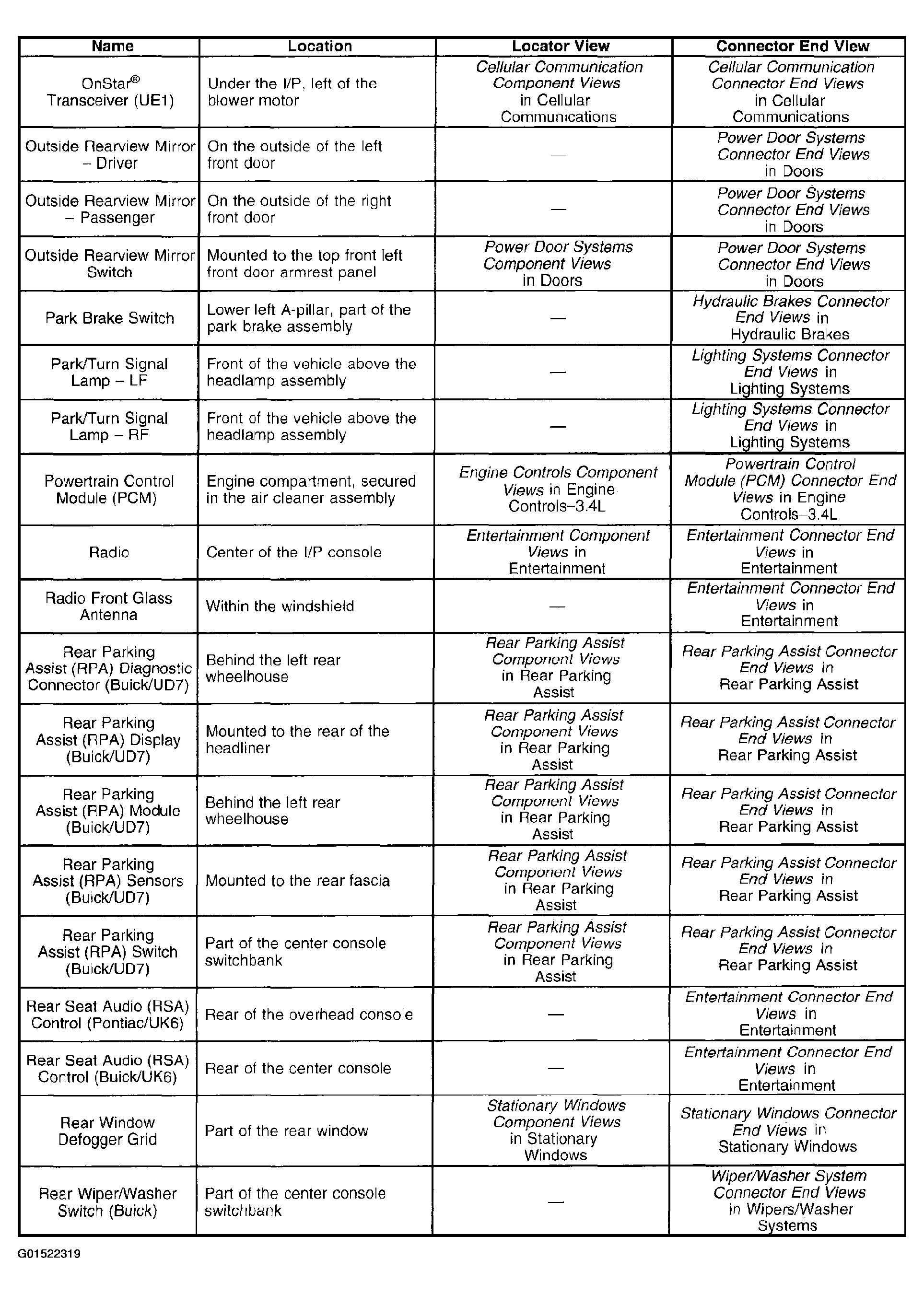

Fig 8: Electrical Component Locator (8 Of 17)

G01522319

Courtesy of GENERAL MOTORS CORP.

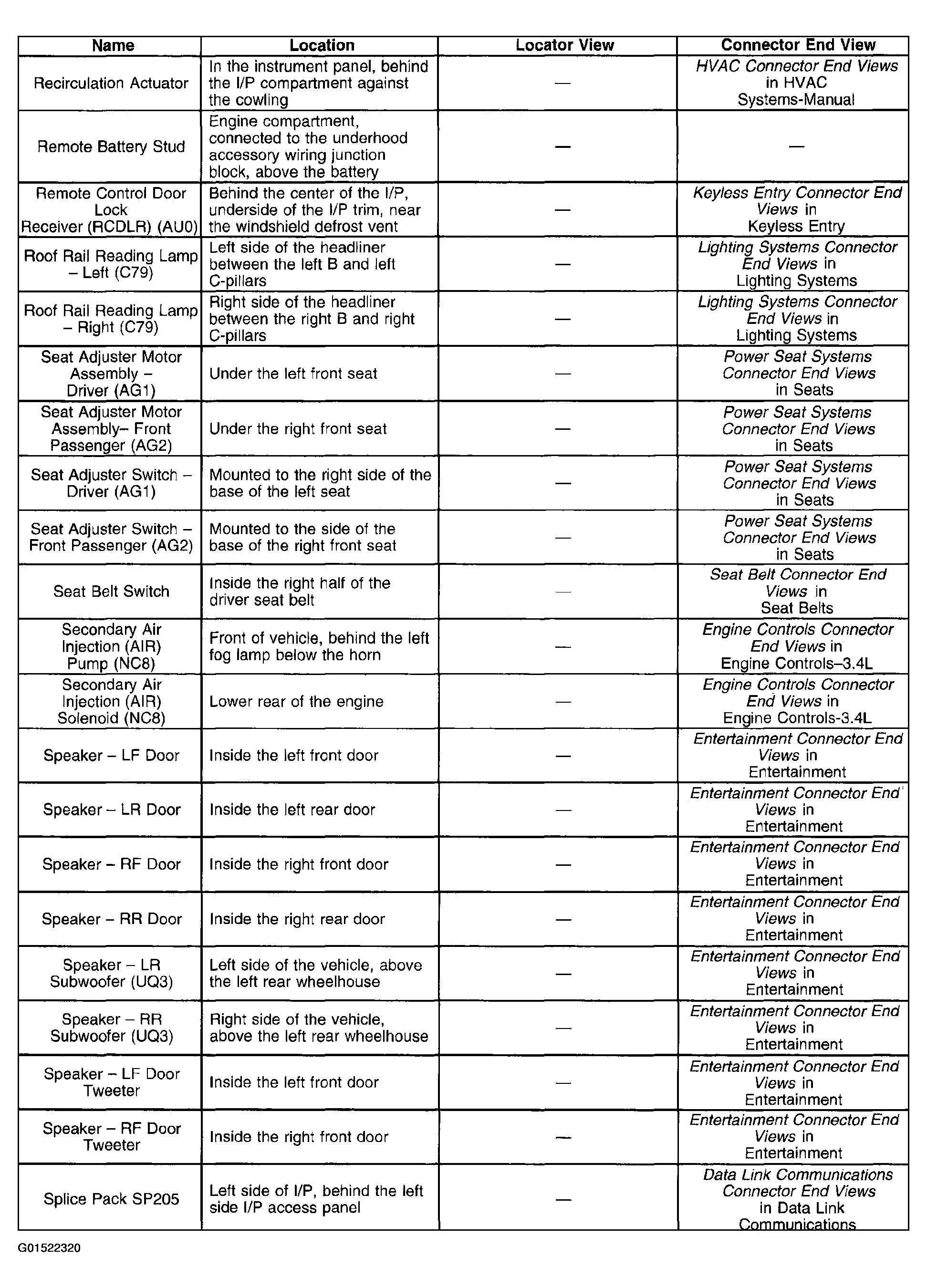

Fig 9: Electrical Component Locator (9 Of 17)

G01522320

Courtesy of GENERAL MOTORS CORP.

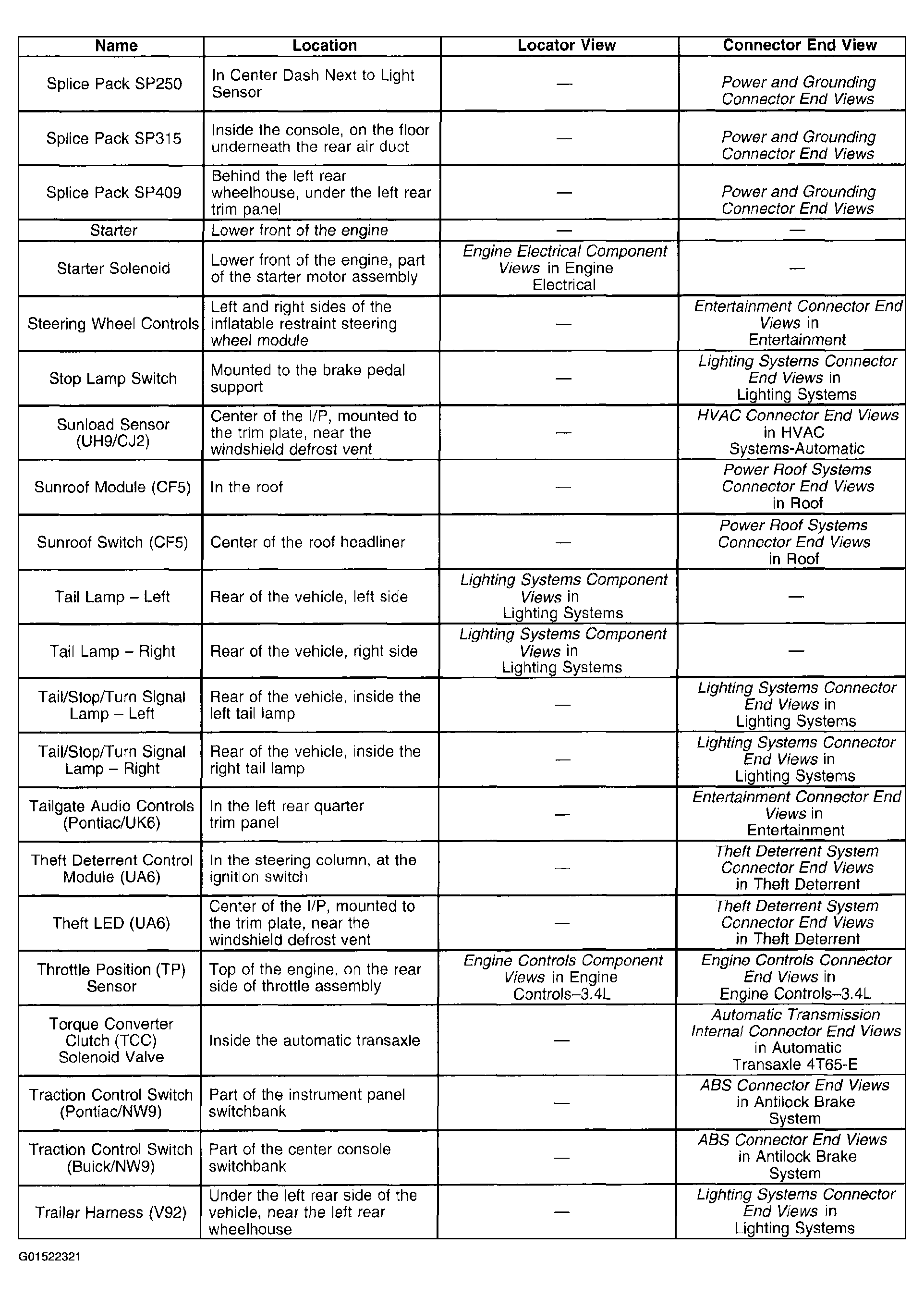

Fig 10: Electrical Component Locator (10 Of 17)

G01522321

Courtesy of GENERAL MOTORS CORP.

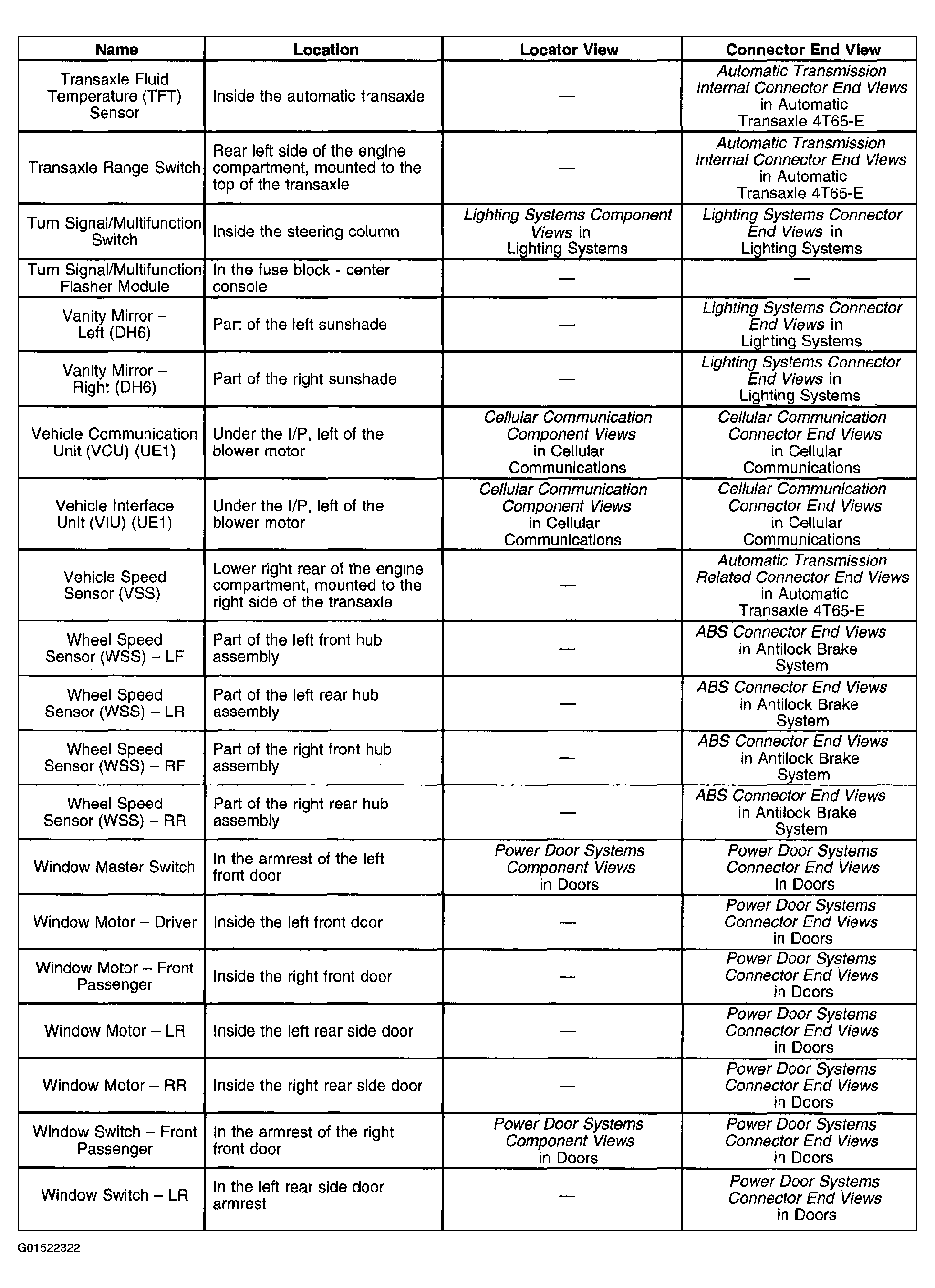

Fig 11: Electrical Component Locator (11 Of 17)

G01522322

Courtesy of GENERAL MOTORS CORP.

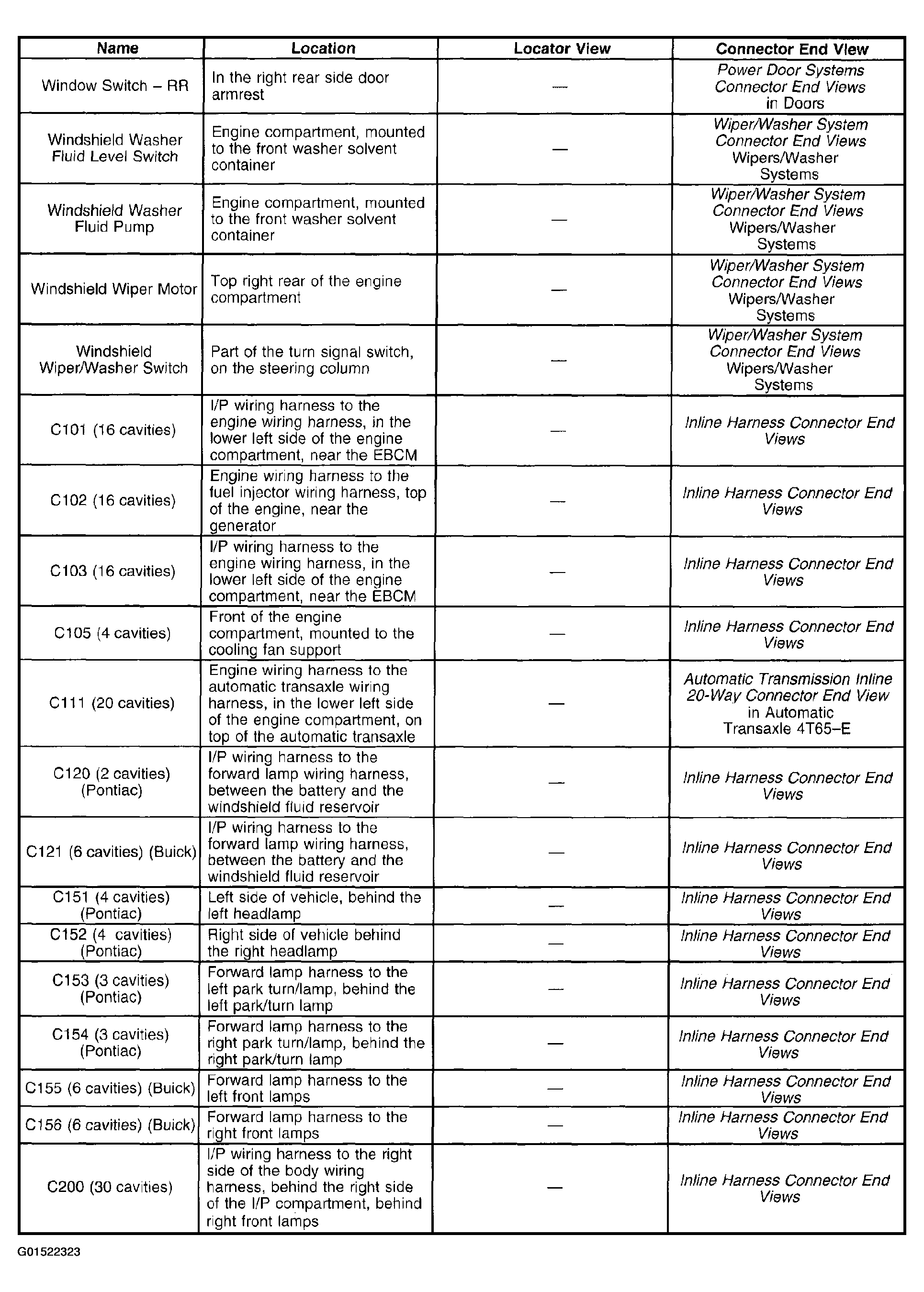

Fig 12: Electrical Component Locator (12 Of 17)

G01522323

Courtesy of GENERAL MOTORS CORP.

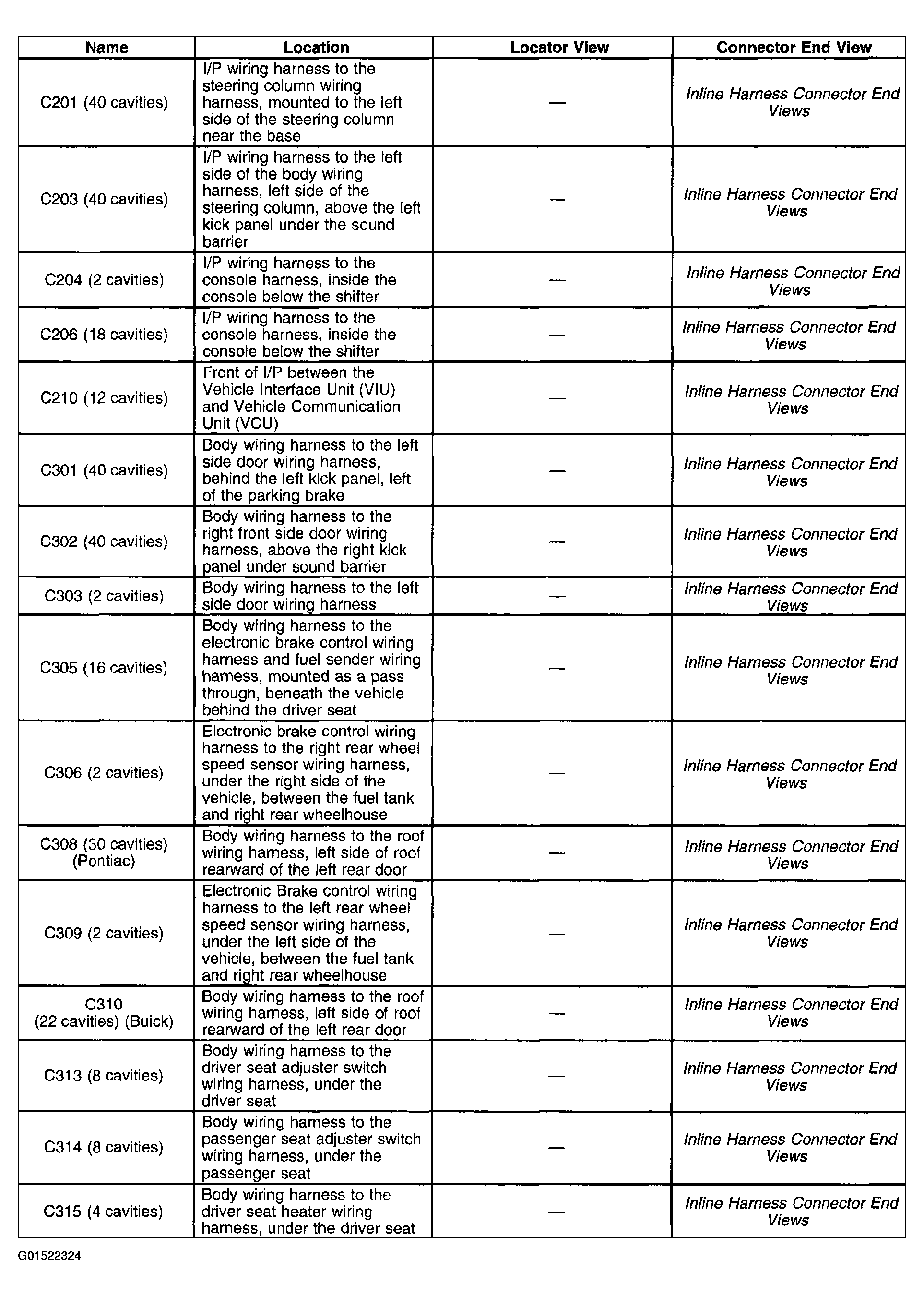

Fig 13: Electrical Component Locator (13 Of 17)

G01522324

Courtesy of GENERAL MOTORS CORP.

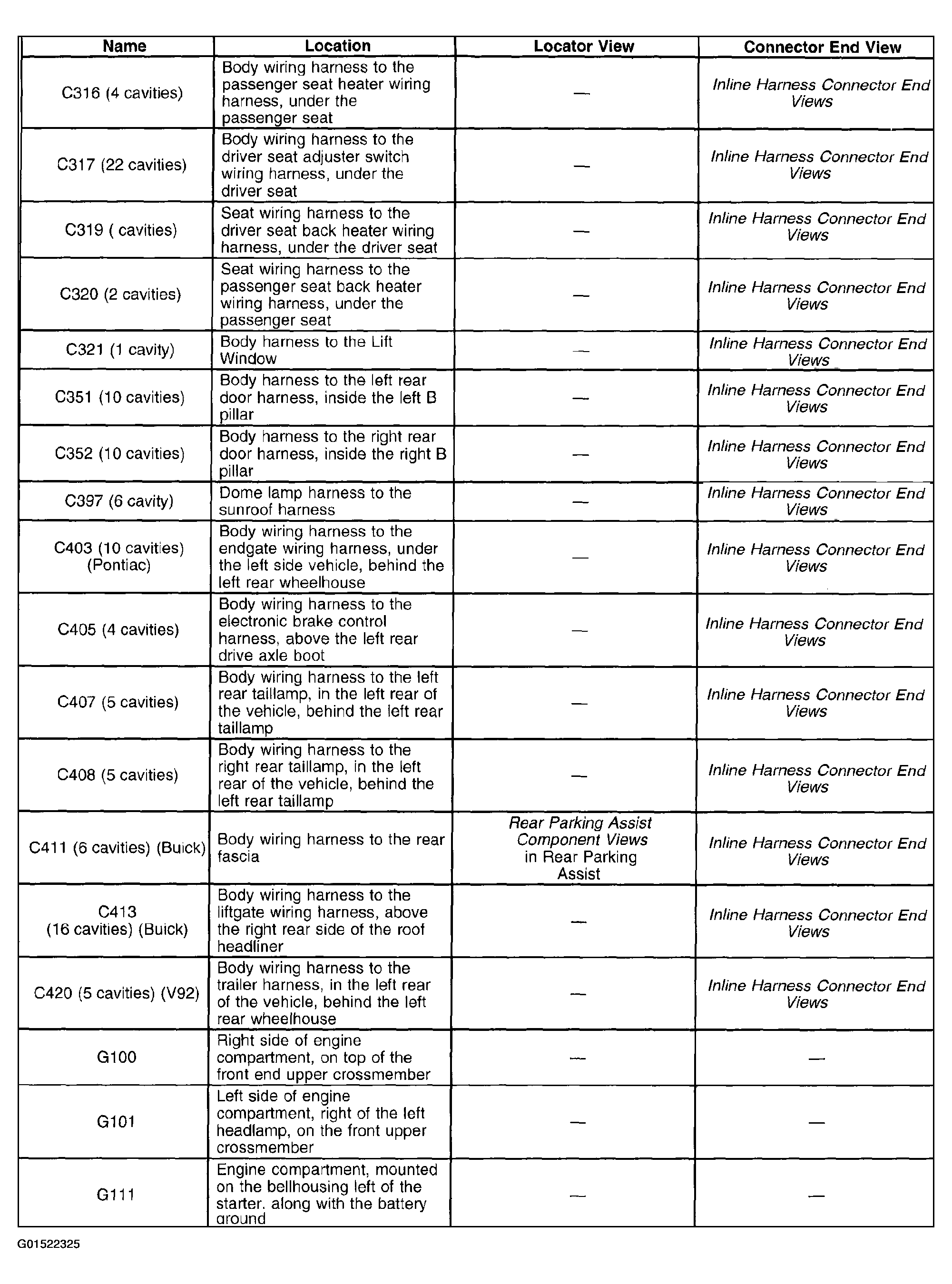

Fig 14: Electrical Component Locator (14 Of 17)

G01522325

Courtesy of GENERAL MOTORS CORP.

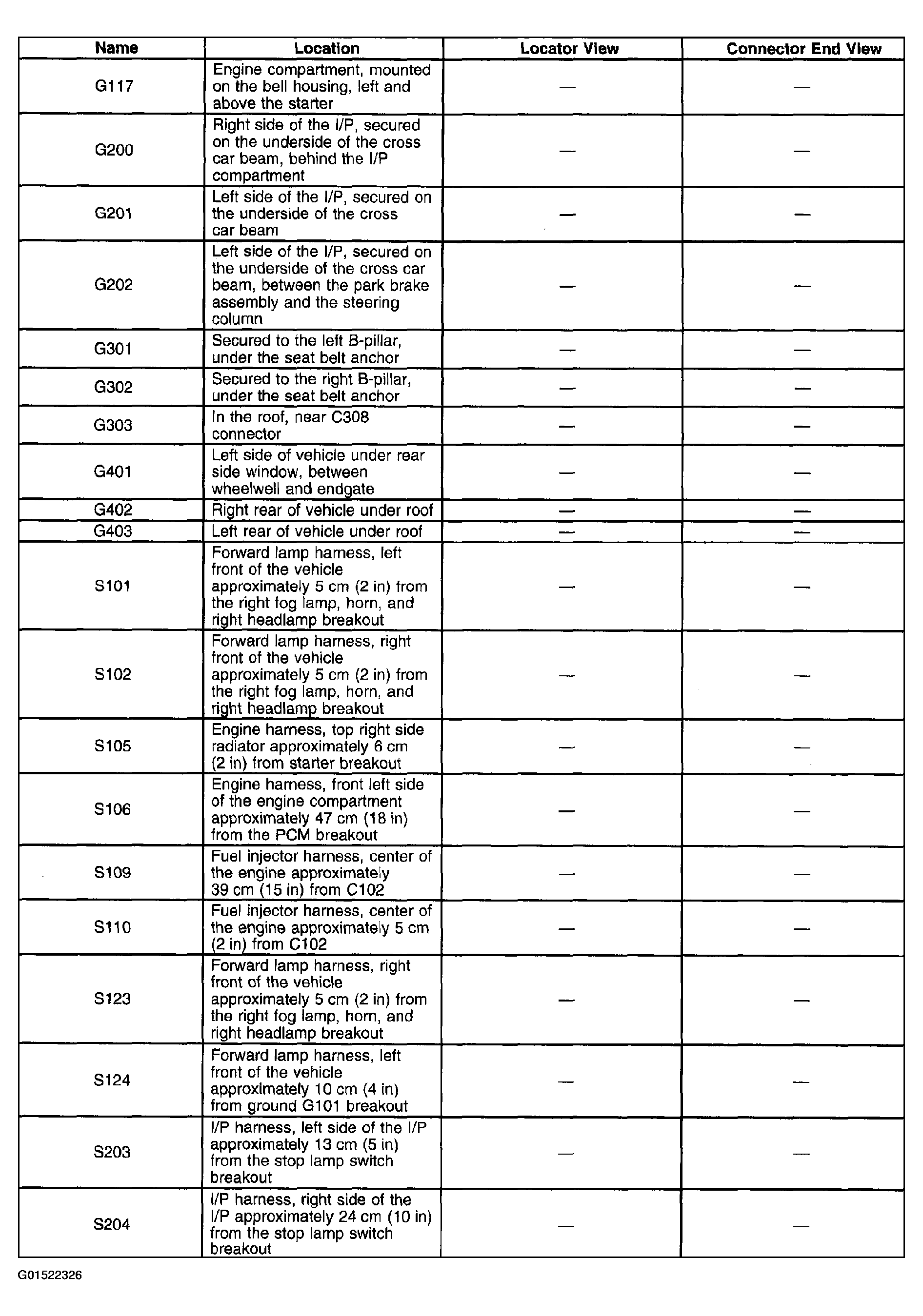

Fig 15: Electrical Component Locator (15 Of 17)

G01522326

Courtesy of GENERAL MOTORS CORP.

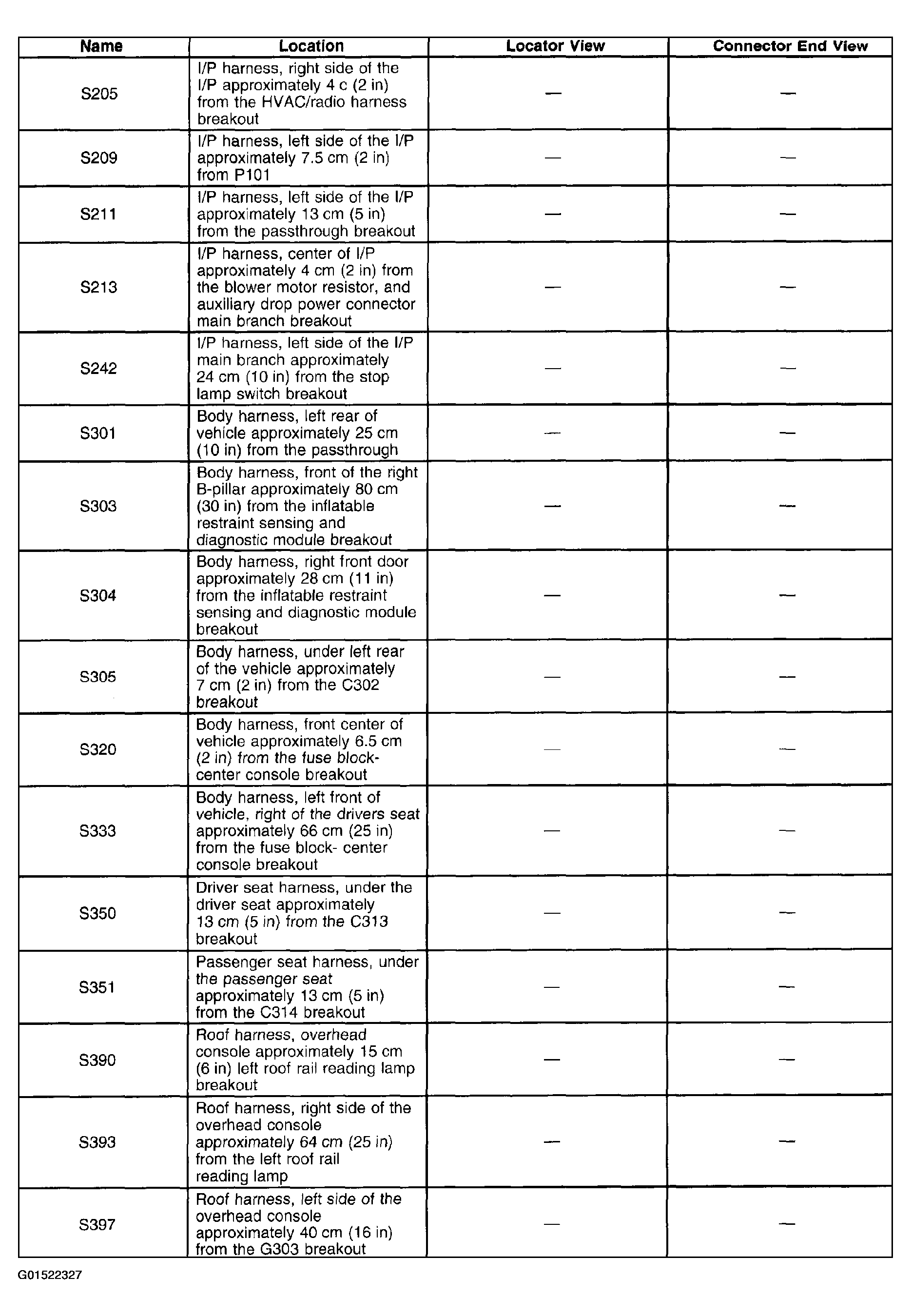

Fig 16: Electrical Component Locator (16 Of 17)

G01522327

Courtesy of GENERAL MOTORS CORP.

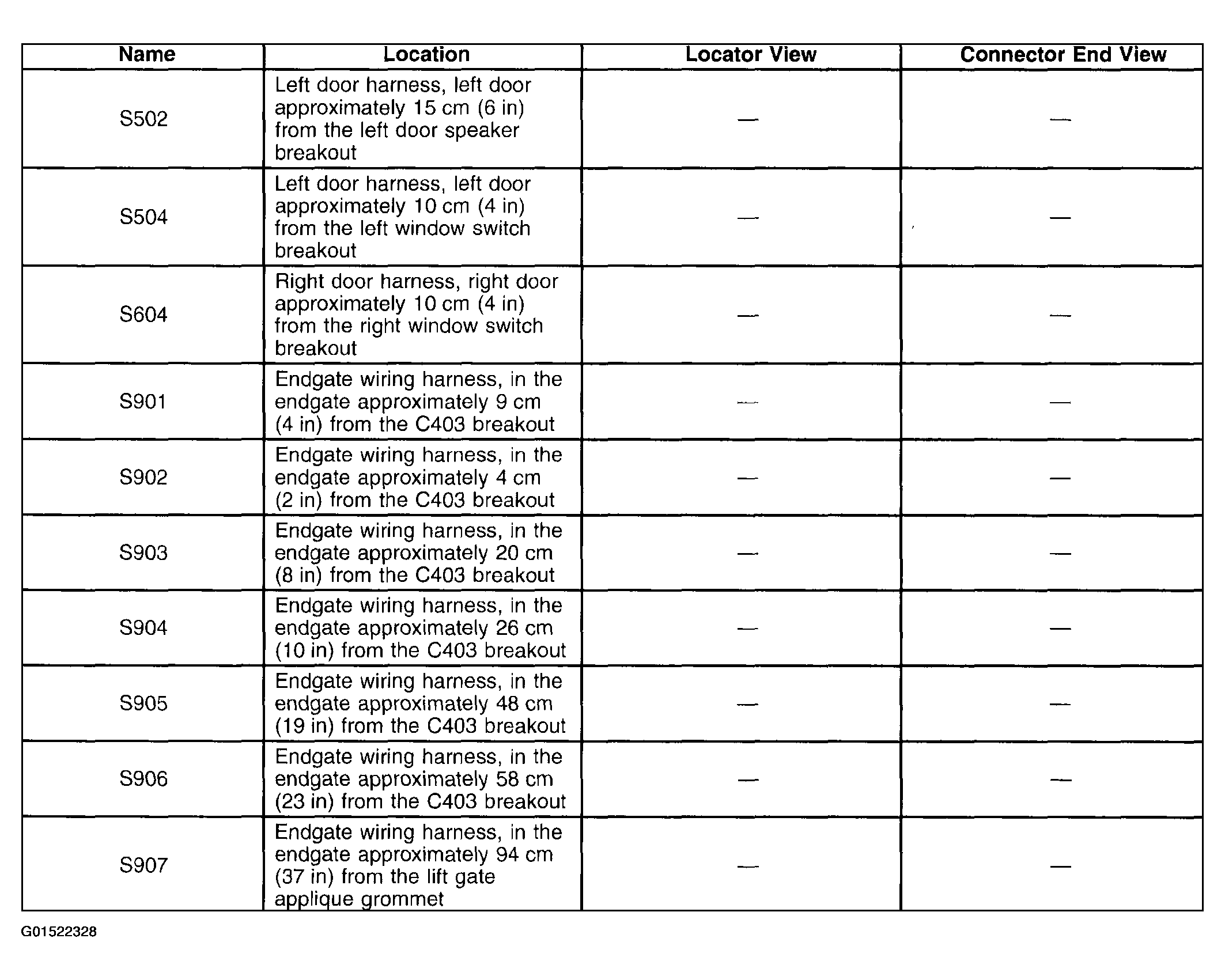

Fig 17: Electrical Component Locator (17 Of 17)

G01522328

Courtesy of GENERAL MOTORS CORP.
