Installation Procedure

  1. Install the engine oil pressure switch.

    Tighten

    Tighten the switch to 16 N.m (12 lb ft).

  2. Install the electrical connector to the engine oil pressure switch.
  3. Lower the vehicle.
  4. Install the battery negative cable to the battery.

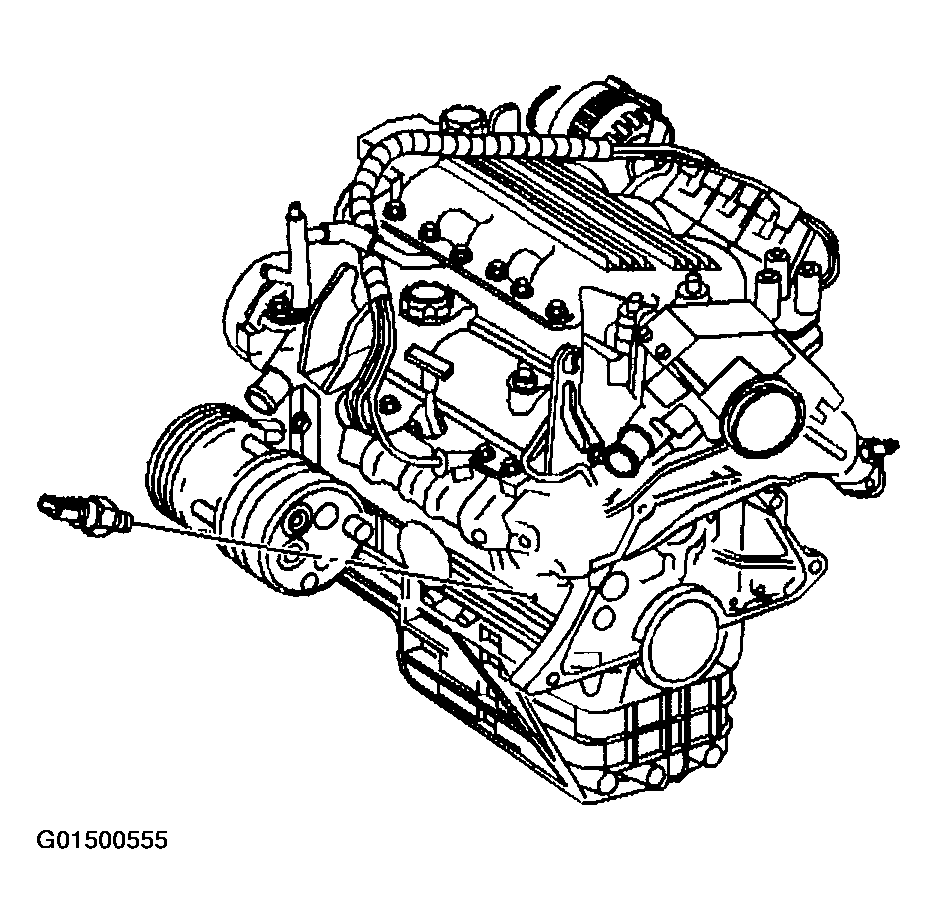

    Fig 1: Installing Engine Oil Pressure Switch
    G01500555Courtesy of GENERAL MOTORS CORP.
