Installation Procedure

  1. Install the relay (1) to the compressor assembly.

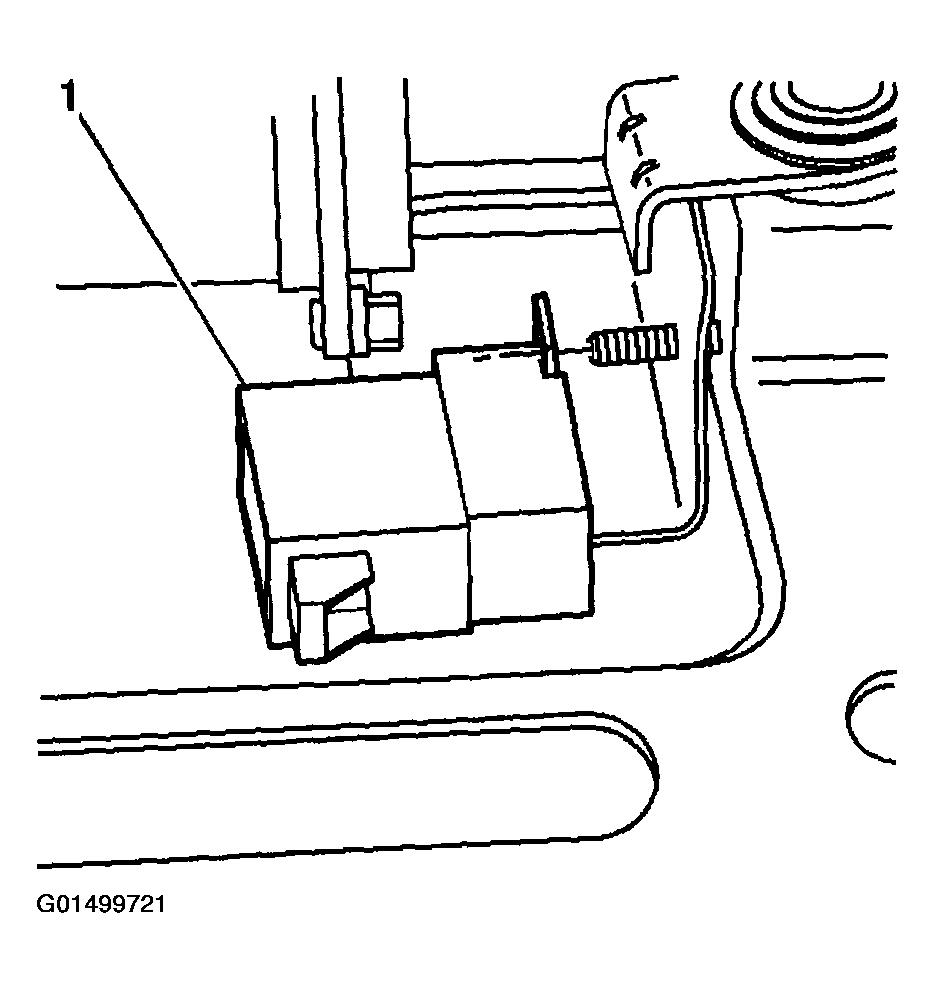

    Fig 1: Installing Relay To Compressor Assembly
    G01499721Courtesy of GENERAL MOTORS CORP.
  2. Install the relay nut (1) to the bracket.

    Tighten

    Tighten nut to 6 N.m (53 Ib in)

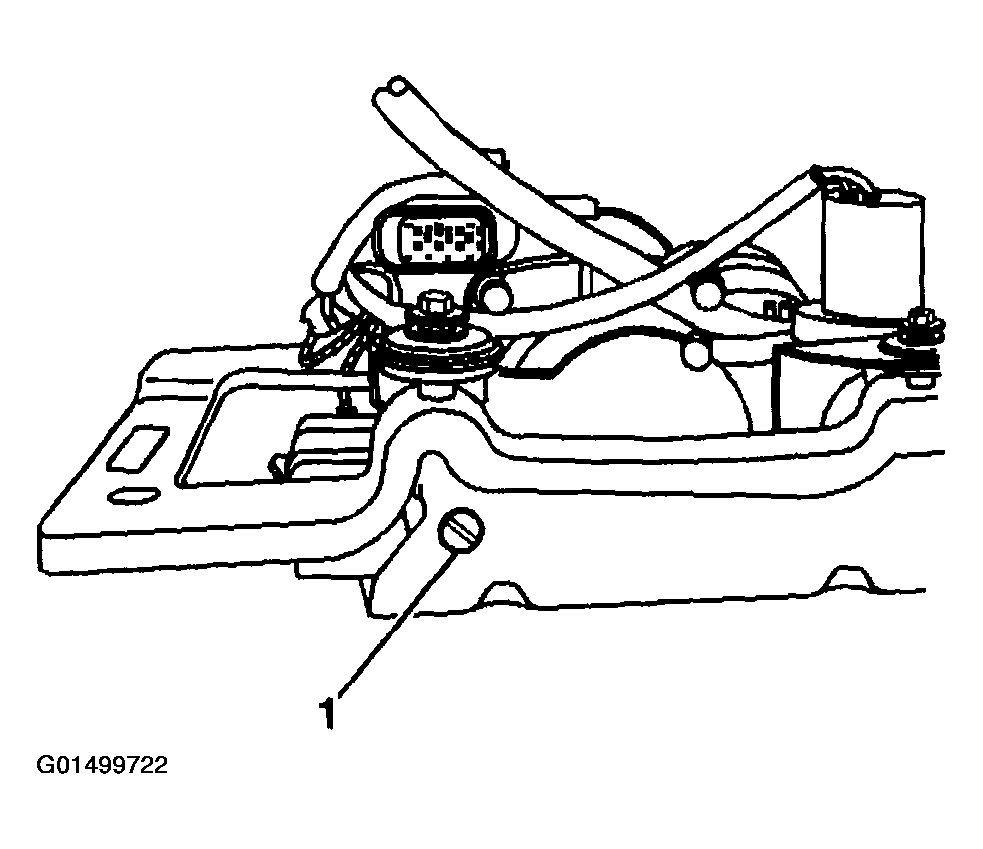

    Fig 2: Installing Relay Nut To Bracket
    G01499722Courtesy of GENERAL MOTORS CORP.
  3. Install the electrical connector (1) to the relay (2).
  4. Install the compressor assembly. Refer to AIR COMPRESSOR REPLACEMENT  .
  5. Lower the vehicle.
    Fig 3: Installing Electrical Connector To Relay
    G01499723Courtesy of GENERAL MOTORS CORP.
