Keyless Entry Connector End View

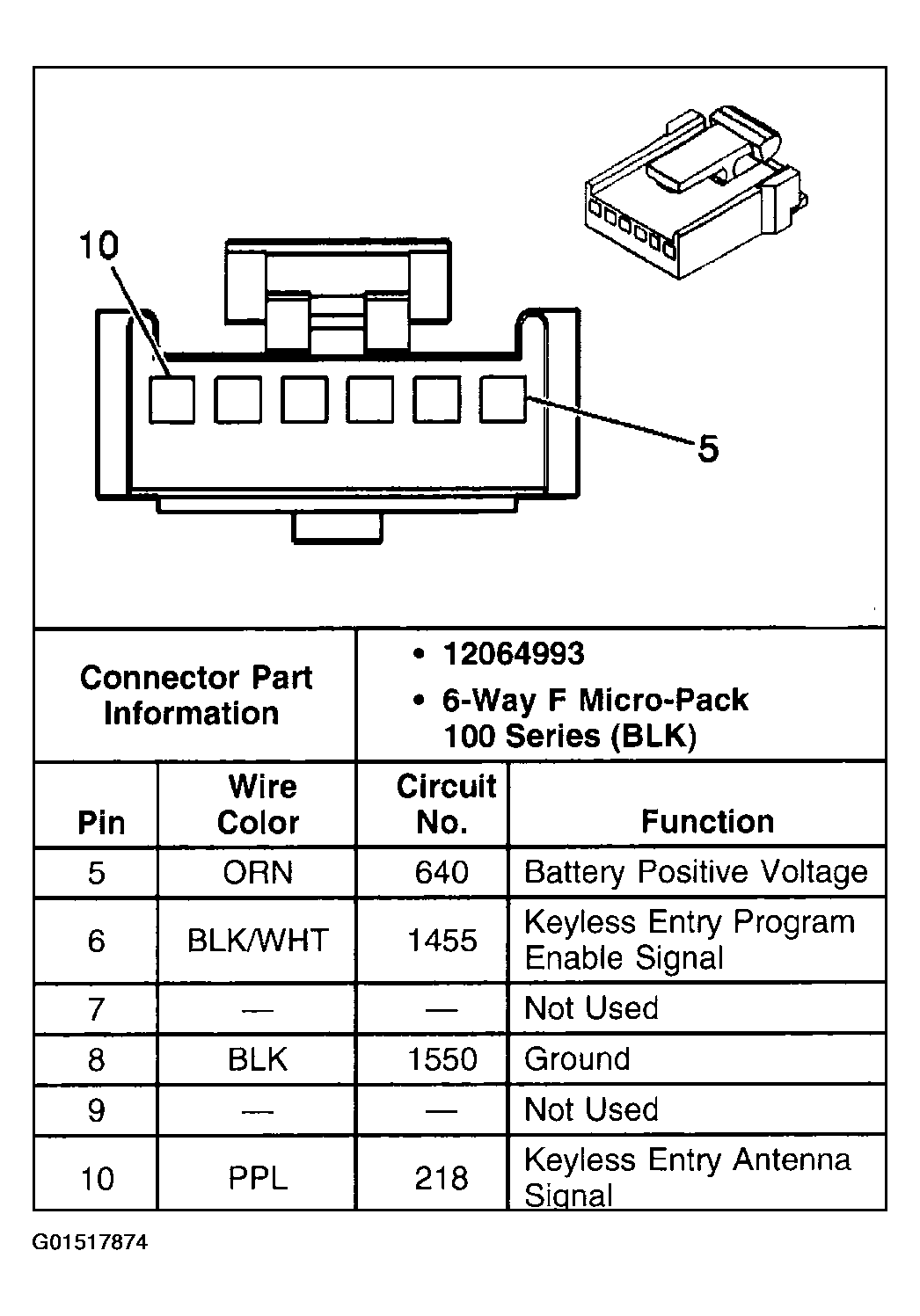

Fig 1: Identifying Remote Control Door Lock Receiver (RCDLR) Connector Terminals
G01517874Courtesy of GENERAL MOTORS CORP.
