Removal Procedure

  1. Insert a dime or a flat-bladed tool into the slot on the side of the transmitter in order to disassemble the transmitter.
  2. Twist the dime or tool in order to separate the halves.
  3. Remove the battery from the transmitter.

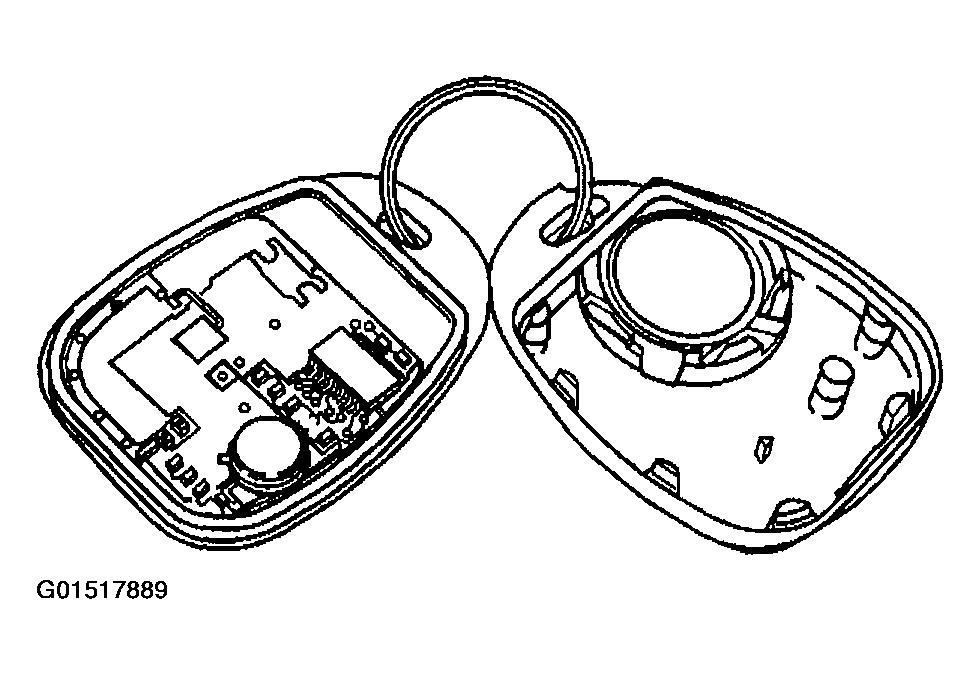

    Fig 1: Removing Battery From Transmitter
    G01517889Courtesy of GENERAL MOTORS CORP.
