Door Adjustment

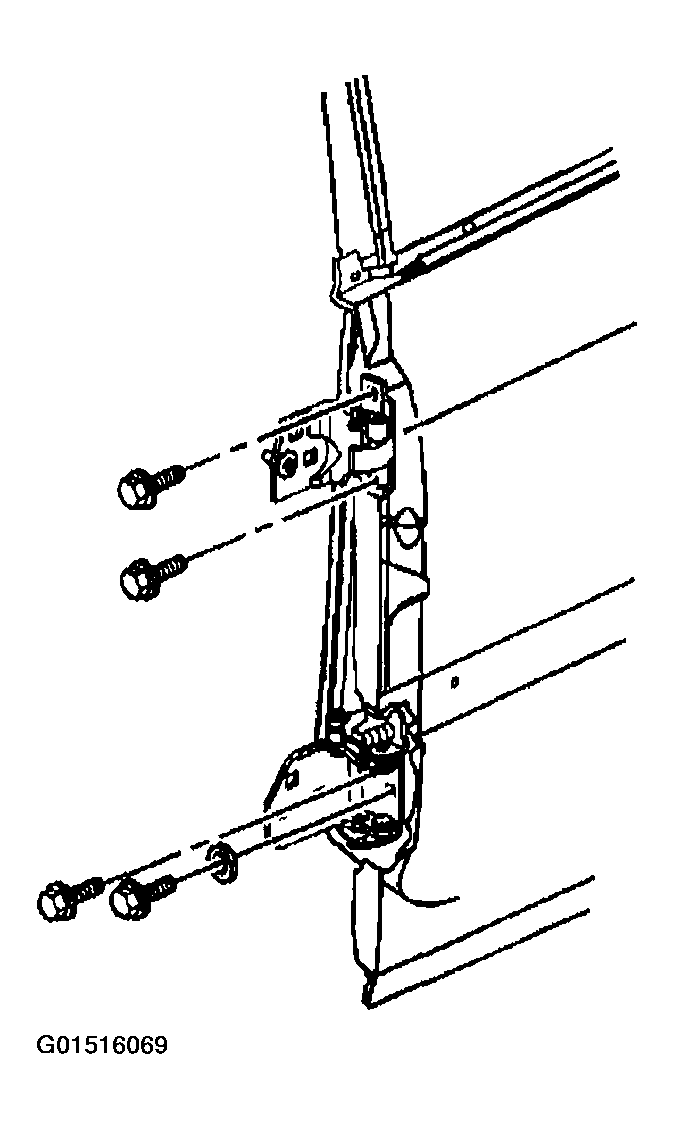

- Open the front door in order to access the rear door hinge bolts.
Important: Do not remove the rear door hinge bolts.
- Loosen the rear door side hinge bolts.
- Pry off the washer from the lower bolt on the lower hinge.
- Adjust the rear door up or down and in and out as required.
- Tighten the door side hinge bolts.
Tighten
Tighten the rear door hinge to door bolts to 30 N.m (22 lb ft).
