Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Remove the mirror face. Refer to MIRROR FACE REPLACEMENT  .
  3. Remove the mirror motor screws.

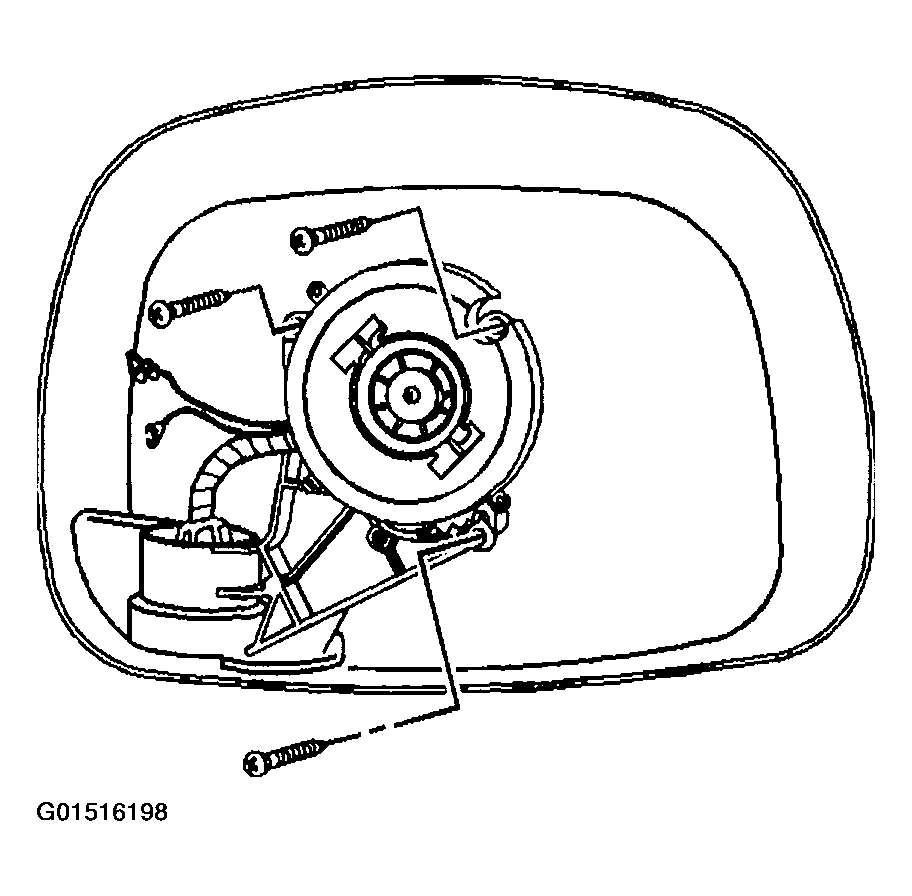

    Fig 1: Removing Power Mirror Motor (1 Of 3)
    G01516198Courtesy of GENERAL MOTORS CORP.
  4. Pull the mirror motor out from the mirror housing to gain access to the mirror motor electrical connectors.

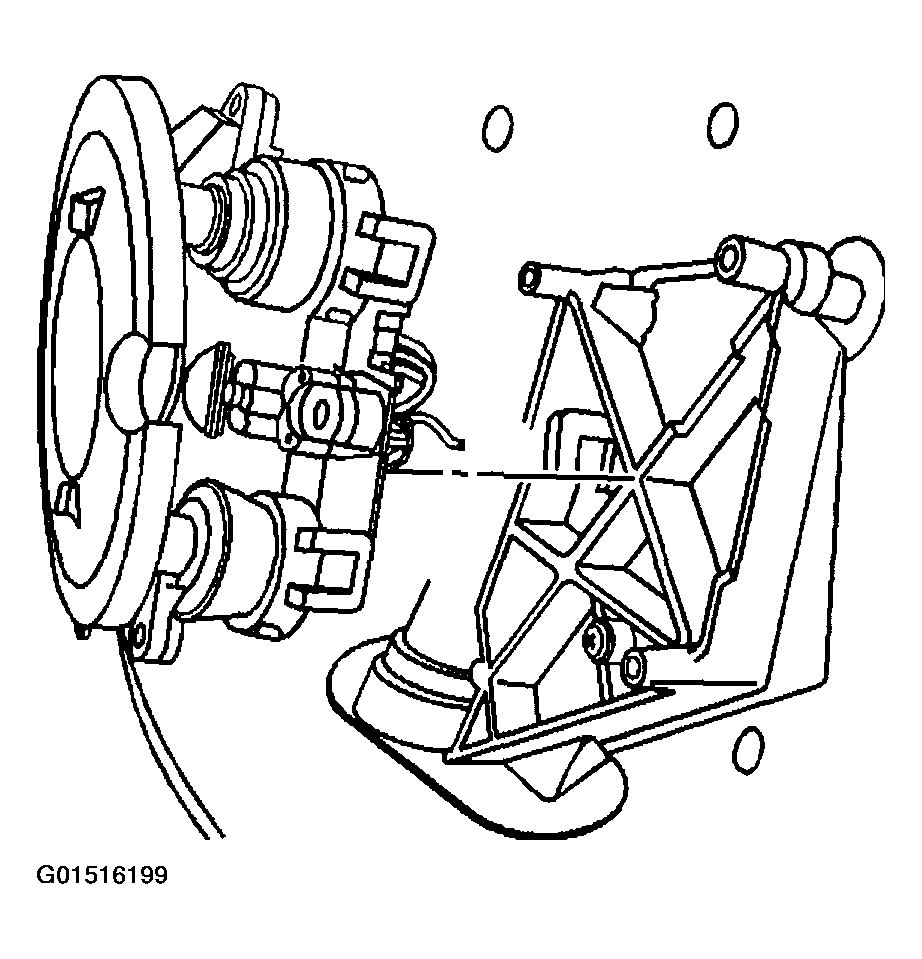

    Fig 2: Removing Power Mirror Motor (2 Of 3)
    G01516199Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the mirror motor electrical connectors.
  6. Remove the mirror motor from the mirror housing.

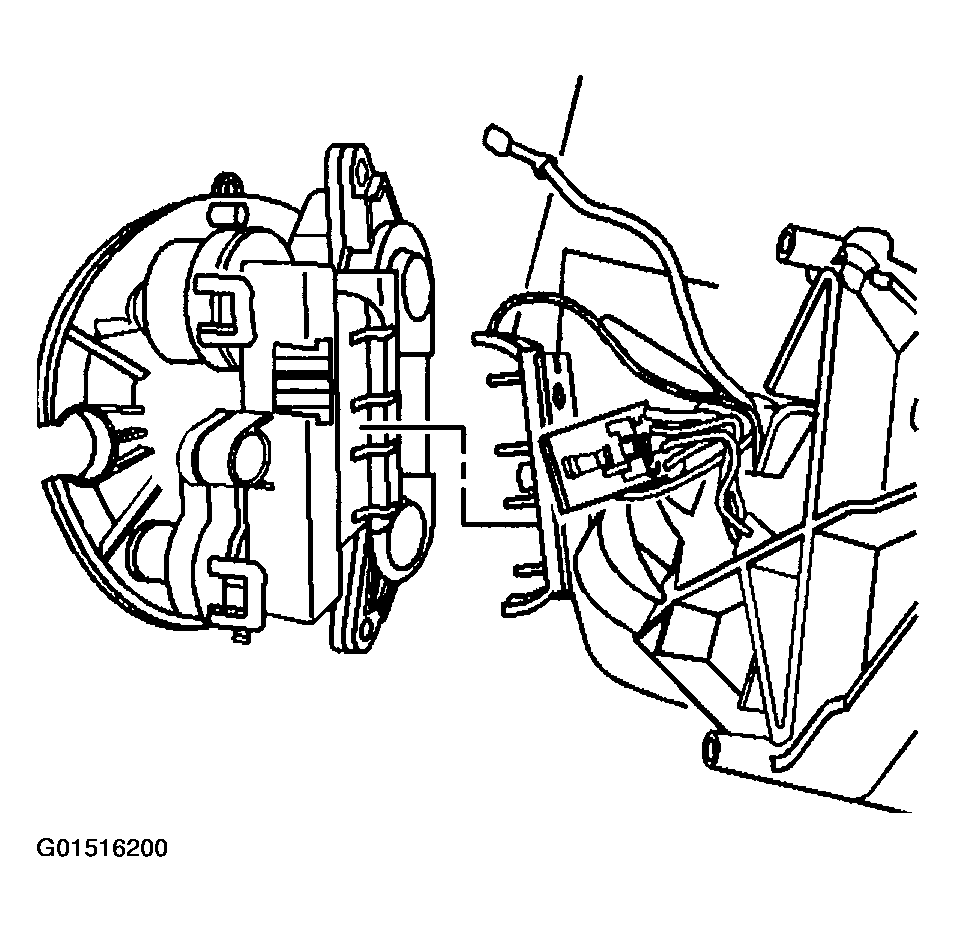

    Fig 3: Removing Power Mirror Motor (3 Of 3)
    G01516200Courtesy of GENERAL MOTORS CORP.
