Installation Procedure

  1. Install the power window switch into the power window switch plate.

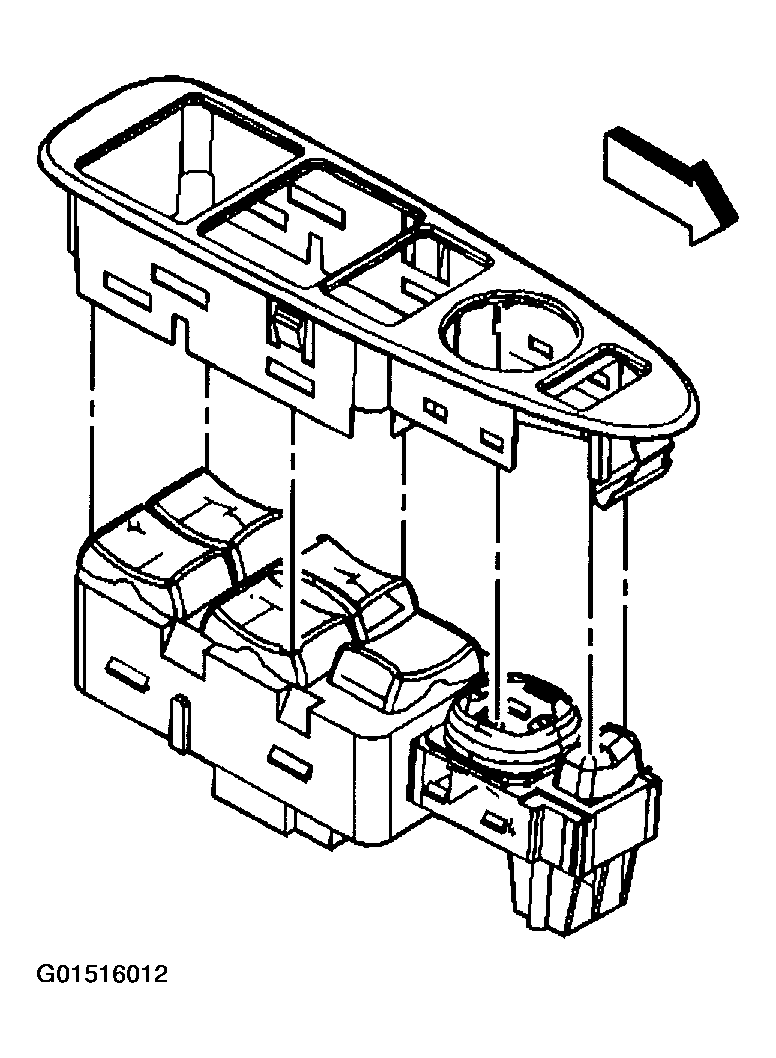

    Fig 1: Installing Left Front Power Window Switch (Rendezvous - 1 Of 3)
    G01516012Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the power window switch.

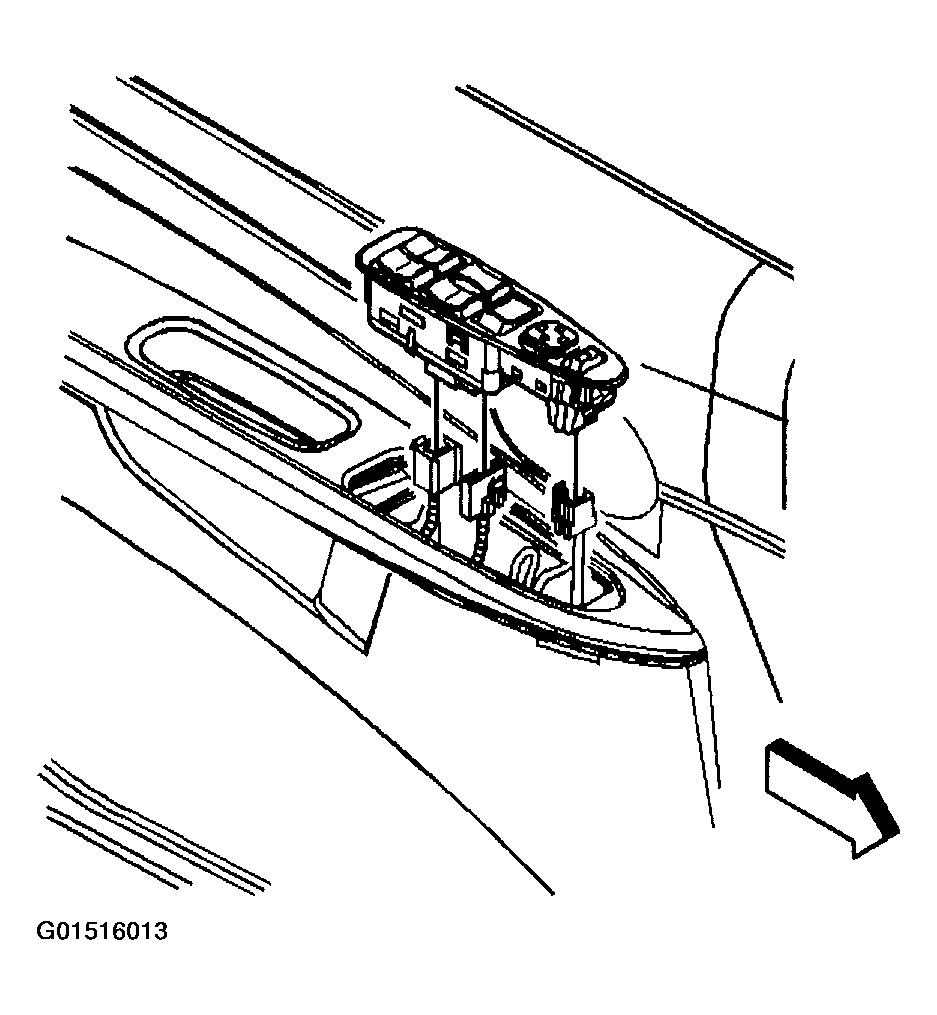

    Fig 2: Installing Left Front Power Window Switch (Rendezvous - 2 Of 3)
    G01516013Courtesy of GENERAL MOTORS CORP.
  3. Install the power window switch plate to the front door trim panel. Press the plate into place until fully seated.

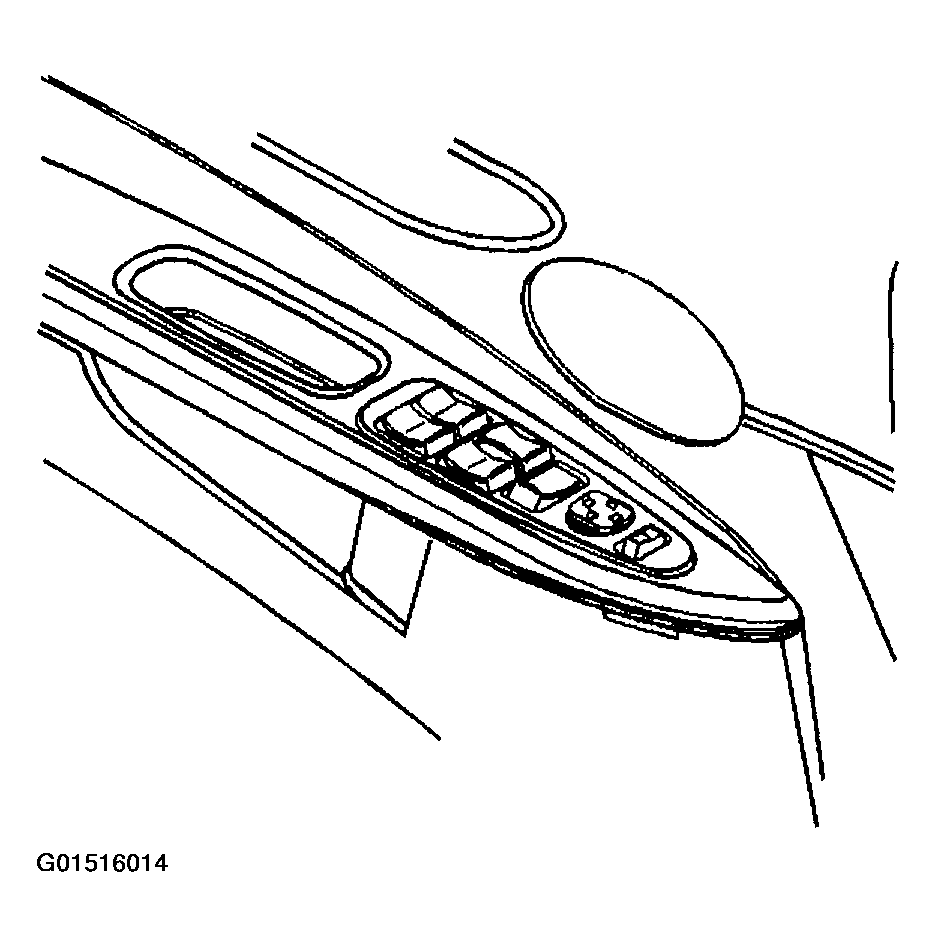

    Fig 3: Installing Left Front Power Window Switch (Rendezvous - 3 Of 3)
    G01516014Courtesy of GENERAL MOTORS CORP.
