Removal Procedure

Important:  Protect the trim panel at the point of insertion of the flat bladed tool to avoid damaging the door panel.

1. Remove the power window switch mounting plate using a small flat-bladed tool.

   Insert the tool at the rear of the switch mounting plate releasing the switch plate retainer.

2. Lift the rear of the switch plate.
3. Disconnect the electrical connector.
4. Remove the power window switch (1) from the mounting plate.

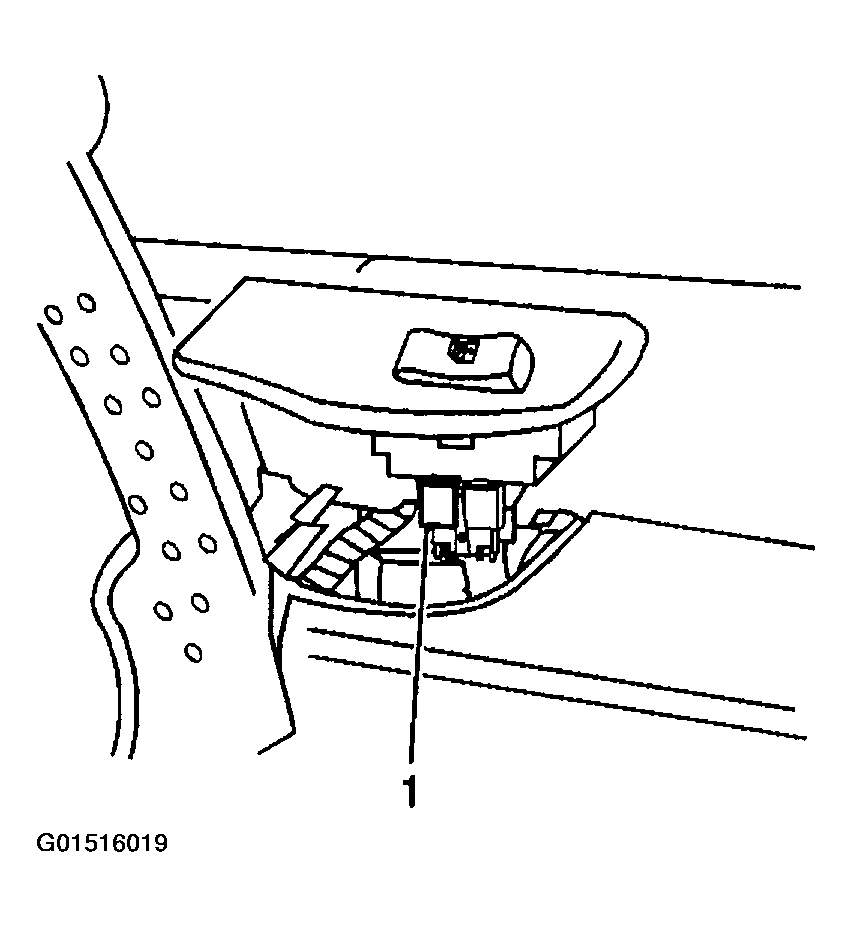

   Fig 1: Removing Rear Door Power Window Switch (Aztek)

   Courtesy of GENERAL MOTORS CORP.
