Installation Procedure

  1. Install the front door window control switch (1) into the front door window switch plate pressing into place until fully seated.
  2. Connect the electrical connectors to the front door window control switch.
  3. Install the front door window control switch plate to the front door panel pressing into place until fully seated.

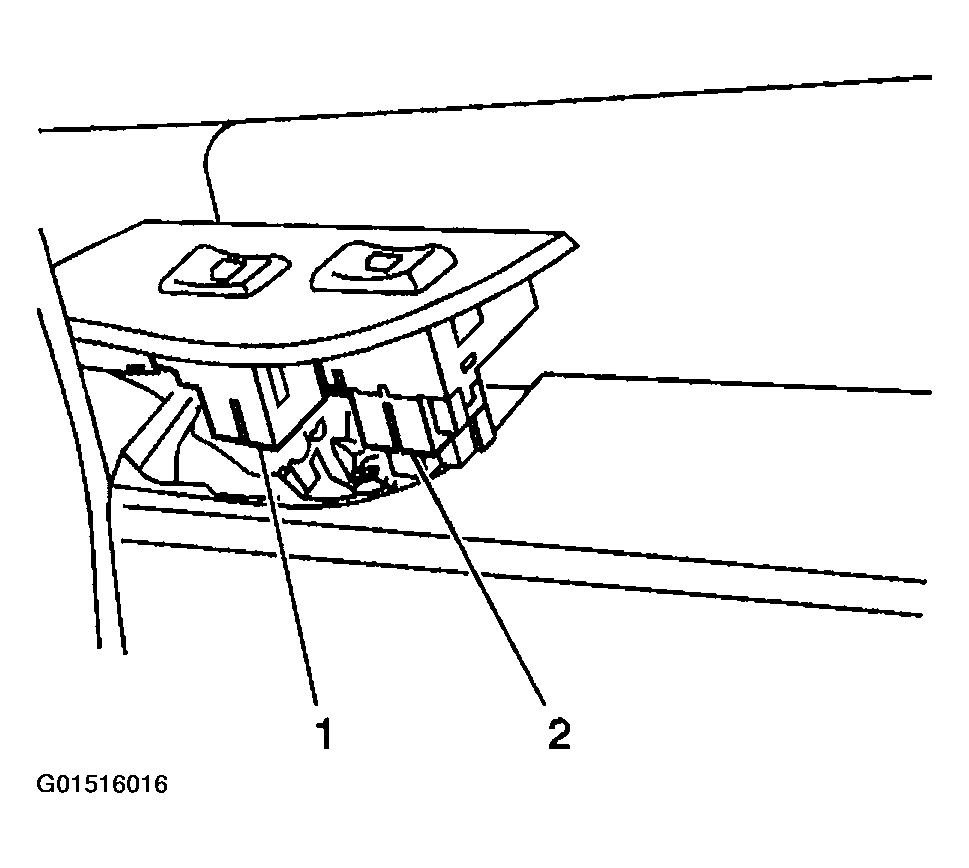

    Fig 1: Installing Right Front Power Window Switch (Aztek)
    G01516016Courtesy of GENERAL MOTORS CORP.
