Installation Procedure

  1. Install the catalytic converter hanger.
  2. Install the catalytic converter hanger bolts.

    Tighten

    Tighten the catalytic converter hanger bolts to 35 N.m (26 lb ft).

  3. Install the catalytic converter hanger insulators to the catalytic converter.
  4. Lower the vehicle.

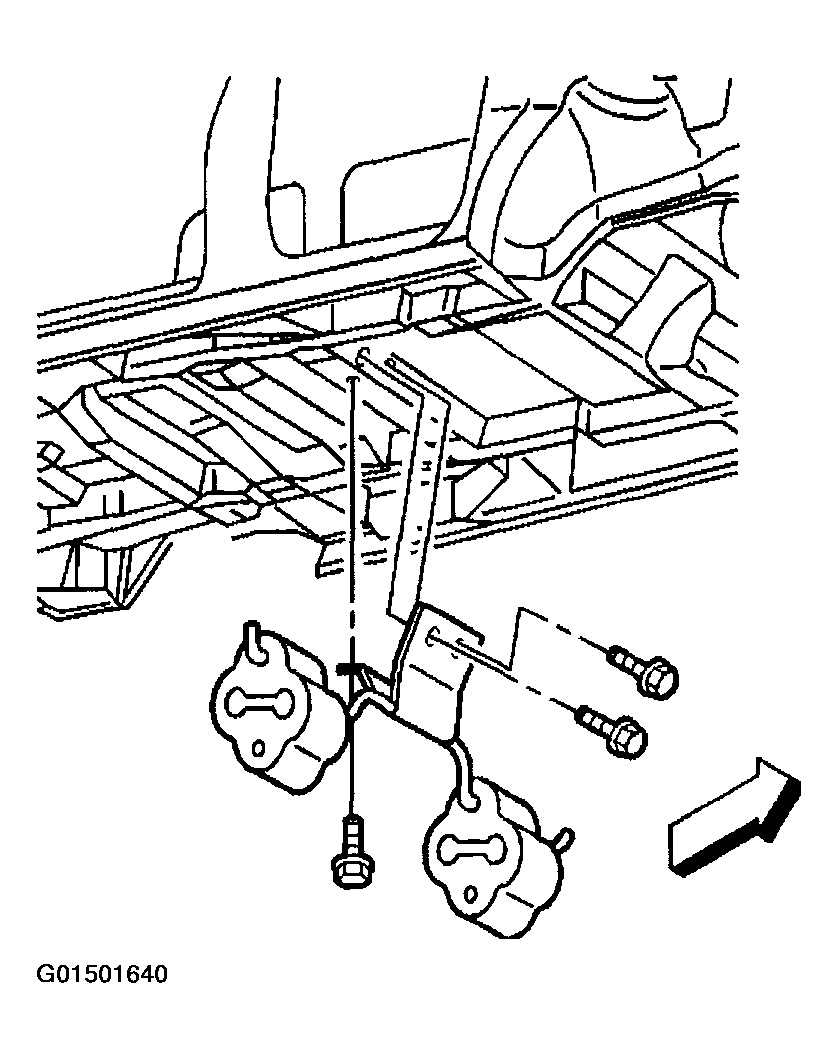

    Fig 1: Installing Catalytic Converter Hanger - Converter Hanger Assembly Replacement
    G01501640Courtesy of GENERAL MOTORS CORP.
