Installation Procedure

  1. Install the catalytic converter hanger.
  2. Install the catalytic converter hanger bolts.

    Tighten

    Tighten the catalytic converter hanger bolts to 35 N.m (26 lb ft).

  3. Install the catalytic converter hanger insulators to the catalytic converter.
  4. Lower the vehicle.

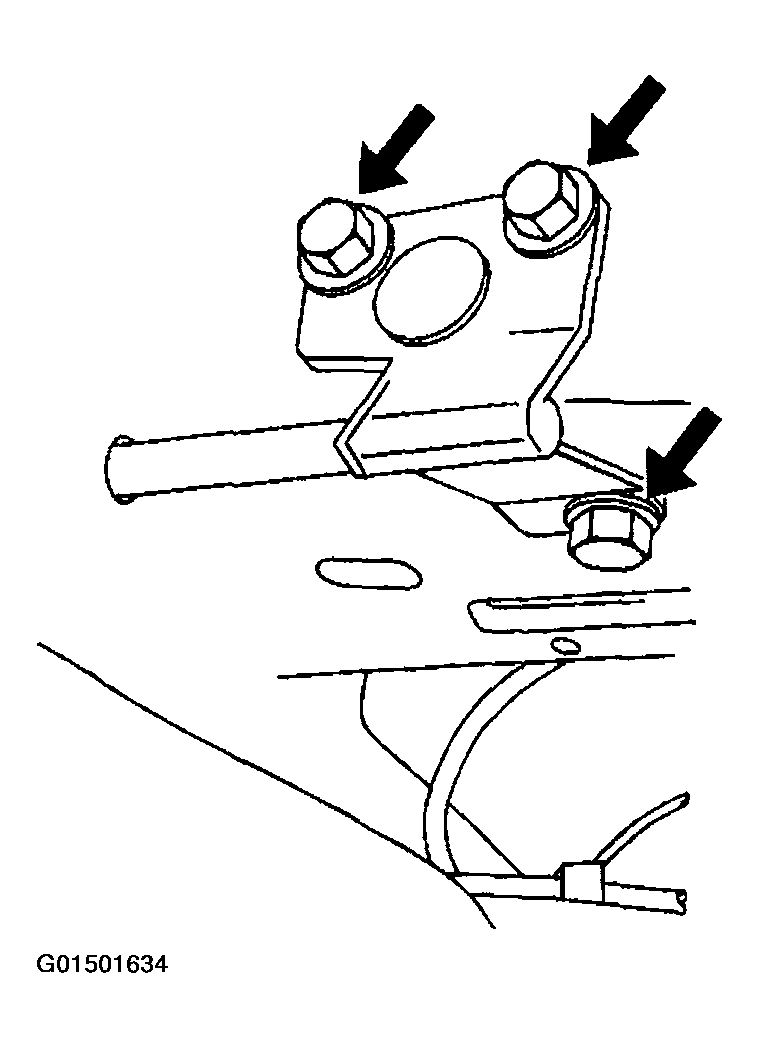

    Fig 1: Installing Catalytic Converter Hanger Bolts
    G01501634Courtesy of GENERAL MOTORS CORP.
