Component Locations

NOTE: For component locations, refer to COMPONENT LOCATIONS  table or illustrations. See Fig 1 -Fig 11 .
COMPONENT LOCATIONS

Component Location
Body Control Module Inside Center Console, Above Fuse Block
Camshaft Position Sensor Right Side Of Engine, Above A/C Compressor Clutch
Crankshaft Position Sensor (7x) Lower Rear Of Engine
Crankshaft Position Sensor (24x) Right Front Side Of Engine, Behind Harmonic Balancer
Data Link Connector Below Steering Column, Bottom Of Knee Bolster
Engine Coolant Temperature Sensor Top Left Of Engine
Engine Oil Level Switch Right Side Of Engine Oil Pan
Engine Oil Pressure Indicator Switch Front Of Engine, Above Starter
EVAP Canister Purge Solenoid Top Rear Of Engine, Between EGR Valve & Throttle Body Assembly
EVAP Canister Vent Solenoid Below Center Of Vehicle, Near Fuel Tank
Exhaust Gas Recirculation Valve Top Left Side Of Engine, Left Of Manifold
Fuel Injectors Top Of Engine, At Each Cylinder Intake Port
Fuel Pump Relay In Underhood Fuse Block
Fuel Tank Pressure Sensor Inside Fuel Tank
Heated Oxygen Sensor No. 1 Rear Of Engine, In Exhaust Manifold
Heated Oxygen Sensor No. 2 In Exhaust System, Rear Of Catalytic Converter
Idle Air Control Valve Top Of Engine, Top Of Throttle Body
Ignition Control Module Top Center Rear Of Engine
Intake Air Temperature Sensor Left Side Of Engine Compartment, On Air Intake Duct, Near Throttle Body
Knock Sensor Front Of Engine, Above Starter
Manifold Absolute Pressure Sensor Right Top Of Engine
Mass Airflow Sensor In Air Cleaner Duct, Left Front Side Of Engine Compartment
Powertrain Control Module Engine Compartment, Secured In Air Cleaner Assembly
Secondary AIR Injection Pump Front Of Vehicle, Behind Left Fog Light, Below Horn
Secondary AIR Injection Solenoid Lower Rear Of Engine
Throttle Position Sensor Top Of Engine, On Rear Side Of Throttle Assembly
Vehicle Speed Sensor Lower Right Rear Of Engine Compartment, Mounted To Right Side Of Transaxle

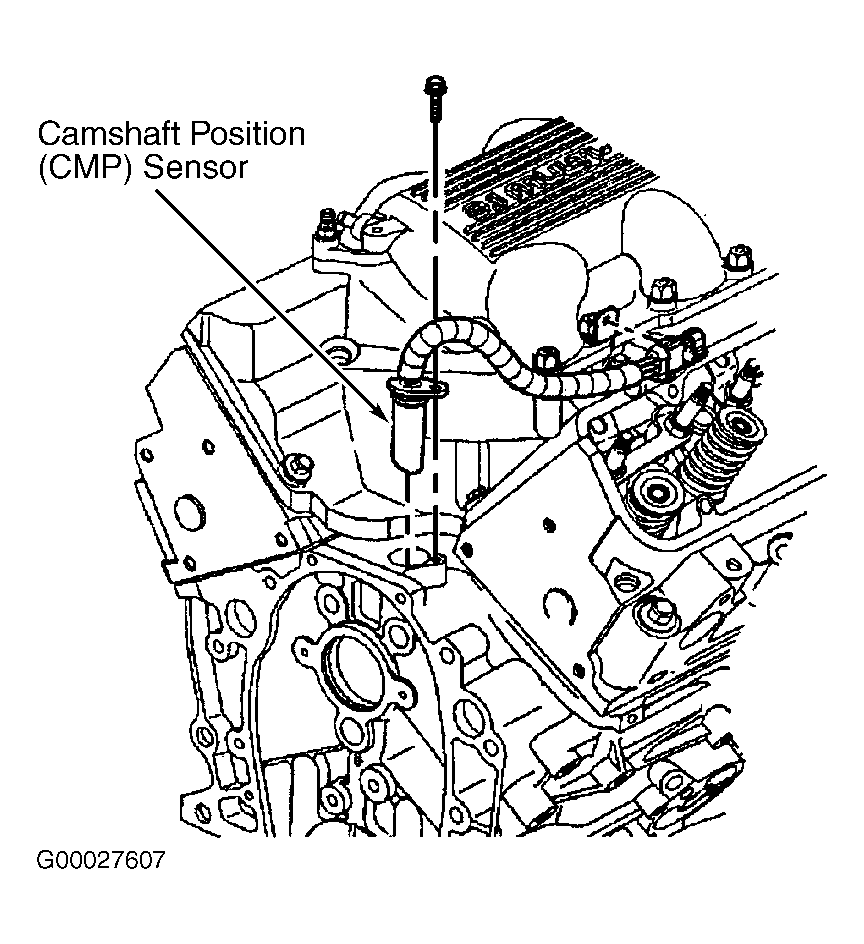

Fig 1: Locating Camshaft Position Sensor
G00027607Courtesy of GENERAL MOTORS CORP.
Fig 2: Locating Crankshaft Position Sensor "A" (24X)
G00028468Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Crankshaft Position Sensor "B" (7X)
G00028469Courtesy of GENERAL MOTORS CORP.

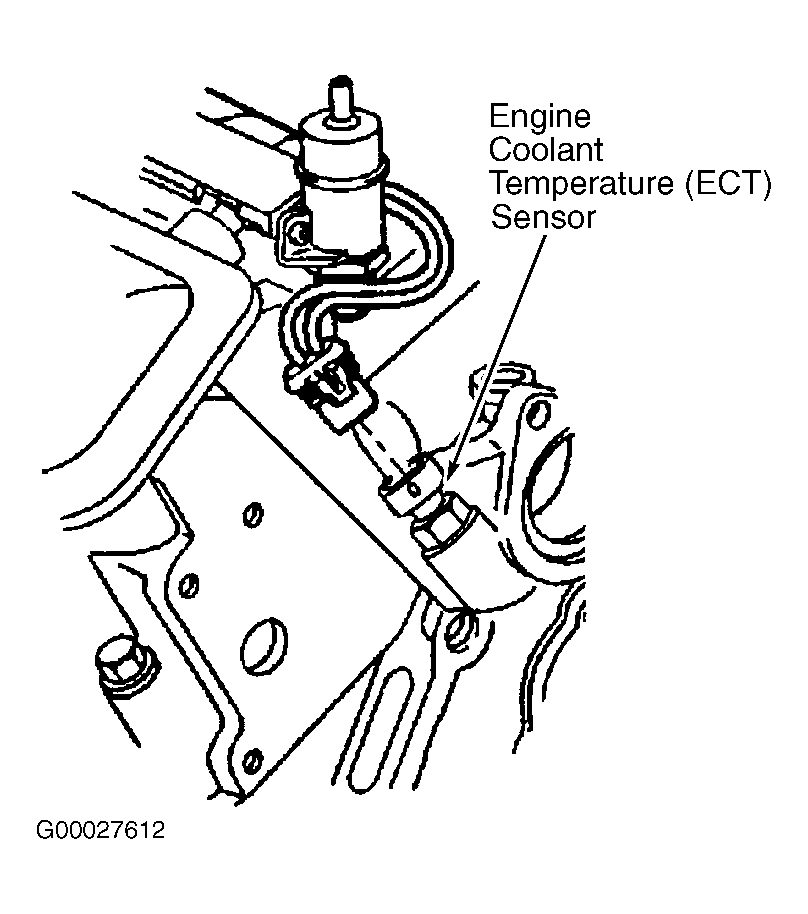

Fig 4: Locating Engine Coolant Temperature Sensor
G00027612Courtesy of GENERAL MOTORS CORP.

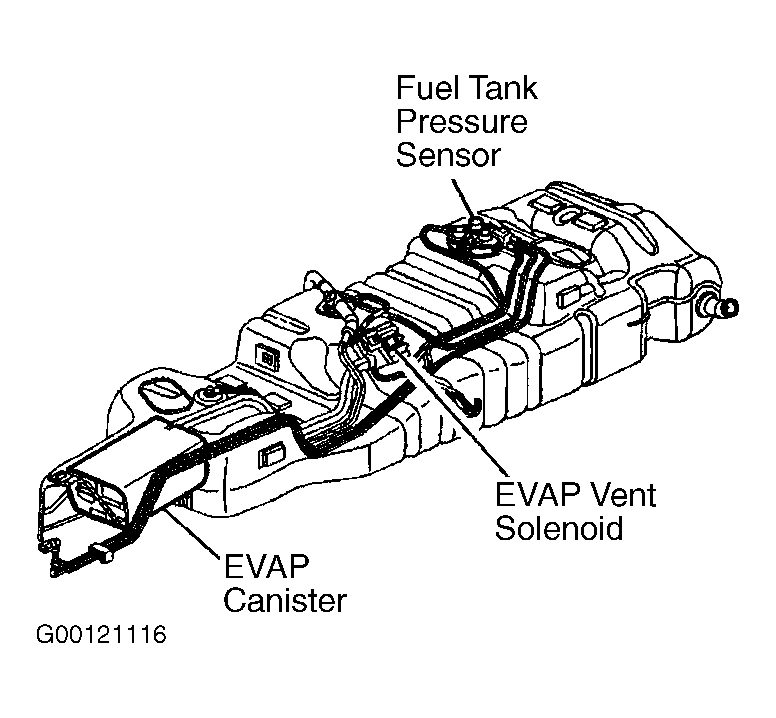

Fig 5: Locating EVAP Canister, EVAP Vent Solenoid & Fuel Tank Pressure Sensor
G00121116Courtesy of GENERAL MOTORS CORP.

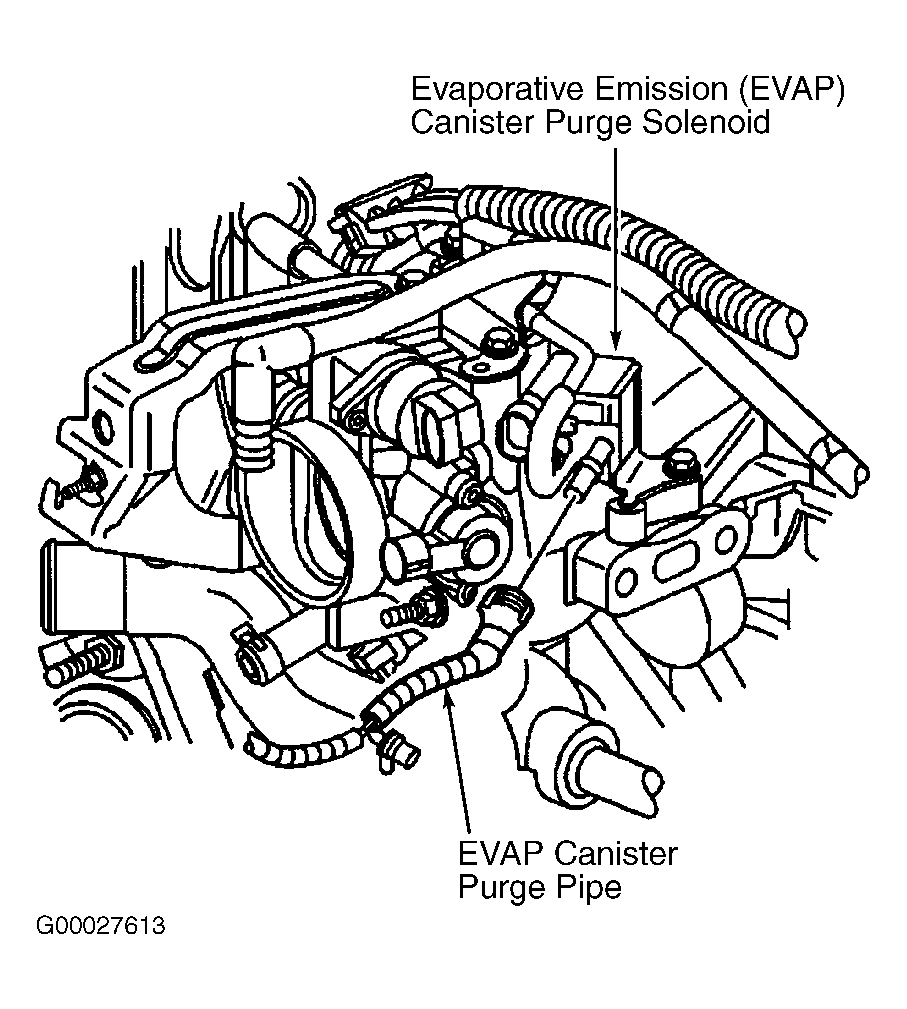

Fig 6: Locating EVAP Purge Solenoid
G00027613Courtesy of GENERAL MOTORS CORP.
Fig 7: Locating Idle Air Control Valve & TP Sensor
G00121118Courtesy of GENERAL MOTORS CORP.
Fig 8: Locating Intake Air Temperature & Mass Airflow Sensors
G00121117Courtesy of GENERAL MOTORS CORP.

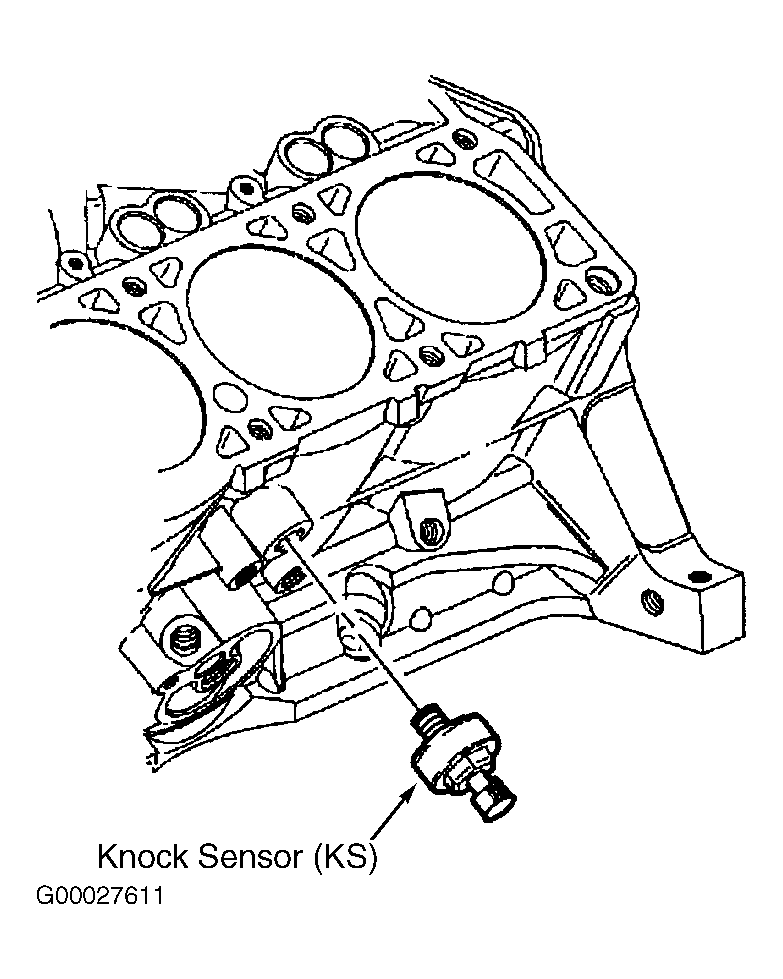

Fig 9: Locating Knock Sensor
G00027611Courtesy of GENERAL MOTORS CORP.

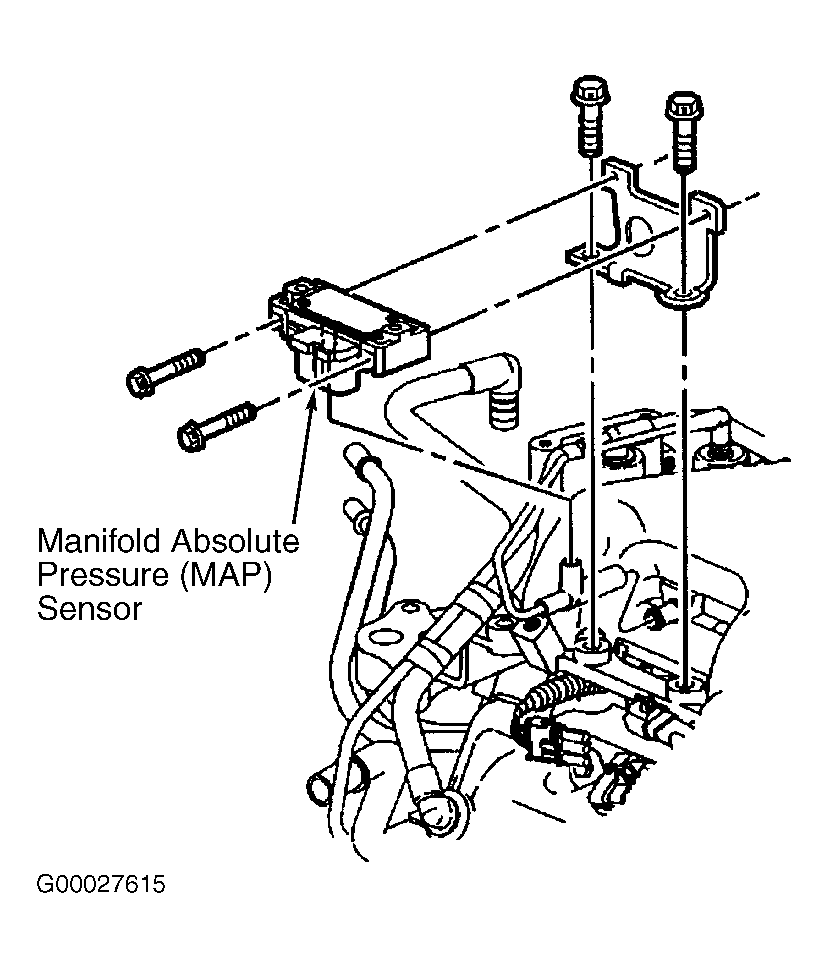

Fig 10: Locating MAP Sensor
G00027615Courtesy of GENERAL MOTORS CORP.

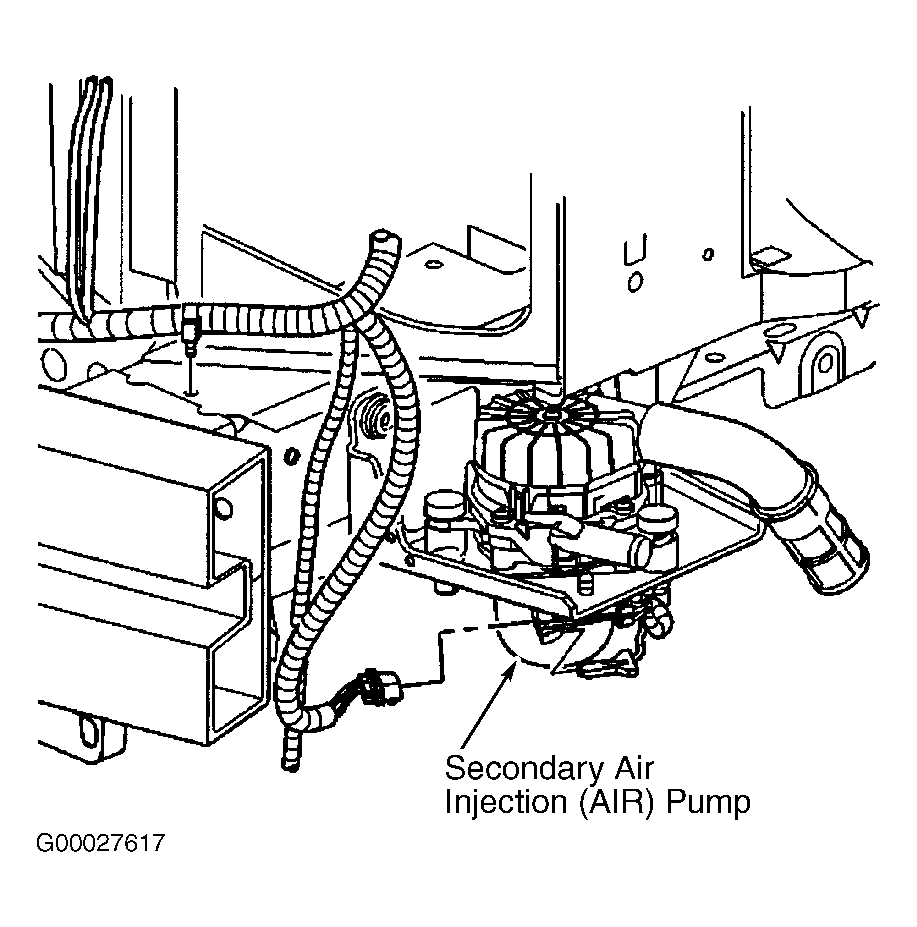

Fig 11: Locating Secondary Air Injection Pump
G00027617Courtesy of GENERAL MOTORS CORP.
