Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure includes all door modules.

Remove door trim panel. See DOOR LOCKS - AURORA article.
Disconnect harness connectors and remove door trim panel. Disconnect harness connectors from door module. Remove door module fasteners and door module. See Fig 1.
To install, reverse removal procedure. Tighten door module fasteners to 62 INCH Lbs. (7 N.m).

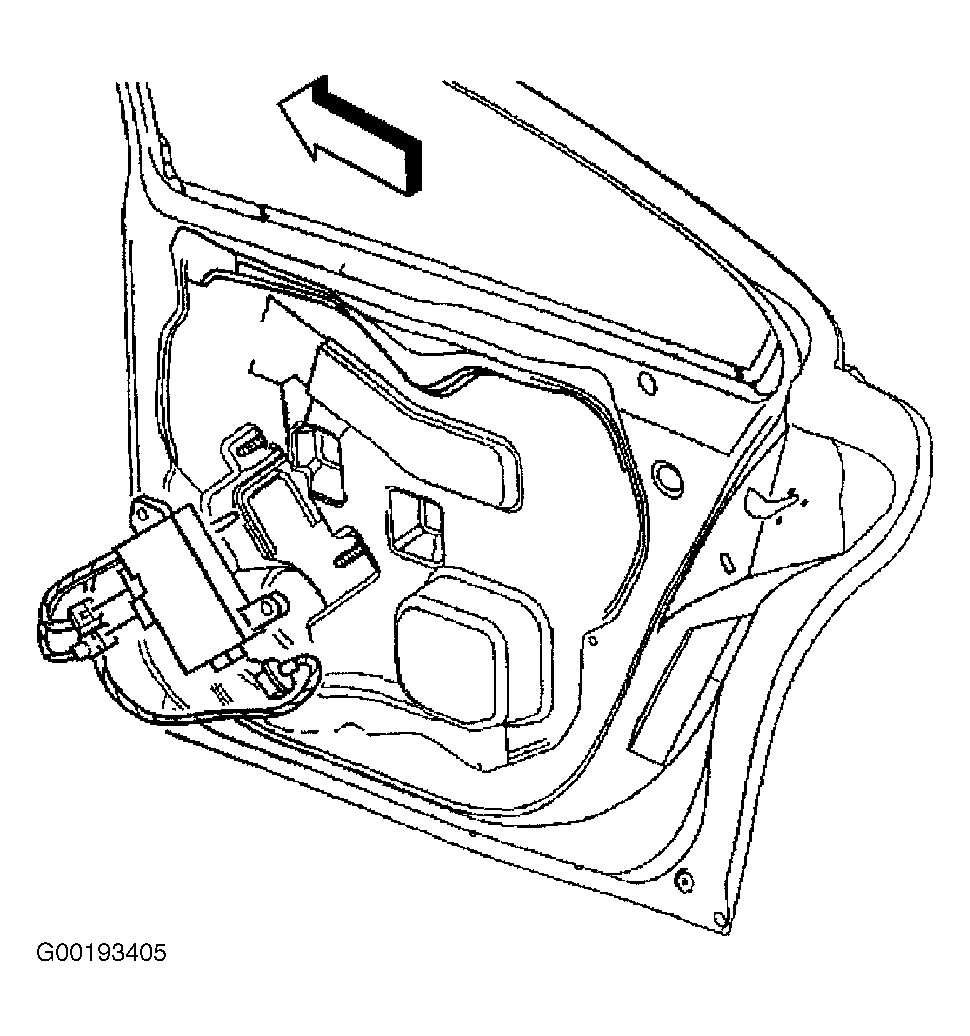

Fig 1: Removing Door Module

Courtesy of GENERAL MOTORS CORP.
