Preliminary Inspection

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Verify customer complaint by operating suspected system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses. For fuse and/or relay identification, refer to illustrations. See Fig 1, Fig 2, Fig 3 and Fig 4 . Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is found, perform self-diagnostics. See SELF-DIAGNOSTIC SYSTEM .

Fig 1: Identifying Rear Fuse Block Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Rear Fuse Block Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

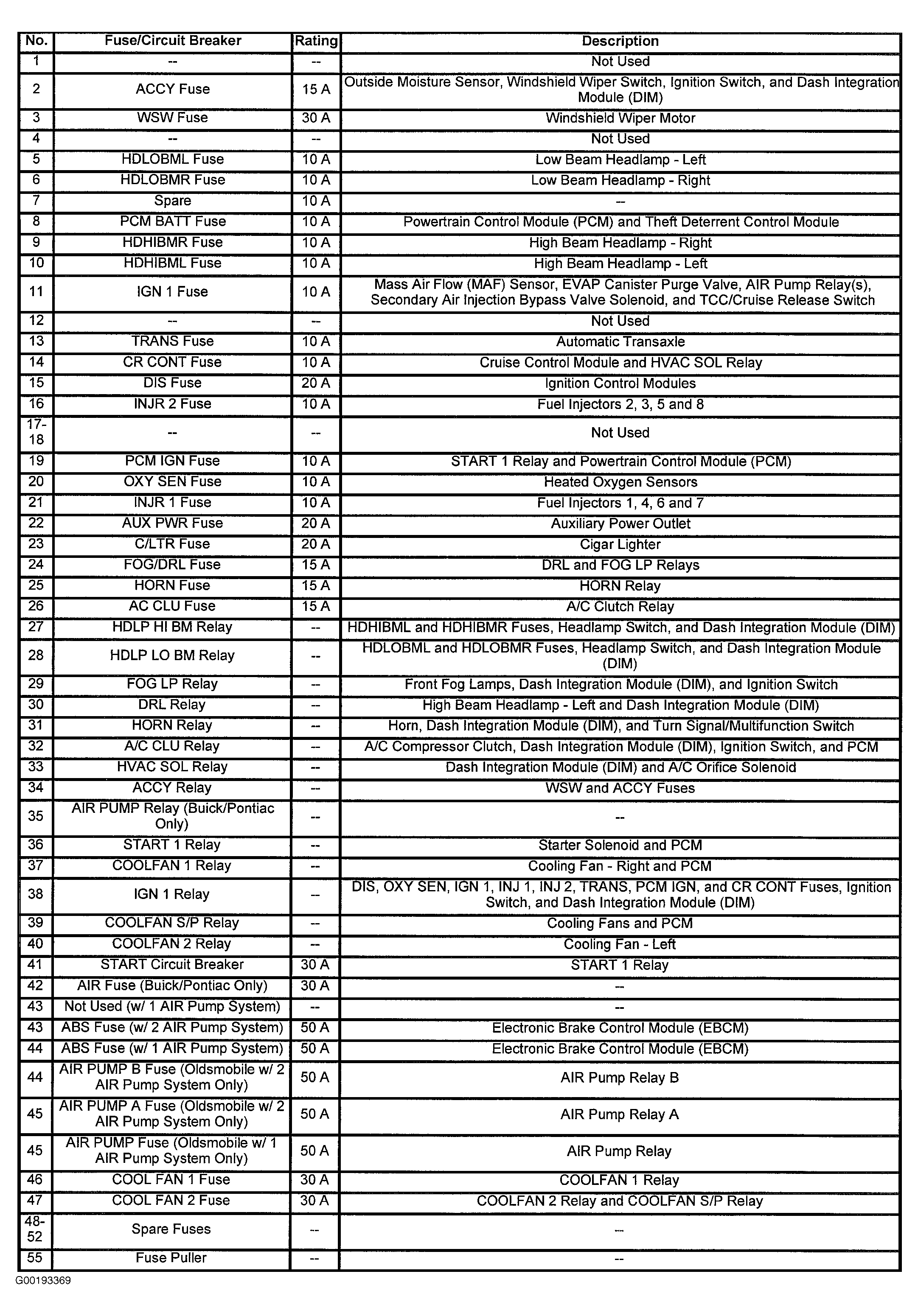

Fig 3: Identifying Underhood Fuse Block Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

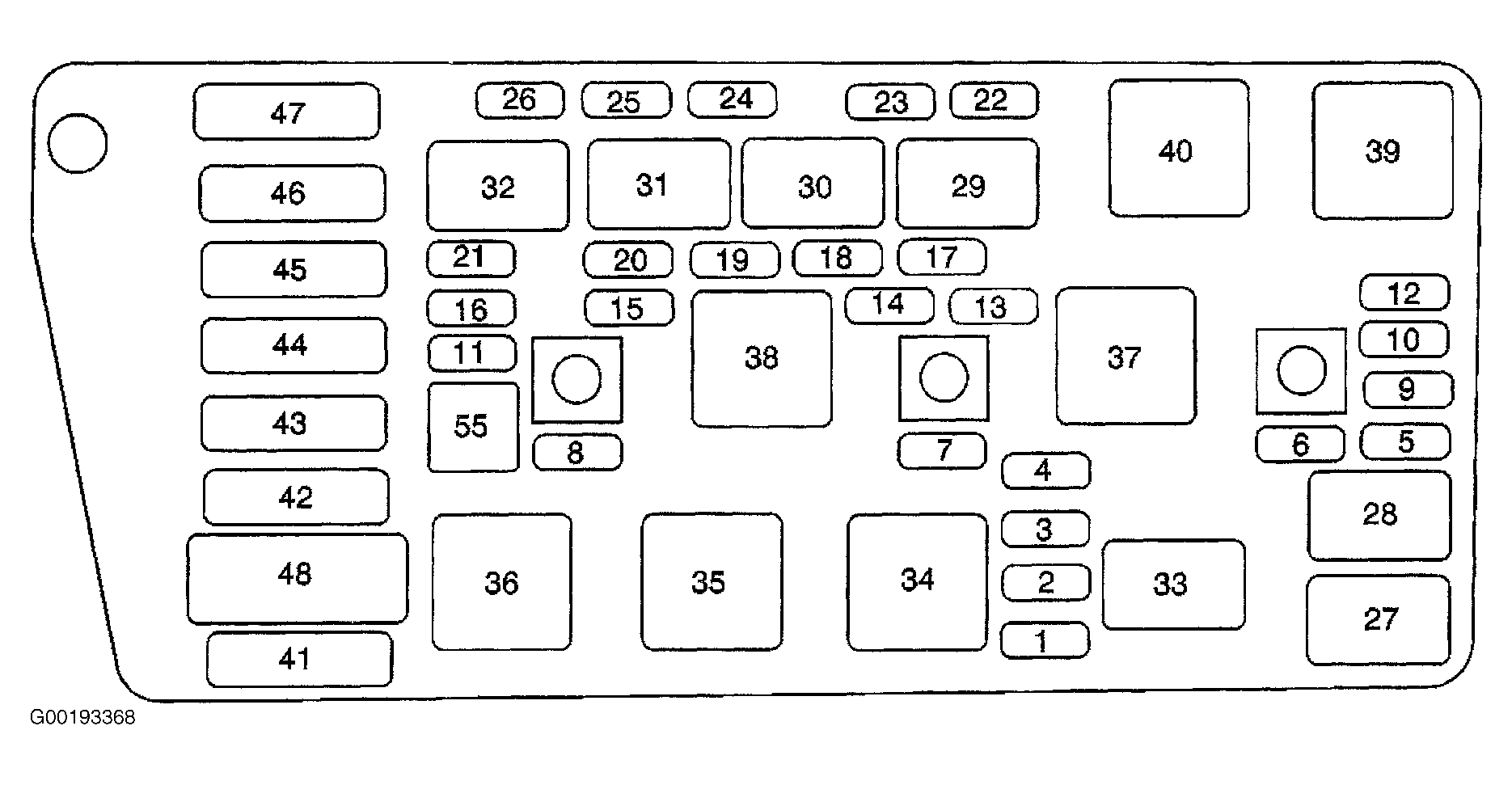

Fig 4: Identifying Underhood Fuse Block Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
