Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a dime or a flat-bladed tool into the slot on the side of the transmitter in order to disassemble the transmitter.
  2. Twist the dime or tool in order to separate the halves.
  3. Remove the battery from the transmitter.

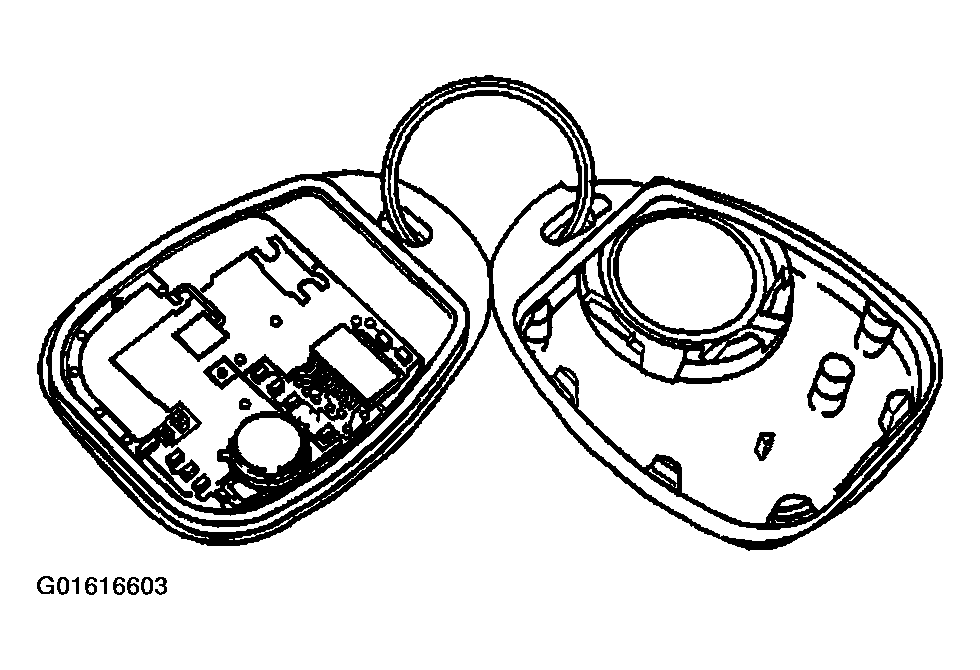

    Fig 1: Transmitter & Battery
    G01616603Courtesy of GENERAL MOTORS CORP.
