Seat Belt Connector End Views

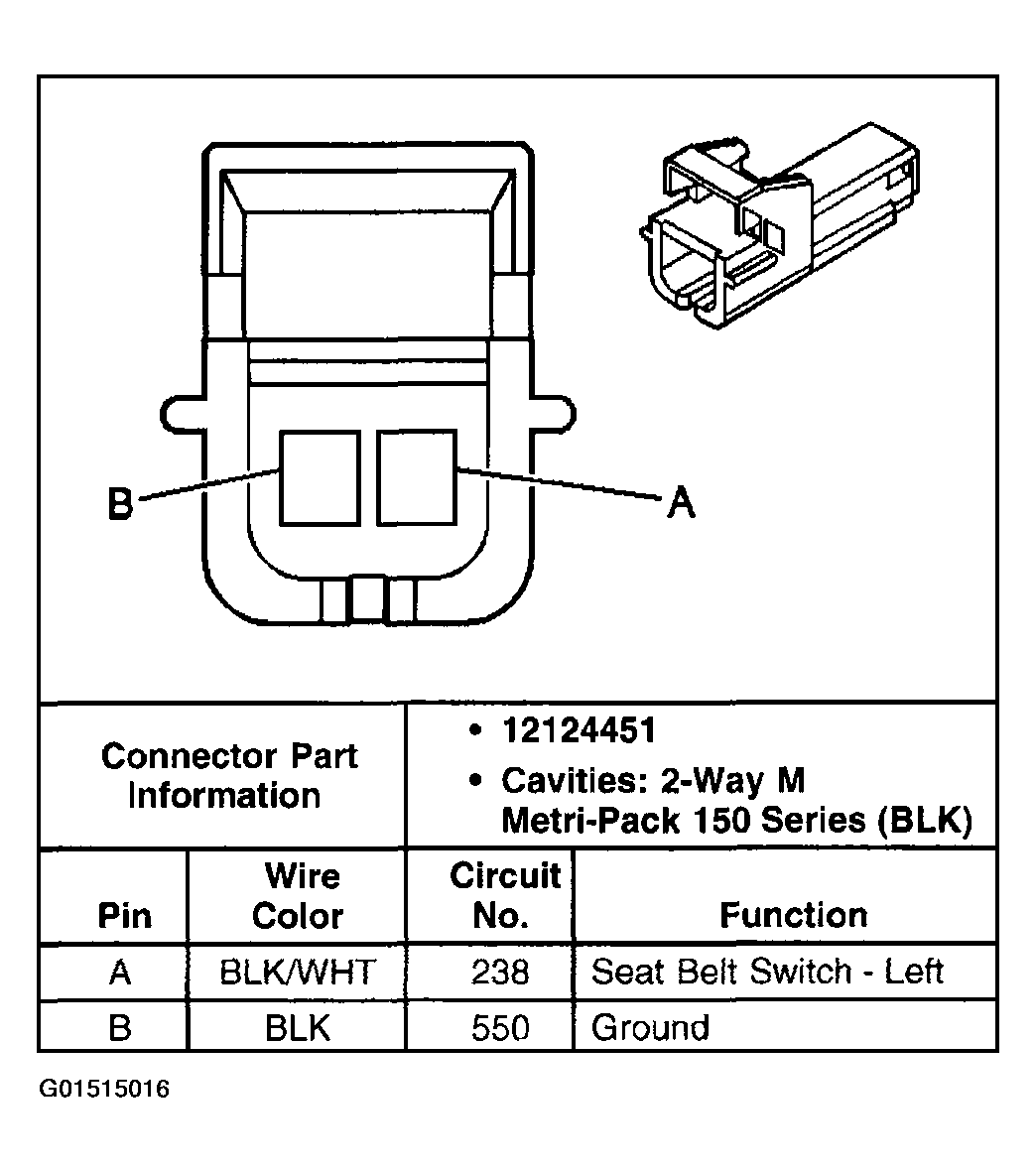

Fig 1: Identifying Seat Belt Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
