Installation Procedure

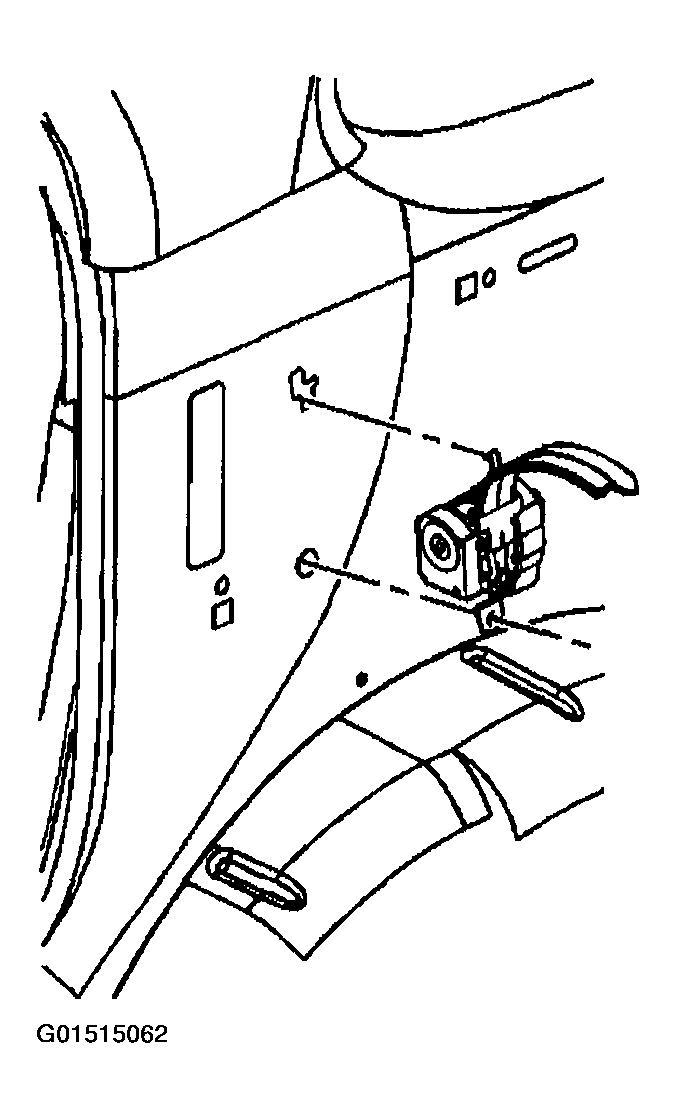

Install the rear seat belt retractor to the rear quarter inner panel.

Fig 1: Installing Procedure Of Seat Belt Retractor - Rear (1 Of 6)
Courtesy of GENERAL MOTORS CORP.

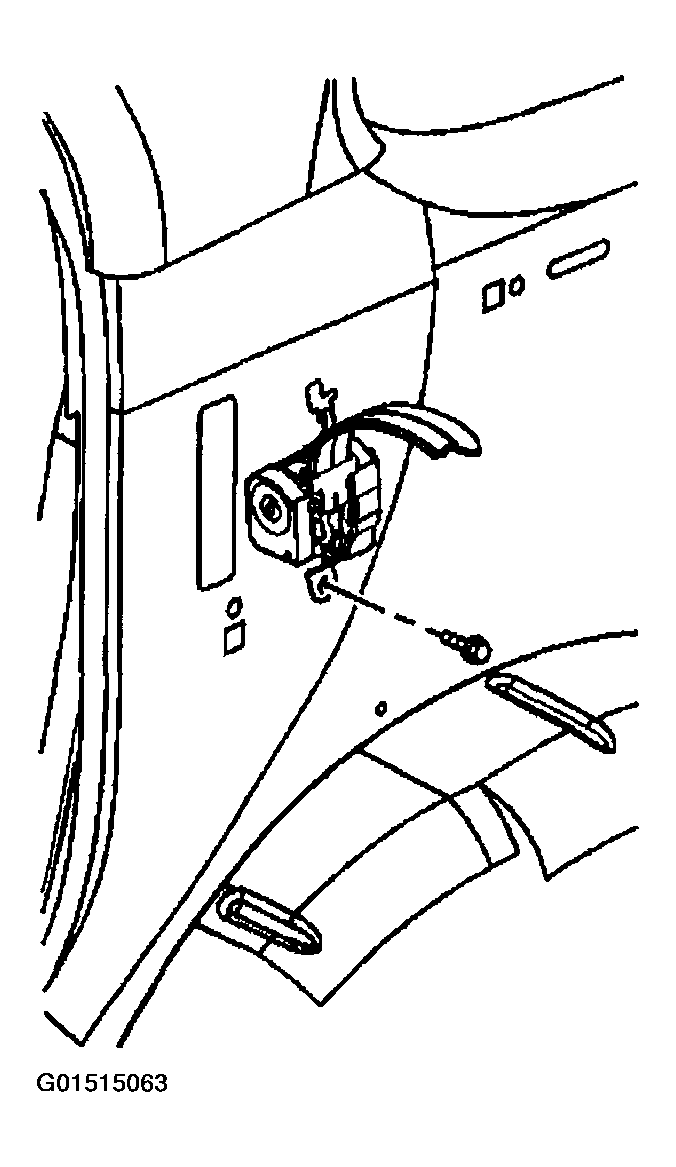

Install the bolt to the rear seat belt retractor.
Tighten

Tighten the rear seat belt retractor bolt to 42 N.m (31 lb ft).

Fig 2: Installing Procedure Of Seat Belt Retractor - Rear (2 Of 6)
Courtesy of GENERAL MOTORS CORP.
Install the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (AZTEK) or TRIM PANEL REPLACEMENT -- REAR QUARTER LOWER (RENDEZVOUS) .

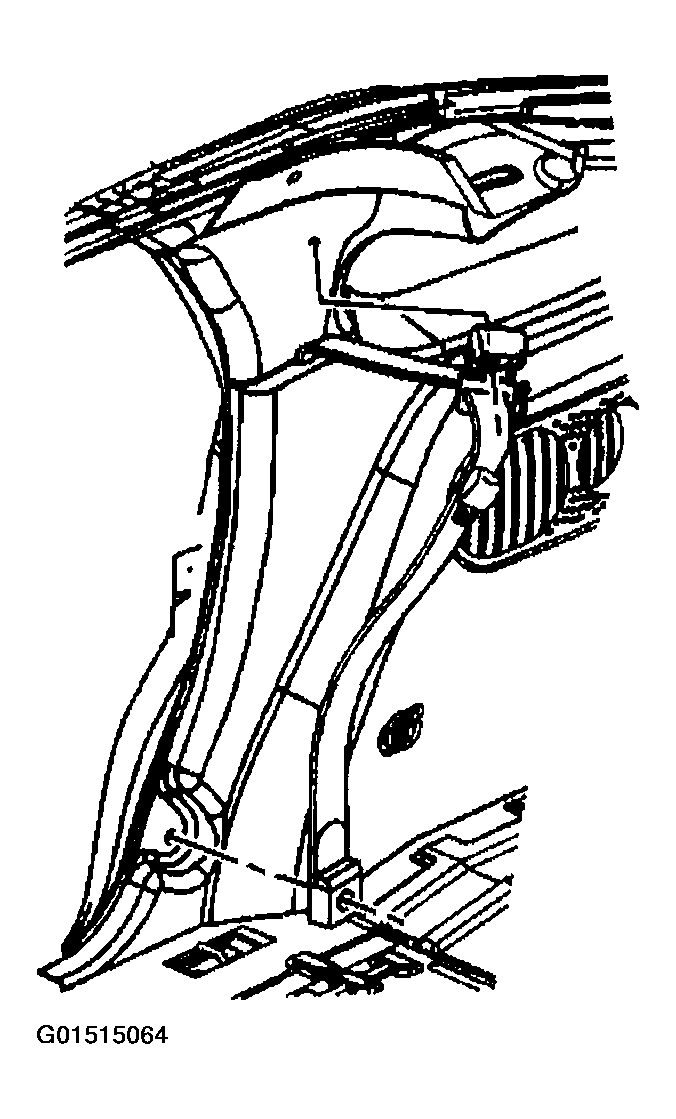

Place the rear seat belt lower anchor to the lower rear quarter lower trim panel.

Fig 3: Installing Procedure Of Seat Belt Retractor - Rear (3 Of 6)
Courtesy of GENERAL MOTORS CORP.

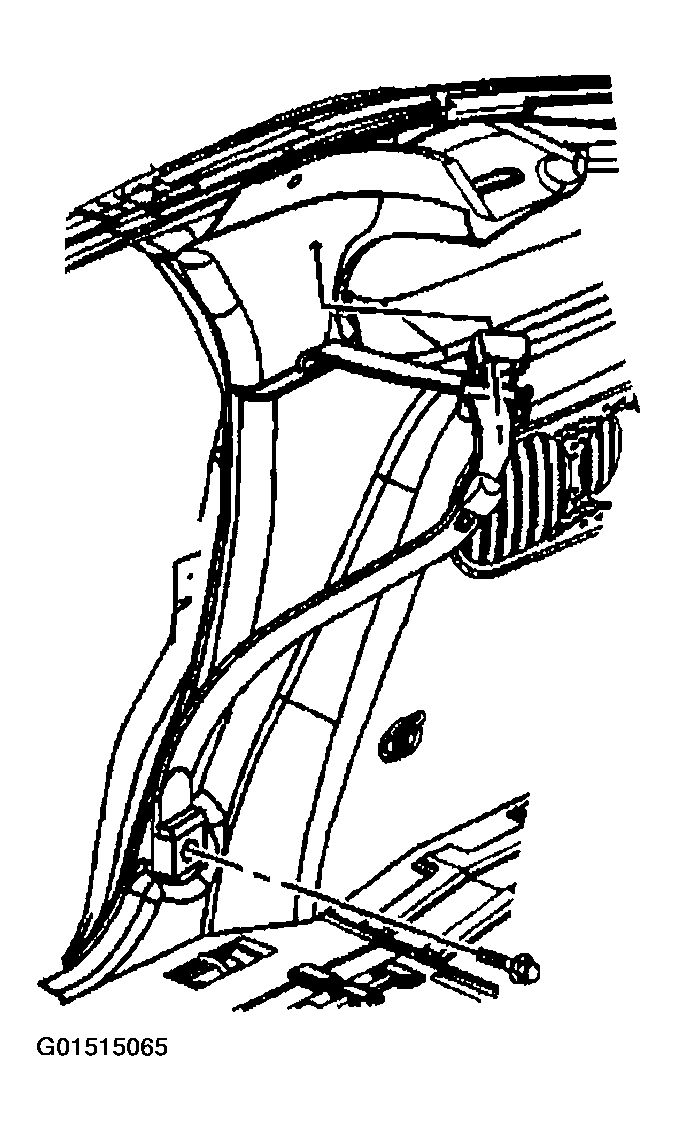

Install the bolt to the rear seat belt lower anchor.
Tighten

Tighten the rear seat belt lower anchor bolt to 42 N.m (31 lb ft).

Fig 4: Installing Procedure Of Seat Belt Retractor - Rear (4 Of 6)
Courtesy of GENERAL MOTORS CORP.
Place the seat belt guide loop to the pillar.

Fig 5: Installing Procedure Of Seat Belt Retractor - Rear (5 Of 6)
Courtesy of GENERAL MOTORS CORP.

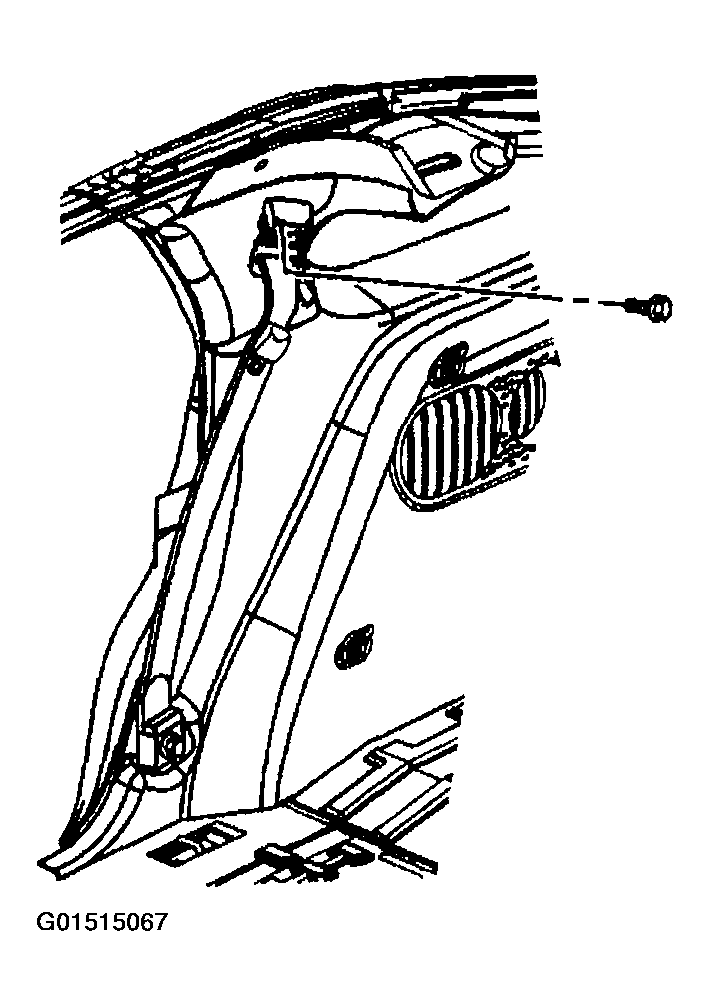

Install the bolt to seat belt guide loop.
Tighten

Tighten the rear seat belt guide loop bolt to 42 N.m (31 lb ft).

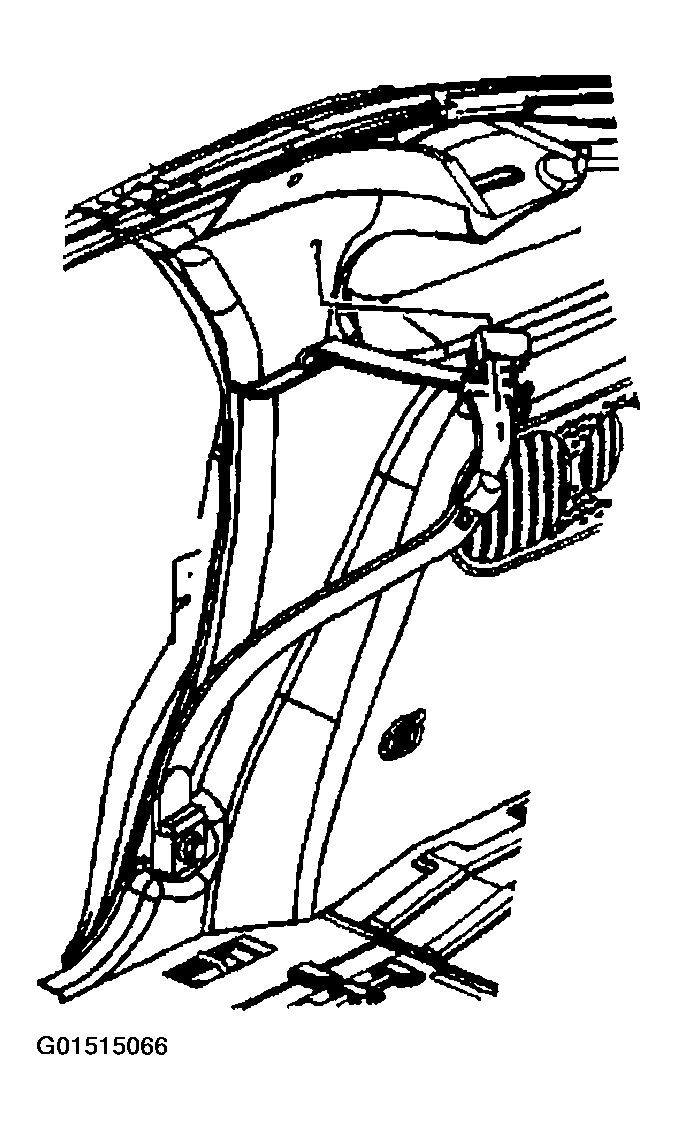

Close the seat belt guide loop cover.

Fig 6: Installing Procedure Of Seat Belt Retractor - Rear (6 Of 6)
Courtesy of GENERAL MOTORS CORP.
